Joseph Miles Milano Horizontal Mild Steel 2-Column Radiator, 300mm High

Joseph Miles Milano Details

MFC: JM-CS33018

Compatible Valves

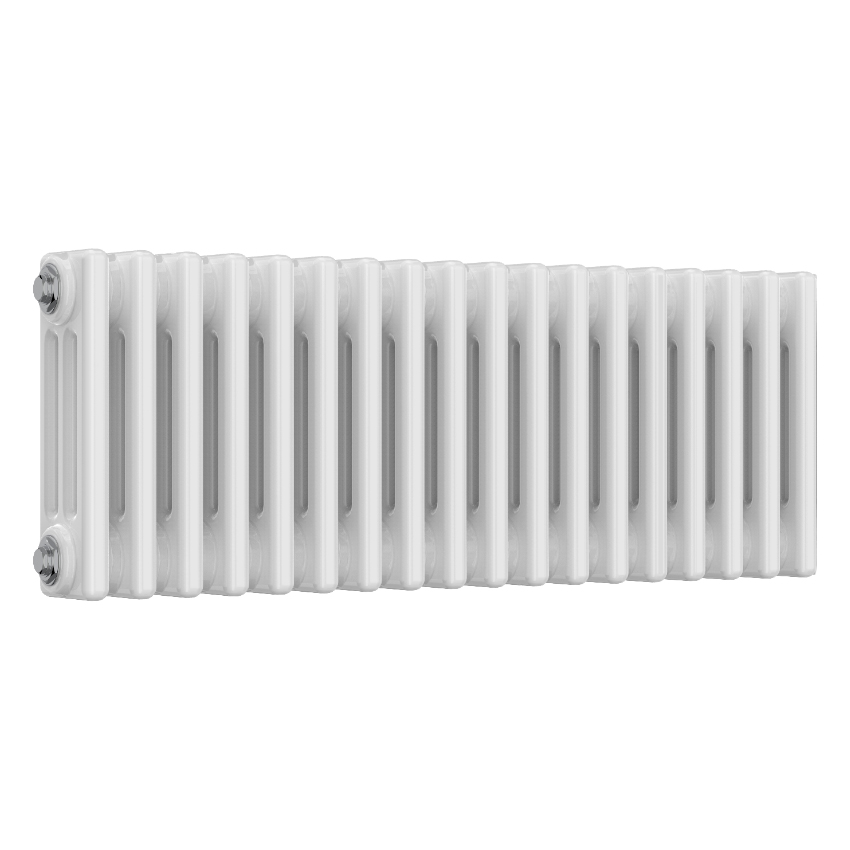

Joseph Miles Milano Horizontal Traditional 2-Column Radiator - Mild Steel - 300mm High.

Key Features

✔Finish: White
✔Orientation: Horizontal / Wall Mounted
✔Manufactured using Mild Steel
✔Style: Traditional
✔Column: 3
✔5-Year Guarantee from Reina Against Manufacturing Defects

Choice of Widths: 830mm, 965mm, 1190mm and 1370mm
Suitable for Central Heating, Dual Fuel and Electric Systems [Optional]
Choice of Heating Elements: Standard, On/Off Touch, Thermostatic: LST Mini Round, Mini Round, Touch, LST Weekly, Weekly and Square Thermostatic Wifi
Height: 300mm [30cm]
Wall to Pipe Centres: 68mm [6.8cm]
Distance from Wall: 118mm [11.8cm]
Section: 830mm: 18, 965mm: 21 and 1190mm: 26, 1370mm: 30
EN442 Compliant Product
Brackets for Radiator Included
Supplied with Air Vent and End Plug
Suitable to use with Reina Valves and Heating Elements [Optional]
For the Dual Fuel and Electric Model, Heating Elements are Highly Recommended in Combination with T-Piece
For Electric Models, Optional Liquid Filling is Required with a Heating Element
The Image Shown is for Illustration Purposes Only
Full Heat Output Data (Watts/BTU Across ΔT Values) is Provided in the Manufacturer Technical Datasheet - Please Refer to the PDF Below
Refer to the Technical Diagram for Complete Technical Details
The Valves Shown in the Image are not Included

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Range
: Milano
⤷ Colour
: White
⤷ Weight in kg
: 15.6
⤷ Warranty/Guarantee
: 5 Years
⤷ Material
: Mild-Steel
⤷ Theme
: Traditional
⤷ Installation Type
: Wall Mounted
⤷ Projection (Depth)
: 118
⤷ Width
: 830
⤷ Height
: 300
⤷ Fixings included
: Yes

⤷ Orientation
: Horizontal
⤷ Compliance/Approvals/Standard
: EN442 Compliant
⤷ Barcode
: 8800161380025
⤷ Tapping / Pipe Centres
: 830
⤷ Valves Included
: Sold Separately
⤷ Fuel Type
: Central Heating | Dual Fuel | Electric
⤷ Heating Element Included
: Sold Separately
⤷ Brackets Included
: Yes
⤷ No. of Columns
: 3
⤷ No. of Sections
: 18

Additional Info & Downloads

Download the Manuals Pdf File

This item can also be found in:

Joseph Miles Milano Horizontal Traditional 2-Column Radiator - Mild Steel - 300mm High

£115.09

RRP: ~~£207.00~~

Stock Availablity: 2-3 Working Days Approx

QS Supplies

Product Variations Info & MFC Code

Size (Width x Height)	830 x 300	965 x 300	1190 x 300	1370 x 300
Fuel Type	Central Heating \| Dual Fuel \| Electric	Central Heating \| Dual Fuel \| Electric	Central Heating \| Dual Fuel \| Electric	Central Heating \| Dual Fuel \| Electric
Height (mm)	300	300	300	300
Width (mm)	830	965	1190	1370
Colour	White	White	White	White
Orientation	Horizontal	Horizontal	Horizontal	Horizontal
Column No	3	3	3	3
Section/Tube Qty	18	21	26	30
Pipe Centres (mm)	830	965	1190	1370
Wall To Pipe Centres (mm)	68	68	68	68
Wall Distance (mm)	118	118	118	118
Weight (KG)	15.6	18	22.03	25.5
BTU - Delta T30	991	1155	1430	1651
Watts - Delta T30	291	339	419	484
BTU - Delta T50	1902	2218	2746	3168
Watts - Delta T50	558	650	805	929
Joseph Miles SKU	JM-CS33018	JM-CS33021	JM-CS33026	JM-CS33030

6 Features Included In This Product Explained

EN442 Compliant

This European Standard defines procedures for determining the standard thermal outputs and other characteristics of radiators and convectors fed with water or steam systems at temperatures lower than 120 degrees celsius from a remote energy source.

Mild Steel

Mild Steel is the most common radiator material. It is inexpensive, available in a variety of designs and finishes, lightweight and durable.

Optional: Dual Fuel

These radiators or towel warmers can run on a conventional gas-powered central heating system or via your mains electrical supply. You can choose whether or not you want your radiator or towel warmer to come on independently of your central heating system, which is especially useful in summer. These radiators are compatible with heating and hot water, whether the system is open (direct) or closed (indirect).

Electric Only

Electric Only options are independent units requiring a fused spur electric connection. These radiators and towel warmers are powered by the mains electrical supply instead of a gas boiler. You can turn on each radiator or towel warmer as and when you need them.
Read more...

Air Vent

An air vent or a radiator air valve or bleed valve, is a small part of the radiator. Its role is to release trapped air or gases from inside the radiator, keeping the appliance heating efficiently and evenly. An Air vent can be an automatic air vent or manually opened to release air and are made of metal or plastic.

BTU Output

It is the short form of a British thermal unit (BTU or Btu) and is defined as the amount of heat required to raise the temperature of one pound of water by one degree Fahrenheit. It is a standard unit against which radiator efficiency is measured.
Read more...
