Grohe Rapid SL 5-In-1 Frame Set with WC Pan and Soft Close Seat, 36503000

Grohe Rapid SL Details

MFC: 36503000

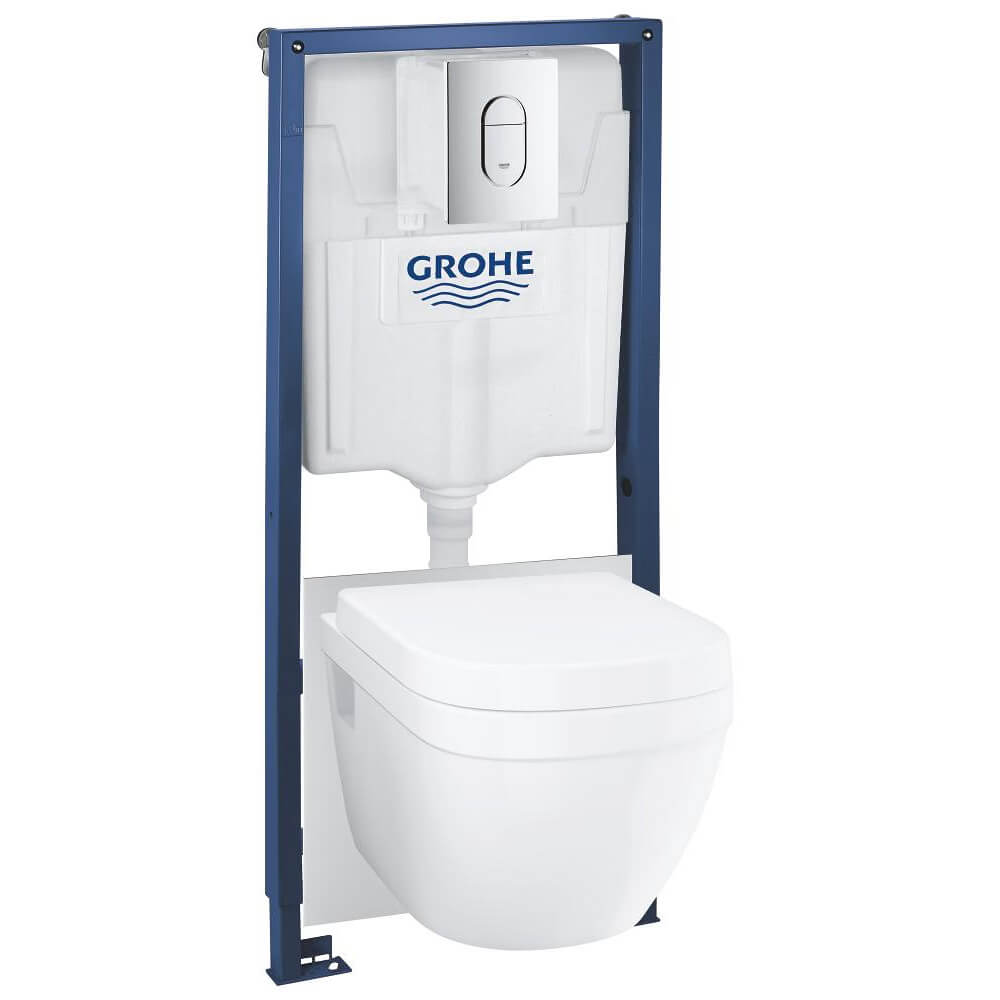

Grohe Rapid SL 5-In-1 Frame Set with WC Pan and Soft Close Seat.

Refer to the Technical Diagram for Complete Technical Dimensions
Download the Product Data Sheet PDF from the Additional Info Section
Pack Includes:

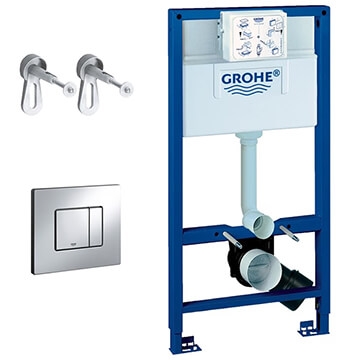

WC Frame with Dual Flush Cistern - 38528001
Wall Hung WC Pan - 39538000
Soft Close Seat and Cover - 39330002
Dual Flush Plate - 38844000
Noise Protection Set - 37131000
Features of WC Frame with Dual Flush Cistern:
TÜV Approved
Ideal for On-the-Wall Installations or Studded Walls
Self-Supporting Powder Coated Steel Frame
Included Dual Flush Concealed Cistern
Size of Frame in [mm]: 500 x 1130mm [Width x Height]
Size of Frame in [cm]: 50 x 113cm [Width x Height]
Distance of Fixing Bolts: 180mm/230mm
Outlet Bend: Ø90mm [Ø9cm]
Reducer: Ø90mm/110mm
Water Supply from Left/Right or Back
Insulated Against Condensation
1/2 inch Water Supply Connection, Including Integrated Angle Valve and Push-Fit Flexible Hose Union
Cistern Features Dual Flush Mechanism, Half Flush of 6 ltr and Full Flush of 9 ltr
Water Consumption will be Reduced by up to 50% by the GROHE Water Saving Dual Flush System
GROHE Whisper Noise Control Reduces Sound Transmission Caused by Flushing to Adjoining Rooms
Tested and Certified to Hold Over 400kg, it Provides Perfect Stability and Safety for Your Home
Supplied with 2 Wall Brackets with Fixing Material and a Noise Protection Set for Additional Sound Insulation
Features of Wall Hung WC Pan with Soft Close Seat and Flush Plate:
Pan Material: Ceramic
Toilet Seat Manufactured Using Duroplast Material
Seat Supplied with Stainless Steel Hinges
WC Pan and Seat Comes in an Alpine White Finish
Flush Plate Comes in a Chrome Finish
Flush Plate Size in [mm]: 156 x 197mm [Width x Height]
Flush Plate Size in [cm]: 15.6 x 19.7cm [Width x Height]
Size of WC Pan in [mm]: 374 x 540mm [Width x Projection]
Size of WC Pan in [cm]: 37.4 x 54cm [Width x Projection]
Toilet Seat Supplied with Lid
Seat Features Soft Close Mechanism
Pan Features Horizontal Outlet
CL1 5A + CL2 According to EN997
WC Pan Features Washdown Rimless Technology
No Tools are Required to Connect the Hose, Revision Shaft and Water Supply
Once Mounted, the Wall-Hung Toilet and a Concealed Tank Will Make Your Bathroom Cleaning Easier than Ever

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Colour
: Blue
⤷ Warranty/Guarantee
: 5 Years
⤷ Material
: Powder Coated Steel
⤷ Theme
: Modern
⤷ Cistern Included
: Yes
⤷ Flush Type
: Dual Flush
⤷ Full Flush Volume in litres
: 9

⤷ Half Flush Volume in litres
: 6
⤷ Width
: 500
⤷ Height
: 1130
⤷ Fixings included
: Yes
⤷ Load Bearing Capacity
: 400
⤷ Flush Plate Included
: Yes
⤷ Water Supply Connections
: Left/Right or Back

Additional Info & Downloads

Download the Product Datasheet Pdf File

Grohe Rapid SL 5-In-1 Frame Set with WC Pan and Soft Close Seat

£395.00

RRP: ~~£801.77~~

Stock Availablity: 3-4 Working Days Approx

QS Supplies

6 Features Included In This Product Explained

Dual-Flush

A toilet with a flushing mechanism with two different buttons for flushing solid and liquid waste, thereby saving water.

Soft-Close Seat

Soft-closing seats are a new alternative to classic seats. Their modern design hinges allow them to close slowly and gently.

Rimless

A rimless toilet does not have a brim at its edge, from which the water usually flows when you flush. Instead of flowing from the top, such toilets shoot water towards their edge and around it, allowing no missing spots with filth remaining after a flush. These toilets also remove any spaces for germs to hide and breed, providing a hygienic alternative for your bathroom.

Washdown Model

A washdown toilet uses the weight of the water and gravity to push out the toilet waste from the toilet bowl. The washdown toilet is designed with a short and wide trapway, so that waste can quickly enter the trapway using just the force of water from the tank. A washdown model includes a push-button flush and has a skirted design with a smaller water surface area and a short trapway and can easily handle heavy loads without getting clogged.

Duroplast

It is an artificial material made with a polymer blend invented in Germany. This durable and long-lasting material is most widely used in the manufacture of toilet seats and can also resist harsh cleaners.

Horizontal Outlet

When the pan has piping at the back, inside the wall, it is called a horizontal outlet toilet or pan. As the cisterns are concealed or placed against the wall, most plumbing is hidden out of sight.
