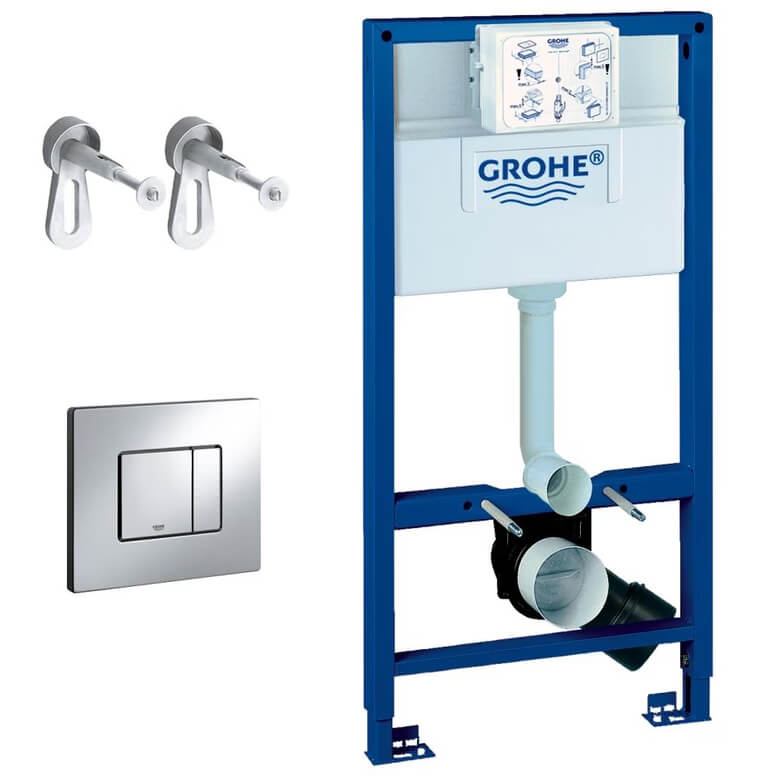

Grohe Rapid SL 3-In-1 Frame Set with Dual Flush Cistern and Flush Plate

Grohe Rapid SL 3-In-1 Frame Set with Dual Flush Cistern and Flush Plate

• Refer to the Technical Diagram for Complete Technical Dimensions
• Download the Product Data Sheet PDF from the Additional Info Section
• Pack Includes:
• WC Frame
• Dual Flush Cistern with Skate Cosmopolitan Flush Plate
• Specification of this Pack:
• Size of WC Frame in [mm]: 500 x 1000mm [Width x Height]
• Size of WC Frame in [cm]: 50 x 100cm [Width x Height]
• Includes Dual Flush Cistern, Half Flush of 3 ltr and Full Flush of 6 ltr
• Ideal for On-the-Wall Installations or Studded Walls
• Self-Supporting Powder Coated Steel Frame
• Ideal for Dry-Cladding, Completely Pre-Assembled
• Incorporates with Fixed Connections
• Supplied with 2 WC Fixing Bolts and Fixing Materials
• TÜV Approved
• Distance of Fixing Bolts: 180mm/230mm
• Outlet Bend: Ø90mm [Ø9cm]
• Reducer: Ø90mm/110mm
• Pneumatic Discharge Valve Offering 2 Modes of Operation: Dual Flush or Single Flush
• Front/Top Actuation
• Water Supply from Left/Right or Back
• Low Noise (Group I Acc. to German Noise Specification)
• Insulated Against Condensation
• 1/2 inch Water Supply Connection, Including Integrated Angle Valve and Push-Fit Flexible Hose Union
• Size of Flush Plate: 156mm x 197mm [15.6cm x 19.7cm]
• Flush Plate Manufactured Using ABS Material
