Bristan Gummers 15mm Thermostatic Mixing Valve with Isolation, MT503CP-ISO

Bristan Gummers Details

MFC: MT503CP-ISO

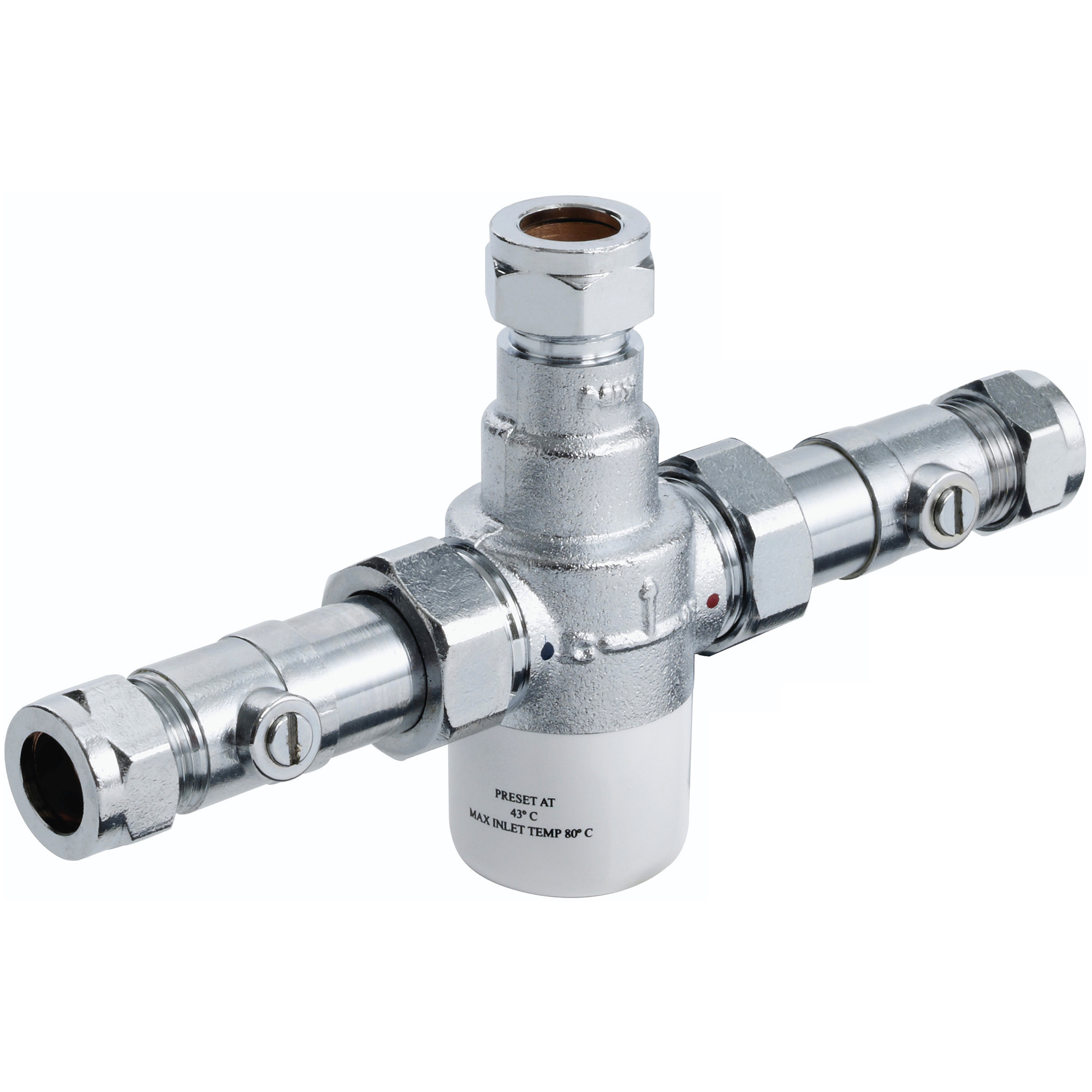

Bristan Gummers 15mm Thermostatic Mixing Valve with Isolation - Chrome.

Manufacturing Code of this Product: MT503CP-ISO
It Comes in a Chrome Finish
Part-G Compliant
Flow Type: Single Flow
Mount Type: In-Line Mounting
Valve/Cartridge Type: Thermostatic
Shower Type: Thermostatic Mixing Valve
Inlet and Outlet Connection: 15mm Compression
Isolation at the Mixing Point Facilitates Easy Servicing
Size [mm]: 200 x 105mm [Width x Height]
Size [cm]: 20 x 10.5cm [Width x Height]
Operates at a Maximum Pressure Differential of 10:1
Suitable for All Plumbing System
Maximum Static Pressure: 10 Bar
Maximum Hot Water Supply Temperature: 80ºC
Suitable for Low and High Water Pressure Systems
Requires a Minimum of 0.1 Bar to a Maximum of 2.0 Bar of Water Pressure
Refer to the Technical Drawing for Size Details
Download the Installation Instruction PDF File From The Additional Info Section

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Range
: Gummers
⤷ Colour
: Chrome
⤷ Shape
: Round
⤷ Warranty/Guarantee
: 1 Years
⤷ Material
: Brass
⤷ Theme
: Modern
⤷ Installation Type
: Wall Mounted
⤷ Valve Included
: Yes
⤷ Valve/Cartridge Type
: Thermostatic
⤷ Overall Height
: 105
⤷ Inlet Connections
: 15mm Compression
⤷ Minimum Operating Pressure (Bar)
: 0.1

⤷ Handle Style
: Knob
⤷ WRAS Approved
: Ye
⤷ Temperature Control
: Thermostatic
⤷ TMV2 Approved
: Yes
⤷ TMV3 Approved
: Yes
⤷ Outlet Connection
: 15mm Compression
⤷ Barcode
: 5057199880758
⤷ Product Type
: Shower Valve
⤷ Plumbing System Compatibility
: Yes
⤷ Plumbing Option
: Concealed
⤷ Overall Width
: 200
⤷ Maximum Operating Pressure (Bar)
: 5

Additional Info & Downloads

Download the Installation Instruction Pdf File

This item can also be found in:

Concealed Shower Valves

Bristan Gummers 15mm Thermostatic Mixing Valve with Isolation - Chrome

£72.50

RRP: ~~£124.00~~

Stock Availablity: 3-4 Working Days Approx

QS Supplies

3 Features Included In This Product Explained

WRAS Approved Product

WRAS Approval means that the particular water fitting or product complies with or meets the requirements specified by the Water Supply (Water Fittings) Regulations or Scottish Byelaws.
Read more...

TMV2 Approved Product

TMV2 is an independent certification for thermostatic mixers, including shower valves, run by BuildCert that ensures national and international standards as specified under (BS EN 1111 and 1287) are met. These standards detail the exacting requirements that a thermostatic valve or product must comply with to guarantee a high thermostatic protection and safety standard. Products meeting this requirement carries the logo and protect against any scalding accidents.

TMV3 Approved Product

TMV3 approval means a thermostatic valve is certified and approved for use in healthcare and commercial situations.
