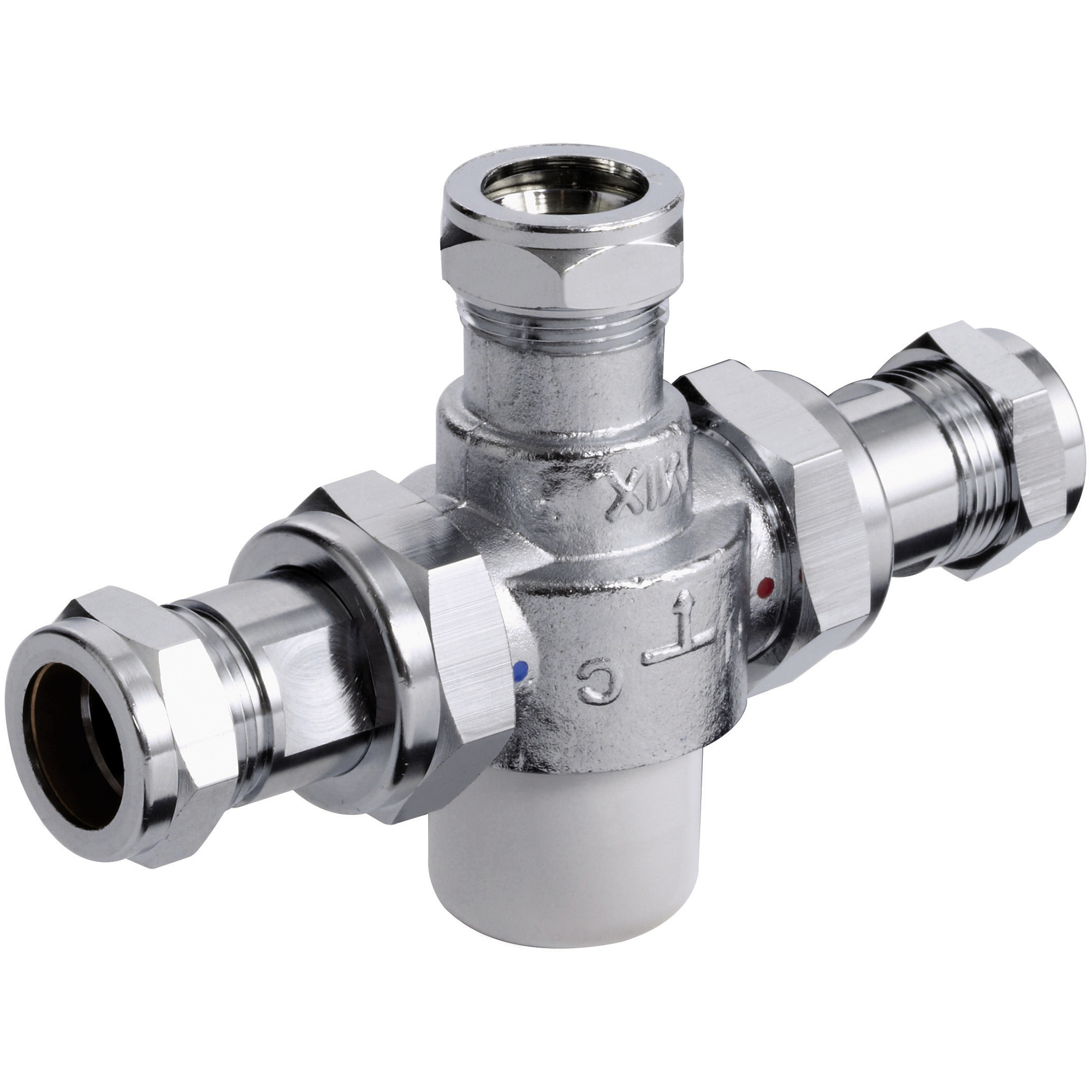

Bristan Gummers 22mm Thermostatic Mixing Valve - Chrome

Not Yet Rated No Rating

Bristan Gummers 22mm Thermostatic Mixing Valve - Chrome
Technical drawing QS-V110623 / MT753CP
QS-V110623 small Image 1
QS-V110623 small Image 2

£59.86

RRP: £59.86
SKU: QS-V110623
Key Features
  • ✔WRAS Approved Product
  • ✔TMV3 and NSF Certified Product
  • ✔Manufactured Using Brass Material
  • ✔1-Year Guarantee from the Manufacturer
  • ✔Automatic Shut off in the Event of Hot or Cold Water Supply Failure
Pay in 3-Interest Free Payments
Shipping

Shipping: £7.95

Stock Availability

Stock Availability:

3-4 Working Days Approx.

Bristan Gummers Details

MFC: MT753CP

Bristan Gummers 22mm Thermostatic Mixing Valve - Chrome.

  • Manufacturing Code of this Product: MT753CP
  • It Comes in a Chrome Finish
  • Part-G Compliant
  • Check Valves and Serviceable Filters as Standard
  • Shower Type: Thermostatic Mixing Valve
  • Inlet and Outlet Connection: 22mm
  • Valve/Cartridge Type: Thermostatic
  • Size [mm]: 165 x 106mm [Width x Height]
  • Size [cm]: 16.5 x 10.6cm [Width x Height]
  • Plumbing Systems Suitability: All Preferably Balanced
  • Dynamic Pressure Range: 5 Bar
  • Maximum Static Pressure: 10 Bar
  • Maximum Hot Water Supply Temperature: 80ºC
  • High and low pressure bath fill applications
  • Requires a Minimum of 0.1 Bar to a Maximum of 5.0 Bar of Water Pressure
  • Check Valve Included: Yes
  • Refer to the Technical Drawing for Size Details
  • Download the Installation Instruction PDF File From The Additional Info Section

Technical Specifications

Please note all the measurements are in 'mm'
  • ⤷ Range
  • : Gummers
  • ⤷ Colour
  • : Chrome
  • ⤷ Shape
  • : Round
  • ⤷ Warranty/Guarantee
  • : 1 Years
  • ⤷ Material
  • : Brass
  • ⤷ Theme
  • : Modern
  • ⤷ Installation Type
  • : Wall Mounted
  • ⤷ Valve Included
  • : Yes
  • ⤷ Valve/Cartridge Type
  • : Thermostatic
  • ⤷ Inlet Connections
  • : 22mm
  • ⤷ Minimum Operating Pressure (Bar)
  • : 0.1
  • ⤷ WRAS Approved
  • : Yes
  • ⤷ Temperature Control
  • : Thermostatic
  • ⤷ TMV3 Approved
  • : Yes
  • ⤷ Outlet Connection
  • : 22mm
  • ⤷ Barcode
  • : 5057199880802
  • ⤷ Product Type
  • : Shower Valve
  • ⤷ Plumbing System Compatibility
  • : Yes
  • ⤷ Plumbing Option
  • : Concealed
  • ⤷ Maximum Operating Pressure (Bar)
  • : 5

Additional Info & Downloads

Download PDFDownload the Installation Instruction Pdf File

This item can also be found in:
Bristan Gummers 22mm Thermostatic Mixing Valve - Chrome
£59.86
RRP: £59.86
Stock Availablity: 3-4 Working Days Approx
QS Supplies

2 Features Included In This Product Explained

WRAS Approved Product

WRAS Approved Product

WRAS Approval means that the particular water fitting or product complies with or meets the requirements specified by the Water Supply (Water Fittings) Regulations or Scottish Byelaws.
Read more...

TMV3 Approved Product

TMV3 Approved Product

TMV3 approval means a thermostatic valve is certified and approved for use in healthcare and commercial situations.
