Joseph Miles Milano Vertical Mild Steel Traditional 2-Column Radiator

Joseph Miles Milano Details

MFC: JM-CS21805

Compatible Valves

Joseph Miles Milano Vertical Traditional 2-Column Radiator - Mild Steel - 1800mm High

Key Features

✔Finish: White
✔Orientation: Vertical / Wall Mounted
✔Manufactured using Mild Steel Material
✔Style: Traditional
✔Column: 2
✔5-Year Guarantee from Reina Against Manufacturing Defects

Choice of Widths: 245mm, 335mm, 425mm, 515mm and 560mm
Suitable for Central Heating Systems Only
Height: 1800mm [180cm]
Wall to Pipe Centres: 68mm [6.8cm]
Distance from Wall: 92mm [9.2cm]
Section: 245mm: 5, 335mm: 7, 425mm: 9, 515mm: 11 and 560mm: 12
EN442 Compliant Product
Brackets for Radiator Included
Supplied with Air Vent and End Plug
Suitable to use with Reina Valves [Optional]
The Image Shown is for Illustration Purposes Only
Full Heat Output Data (Watts/BTU Across ΔT Values) is Provided in the Manufacturer Technical Datasheet - Please Refer to the PDF Below
Refer to the Technical Diagram for Complete Technical Details
The Valves Shown in the Image are not Included

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Range
: Milano
⤷ Colour
: White
⤷ Weight in kg
: 16.6
⤷ Warranty/Guarantee
: 5 Years
⤷ Material
: Mild-Steel
⤷ Theme
: Traditional
⤷ Installation Type
: Wall Mounted
⤷ Projection (Depth)
: 92
⤷ Width
: 245
⤷ Height
: 1800

⤷ Fixings included
: Yes
⤷ Orientation
: Vertical
⤷ Barcode
: 8800161378015
⤷ Tapping / Pipe Centres
: 245
⤷ Valves Included
: Sold Separately
⤷ Fuel Type
: Central Heating
⤷ Volume (ltrs)
: 9.40
⤷ Brackets Included
: Yes
⤷ No. of Columns
: 2
⤷ No. of Sections
: 5

Additional Info & Downloads

Download the Customer DataSheet Pdf File Download the Manual Pdf File

This item can also be found in:

Technical Images

Joseph Miles Milano Vertical Traditional 2-Column Radiator - Mild Steel - 1800mm High

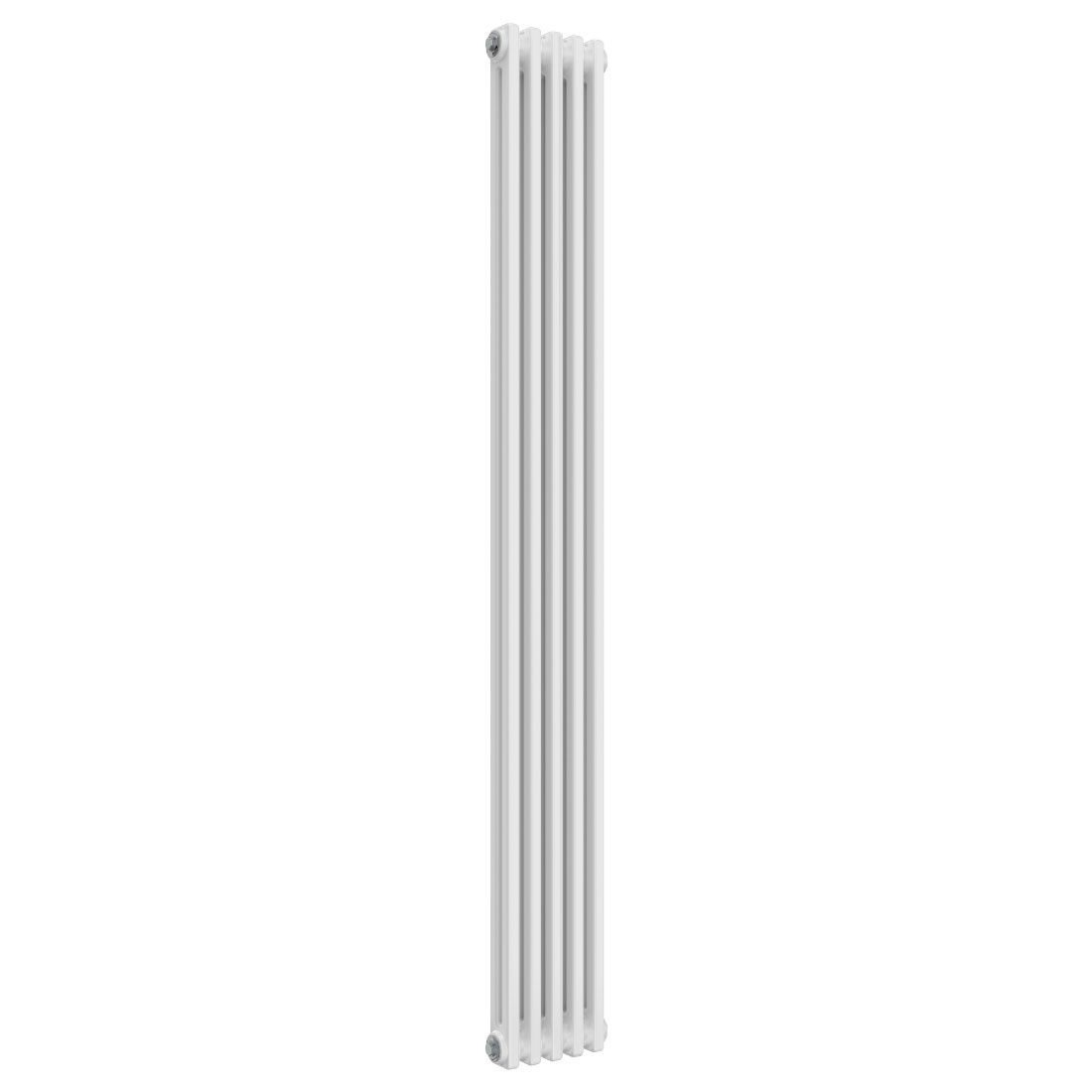

245 x 1800mm

335 x 1800mm

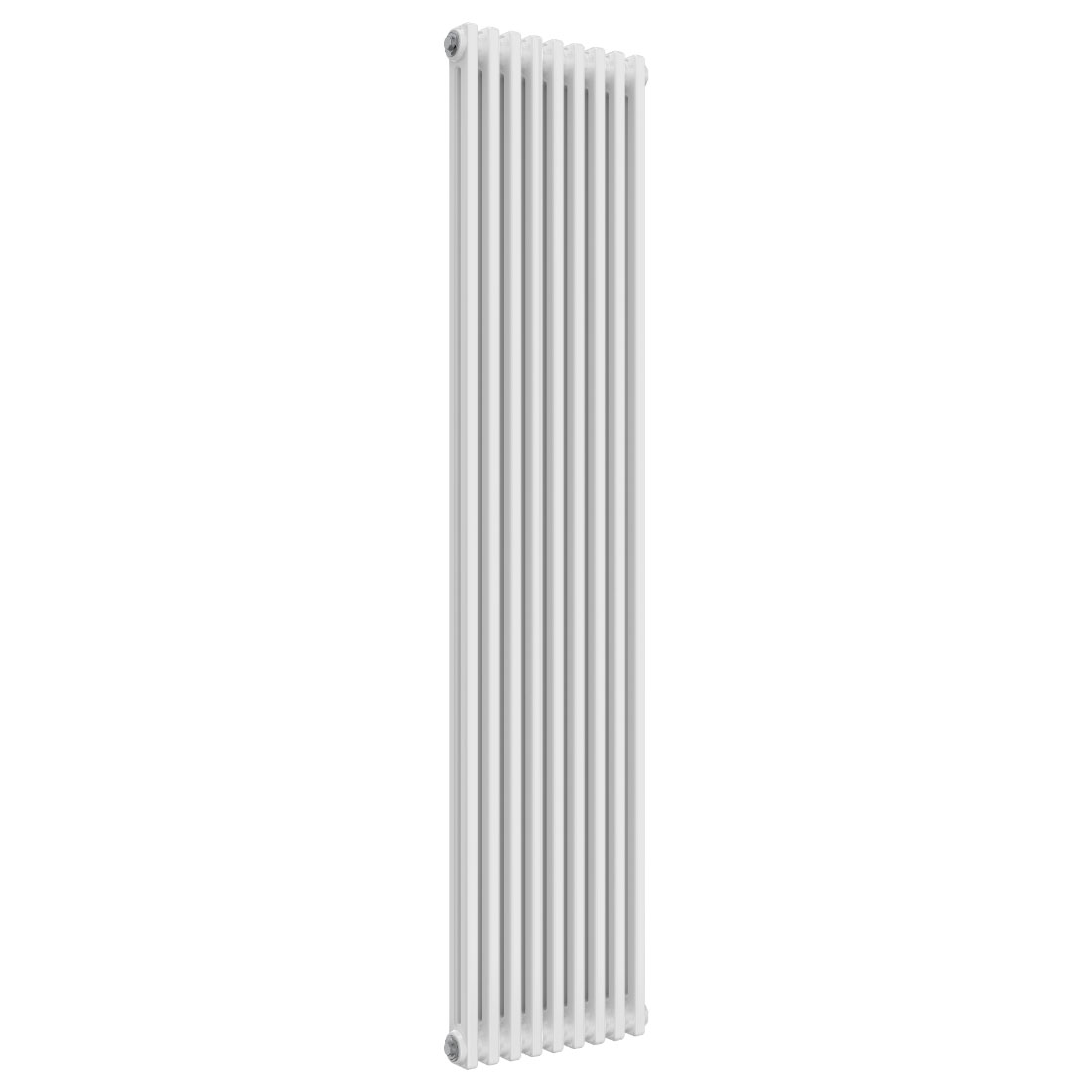

425 x 1800mm

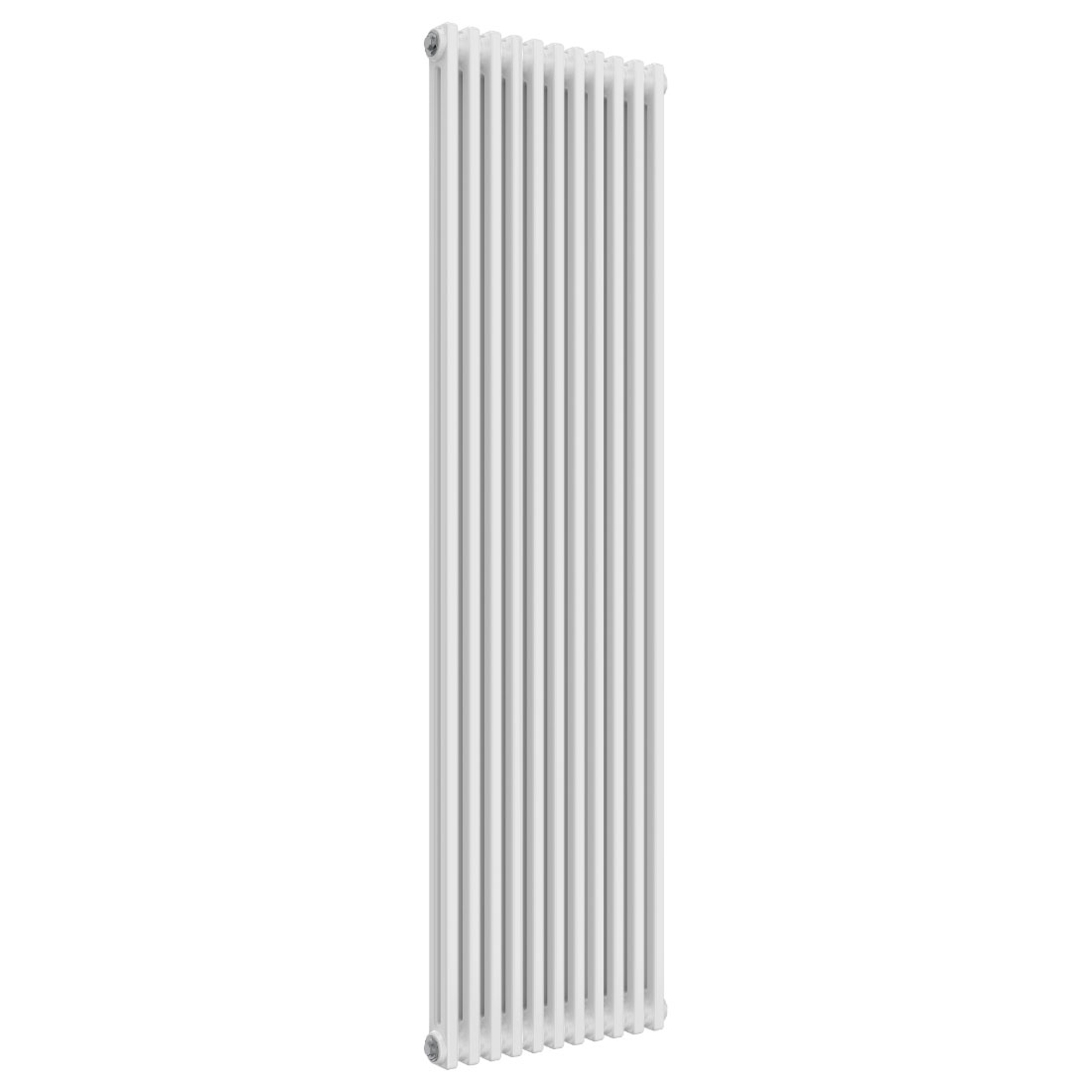

515 x 1800mm

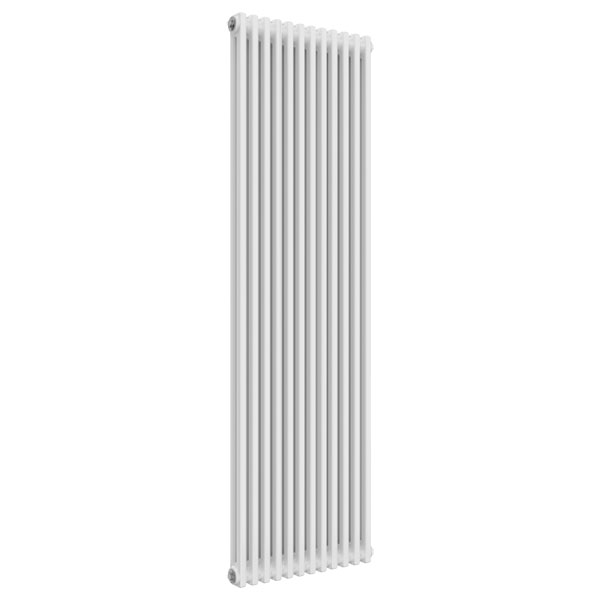

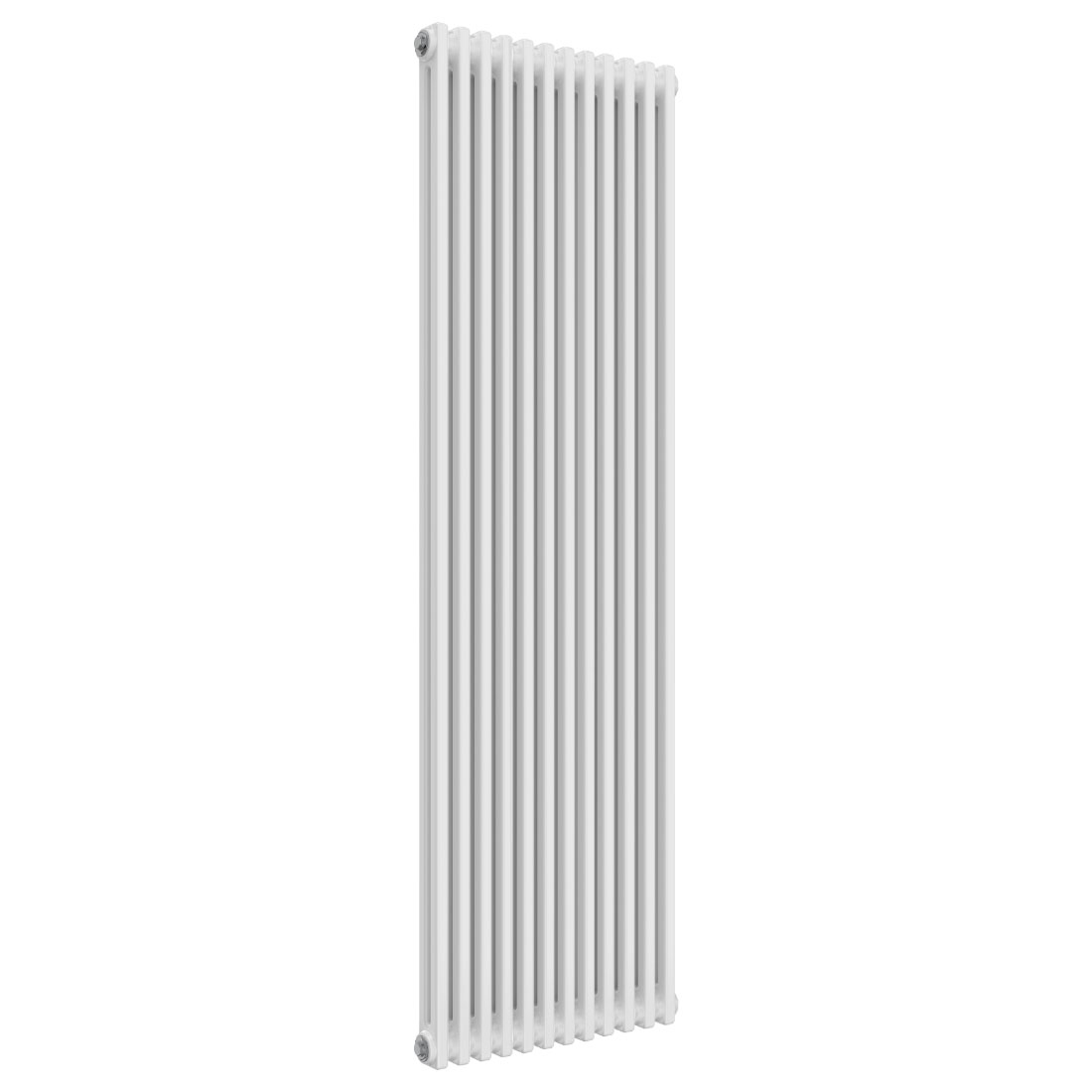

560 x 1800mm

£116.51

RRP: ~~£210.00~~

STOCK AVAILABLITY: 2-3 Working Days Approx

QS Supplies

Product Variations Info & MFC Code

Size (Width x Height)	245 x 1800	335 x 1800	425 x 1800	515 x 1800	560 x 1800
Colour	White	White	White	White	White
Orientation	Vertical	Vertical	Vertical	Vertical	Vertical
Column No	2	2	2	2	2
Section/Tube Qty	5	7	9	11	12
Pipe Centres (mm)	245	335	425	515	560
Wall To Pipe Centres (mm)	68	68	68	68	68
Wall Distance (mm)	92	92	92	92	92
Weight (KG)	16.6	22.84	29.08	35.42	38.64
Fuel Type	Central Heating	Central Heating	Central Heating	Central Heating	Central Heating
BTU ΔT3	1109	1552	1998	2442	2663
Watts ΔT3	325	455	586	716	781
BTU ΔT5	2129	2980	3834	4687	5112
Watts ΔT5	624	874	1124	1374	1499
Joseph Miles SKU	JM-CS21805	JM-CS21807	JM-CS21809	JM-CS21811	JM-CS21812

4 Features Included In This Product Explained

EN442 Compliant

This European Standard defines procedures for determining the standard thermal outputs and other characteristics of radiators and convectors fed with water or steam systems at temperatures lower than 120 degrees celsius from a remote energy source.

Mild Steel

Mild Steel is the most common radiator material. It is inexpensive, available in a variety of designs and finishes, lightweight and durable.

Air Vent

An air vent or a radiator air valve or bleed valve, is a small part of the radiator. Its role is to release trapped air or gases from inside the radiator, keeping the appliance heating efficiently and evenly. An Air vent can be an automatic air vent or manually opened to release air and are made of metal or plastic.

BTU Output

It is the short form of a British thermal unit (BTU or Btu) and is defined as the amount of heat required to raise the temperature of one pound of water by one degree Fahrenheit. It is a standard unit against which radiator efficiency is measured.
