Vado Safari Concealed Manual Shower Valve - Rectangular Trim, SAF-145A-CP

Vado Safari Details

MFC: SAF-145A-CP

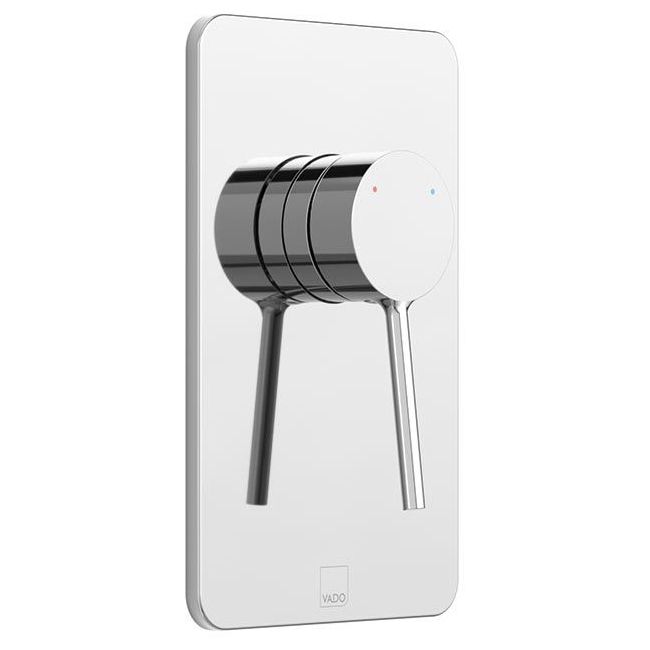

Vado Safari Concealed Manual Shower Valve - Rectangular Trim - 1 Control

Key Features

✔C-006-N35 Ceramic Cartridge
✔Plumbing System Suitability: Gravity, Pumped, Combination Boiler and Pressurised System
✔15 Years of Guarantee from the Manufacturer

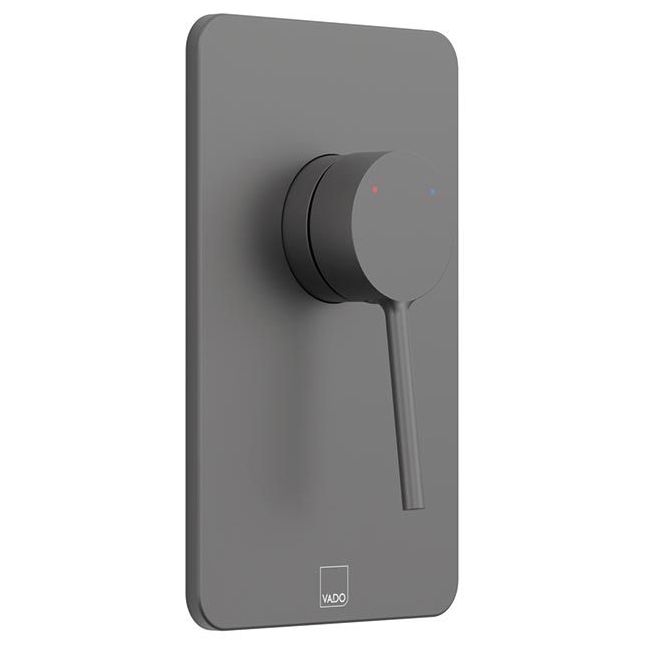

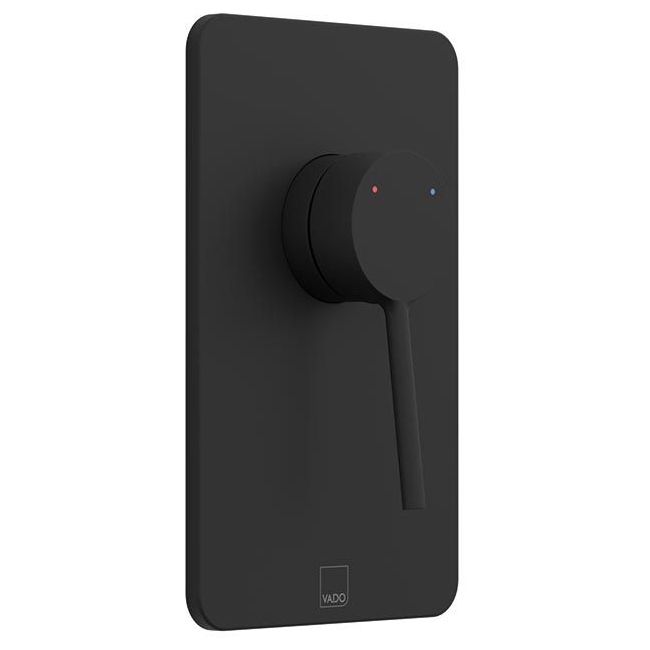

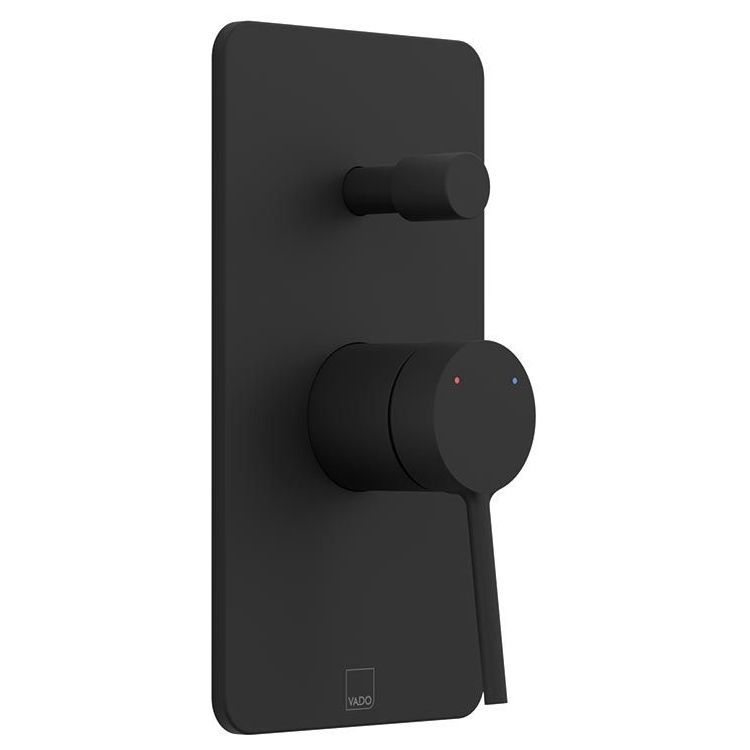

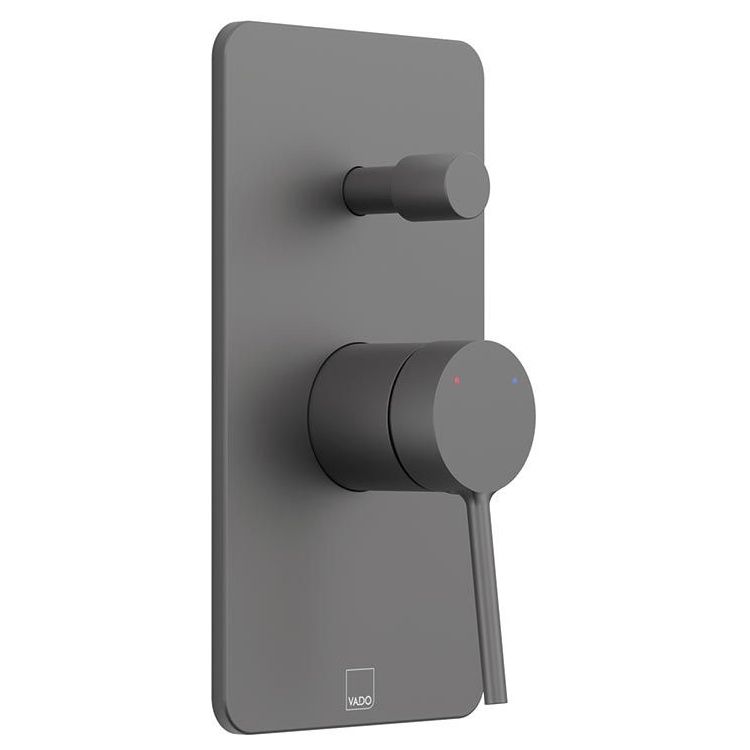

Choice of Finishes: Chrome, Matt Black, Satin Brass and Pewter
Choice of Variants: Without or With Diverter
Single-Lever Control
Concealed Installation
Suitable for Low Water Pressure System
Requires Minimum 0.2 Bar and Maximum 5.0 Bar of Water Pressure
Refer Technical Drawing for Complete Size Details
Download Installation and User Guide PDF from the Additional Info Section
Specifications Of Without Diverter Shower Valve:
1 Outlet Manual Shower Valve
Size: 100 x 107 x 160mm [Width x Depth x Height]
Orientation: Horizontal
Number of Outlets: 1 Outlet
Min-Max Wall Mount: 40-65mm
2 x 1/2" Female Inlets
2 x 1/2" Female Outlets (One is Blanked Off)
Specifications Of With Diverter Shower Valve:

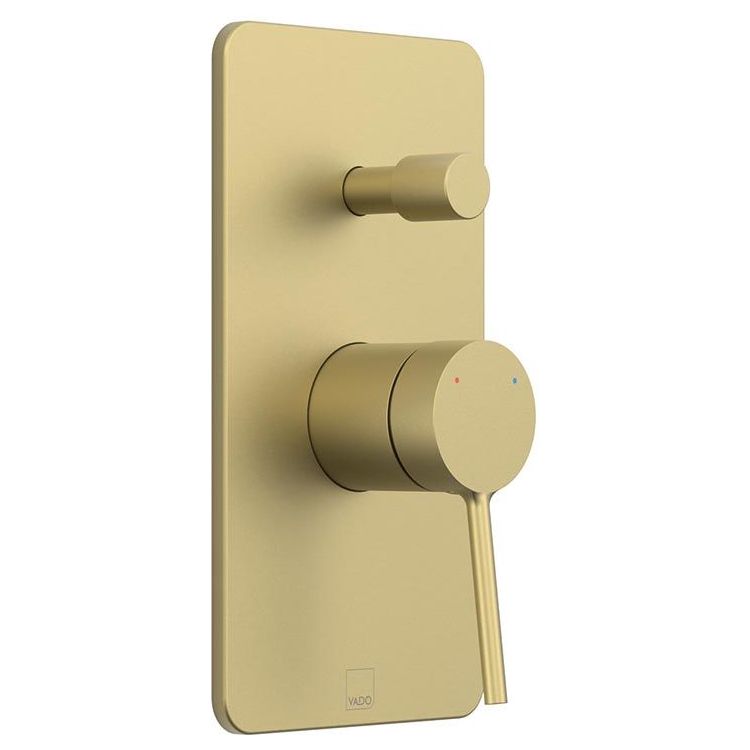

2 Outlet Manual Shower Valve
Comes with Push Button Diverter
Size: 100 x 114 x 185mm [Width x Depth x Height]
Concealed Installation
Orientation: Horizontal
Number of Outlets: 2 Outlet
No of Handles: 1 Handle
Min-Max Wall Mount: 40-65mm
2 x 1/2" Female Inlets
2 x 1/2" Female Outlets

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Range
: Safari
⤷ Colour
: Chrome
⤷ Shape
: Rectangular
⤷ Warranty/Guarantee
: 15 Years
⤷ Theme
: Modern
⤷ Installation Type
: Wall Mounted
⤷ Min-Max Wall Mount
: 40-60
⤷ Minimum Operating Pressure (Bar)
: 0.2
⤷ Handle Style
: Stick
⤷ Depth
: 107
⤷ Backplate Width
: 100

⤷ Backplate Height
: 160
⤷ Control Type
: Manual
⤷ Number of Handles
: 1
⤷ Number of Outlet
: 1
⤷ Orientation
: Horizontal
⤷ Barcode
: 5052120296073
⤷ Plumbing System Compatibility
: Gravity, Pumped, Combination Boiler, Pressurised
⤷ Maximum Operating Pressure (Bar)
: 5.0
⤷ Cartridge Included
: Yes
⤷ Cartridge Type
: Ceramic

Additional Info & Downloads

Download the Installation Instruction For Valve Without Diverter Pdf File Download the Installation Instruction For Valve With Diverter Pdf File Download the User Guid For Valve Without Diverter Pdf File Download the User Guid For Valve With Diverter Pdf File

This item can also be found in:

Technical Images

Vado Safari Concealed Manual Shower Valve - Rectangular Trim - 1 Control

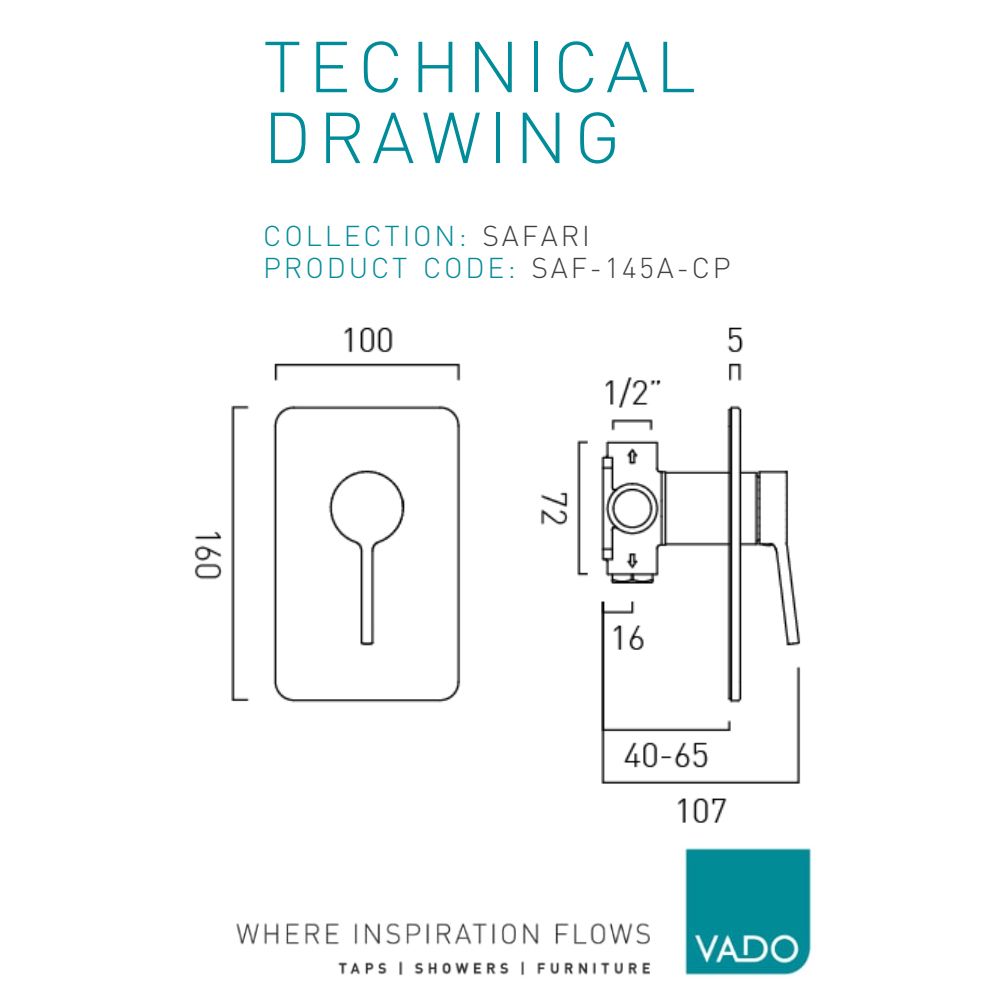

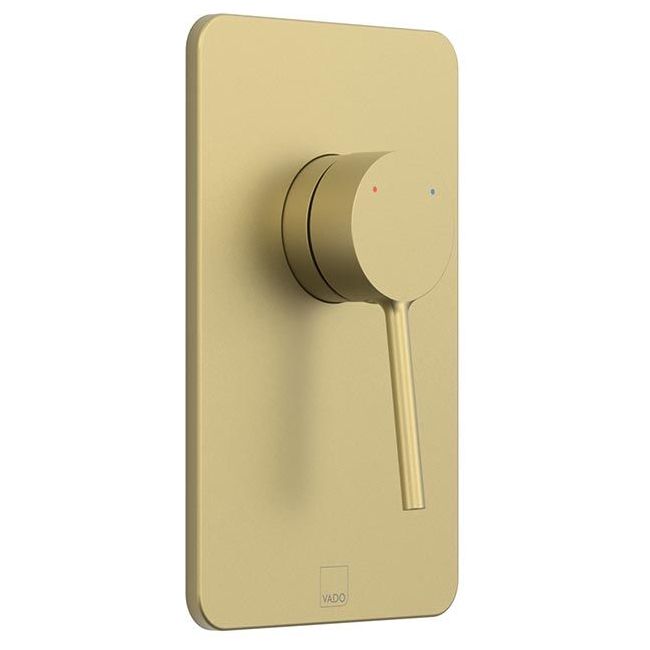

Without Diverter

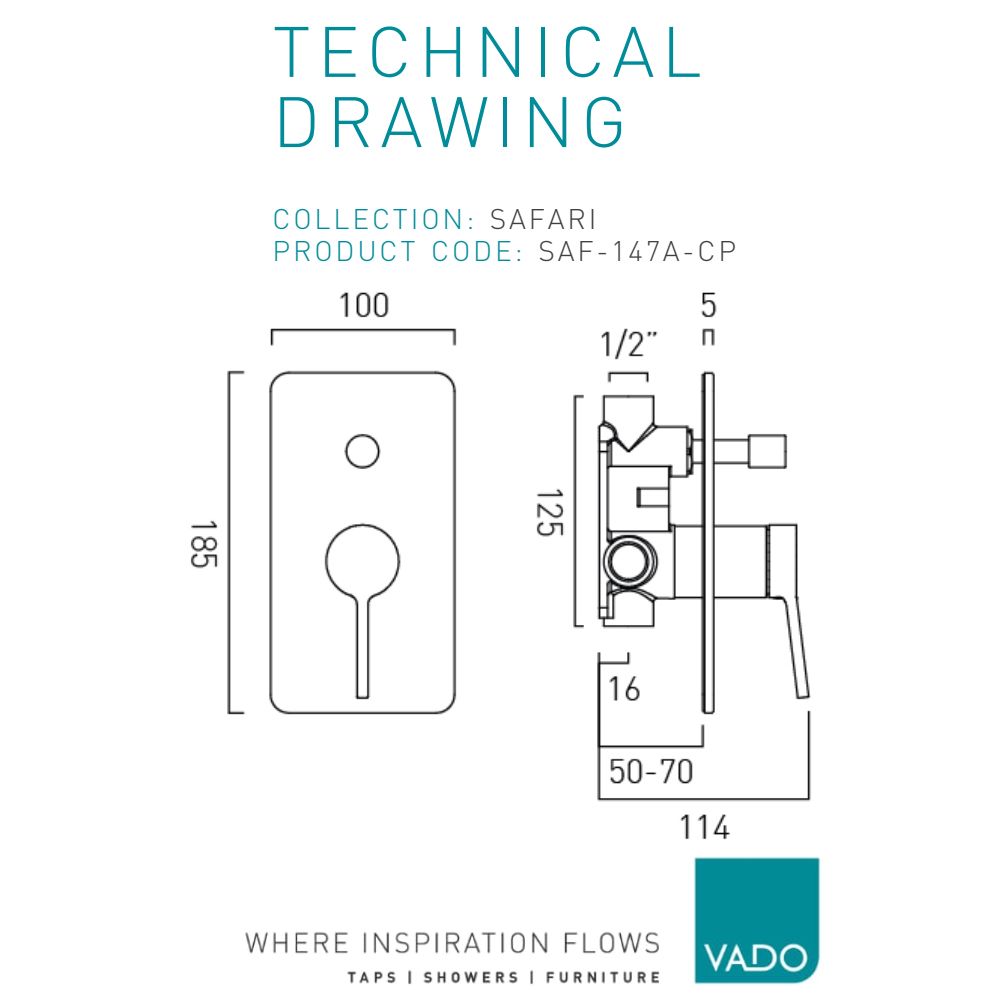

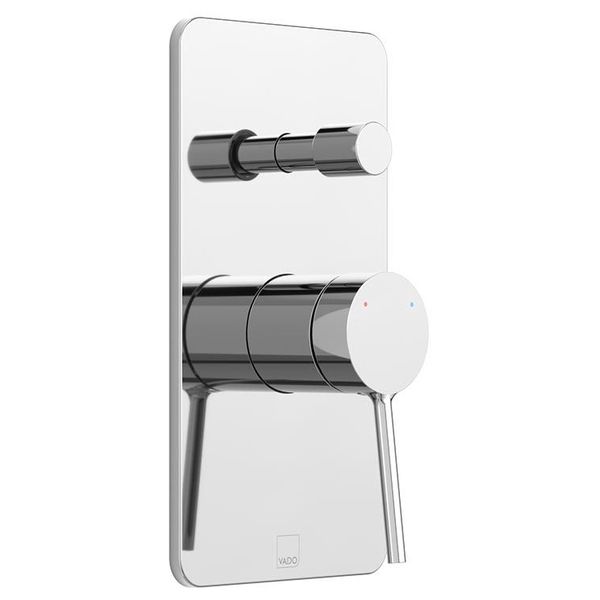

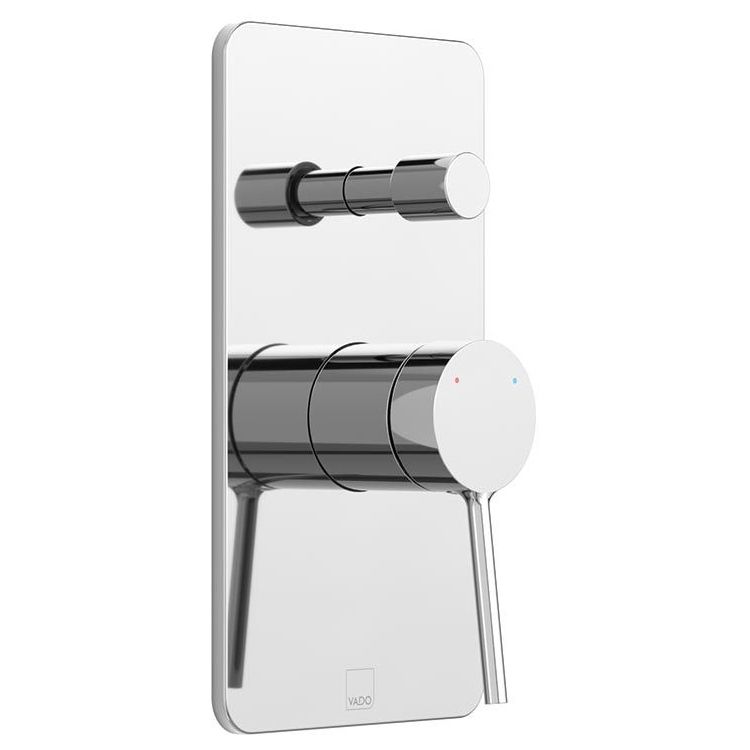

With Diverter

£154.00

RRP: ~~£220.00~~

Stock Availablity: 3-4 Working Days Approx

QS Supplies

5 Features Included In This Product Explained

Diverter

A diverter, specifically in bath-shower combos, redirects the water flow from the bathtub spout to the showerhead. You can activate it using the nozzle in the bath shower mixer tap.
Read more...

Low Water Pressure

Water systems operating at a pressure between 0.1 and 0.4 bar are considered low pressure. Products usually come labelled if they are suitable to use under such pressure.
Read more...

Ceramic Disc Cartridge

It has two ceramic discs, one fixed in place and the other moveable with the tap or valve handle. It is the most common technology used in modern tapware as it offers unmatched advantages such as no leaks and drips and saves on water and money.
Read more...

2-Outlet

The dual outlet Valve comes with a connection for two outlets, so you can use two different fixtures one at a time, such as using the showerhead and shower handset. These Dual outlet shower valves come in various styles and can be used with varying shower fittings. Some come with diverters for switching between the two outlets.

1-Outlet

One outlet in a shower system means that hot and cold water flows from a single opening.
