Vogue Harmonique Towel Rail with Double Panel Inset Radiator, 500mm Wide

Vogue Harmonique Details

MFC: MD060 (R2) MS1200500MB

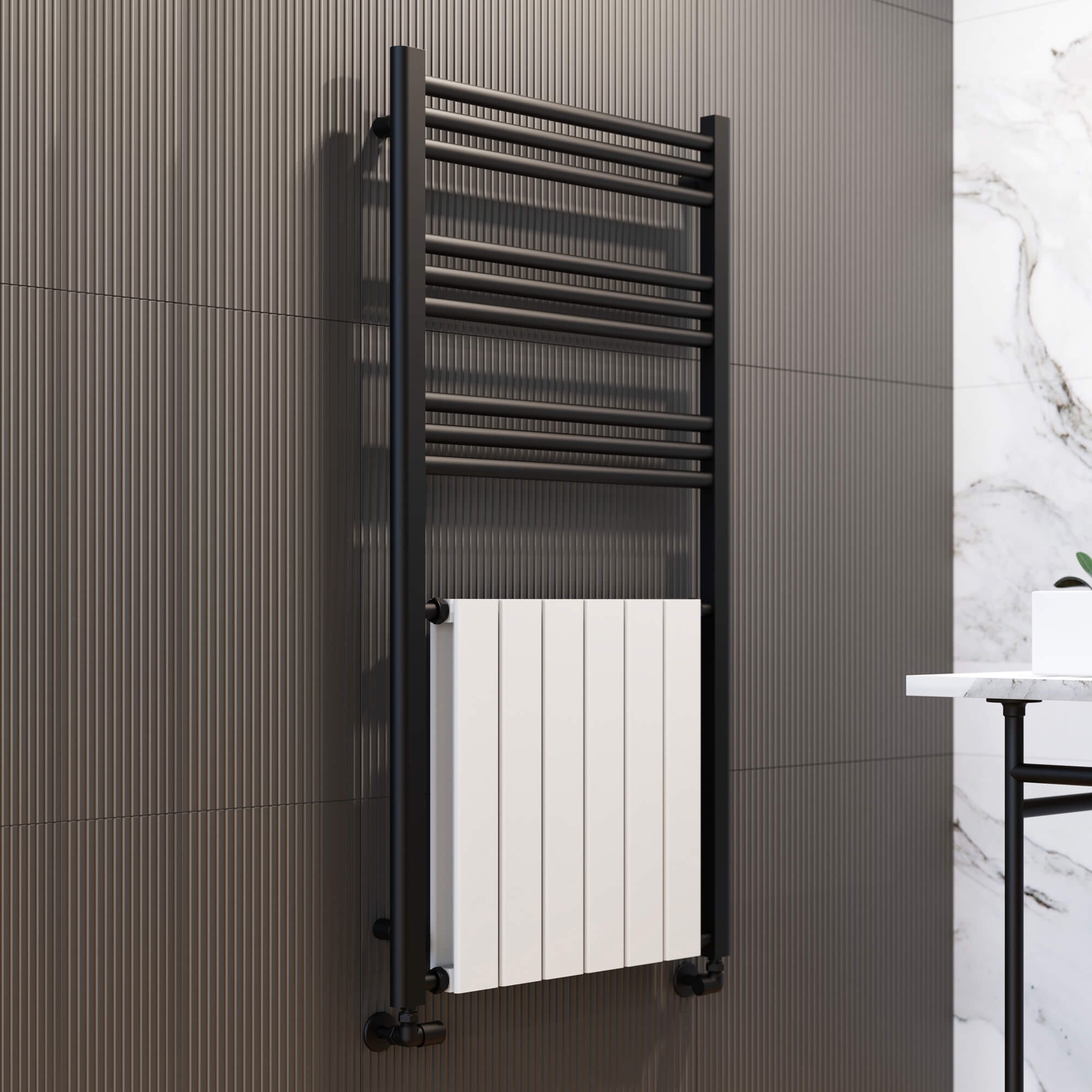

Vogue Harmonique R2 Towel Rail with Double Panel White Inset Radiator - 500mm Wide.

Key Features

✔Material: Mild Steel Towel Rail and Aluminium Radiator
✔Towel Rail with Ø 25mm Horizontal Tubes
✔Completes with a White Double Panelled Radiator as Standard
✔15-Year Guarantee from Vogue Against Manufacturing Defects

Choice of Finishes: Chrome, Matt Black and Brushed Brass
Choice of Heights: 1200mm and 1500mm
Size in mm: 500 x 102mm [Width x Depth]
Size in cm: 50 x 10.2cm [Width x Depth]
Pipe Centres: 450mm (45cm)
Tube Ø 25 and 30 x 40mm D Section
1200mm High Bars Configuration: 3-3-3
1500mm High Bars Configuration: 3-3-3-3
Suitable for Central Heating System
Installation Type: Wall-Mounted
Perfect Combination for Heating and Drying
Versatile Product will Suit in Both Contemporary and Classical Bathrooms
Refer to the Technical Drawing for More Details
Full Heat Output Data (Watts/BTU Across ΔT Values) is Provided in the Manufacturer Product Datasheet - Please Refer to the PDF Below
The Images Shown are for Illustration Purpose Only
The Valves Shown in Image is Not Included

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Range
: Harmonique
⤷ Colour
: Matt Black | Chrome | Brushed Brass
⤷ Warranty/Guarantee
: 15 Years
⤷ Material
: Mild-Steel | Aluminium
⤷ Theme
: Contemporary
⤷ Installation Type
: Wall-Mounted
⤷ Width
: 500
⤷ Projection (Depth)
: 102
⤷ Height
: 1200 | 1500

⤷ Orientation
: Vertical
⤷ Barcode
: 5051278708230
⤷ No. Of Bars
: 1200: 9 | 1500: 12
⤷ Tapping / Pipe Centres
: 450
⤷ Valves Included
: Sold Separately
⤷ Fuel Type
: Central Heating
⤷ Tube Diameter
: 25
⤷ Panel Configuration
: Double

Additional Info & Downloads

Download the Product Data Sheet Pdf File

This item can also be found in:

Technical Images

Vogue Harmonique Towel Rail with Double Panel White Inset Radiator - 500mm Wide

500 x 1200mm

500 x 1500mm

£634.80

RRP: ~~£634.80~~

Stock Availablity: 5-7 Working Days Approx

QS Supplies

4 Features Included In This Product Explained

Double Panel Radiators

Also known as type 22 radiators, these double panel radiators are constructed using two steel panels and two convectors or sets of fins which emit greater heat output. Its heat output is more than a single panel and will heat up the room much faster. This kind is ideal for larger than average spaces.

Mild Steel

Mild Steel is the most common radiator material. It is inexpensive, available in a variety of designs and finishes, lightweight and durable.

BTU Output

It is the short form of a British thermal unit (BTU or Btu) and is defined as the amount of heat required to raise the temperature of one pound of water by one degree Fahrenheit. It is a standard unit against which radiator efficiency is measured.
Read more...

Heating Only

This term means that such a product can be used with closed or indirect central heating circuits only. Its steel construction means that it cannot be used with open circuits.
