Nuie Deco Contemporary 500mm Wide Wall Hung Cloakroom Pack, FUZME001

Nuie Deco Details

MFC: FUZME001

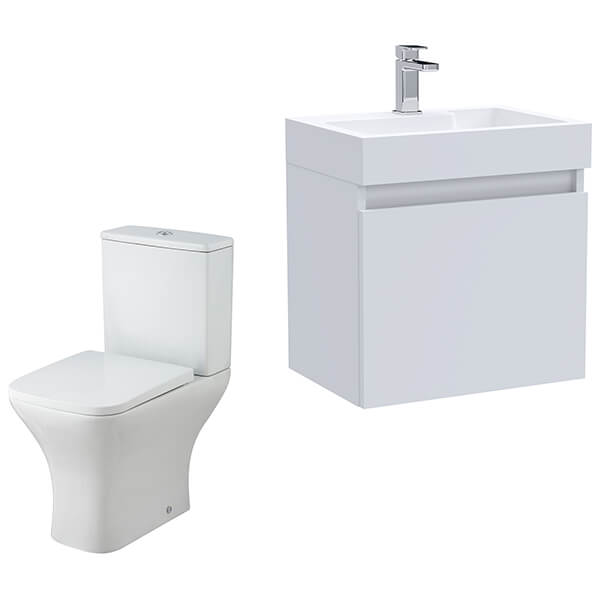

Nuie Deco Contemporary 500mm Wide Wall Hung Cloakroom Pack

Key Features

Pack Includes
✔Compact Wall Hung Vanity Unit with Handle
✔Single Tap Hole Basin
✔Basin Mixer Tap with Waste
✔Close-Coupled Toilet

Contemporary Design
Furniture Finish: Gloss White, Charcoal Black, Anthracite Woodgrain, Midnight Blue
Download the Installation Instruction PDF from the Additional Info Section
Refer to the Technical Diagram for Complete Size Details
5-Year Guarantee from Nuie Against Manufacturing Defects
Details of Vanity Unit:
FSC Certified Product
Construction Method: Cam and Wood Dowel
Cabinet and Fascia Finish: MFC Painted Gloss
Size [mm]: 500 x 353 x 430mm [Width x Depth x Height]
Size [cm]: 50 x 35.3 x 43cm [Width x Depth x Height]
Weight: 15kg
Construction Type: Rigid
Fascia Thickness: 18mm [1.8cm]
Cabinet Thickness: 16mm [1.6cm]
Supplied with Fixings and a Hinge
Hinge Type: 95 Degree Soft Close
Moisture-Resistant Construction for Bathroom Use
The Unit has a Soft Close Door, Which Limits Daily Wear and Tear and Provides a Quieter Closing
Details of Ceramic Basin:
CE Certified
Rectangular Shape
Overflow-Free Design
It Comes in a White Finish
Supplied with One Taphole
Manufactured Using Polymarble Material
Size [mm]: 502.5 x 360 x 90mm [Width x Depth x Height]
Size [cm]: 50.25 x 36 x 9cm [Width x Depth x Height]
Weight: 11.5kg
Inner Bowl Depth: 70mm [7cm]
Details of Monobloc Basin Mixer Tap with Waste:
WRAS-Approved
Tap Tails and Cartridge Included
Manufactured Using Brass Material
Size [mm]: 50 x 154.5mm [Width x Depth]
Size [cm]: 5 x 15.45cm [Width x Depth]
Weight: 2.08kg
Height of Tap: 160mm [16cm]
Base to Spout: 113mm [11.3cm]
Single-Lever Cartridge Type
Ideal for Deck-Mounted Installation
Excellent Flow Rates, Even at Low-Pressure
Stunning Contemporary Angular Design
Pipe Size: 1/2 Inch
Cartridge Material: Plastic
Supplied with Fixings and Mounting Hardware
Suitable for a Low Water Pressure System
Requires a Minimum of 0.2 Bar of Water Pressure
Supplied with Push-Button Waste
Control Type: Manual
Centre of the Inlet to Centre of Outlet: 110mm [11cm]
Ceramic Disc Technology Provides Smooth Operation and a Long Life
Details of a Close-Coupled Toilet:
CE Approved
Short Projection Design
It Comes in a White Finish
Ideal for Smaller Bathrooms
Size [mm]: 375 x 790mm [Width x Height]
Size [cm]: 37.5 x 79cm [Width x Height]
Projection: 612mm [61.2cm]
Weight: 38.5kg
Soft-Close Seat and Cistern Included
Manufactured Using Vitreous China Material
Suitable for Domestic Bathroom Installations

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Suite Includes
: Vanity Unit, Basin, Tap, WC Pan, Seat, Cistern
⤷ Basin Colour
: White
⤷ Basin Size - (Width x Depth x Height)
: 502.5 x 360 x 90
⤷ Basin Tap Included
: Yes
⤷ Basin Tap Holes
: 1
⤷ WC Colour
: White
⤷ WC Pan Size - (Width x Depth x Height)
: 375 x 612 x 400
⤷ Toilet Overall Height
: 790
⤷ Toilet Projection (Depth)
: 612
⤷ Cistern Included
: Yes
⤷ Cistern (Width x Height x Depth)
: 375 x 385 x 145
⤷ Flush Type
: Dual
⤷ Flush Mechanism
: Push Button
⤷ Cistern Lever Or Button Placement
: Top
⤷ Toilet Outlet
: Horizontal

⤷ Toilet Material
: Vitrous China
⤷ Seat Included
: Yes
⤷ Seat Type
: Soft Close
⤷ Seat Finish
: White
⤷ Toilet Installation Type
: Floor Standing
⤷ Furniture Features
: Rigid
⤷ Furniture Colour
: Gloss White, Charcoal Black, Anthracite Woodgrain, Midnight Blue
⤷ Vanity Unit Size - (Length x Width x Height)
: 500 x 353 x 430
⤷ Furniture Material
: MFC
⤷ Vanity Installation Type
: Wall Hung
⤷ Vanity Basin Included
: Yes
⤷ No. Of Vanity Unit Doors
: 1
⤷ Fixings included
: Yes
⤷ Warranty/Guarantee
: 5 Year
⤷ Theme
: Modern

Additional Info & Downloads

Download the Product Data Sheet Pdf File

Technical Images

Nuie Deco Contemporary 500mm Wide Wall Hung Cloakroom Pack

Vanity Unit with Basin

Tap

Toilet Pack

£470.80

RRP: ~~£1177.00~~

STOCK AVAILABLITY: 3-4 Working Days Approx

QS Supplies

11 Features Included In This Product Explained

FSC Certified

Any product with this logo is made of wood from well-managed, sustainable forests. Its full form is certified by the Forest Stewardship Council. By buying such products, you are supporting responsible forestry.

Cam & Dowel Method

It is a woodworking process in which a dowel or wooden pin is fit into a pre-carved hole in the opposite pieces of wood to create a strong joint. The resulting piece of furniture has a rigid carcass with a neat finish and removes the need for glue or nails for adhesion.

Rigid Furniture - Pre-Assembled

Rigid or pre-assembled furniture is any bathroom unit that is ready to install. These arrive entirely constructed with pre-drilled holes and labelled parts making the furniture installation process quick and easy. It helps you save money on labour, and you get a higher-quality product. These are also an excellent choice for anyone looking for a new storage unit that fits their bathroom decor.

Soft-Close Opening

This product features advanced hinges or rollers that allow it to open and close slowly and gently.

Soft-Close Seat

Soft-closing seats are a new alternative to classic seats. Their modern design hinges allow them to close slowly and gently.

CE Certified Product

CE mark meets the prescribed safety, health and environmental protection requirements and all appropriate EU requirements. This mark is mandatory for products designed, made and sold in the European Economic Area.

With / Without Overflow

An overflow is a small hole or opening at the upper part of a sink, basin, bidet or tub that drains away water upon reaching its level so that no water is spilt. When a basin or bath does not come with this design feature, it is called 'without-overflow' and will need a compatible drain.

WRAS Approved Product

WRAS Approval means that the particular water fitting or product complies with or meets the requirements specified by the Water Supply (Water Fittings) Regulations or Scottish Byelaws.
Read more...

Low Water Pressure

Water systems operating at a pressure between 0.1 and 0.4 bar are considered low pressure. Products usually come labelled if they are suitable to use under such pressure.
Read more...

Push Button Basin Waste

It is the perfect choice for many sink designs because of its ease of use and efficiency. The sink drain gets blocked by simply pushing the central button, allowing the water to fill in the sink. Once you are done, the water can be drained by releasing the same.

Vitreous-China Material

Vitreous china is an innovative glass-based enamel coating applied to porcelain. This glazed coating makes the base material durable, denser, and very glossy. When ceramics are coated with vitreous enamel, the resulting product is called vitreous china. This enamel is created by applying heat to powdered glass.
