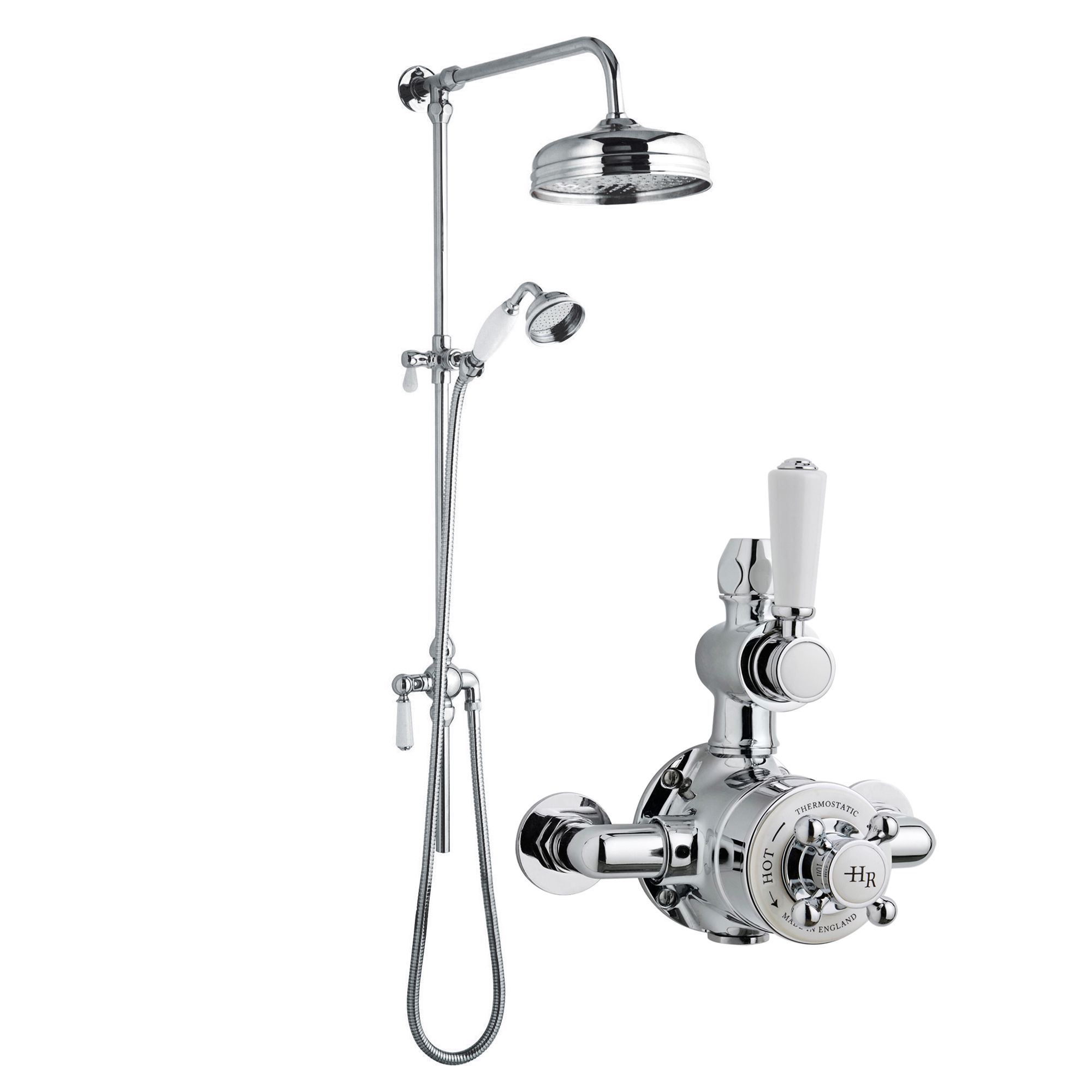

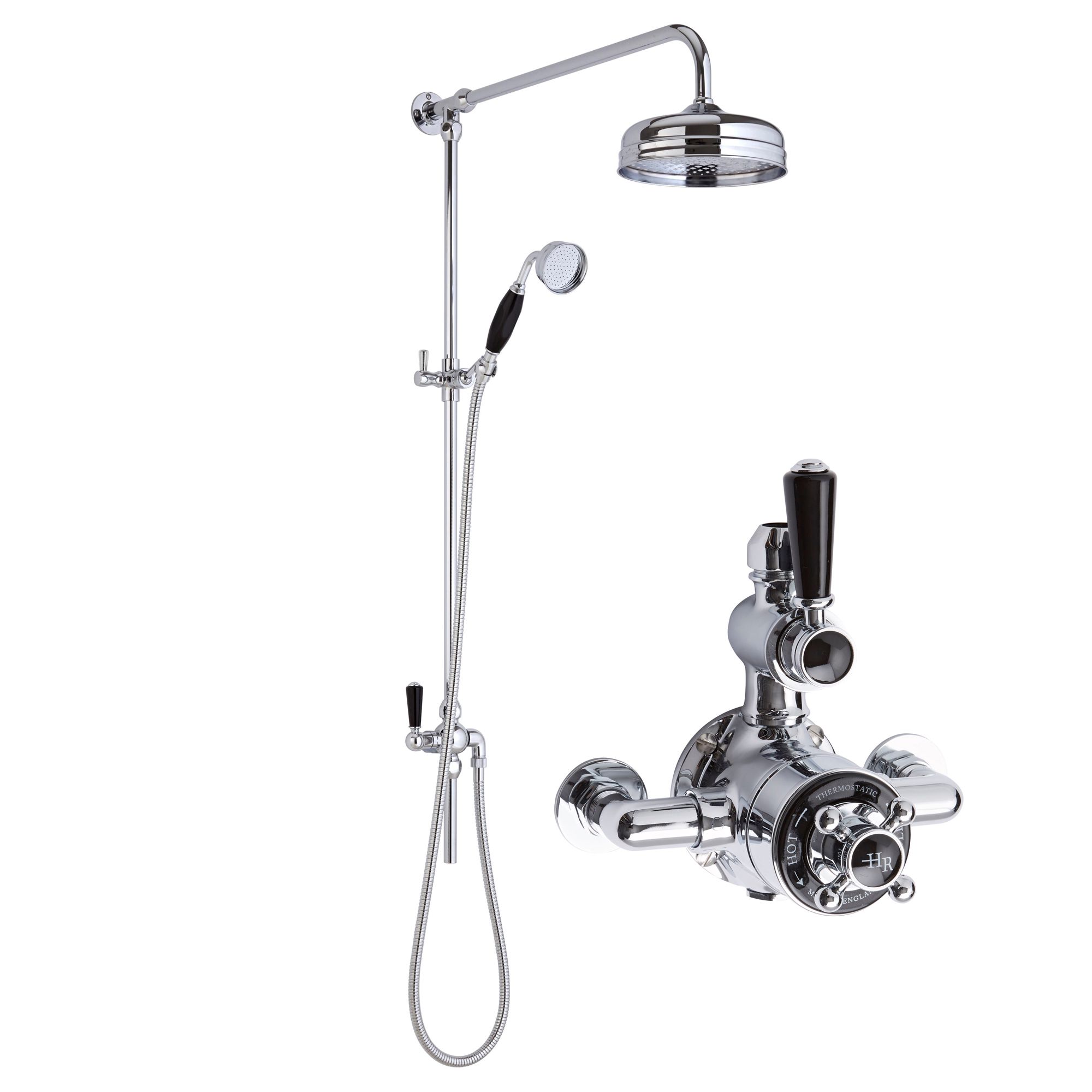

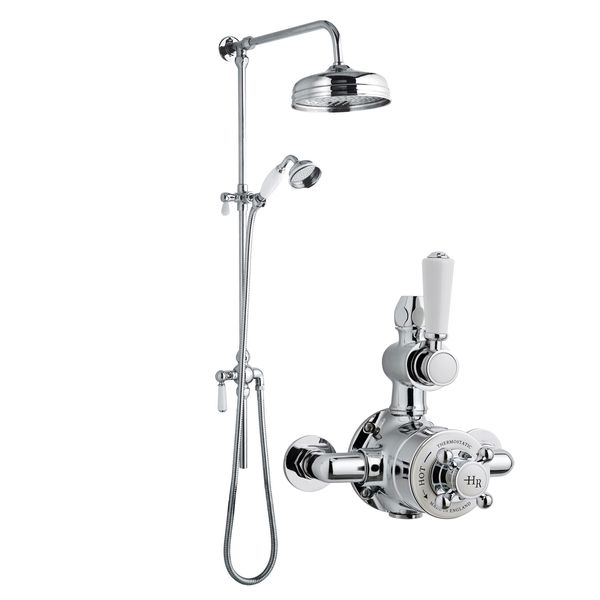

Nuie Exposed Thermostatic Traditional Shower Mixer Valve with Rigid Riser Kit

Nuie Exposed Thermostatic Traditional Shower Mixer Valve with Rigid Riser Kit

• Pack Includes: Thermostatic Shower Valve, Rigid Riser Kit with Diverter
• Download the Customer Data Sheet PDF Files from the Additional Info Section
• Refer to the Technical Drawing for Size Details
• Exposed Wall-Mounted Installation
• Specification of Rigid Riser Kit
• Round Shower Head, Handset and Hose Included
• Supplied with a Diverter
• Size [mm]: 194 x 670 x 1260mm [Width x Depth x Height]
• Size [cm]: 19.4 x 67 x 126cm [Width x Depth x Height]
• Pipe Size: Ø18mm (1.8cm)
• Suitable for Medium Water Pressure System
• The Minimum Water Pressure Recommended for Smooth Working is 0.5 Bar
• Specification of Thermostatic Shower Valve
• Size [mm]: 195 x 135 x 206mm [Width x Depth x Height]
• Size [cm]: 19.5 x 13.5 x 20.6cm [Width x Depth x Height]
• Pipe Size: 15mm (1.5cm)
• Pipe Centres: 150mm (15cm)
• No. of Outlets: 1
• Quarter Turn
• Ceramic Disc Cartridge
• The Unique Cartridge is Highly Resistant to Calcium Buildup - Even in Hard Water Areas
• The Cartridge is Fully Reversible, Meaning if Hot and Cold Supplies are the Wrong Way Round, it doesn't Need Re-Plumbing
• Remove the Cartridge, Turn 180° and Replace
• Full Thermal Protection to Prevent Scalding in the Event of Hot or Cold Water Shut-Off
• Accurate Flow Control and Excellent Flow Rates - Even at Low-Pressure
• Thermostatic Control to +/- 1 Degree - Even if the Water Pressure Fluctuates
• In the Event of Hot or Cold Water Failure, the Valve Will Shut Down as Per the Relevant Standard
• Suitable for Use with All Systems: Gravity-Fed Pumped, Unvented High Pressure or Fully Modulated Combi-Boilers
• Suitable for Low-Pressure Water System
• Requires a Minimum of 0.1 Bar or Above Water Pressure to Operate Smoothly
