Nuie Reef Thermostatic Bath Mixer with Slim Slider Rail Kit, SBR91BV1

Details

MFC: SBR91BV1

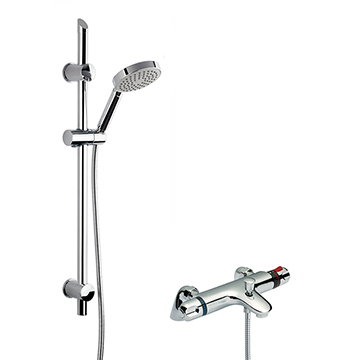

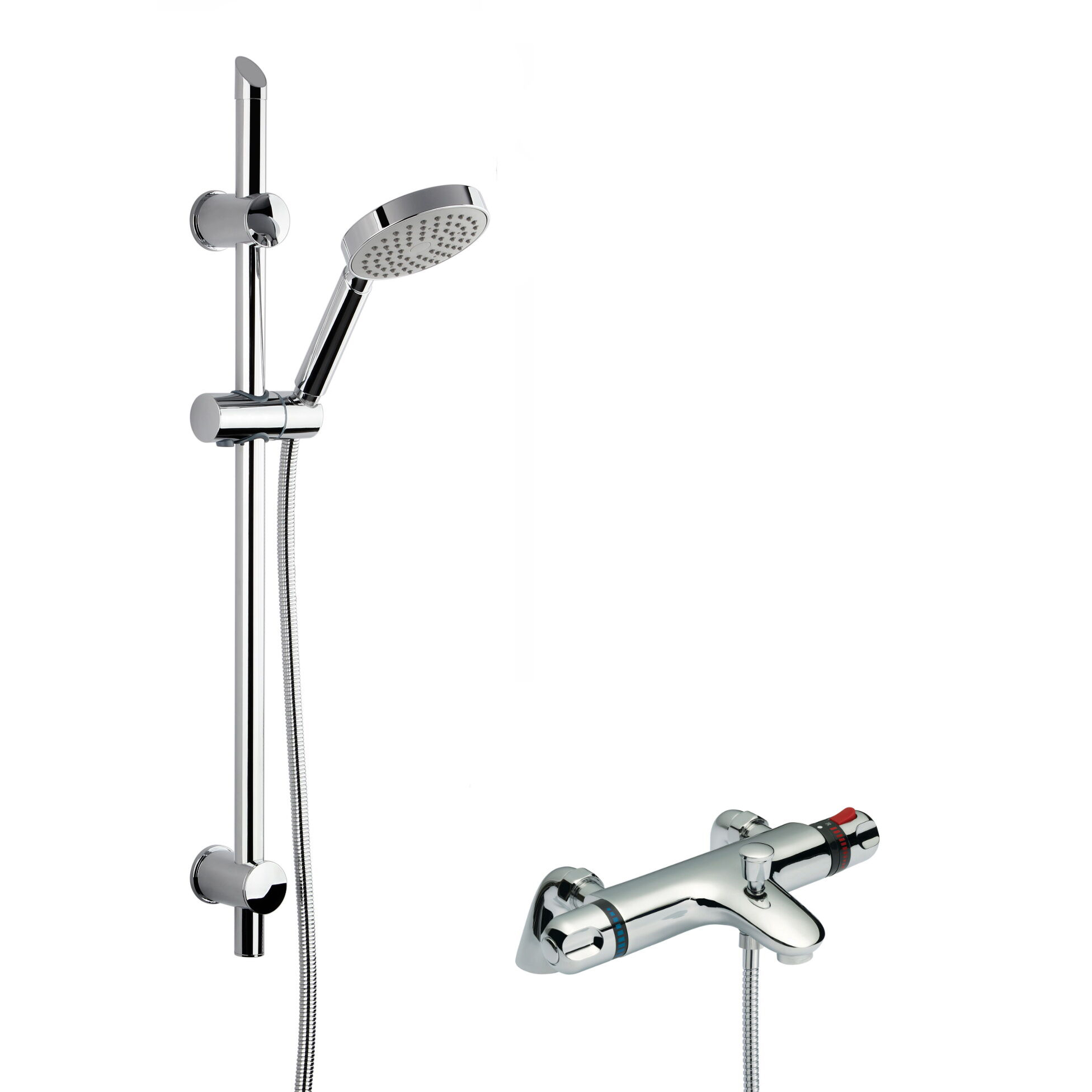

Nuie Reef Deck Mounted Thermostatic Bath Mixer with Slim Slider Rail Kit - Chrome

Contemporary Design
Download Customer Data Sheet PDF File from the Additional Info Section
Refer to the Technical Drawing for Size Details
Specifications For Thermostatic Bath Shower Mixer:
Made using Brass and ABS Material
Thermostatically Controlled
Built-In Anti-Scald Device
2-Outlets Showering System
Comes with Diverter
Valve/Cartridge Type: 1/4-Turn Ceramic Disc Valve
Anti-Scald - Built-In Anti-Scald device allows Hot Water to be Blended to a Safe Temperature and will Shut Down Automatically in 1.5 Seconds in case of Cold Water Failure
Size: 280 x 205mm [Width x Depth]
Suitable for Deck-Mounted Installation
Tap with the Valquest Cartridge
The Minimum Water Pressure recommended for Smooth Working is 1.0 Bar [HP-High Pressure]
The Minimum Water Flow Rate is 12 Litres Per Minute at 1.0 Bar Water Pressure
Suitable for Shower Pumps, Combi Boilers and Gravity-Fed Systems
Ideal for Unvented Mains Pressure Systems
Suitable for All Plumbing Systems
Specifications For Slide Rail Kit:
Includes: Slide Rail, Shower Handset, Hose, Outlet Elbow
Stain and Rust-Resistant
Round Handset with Single Function Settings
Adjustable Brackets
Easy-to-Clean Round Shower Head
Suitable for Surface and Wall-Mounted Installation
Height of Rail: 820mm
1500mm Flexible Shower Hose in Chrome-Plated
Suitable for Medium-Pressure Water System
Requires 0.5 Bar Operating Water Pressure

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Colour
: Chrome
⤷ Warranty/Guarantee
: 5 Year
⤷ Material
: Brass
⤷ Theme
: Modern
⤷ Valve Included
: Yes
⤷ Valve/Cartridge Type
: 1/4-Turn Ceramic Disc Cartridge
⤷ Hose Included
: Yes
⤷ Hose Length
: 1500
⤷ Configuration
: Bath Shower Mixer & Slide Rail Kit
⤷ Temperature Control
: Thermostatic

⤷ Anti-Scald
: Yes
⤷ Diverter Included
: Yes
⤷ Plumbing System Compatibility
: Exposed
⤷ Auto shutdown if hot or cold supplies fail
: Yes
⤷ Handset Included
: Yes
⤷ Spray Patterns (Shower Handset)
: Single Function
⤷ Rail Length
: 820
⤷ Adjustable Height
: Yes
⤷ Outlet Elbow Included
: Yes

Additional Info & Downloads

Download the Technical Datasheet Pdf File

Nuie Reef Deck Mounted Thermostatic Bath Mixer with Slim Slider Rail Kit - Chrome

£354.40

RRP: ~~£443.00~~

Stock Availablity: 5 Working Days Approx

QS Supplies

2 Features Included In This Product Explained

Thermostatic Control

Thermostatic shower control works behind the scenes to achieve or maintain water temperature output from a showerhead. With the built-in safety feature, the shower provides a consistent water temperature.
Read more...

2-Outlet

The dual outlet Valve comes with a connection for two outlets, so you can use two different fixtures one at a time, such as using the showerhead and shower handset. These Dual outlet shower valves come in various styles and can be used with varying shower fittings. Some come with diverters for switching between the two outlets.
