Nuie Concealed Thermostatic Mixer Valve with Stop Tap

Details

MFC: SBR136ST3

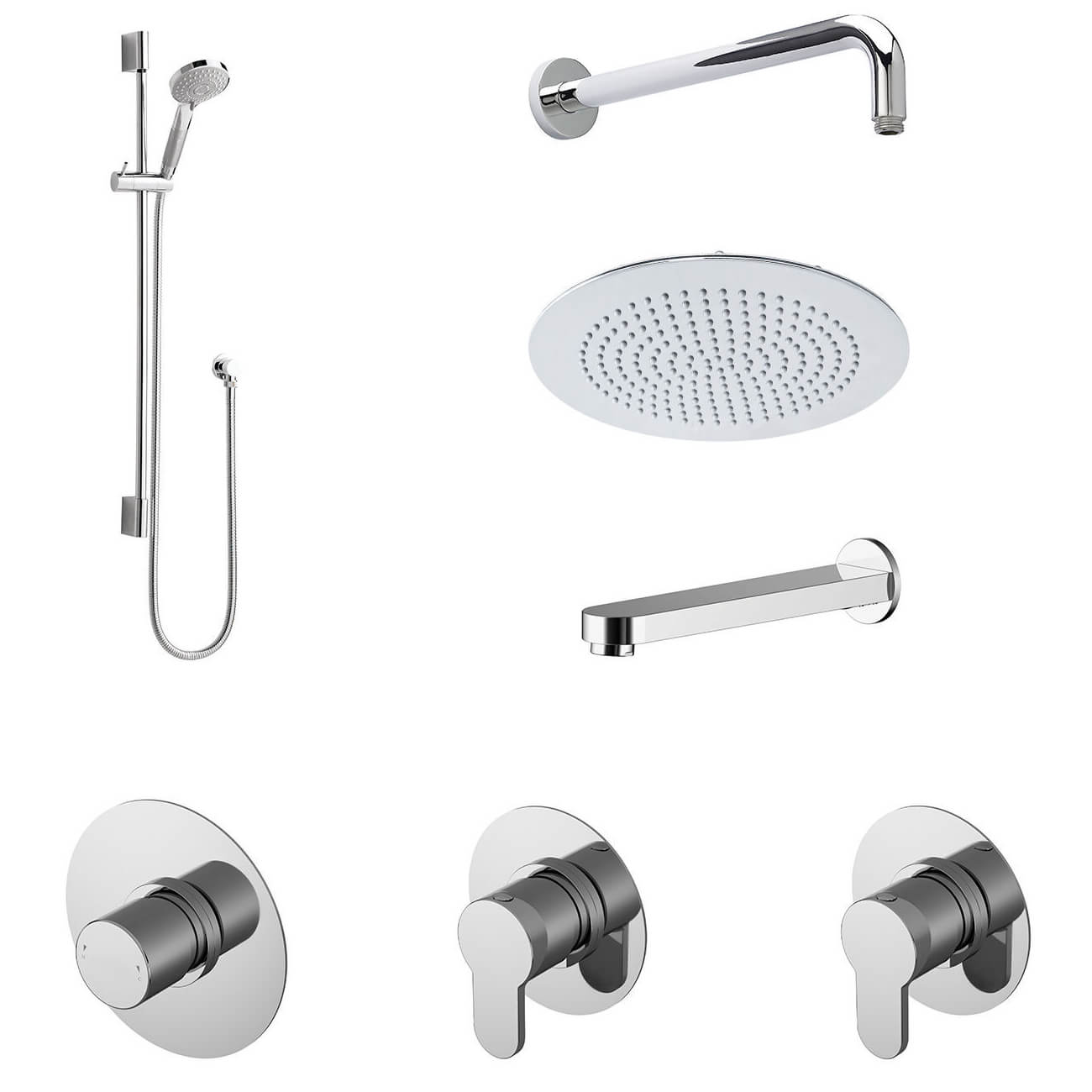

Nuie Concealed Thermostatic Mixer Valve with Stop Tap - Shower Head and Slide Rail Kit

Manufacturing Code of this Product: SBR136ST3
Complete Set in a Chrome Finish
Download Customer Data Sheet PDF File from the Additional Info Section
Refer to the Technical Drawing for Size Details
5-Year Guarantee from Nuie Against Manufacturing Defects
Specifications Of Slide Rail Kit:
Height: 830mm (83cm)
Hose Length: 1500mm (15cm)
Inlet Connection: G1/2-Inch
Weight: 1.38kg
Manufactured Using ABS and Brass Material
Number of Outlets: 1
Suitable for Medium Water Pressure System
Requires a Minimum of 0.5 Bar of Water Pressure
Specifications Of Fixed Bath Mixer Spout:
Suitable for Wall-Mounted Installation
Size [mm]: 35 x 195mm [Width x Depth]
Size [cm]: 3.5 x 19.5cm [Width x Depth]
The Centre of the Inlet to the Centre of the Outlet: 180mm (18cm)
Pipe Size: 1/2-Inch
Suitable for High-Pressure Water System
Requires 1.0 Bar Operating Water Pressure
Perfect for Use with Side Valves
Flow Rate (1/min): 0.1 Bar - 6.4, 0.5 Bar - 13.8, 1 Bar - 19.4, 2 Bar - 27.5, 3 Bar - 33.9
Specifications Of Thermostatic Shower Valve:
Size [mm]: 100 x 104 x 100mm [Width x Depth x Height]
Size [cm]: 10 x 10.4 x 10cm [Width x Depth x Height]
Thermostatic Temperature Control Design
Inlet and Outlet Connection: G.1/2
Pipe Size: 15mm (1.5cm) (1/2-Inch BSP)
Suitable for Low-Pressure Water System
Manufactured using Brass Material
Mount Type: Recessed/Wall
Number of Outlets: 1
Suitable for Low Water Pressure System
Required Minimum 0.1 Bar Water Pressure
Specifications Of Stop Shower Valve:
Size [mm]: 100 x 104 x 100mm [Width x Depth x Height]
Size [cm]: 10 x 10.4 x 10cm [Width x Depth x Height]
Suitable for Low-Pressure Water System
Manufactured using Brass Material
Mount Type: Recessed/Wall
Number of Outlets: 1
Suitable for Low Water Pressure System
Required Minimum 0.2 Bar Water Pressure
Specifications Of Showerhead:
Diameter: Ø300mm (30cm)
Weight: 1kg
Manufactured Using Stainless Steel Material
Suitable for Medium Water Pressure System
Requires a Minimum of 0.5 Bar of Water Pressure
Specifications Of Shower Arm:
Installation: Wall Mounted
Length: 400mm (40cm)
Inlet Connection: G1/2-Inch
Weight: 0.32kg
Manufactured Using Brass Material

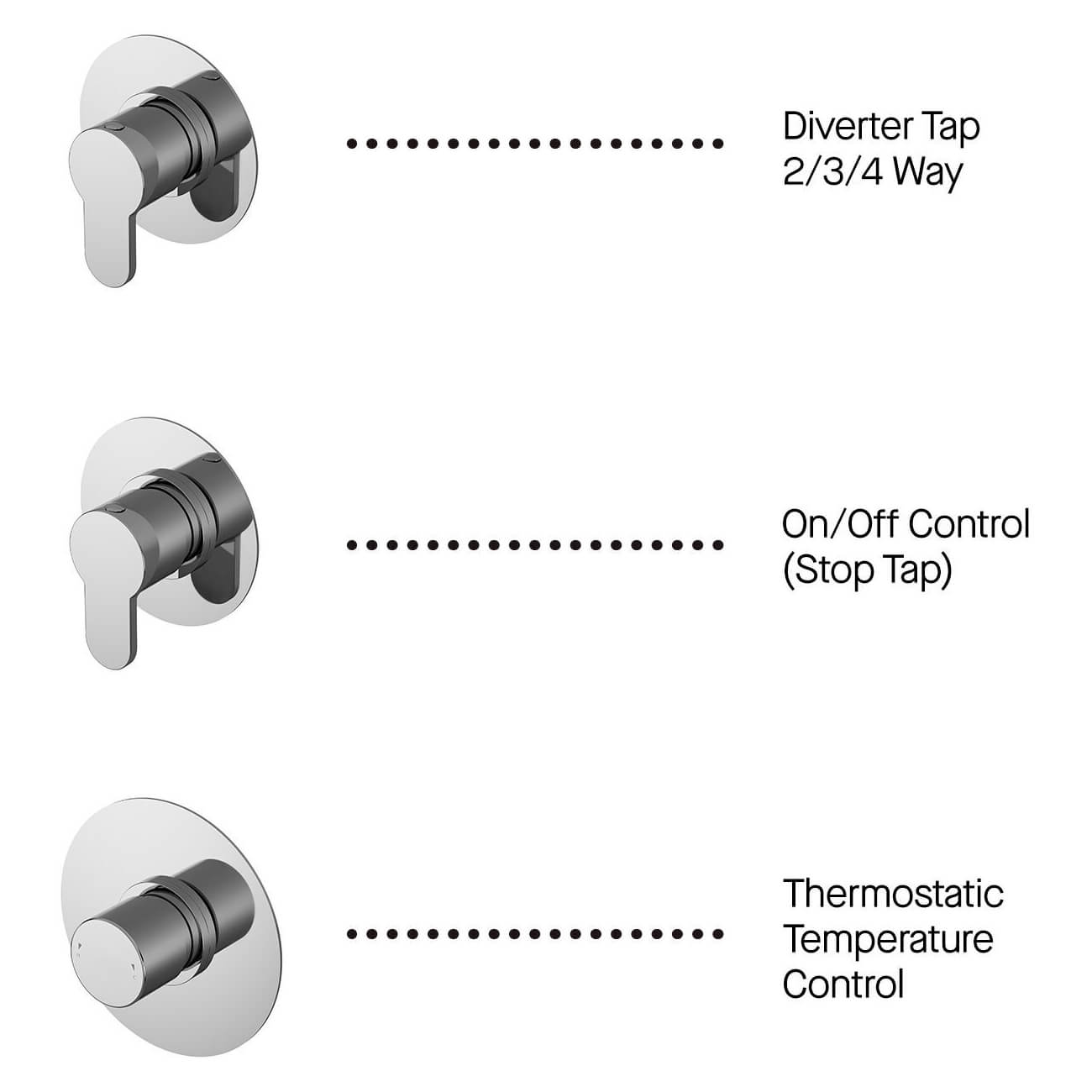

Specifications Of Concealed 2-3-4 Diverter:
Supplied with Valve and Cartridge
Manufactured Using Brass Material
Size [mm]: 100 x 135 x 100mm [Width x Depth x Height]
Size [cm]: 10 x 13.5 x 10cm [Width x Depth x Height]
Wall-Mount Cavity: Min.75mm (7.5cm) and Max.100mm (10cm)
Number of Outlets: 4
Single-Round Lever Handle
Thermostatically Control Design
Installation Type: Concealed
Suitable for Low-Pressure Water System
Requires 0.2 Bar of Operating Water Pressure

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Colour
: Chrome
⤷ Warranty/Guarantee
: 5 Years
⤷ Material
: Brass
⤷ Theme
: Modern
⤷ Valve Included
: Yes
⤷ Valve/Cartridge Type
: 1/4 Turn
⤷ Hose Included
: Yes
⤷ Configuration
: Thermostatic Valve | Stop Valve | Diverter | Shower Kit
⤷ Temperature Control
: Thermostatic
⤷ Diverter Included
: Yes

⤷ Showerhead Finish
: Chrome
⤷ Riser Rail & Kit Finish
: Chrome
⤷ Separate temperature and power controls
: Yes
⤷ Handset Included
: Yes
⤷ Shower Head Included
: Yes
⤷ Shower Head Size
: Ø300
⤷ Rail Length
: 830
⤷ Hose Retainer Included
: Yes
⤷ Outlet Elbow Included
: Yes

Additional Info & Downloads

Download the Data Sheet Pdf File

Nuie Concealed Thermostatic Mixer Valve with Stop Tap - Shower Head and Slide Rail Kit

£428.80

RRP: ~~£1072.00~~

IN-STOCK

Delivery in 2 Working Days Approx.

QS Supplies

5 Features Included In This Product Explained

Low Water Pressure

Water systems operating at a pressure between 0.1 and 0.4 bar are considered low pressure. Products usually come labelled if they are suitable to use under such pressure.
Read more...

Medium Water Pressure

Water systems operating at a pressure between 0.5 and 0.9 bar are considered medium pressure. Products usually come labelled if they are suitable for use in medium pressure.

High Water Pressure

Water systems operating at 1.0 bar or higher pressure are considered high-pressure systems. Products usually come labelled if they are suitable to use under such pressure.

Thermostatic Control

Thermostatic shower control works behind the scenes to achieve or maintain water temperature output from a showerhead. With the built-in safety feature, the shower provides a consistent water temperature.
Read more...

3-Outlets

Also known as a triple valve, these valves feature three outlets, and either two or three can run simultaneously, depending on the manufacturer. You can also operate each outlet independently if required. The three outlet connections connect to three different fixtures, e.g., an overhead shower, body jets, side showers, or a bath mixer tap.
