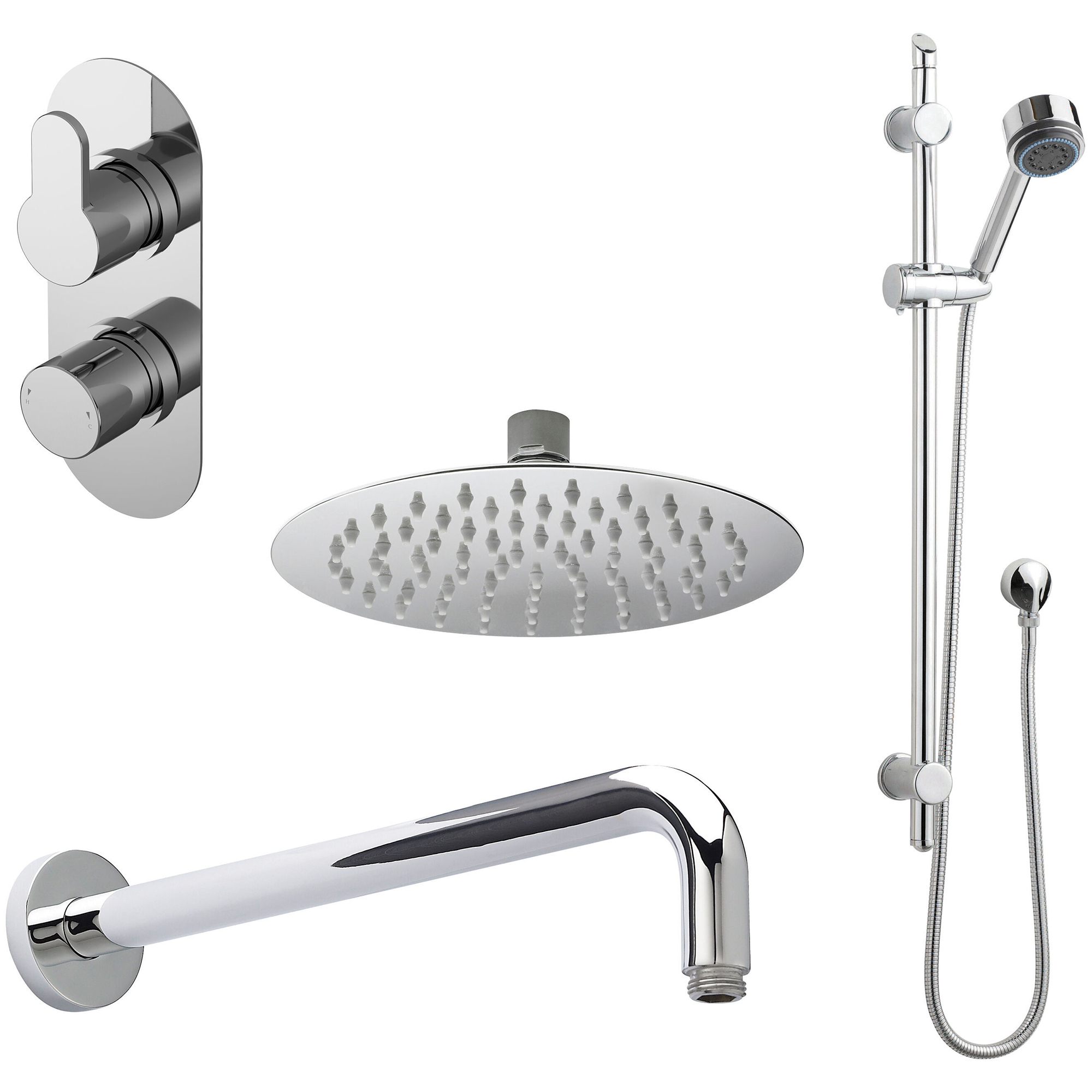

Nuie Arvan Chrome Concealed Thermostatic Shower Set, 2 Control, SBR06TW2

Nuie Arvan Details

MFC: SBR06TW2

Nuie Arvan Chrome Concealed Thermostatic Shower Set - 2 Control.

Manufacturing Code of this Product: SBR06TW2
Comes in a Chrome Finish
Features Easy to Clean
Minimalist, Sleek Round Design
Suitable for High-Pressure Water System
Requires 0.5 Bar Operating Water Pressure
Stain and Rust-Resistant Construction with Precise and Reliable Flow Control
Refer to the Technical Drawing for Size Details
Download the Customer Data Sheet and Installation Instruction PDF File from the Additional Info Section
Specification of Shower Valve:
Number of Outlets: 2
Number of Handles: 2
WRAS and TMV2 Approved
Manufactured Using Brass and ABS Material
Installation Type: Recessed and Wall
Stain- and Rust-Resistant Valve
Supplied with Valve and Cartridge
Accurate Flow Control Thermostatic Valve
1/4-Turn Ceramic Cartridge Disc
Overall Size [mm]: 80 x 136 x 215mm [Width x Depth x Height]
Overall Size [cm]: 8 x 13.6 x 21.5cm [Width x Depth x Height]
Wall-Mount Cavity: Min. 72mm [7.2cm] and Max. 85mm [8.5cm]
Pipe Size: 22mm [2.2cm] [3/4-Inch BSP]
Control Type: Manual
Can be Fitted Vertically or Horizontally
Inlet and Outlet Connection: G 1/2 Inch
Features:
Advanced Thermostatic Control Maintains Water Temperature Within +/-2 °C, Even During Pressure Fluctuations
Compatible with Concealed Shower Systems for a Seamless Installation
Patented Cartridge Design Resists Calcium Buildup, Making it Ideal for Hard Water Conditions
Suitable for All Plumbing Systems, Including Gravity-Fed, Pumped, Unvented High-Pressure, and Fully Modulated Combi-Boilers
Integrated Thermal Safety Protection Automatically Shuts Off in Case of Hot or Cold Water Supply Failure, Preventing Scalding
Fully Reversible Cartridge Eliminates the Need for Re-Plumbing if Hot and Cold Supplies are Incorrectly Connected
Easy Maintenance—Remove, Rotate the Cartridge by 180°, and Reinstall
Specification of Slide Rail Kit with Outlet Elbow and Handset:
Manufactured Using Brass and ABS Material
Hose and Handset Included
Rail Height: 740mm [74cm]
Diameter of Handset: Ø200mm
Hose Length: 1500mm [150cm]
Multiple Function Handset
Outlet Elbow Included
Pipe Size: 15mm [1.5cm] [1/2-Inch BSP]
Specification of Fixed Shower Head:
Single Function Shower Head
Manufactured Using Stainless Steel Material
Size [mm]: Ø200 x 55mm [Diameter x Height]
Size [cm]: Ø20 x 5.5cm [Diameter x Height]
Installation Type: Wall or Surface Mounted
Inlet Connection: G 1/2 Inch
Specification of Wall-Mounted Arm:
Manufactured from Solid Brass Material
Length: 335mm [33.5cm]
Connection Thread: G 1/2 Inch

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Colour
: Chrome
⤷ Warranty/Guarantee
: 5 Years
⤷ Material
: Brass | ABS | Stainless Steel
⤷ Theme
: Modern
⤷ Valve Included
: Yes
⤷ Valve/Cartridge Type
: 1/4 Turn Ceramic Disc
⤷ Inlet Connections
: G 1/2"
⤷ Minimum Operating Pressure (Bar)
: 0.5
⤷ Hose Included
: Yes
⤷ Hose Length
: 1500
⤷ Flow Rates (l/min)
: 0.1 bar - 5.5 | 0.5 bar-13 | 1 bar-17 | 2 bar-24 | 3 bar-27
⤷ Configuration
: Valve, Head, Arm, Outlet, Handset & Hose
⤷ Temperature Control
: Theromstatic
⤷ Backplate Width
: 80
⤷ Backplate Height
: 215
⤷ Anti-Scald
: Yes

⤷ Diverter Included
: Yes
⤷ Compliance/Approvals/Standard
: WRAS | TMV2
⤷ Product Type
: Shower Set
⤷ Showerhead Type
: Fixed
⤷ Showerhead Finish
: Chrome
⤷ Riser Rail & Kit Finish
: Chrome
⤷ Auto shutdown if hot or cold supplies fail
: Yes
⤷ Handset Included
: Yes
⤷ Spray Patterns (Shower Handset)
: 3
⤷ Spray Patterns (Shower Head)
: 1
⤷ Shower Head Included
: Yes
⤷ Shower Head Size
: 200
⤷ Rail Length
: 740
⤷ Diverter Type
: Integrated
⤷ Outlet Elbow Included
: Yes

Additional Info & Downloads

Download the Product Data Sheet Pdf File Download the Installation Instruction Of Valve Pdf File Download the Fitting Instruction Of Slide Rail Kit Pdf File Download the Fitting Instruction Of Shower Head Pdf File Download the Fitting Instruction Of Shower Arm Pdf File

This item can also be found in:

Thermostatic Mixer Showers

Technical Images

Nuie Arvan Chrome Concealed Thermostatic Shower Set - 2 Control

Valve with Diverter

Slide Rail Kit

Shower Head

Shower Arm

£619.20

RRP: ~~£774.00~~

Stock Availablity: 10 Working Days Approx

QS Supplies

11 Features Included In This Product Explained

2-Outlet

The dual outlet Valve comes with a connection for two outlets, so you can use two different fixtures one at a time, such as using the showerhead and shower handset. These Dual outlet shower valves come in various styles and can be used with varying shower fittings. Some come with diverters for switching between the two outlets.

Thermostatic Control

Thermostatic shower control works behind the scenes to achieve or maintain water temperature output from a showerhead. With the built-in safety feature, the shower provides a consistent water temperature.
Read more...

Diverter

A diverter, specifically in bath-shower combos, redirects the water flow from the bathtub spout to the showerhead. You can activate it using the nozzle in the bath shower mixer tap.
Read more...

Ceramic Disc Cartridge

It has two ceramic discs, one fixed in place and the other moveable with the tap or valve handle. It is the most common technology used in modern tapware as it offers unmatched advantages such as no leaks and drips and saves on water and money.
Read more...

ABS Material

ABS (Acrylonitrile Butadiene Styrene) is a laminate popularly used in woodworking and furniture manufacturing. It is a thermoplastic polymer used to finish and seal the edges of plywood, chipboard, MDF, HDF, and other boards.

Stainless Steel Material

Stainless Steel is an iron alloy with anti-rust and anti-corrosive properties, unlike iron. Along with other metal alloys, it contains a minimum of 10.5% of chromium and less than 1.2% of carbon. This robust, hygienic, hard-wearing base material is popular in the construction of bathroom products.

WRAS Approved Product

WRAS Approval means that the particular water fitting or product complies with or meets the requirements specified by the Water Supply (Water Fittings) Regulations or Scottish Byelaws.
Read more...

TMV2 Approved Product

TMV2 is an independent certification for thermostatic mixers, including shower valves, run by BuildCert that ensures national and international standards as specified under (BS EN 1111 and 1287) are met. These standards detail the exacting requirements that a thermostatic valve or product must comply with to guarantee a high thermostatic protection and safety standard. Products meeting this requirement carries the logo and protect against any scalding accidents.

Medium Water Pressure

Water systems operating at a pressure between 0.5 and 0.9 bar are considered medium pressure. Products usually come labelled if they are suitable for use in medium pressure.

High Water Pressure

Water systems operating at 1.0 bar or higher pressure are considered high-pressure systems. Products usually come labelled if they are suitable to use under such pressure.

Easy Clean Nozzles

Shower heads and handsets can be easily cleaned with a damp cloth, preventing limescale build-up.
