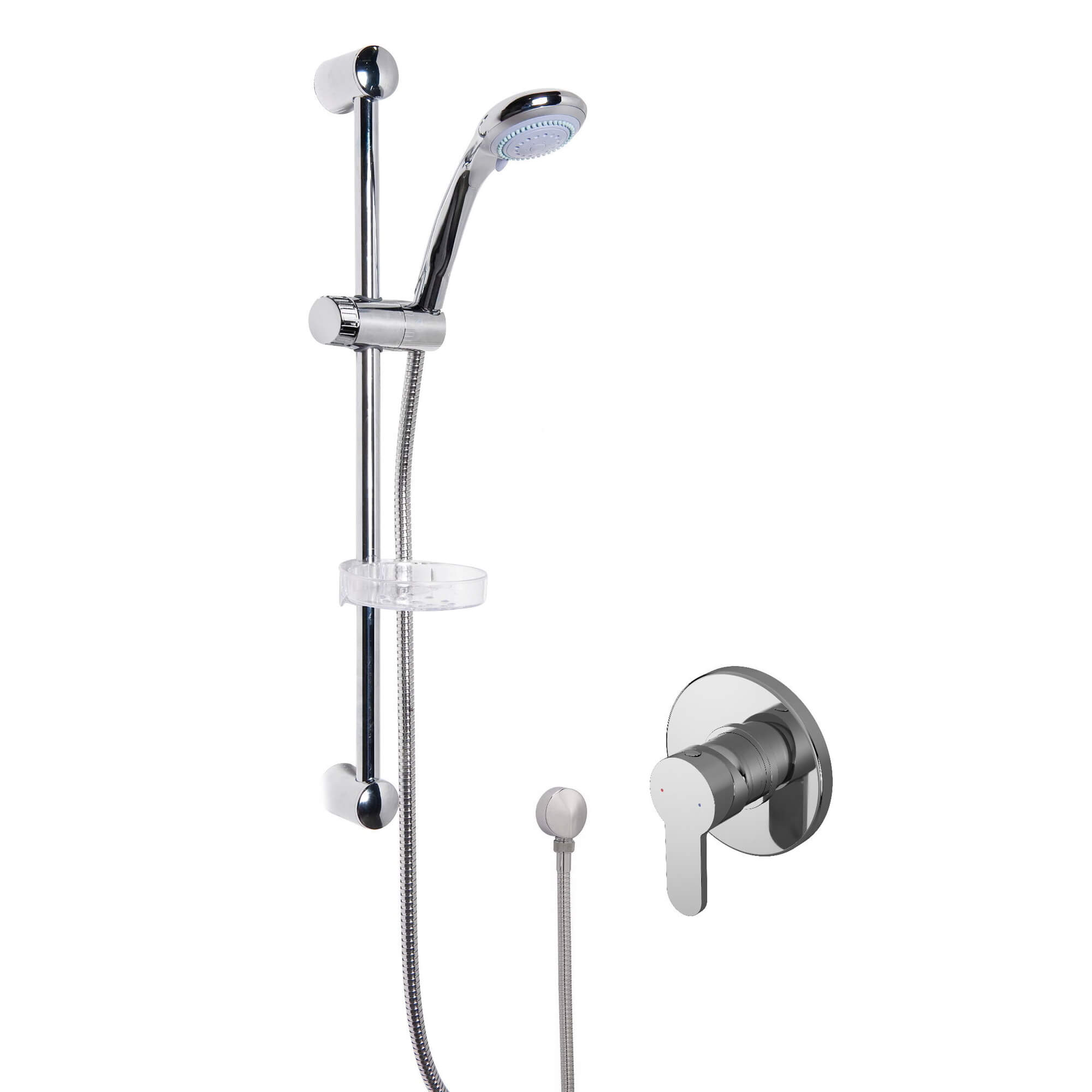

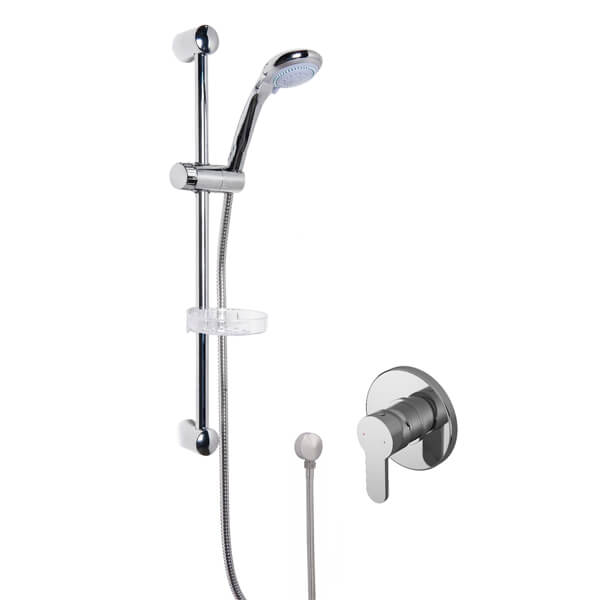

Nuie Manual Shower Valve with Chrome Slide Rail Kit And Outlet Elbow

Nuie Manual Shower Valve with Chrome Slide Rail Kit And Outlet Elbow

• The Manufacturing Code of this Product is: SBR04MV1
• Complete Set Comes in a Chrome Finish
• Design: Round
• Mounted Type: Surface and Wall
• Specifications Of Slide Rail Kit:
• Height: 595mm (59.5cm)
• Inlet Connection: G1/2-Inch
• Weight: 0.68kg
• Supplied with Transparent Soap Dish
• Manufactured Using ABS and Brass Material
• Number of Outlets: 1
• Suitable for Low Water Pressure System
• Requires a Minimum of 0.1 Bar of Water Pressure
• Specifications Of Shower Valve:
• Size [mm]: Ø110 x 126mm [Diameter x Height]
• Size [cm]: Ø11 x 12.6cm [Diameter x Height]
• Weight: 1.07kg
• Manufactured Using Brass and ABS Material
• Single Lever Cartridge
• Pipe Size: 15mm (1.5cm) (1/2-Inch BSP)
• Number of Outlets: 1
• Suitable for Medium Water Pressure System
• Requires a Minimum of 0.5 Bar of Water Pressure
• Specifications Of Outlet Elbow :
• Size [mm]: Ø53 x 26mm [Diameter x Height]
• Size [cm]: Ø5.3 x 2.6cm [Diameter x Height]
• Weight: 0.2kg
• Manufactured Using Plastic Material
• Download the Customer Data Sheet and Installation Instruction PDF Files from the Additional Info Section
• Refer to the Technical Drawing for Size Details
• 5-Year Guarantee from Nuie Against Manufacturing Defects
