Nuie Single Ended Straight Bath with Curved Swing Screen & Panel, 1700mm Length

Details

MFC: BAZSE007

Nuie Single Ended Straight Bath with Curved Swing Screen and Panel - 4mm Acrylic - 1700mm Length.

Key Features

Pack Includes:
✔Single Ended Bathtub with Panel and Legs
✔Swing Bath Screen
✔5 Years of Guarantee Against Any Manufacturing Defects

Choices of Bath Size: 1700 x 700mm and 1700 x 750mm
Choices of Screen Finishes: Chrome, Brushed Brass and Matt Black
Choices of Screen Variations: Without Towel Holder, and With Towel Holder
Features of Bathtub:
Manufactured Using Acrylic Material
Thickness: 4mm
Water Capacity: 180 Litre [1700 x 700mm], 180 Litre [1700 x 750mm]
Displaced Capacity: 110 Litre [1700 x 700mm], 88 Litre [1700 x 750mm]
Waste Position: End Of Bath
Supplied Complete with Overflow and Legs
Straight Round Bath Design
Supplied Undrilled for Taps, Suitable for Wall-Mounted or Deck-Mounted Taps
Size of 1700 x 700mm Bath: 1700 x 700 x 360mm [Length x Width x Depth]
Size of 1700 x 750mm Bath: 1700 x 750 x 360mm [Length x Width x Depth]
Size of Panel: 1700 x 510 x 20mm [Length x Height x Thickness]
Features of Swing Bath Screen:
UKCA and CE Certified
6mm Toughened Safety Glass
Supplied Complete with Fixings
Frame Material: Aluminium
Weight: 17kg
Bath Screen Features Semi-Frameless Design
Reversible Orientation for Flexible Installation
Size in [mm]: 775-790 x 1430mm [Width x Height]
Swing In-Out: 700mm [70cm]
Download Product Data Sheet PDF from the Additional Info Section
Waste Shown in the Image Is Not Included Sold Separately

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Position of Drain
: Foot End
⤷ Bath Type
: Single Ended
⤷ External Length
: 1700
⤷ External Width
: 700, 750
⤷ Tub Depth
: 360
⤷ Feets Included
: Yes
⤷ Front Panel Included
: Yes
⤷ Colour
: White
⤷ Internal Bottom Length
: 1171
⤷ Internal Bottom Width
: 381
⤷ Height of Rim
: 40
⤷ Distance Tub edge to centre of drain hole
: 280
⤷ Distance Top edge to centre of overflow hole
: 75

⤷ Diameter of overflow hole
: Ø52
⤷ Diameter of Drain hole
: Ø52
⤷ Rim Width
: 70, 90
⤷ Shape
: Rectangular
⤷ Capacity in litres
: 180
⤷ Warranty/Guarantee
: 5 Years
⤷ Material
: Acrylic
⤷ No. of Bathers
: 1
⤷ Theme
: Modern
⤷ Waste Included
: Sold Separately
⤷ Tap Holes
: 0
⤷ Barcode
: 5056678407639

Additional Info & Downloads

Download the 1700 x 700mm Bath Data Sheet Pdf File Download the 1700 x 750mm Bath Data Sheet Pdf File

Technical Images

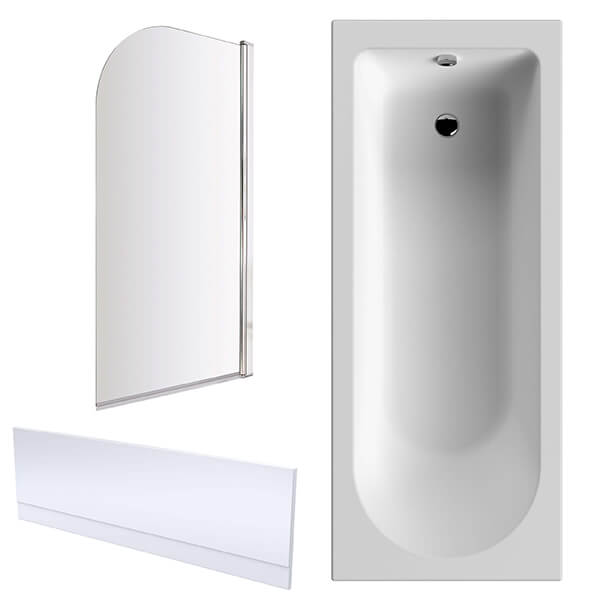

Nuie Single Ended Straight Bath with Curved Swing Screen and Panel - 4mm Acrylic - 1700mm Length

1700 x 700mm Bath

1700 x 750mm Bath

Bath Screen

Bath Panel

£552.00

RRP: ~~£690.00~~

Stock Availablity: 14-16 Working Days Approx

QS Supplies

7 Features Included In This Product Explained

Aluminium Frame

Aluminium frames are durable and naturally form a protective oxide coating, making them highly resistant to corrosion and a perfect fit for a bathroom.

With / Without Overflow

An overflow is a small hole or opening at the upper part of a sink, basin, bidet or tub that drains away water upon reaching its level so that no water is spilt. When a basin or bath does not come with this design feature, it is called 'without-overflow' and will need a compatible drain.

UKCA Certified

UKCA or the UK Conformity Assessed marking is a mandatory UK product marking for products sold across Great Britain, equivalent to the CE Marking in Europe. UKCA will be used to replace the CE Marking. CE marking will no longer be valid in England, Scotland and Wales except in Northern Ireland from the 1st of January 2021, and the CE mark will stay valid until the 1st of January 2023. A product with UKCA marking shows that the product complies with the UKCA Marking requirements.

CE Certified Product

CE mark meets the prescribed safety, health and environmental protection requirements and all appropriate EU requirements. This mark is mandatory for products designed, made and sold in the European Economic Area.

Reversible Design

It is a design which allows the product to be fitted either to the right or left, depending on the dimensions of your space.

Front Panel

A front bath panel is a decorative accessory that is used to cover the front-facing side of a bathtub for a neat and polished look. It also conceals plumbing and framework and comes in different sizes, textures and materials.

Toughened Safety Glass

Toughened glass, tempered or safety glass as it is rightly called, is five times harder than regular glass of the same size and thickness, which makes it so that it won’t break as easily. It also shatters with scattering as it tends to break into tiny, blunt pieces without harming anyone nearby. Known to have greater thermal strength, this durable material with double glazing has almost twice the soundproofing abilities and provides excellent heat insulation.
