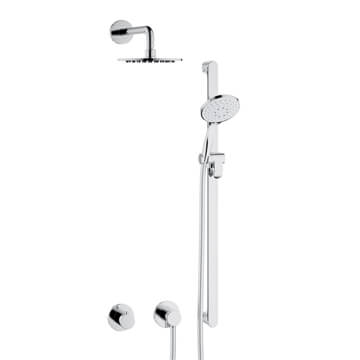

Keuco IXMO Round Thermostatic Shower Set 9 With With Head And Slide Rail Kit

Are you tired of buying accessories for your shower separately? Then you must consider installing the Keuco IXMO Round Thermostatic Shower Set 9 with Head and Slide Rail Kit. The all-inclusive package comprises Thermostatic Mixer Valve, Shower Head, & Hand Shower Sliding Rail. Also, it comes with a handle, sleeve and rosette for a complete look in the shower space. Plated in fine chrome, this master craftsmanship set will please you with the Thermostatic mechanism that ensures stress-free showering. Made of low-dezincification brass in a recessed installation, it comes built-in and makes an all-in-one addition to your shower enclosure.

• Chrome-plated shower set.
• Thermostatic Mixer :.
• Set complete with handle, sleeve and rosette (round).
• For recessed installation.
• With a round rosette, freely positionable.
• Installation depth 80 - 110 mm (8 - 11cm).
• Built-in device for interchanged waterways.
• Rosette diameter 90mm, 10mm thick, total depth 80 mm.
• Suitable for rough part no. 59553000070.
• Installation Unit for Thermostatic Mixer 59553000070 :.
• Sound-insulated rough part made of low-dezincifying brass.
• For recessed installation.
• Base plate with adjusting screws for optimal positioning.
• Connection G 1/2 inch with colour marking.
• 2-Way Stop and Diverter Valve with Wall Outlet :.
• Set complete with handle, casing, rosette (round), and stop and diverter valve.
• Intrinsically safe against backflow.
• Suitable for rough part no. 59556 000170.
• Pure lever with round rosette.
• Freely positionable, with backflow preventer.
• Installation depth 80 - 110mm (8 - 11cm).
• With adjustment facilities whilst assembling for handle and rosette.
• With hose connection G1/2 inch.
• Rosette diameter 90mm, 10mm thick, total depth 80mm.
• Installation Unit for 2-way Diverter Valve :.
• Rough part for recessed installation.
• With wall outlet for shower hose.
• Sound-insulated rough part made of low-dezincifying brass.
• Freely positionable.
• Installation depth 80mm - 110mm (8 - 11cm).
• Base plate with adjusting screws for optimal positioning.
• Connection G 1/2 inch with colour marking.
• Shower Head :.

• Round shape.
• Restricted flow rate 15 l/min.
• Height: 51mm (5.1cm).
• Depth: 200mm (20cm).
• Arm for shower head:.
• G 1/2 inch, with a round wall element.
• Diameter: 60mm (6cm).
• Projection: 300mm (30cm).
• Total projection: 312mm (31.2cm).
• Shower Hose:.
• Shower pipe with simulated metal.
• Kink protection is very flexible with double-sides DN 15 conical nuts.
• Twist-protection at the shower head end.
• The conical nuts (DN 15) are a design feature, as well as high-shine chrome.
• Length: 1600mm (160cm).
• Round Pencil Hand Shower:.
• Hand shower with normal jet.
• Normal jet flow rate 12 l/min. for combination boilers.
• Width: 25mm (2.5cm.
• Height: 187mm (18.7cm).
• Dept: 25mm (2.5cm).
• Mounting Rail:.
• For an easy and steplessly adjustable installation of the IXMO function units.
• Width: 570mm (57cm).
• Height: 132mm (13.2cm).
• Depth: 2mm (0.2cm).
• Shower-Set :.
• Rail 900mm (90cm) (total height 900mm), Hand shower bracket, height adjustable with handle, with adjustable tilt angle.
• Spacer disc (5 mm).
• Chrome-plated hand shower, with soft and massage function, flow rate ten l/min., with an anti-limescale device and ECO AIR function, also suitable for combination boilers.
• Shower hose, 1600mm (160cm).
• The rail is fitted concealed and includes anti-corrosion fixings.
