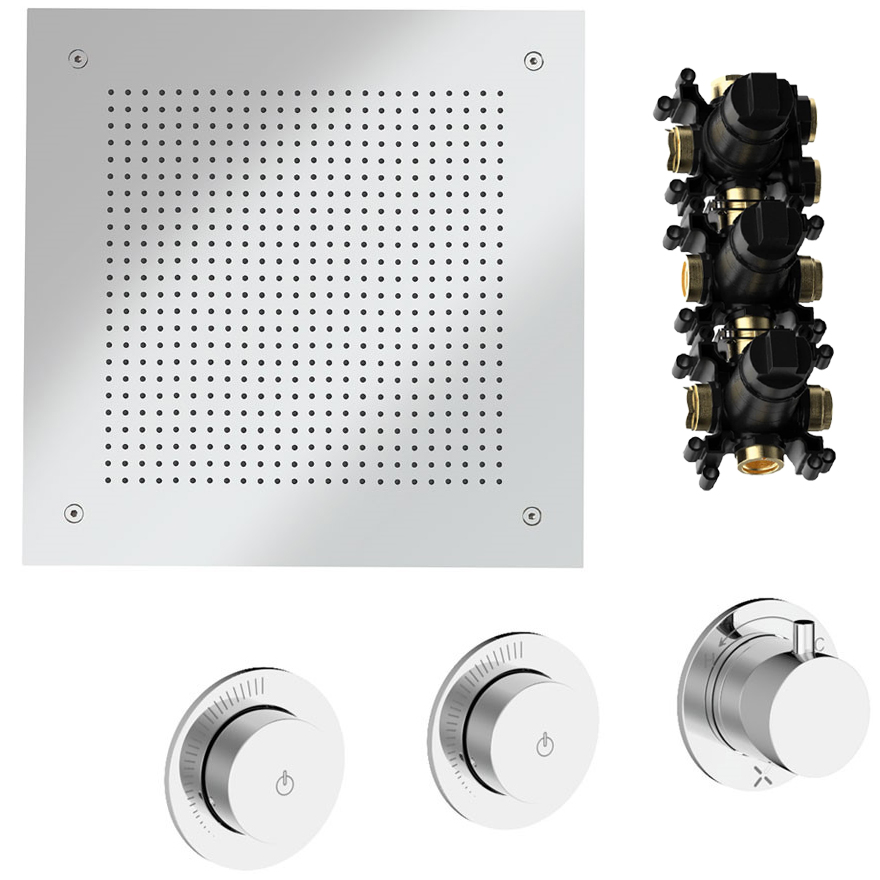

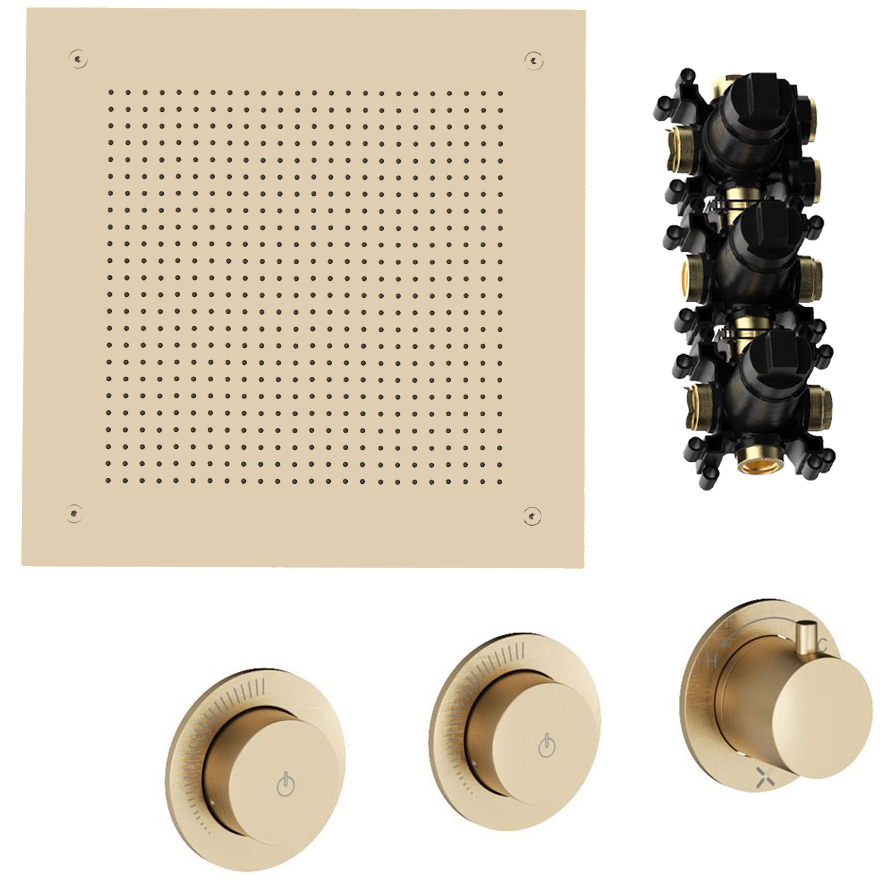

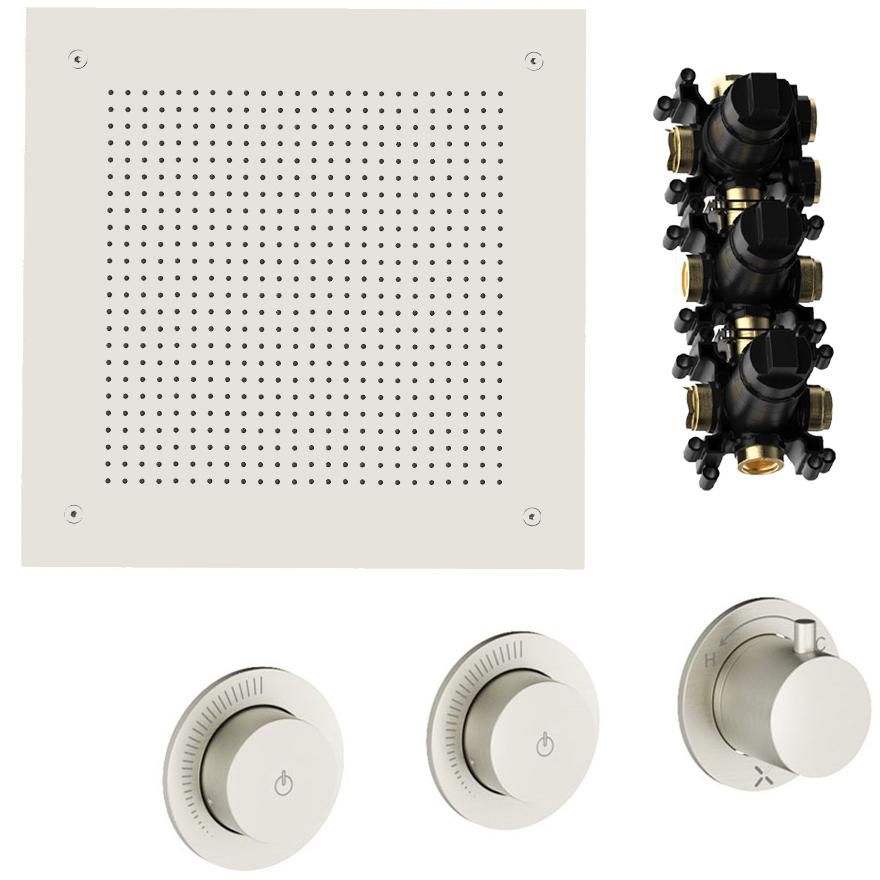

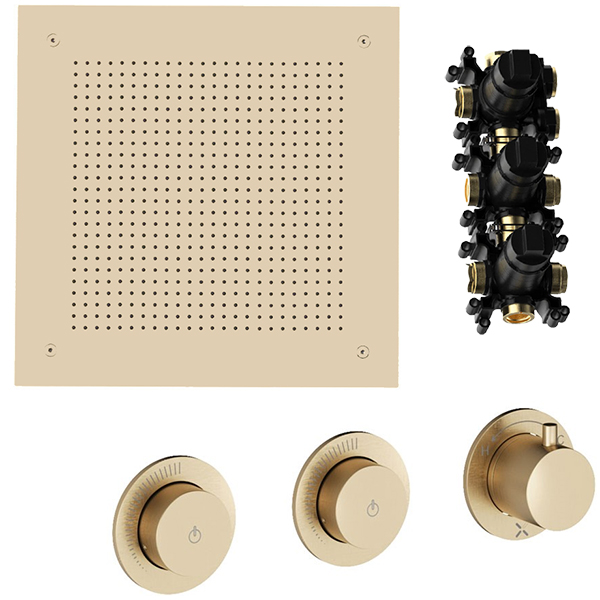

Crosswater Module Plus Push 2 Outlet Shower Set with Tranquil Square Head

Crosswater Module Plus Details

MFC: MPLUSSET5C

Crosswater Module Plus Push 2 Outlet Shower Set with Tranquil Square Head.

Key Features

✔Pack Includes:
✔Round Contemporary 2 Outlet Trimset
✔2 Outlet Thermostatic Shower Valve
✔Tranquil Square Shower Head

Choices of Finishes: Chrome, Brushed Nickel, Brushed Brass
15-Year Guarantee from the Manufacturer Against any Manufacturing Defects
Please Refer to the Technical Drawing For Size Details
Download the Data Sheet and Installation Instruction PDF Files from the Additional Info Section
Specification Of Push 2 Control Concealed Trimset
Number of Outlets: 2
Number of Functions: 2
Manufactured Using Zamac Material
Size [mm]: 70 x 62mm [Width x Depth]
Size [cm]: 7 x 6.2cm [Width x Depth]
Wall-Mounted Installation
Thermostatically Controlled for 100% Safety
Includes: Push Button On/Off, Flow Control, Thermostat, Minimalist Backplate and Handles
Weight: 1.2 kg
Suitable for High Water Pressure System
Requires Min. 1.0 bar and Max. 5.0 bar Operating Water Pressure
Specifications of Push 2 Outlet Rough:
Material: Brass
KIWA Approved Product
Size [mm]: 401 x 97 x 119mm [Width x Depth x Height]
Size [cm]: 40.1 x 9.7cm x 11.9cm [Width x Depth x Height]
Inlet and Outlet Connections: G 3/4 Inch
Weight: 2.7kg
Features: Neoperl FSG Cartridge, Vernet Thermostatic Element and Easy Installation
Specifications of Recessed Fixed Shower Head:
Material: Stainless Steel
Incorporates with Tranquil Rainfall
Single Mode Function
Weight: 4kg
Ceiling Mounted Installation
Size [mm]: 380 x 78 x 380mm [Width x Depth x Height]
Size [cm]: 38 x 7.8 x 38cm [Width x Depth x Height]
Standards: EN 1112:2008
Flow Regulator: E-NT
Inlet and Outlet Connection: G 1/2 Inch
Suitable for High-Water Pressure System
Requires Minimum 1.0 Bar and Maximum 5.0 Bar Operating Water Pressure

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Colour
: Chrome
⤷ Warranty/Guarantee
: 15 Years
⤷ Theme
: Modern
⤷ Valve Included
: Yes
⤷ Valve/Cartridge Type
: Concealed
⤷ Inlet Connections
: G 1/2
⤷ Minimum Operating Pressure (Bar)
: 1.0

⤷ Temperature Control
: Thermostatic
⤷ Diverter Included
: Yes
⤷ Showerhead Type
: Fixed
⤷ Spray Patterns (Shower Head)
: 1
⤷ Shower Head Included
: Yes
⤷ Shower Head Size
: 300

Additional Info & Downloads

Download the Installation Instruction Of Trimset Pdf File Download the Installation Instruction Of Shower Valve Pdf File Download the Installation Instruction Of Shower Head Pdf File Download the Product Data Sheet Of Trimset Pdf File Download the Product Data Sheet Of Valve Pdf File Download the Product Data Sheet Of Shower Head Pdf File

Technical Images

Crosswater Module Plus Push 2 Outlet Shower Set with Tranquil Square Head

Trim Set

Shower Valve

Shower Head

£1349.25

RRP: ~~£1799.00~~

STOCK AVAILABLITY: 5 Working Days Approx

QS Supplies

3 Features Included In This Product Explained

2-Outlet

The dual outlet Valve comes with a connection for two outlets, so you can use two different fixtures one at a time, such as using the showerhead and shower handset. These Dual outlet shower valves come in various styles and can be used with varying shower fittings. Some come with diverters for switching between the two outlets.

KIWA Approved

KIWA is a universally accepted Dutch approval standard at par with German DVGW, Austrian OVGW, Swiss SVGW, and French NF approval systems. The KIWA approval means that the products meet a high-quality standard for portable water and gas-related products.

High Water Pressure

Water systems operating at 1.0 bar or higher pressure are considered high-pressure systems. Products usually come labelled if they are suitable to use under such pressure.
