Crosswater MPRO Concealed Thermostatic Valve and Handset with 3-In-1 Bath Filler

Not Yet Rated No Rating

£524.30

RRP: £749.00
SKU: QS-V114189
Select Finish
Selected: OP-249823 - Chrome
Pay in 3-Interest Free Payments
Shipping

Shipping: £7.95

Stock Availability

Stock Availability:

6 Working Days Approx.

Crosswater MPRO Details

MFC: DESET5C

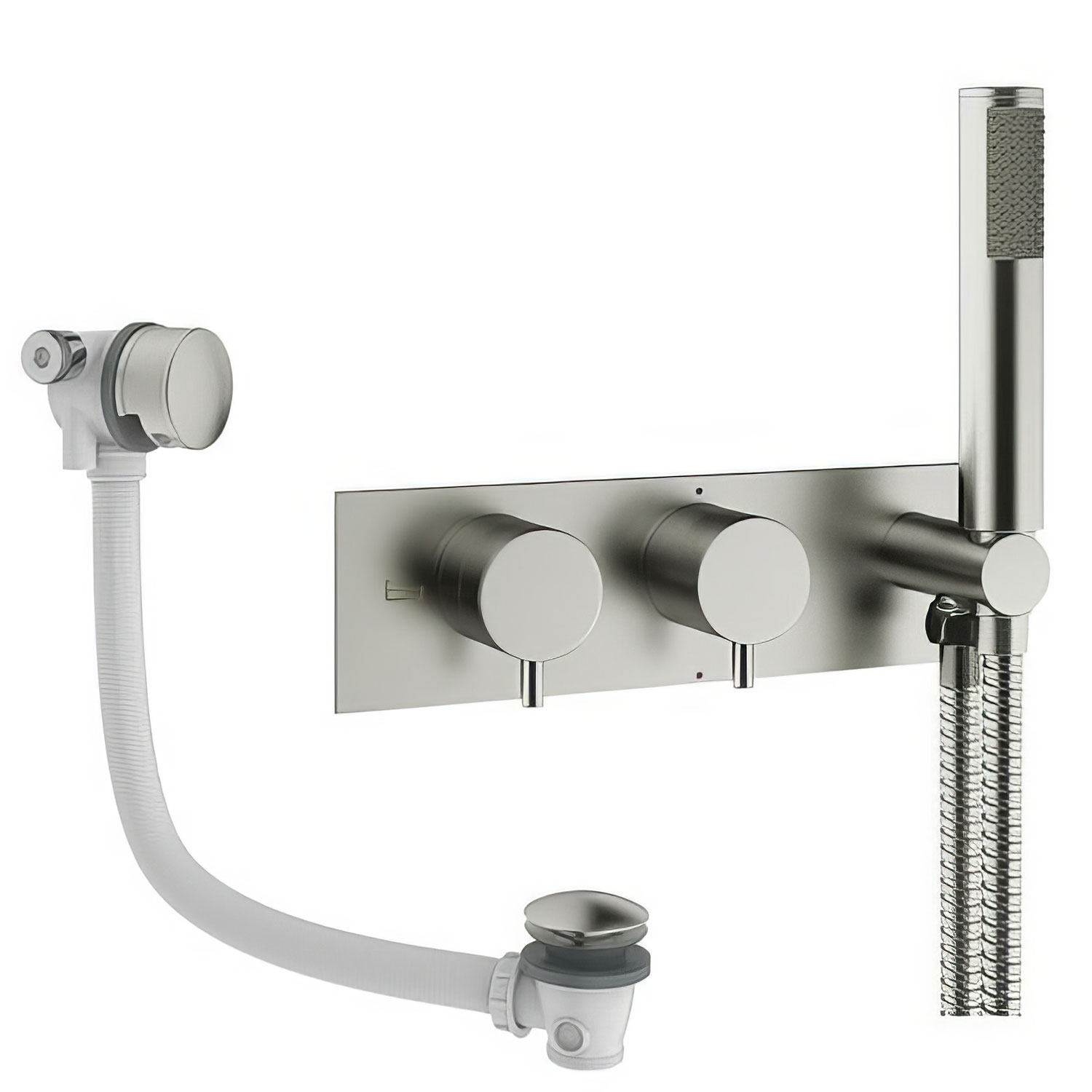

Crosswater MPRO Concealed Thermostatic Valve and Handset with 3-In-1 Bath Filler.

Key Features

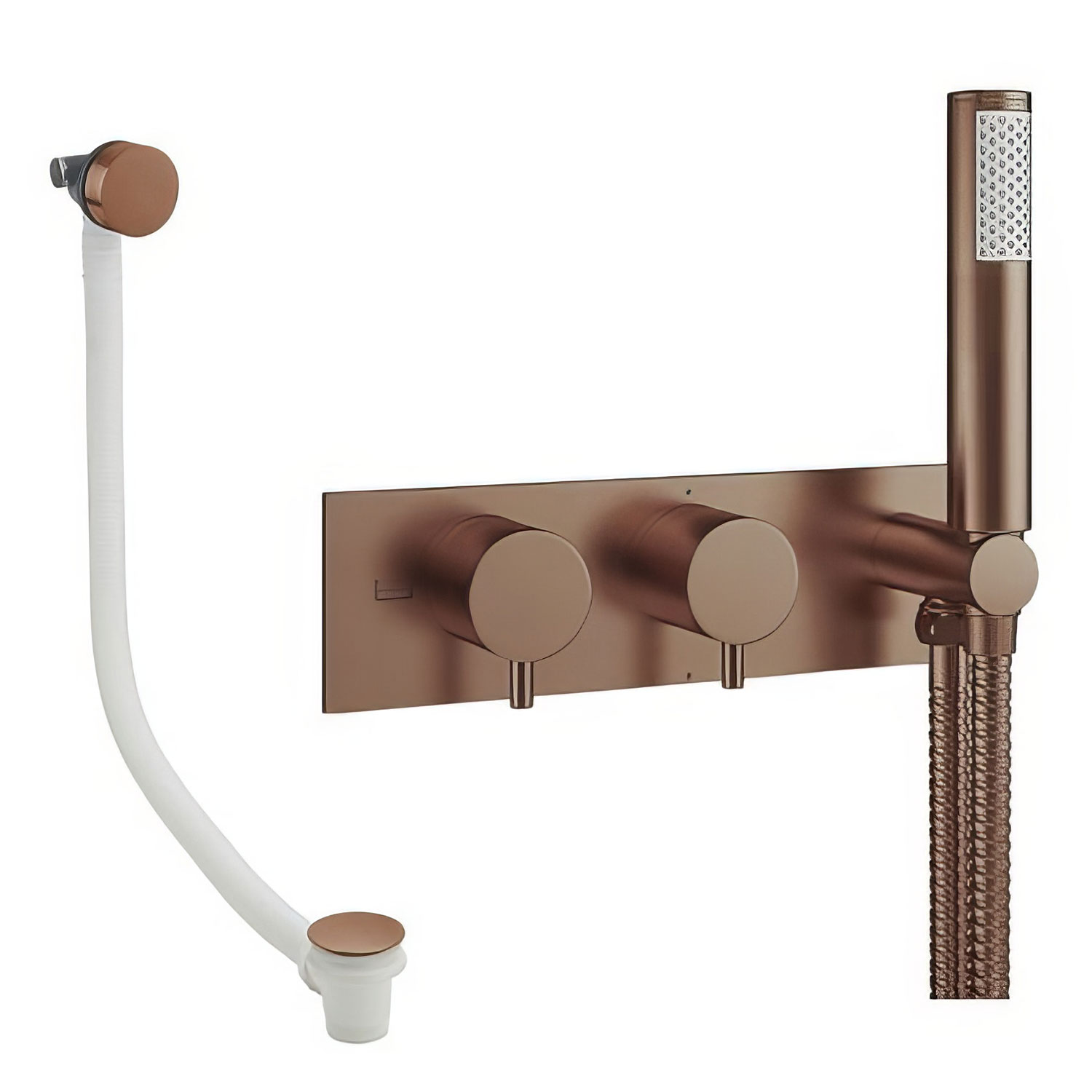

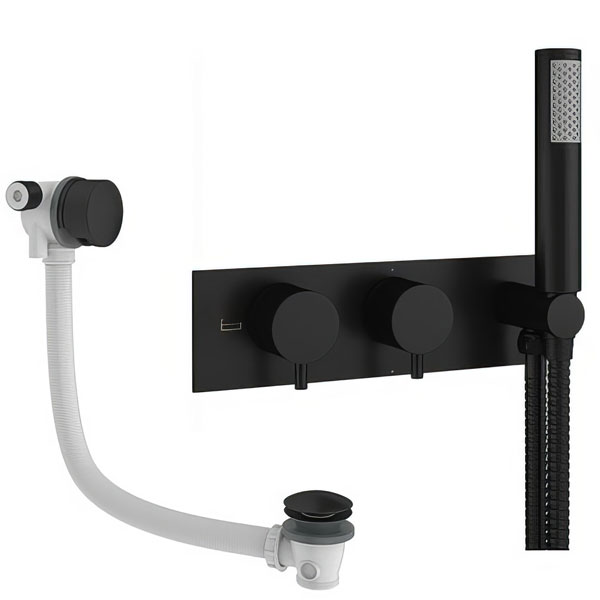

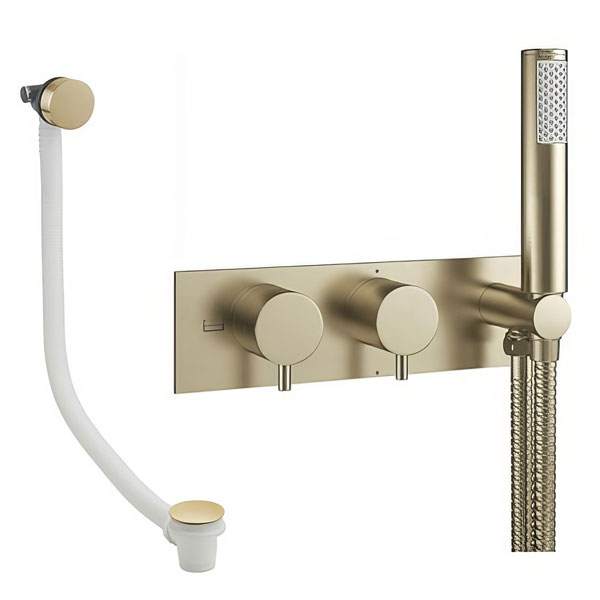

  • Available in Chrome, Matt Black, Brushed Brass, Brushed Bronze, Brushed Nickel and Slate Finish [Optional]
  • Pack Includes - Shower Valve body, Trimset and Bath Filler with Click Clak Waste
  • Long-lasting reliability, durability, and performance are ensured by premium solid brass and ABS construction
  • 15 Years Guarantee from Crosswater against manufacturing defects
  • Easy and accurate control of water flow and temperature is provided for consistent comfort
  • Refer to the Technical Drawing for more Technical details
  • Download the Customer Datasheet PDF from the Additional Info & Download section
  • Trim Set:
  • Size (mm): Width 262 x Height 67mm
  • Size (cm): Width 26.2 x Height 6.7cm
  • Shower Hose and Handset included
  • Electroplated Finish
  • Installation: Wall Mounted / Concealed
  • Weight: 2.3 Kg
  • Suitable for High-Pressure Water System
  • Requires a minimum of 1.0 bar to a maximum 5.0 bar operating water pressure
  • Kiwa Approved:2307710
  • Warranty: 15 years from the manufacturer

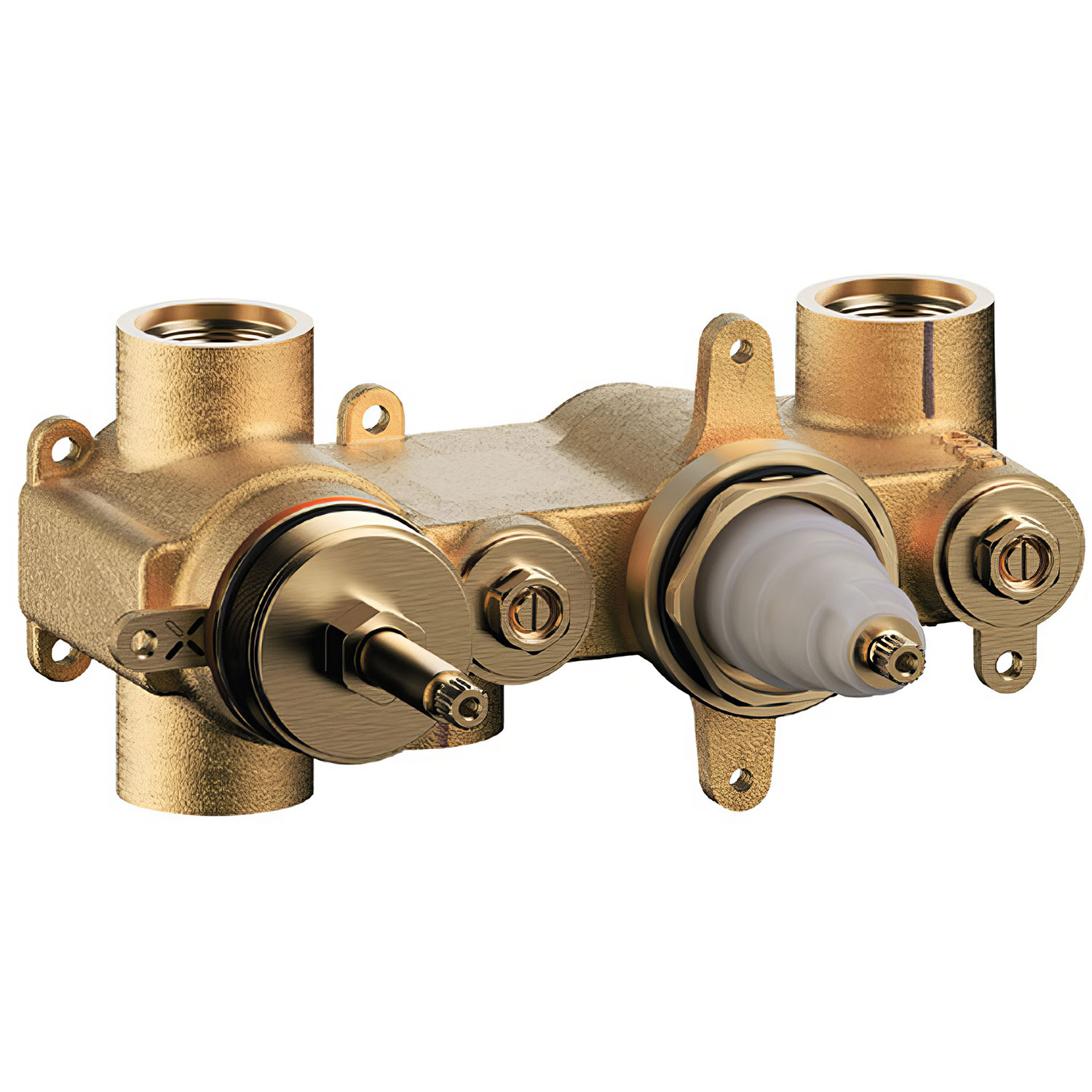

  • Valve Body:
  • Size (mm): Width 181 x Depth 129 x Height 82mm
  • Size (cm): Width 18.1 x Depth 12.9 x Height 8.2cm
  • 2-way Diverter Valve
  • Type: Concealed
  • Weight: 2.4 Kg
  • Requires 0.5 bar operating water pressure
  • Maximum Working Pressure: 5.0 bar
  • Standard: BS EN 1111:2017
  • Approval: WRAS:- 2203300 KIWA Reg 4:- 2201704 KIWA TMV2:- 2203756
  • Number of Outlets: 2
  • Number of Handles: 2
  • Number of Functions: 2
  • Thermostatic Cartridge included
  • G3/4" Inlet and Outlet Connection
  • Protection against scalding and sudden temperature changes is built in for added safety
  • Front access is provided to allow easy servicing and maintenance
  • Warranty: 15 years from the manufacturer
  • Bath Filler:
  • 3-In-1 Bath Filler
  • Supplied with Click Clak Waste
  • Size (mm) Width 332 x Height: 130mm
  • Length: 250mm
  • Weight: 0.95 kg
  • Number of outlets: 1
  • Spout Projection: 41
  • Inlet Connection: 1/2"
  • Warranty: 2 years from the manufacturer

Technical Specifications

Please note all the measurements are in 'mm'
  • ⤷ Water Activation
  • : By Lifting / Tilting
  • ⤷ Range
  • : MPRO
  • ⤷ Tap Body Shape
  • : Rectangular
  • ⤷ Colour
  • : Chrome
  • ⤷ Shape
  • : Rectangular
  • ⤷ Warranty/Guarantee
  • : 15-Years | 2 Years
  • ⤷ Material
  • : Brass
  • ⤷ Theme
  • : Modern
  • ⤷ Installation Type
  • : Wall Mounted | Concealed
  • ⤷ Valve Included
  • : Yes
  • ⤷ Valve/Cartridge Type
  • : Thermostatic
  • ⤷ Inlet Connections
  • : G3/4
  • ⤷ Minimum Operating Pressure (Bar)
  • : 1.0
  • ⤷ Hose Included
  • : Yes
  • ⤷ Hand-Shower Included
  • : Yes
  • ⤷ Handle Style
  • : Knob
  • ⤷ WRAS Approved
  • : Yes
  • ⤷ Depth
  • : 129
  • ⤷ Backplate Width
  • : 262
  • ⤷ Backplate Height
  • : 67
  • ⤷ Anti-Scald
  • : Yes
  • ⤷ Number of Handles
  • : 2
  • ⤷ Number of Outlet
  • : 0
  • ⤷ Outlet Connection
  • : G1/2
  • ⤷ Diverter Included
  • : Yes
  • ⤷ Orientation
  • : Landscape
  • ⤷ Barcode
  • : 5056808734253
  • ⤷ Product Type
  • : Shower Valve | Bath Filler
  • ⤷ Maximum Operating Pressure (Bar)
  • : 5.0
  • ⤷ Concealed Body Included
  • : Yes
  • ⤷ Cartridge Included
  • : Yes

Additional Info & Downloads

Download PDFDownload the Customer Data Sheet Pdf File Download PDFDownload the Installation Instruction Pdf File

Technical Images

£524.30
RRP: £749.00
STOCK AVAILABLITY: 6 Working Days Approx
QS Supplies

6 Features Included In This Product Explained

WRAS Approved Component

WRAS Approved Component

A WRAS-approved component refers to a product or fitting that can be used with the public mains water supply in the UK as it satisfies the conditions outlined by the Water Supply (Water Fittings) Regulations or Scottish Byelaws. Such components can be whole products (valves or rubber) or materials used to manufacture products.

Medium Water Pressure

Medium Water Pressure

Water systems operating at a pressure between 0.5 and 0.9 bar are considered medium pressure. Products usually come labelled if they are suitable for use in medium pressure.

High Water Pressure

High Water Pressure

Water systems operating at 1.0 bar or higher pressure are considered high-pressure systems. Products usually come labelled if they are suitable to use under such pressure.

2-Outlet

2-Outlet

The dual outlet Valve comes with a connection for two outlets, so you can use two different fixtures one at a time, such as using the showerhead and shower handset. These Dual outlet shower valves come in various styles and can be used with varying shower fittings. Some come with diverters for switching between the two outlets.

Thermostatic Control

Thermostatic Control

Thermostatic shower control works behind the scenes to achieve or maintain water temperature output from a showerhead. With the built-in safety feature, the shower provides a consistent water temperature.
Read more...

KIWA Approved

KIWA Approved

KIWA is a universally accepted Dutch approval standard at par with German DVGW, Austrian OVGW, Swiss SVGW, and French NF approval systems. The KIWA approval means that the products meet a high-quality standard for portable water and gas-related products.
