Crosswater MPRO 1-Outlet Thermostatic Valve and Slide Rail Kit with Handset

Crosswater MPRO Details

MFC: DESET2C

Crosswater MPRO Concealed 1-Outlet Thermostatic Valve and Slide Rail Kit with 3-Function Handset.

Key Features

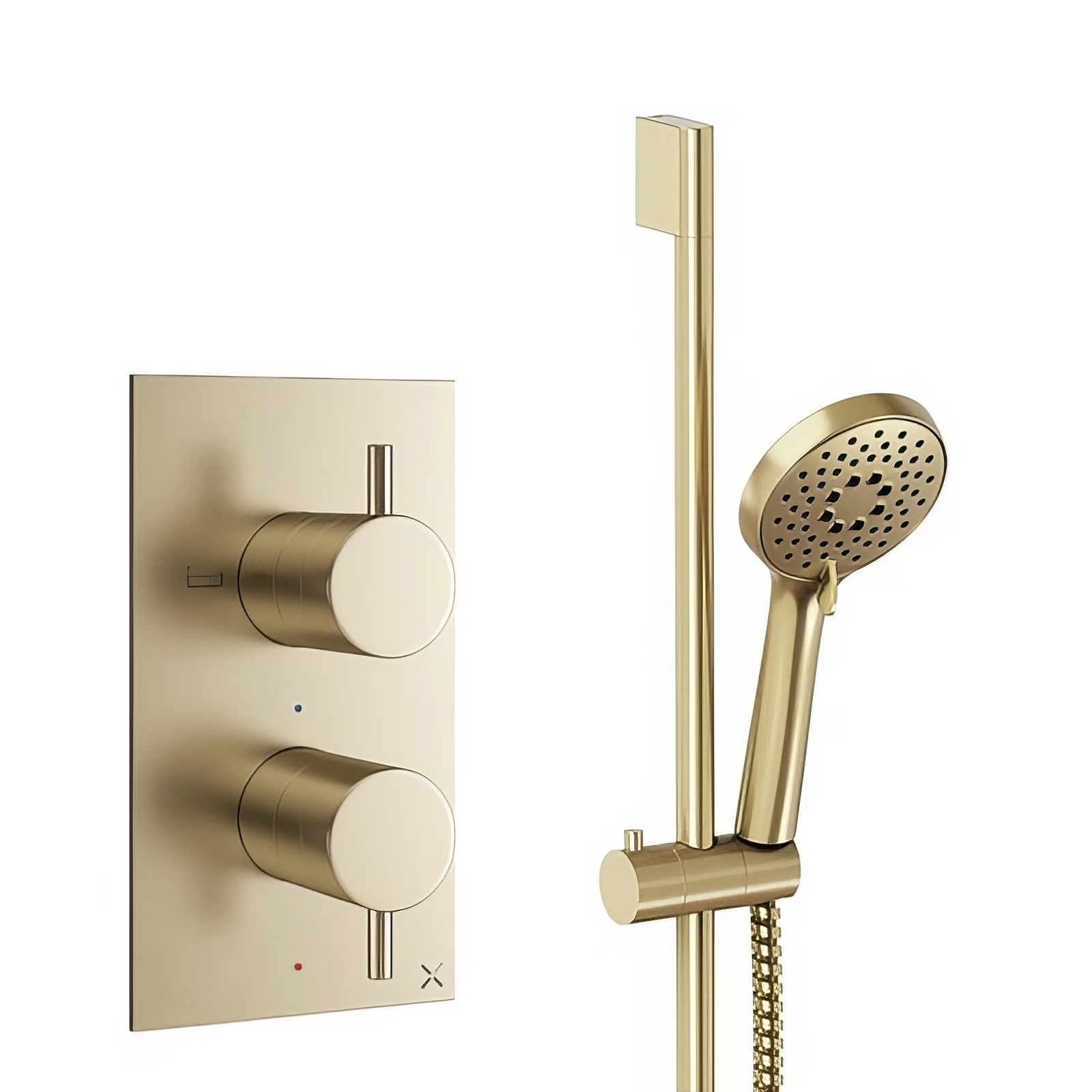

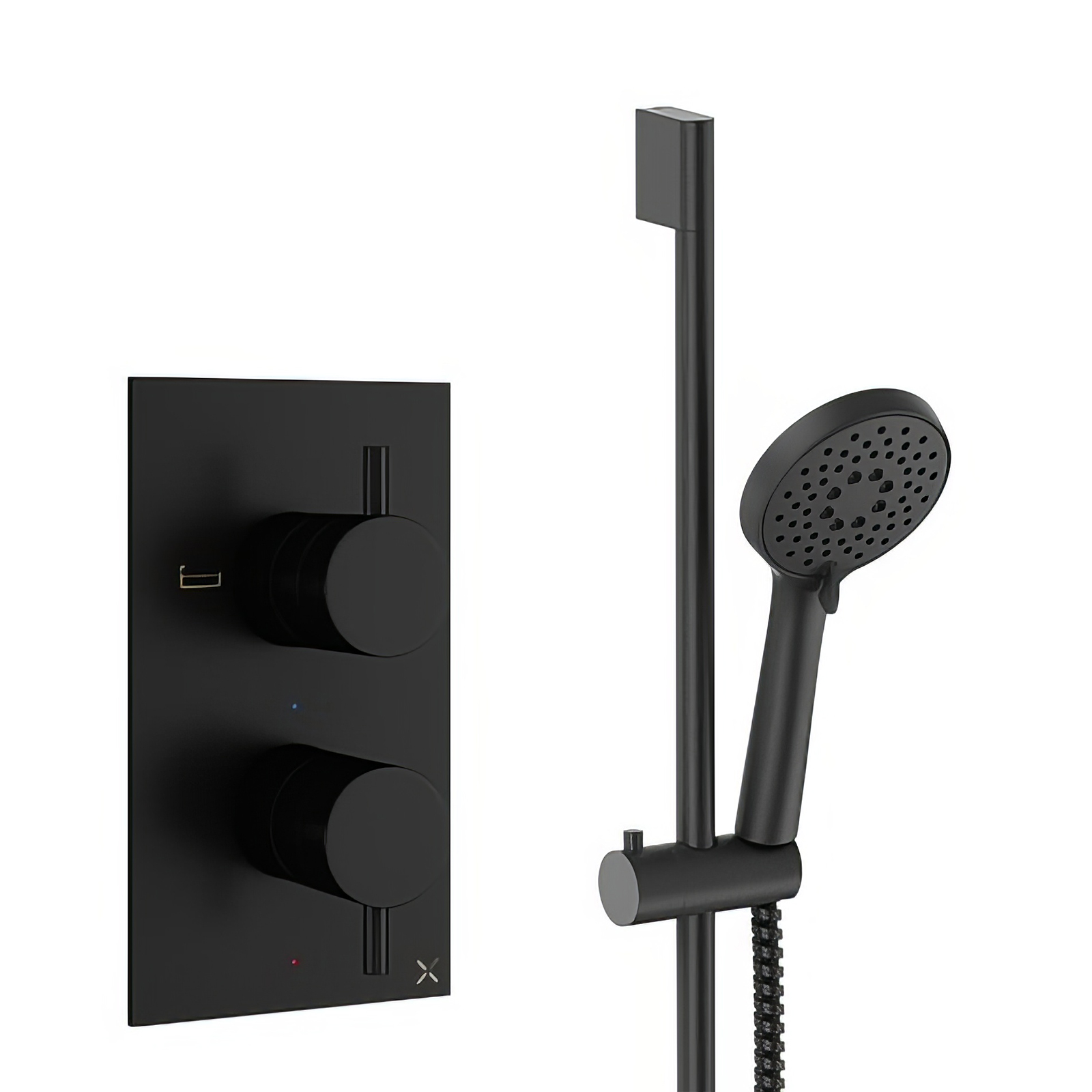

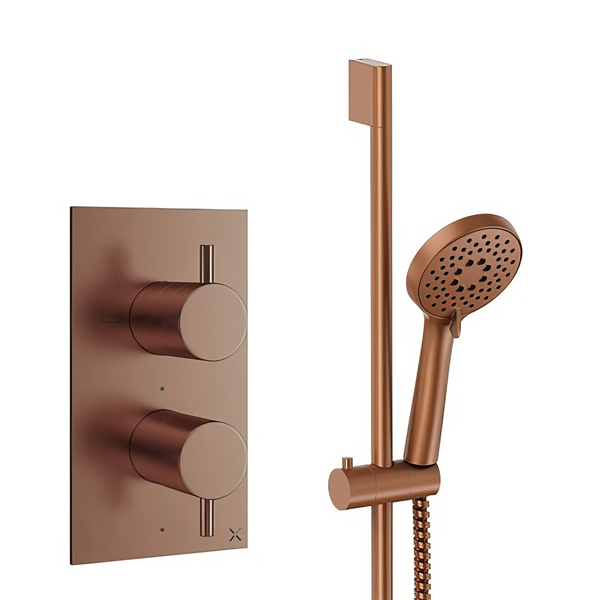

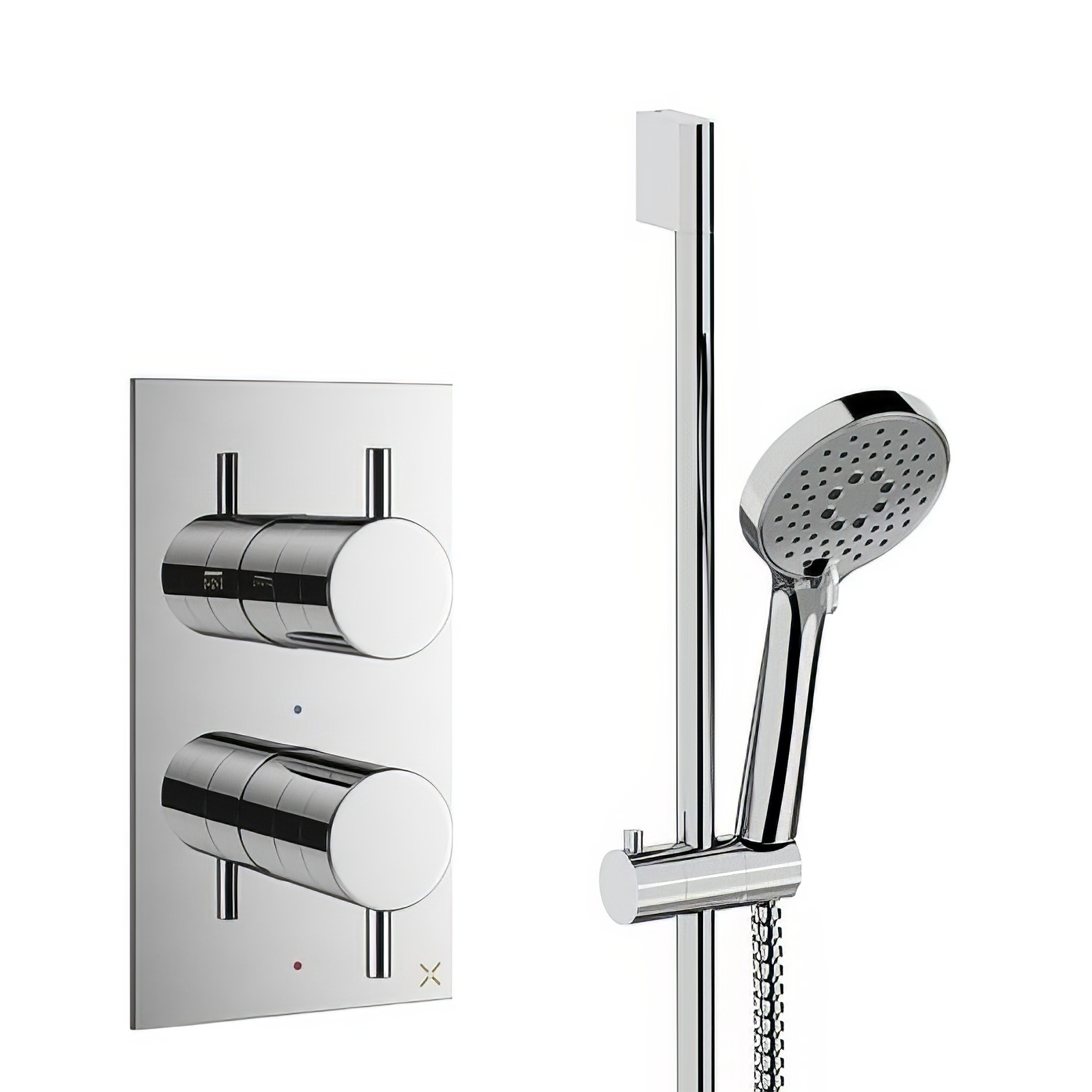

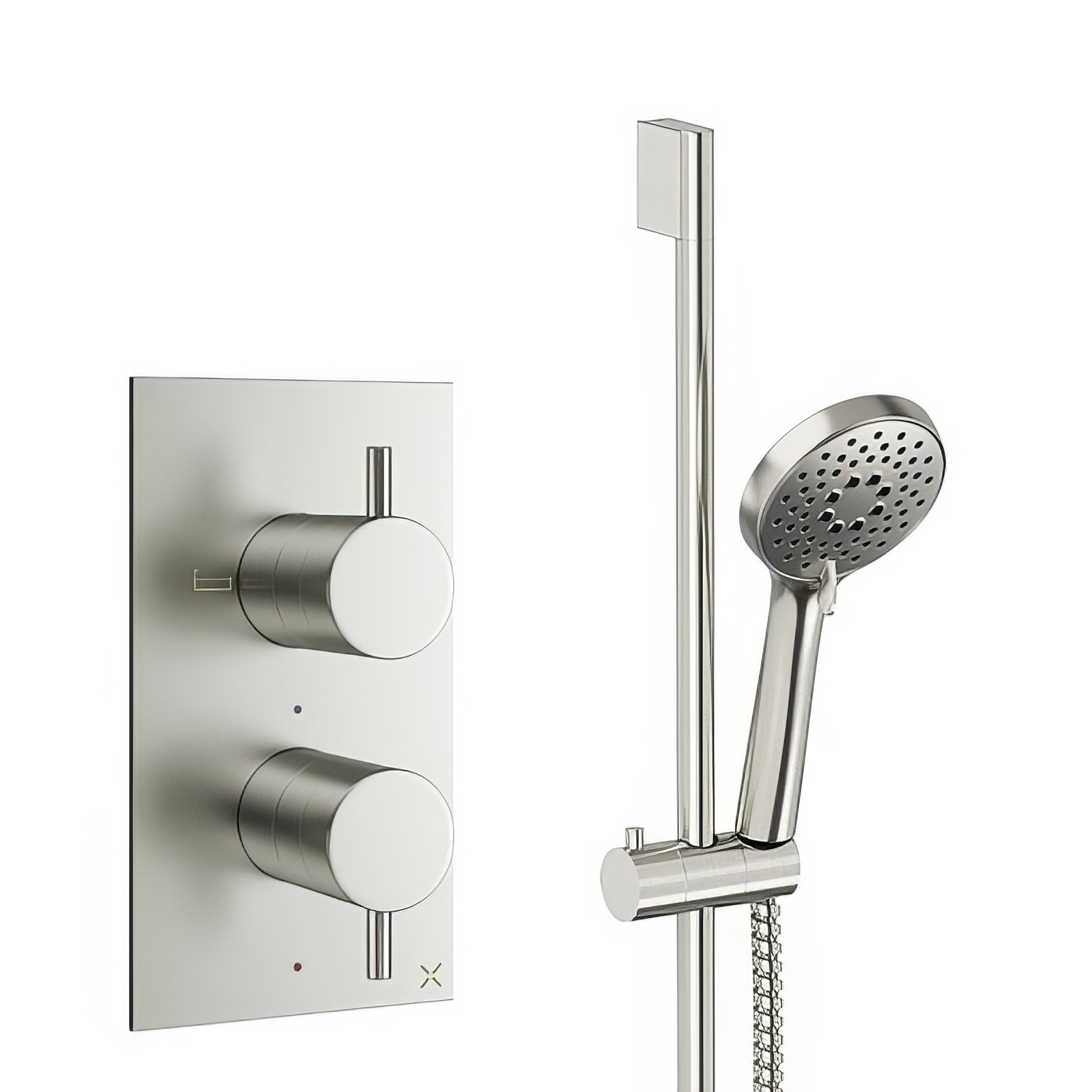

✔Available in Chrome, Matt Black, Brushed Brass, Brushed Bronze, Brushed Nickel and Slate Finish [Optional]
✔Shower Set Includes - Trim Set, Valve Body, Slide Rail, Round Hand Shower with Hose and Wall Outlet
✔Long-lasting reliability, durability, and performance are ensured by premium solid brass and ABS construction
✔15 Years Guarantee from Crosswater against manufacturing defects

Easy and accurate control of water flow and temperature is provided for consistent comfort
Protection against scalding and sudden temperature changes is built in for added safety
Front access is provided to allow easy servicing and maintenance
Refer to the Technical Drawing for more Technical details
Download the Customer Datasheet PDF from the Additional Info & Download section
Trim Set:
Shape Rectangular
Size of Backplate In [mm]: 120 x 215mm [Width x Height]
Size of Backplate In [cm]: 12 x 21.5cm [Width x Height]
Handle: 2
Handle Shape: Round with Stick lever
Comes with Collar
Weight: 2.3 Kg
Valve Body:
Installation type: Wall Mount / Concealed
Size: Width 66 x Depth 132 x Height 183mm
Protection against scalding and sudden temperature changes is built in for added safety
Front access is provided to allow easy servicing and maintenance
Inlet and Outlet Connection: G3/4 Inch
Outlet: 1
Function: 1
Diverter and Thermostatic Cartridge
WRAS: 2203300, KIWA Reg 4: 2201704 KIWA and TMV2:- 2203756
Standard BS EN 1111:2017
Suitable for Medium Pressure Water System
Requires a Minimum 0.5 bar and a Maximum 5.0 bar Operating Water Pressure
Slide Rail
Shape: Round
Comes with Handset Holder
Size: Depth 45 x Height 698mm
Shower Handset
Size: Ø102 x Height 265mm
Suitable for high-pressure water systems
Requires a Minimum 1.0 Bar and a Maximum 5.0 Bar Operating Water Pressure
Completes with Shower Hose
WRAS Approved: Number 240688010
Material: ABS
3 Function Shower Handset
G1/2" Inlet Connection
Outlet Elbow
Shape: Round
Size: Ø51 x Depth 23mm

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Colour
: Chrome
⤷ Warranty/Guarantee
: 15 Years
⤷ Material
: Brass | ABS
⤷ Theme
: Modern
⤷ Valve Included
: Yes
⤷ Valve/Cartridge Type
: Thermostatic
⤷ Inlet Connections
: G3/4"
⤷ Minimum Operating Pressure (Bar)
: 1.0
⤷ Hose Included
: Yes
⤷ Flow Rates (l/min)
: 1 Bar: 10.29
⤷ Configuration
: Valve with Slide Rail Kit Set
⤷ Height
: 698

⤷ Temperature Control
: Thermostatic
⤷ Backplate Width
: 120
⤷ Backplate Height
: 215
⤷ Anti-Scald
: Yes
⤷ Compliance/Approvals/Standard
: WRAS | UKCA
⤷ Product Type
: Shower Set
⤷ Separate temperature and power controls
: Yes
⤷ Handset Included
: Yes
⤷ Spray Patterns (Shower Handset)
: 3
⤷ Rail Length
: 698
⤷ Outlet Elbow Included
: Yes

Additional Info & Downloads

Download the Customer DataSheet Pdf File Download the Shower Valve Installation Pdf File Download the Slide Rail Kit Installation Pdf File

Technical Images

Crosswater MPRO Concealed 1-Outlet Thermostatic Valve and Slide Rail Kit with 3-Function Handset

Shower Handset

Shower Valve

£439.20

RRP: ~~£549.00~~

STOCK AVAILABLITY: 5-7 Working Days Approx

QS Supplies

6 Features Included In This Product Explained

WRAS Approved Product

WRAS Approval means that the particular water fitting or product complies with or meets the requirements specified by the Water Supply (Water Fittings) Regulations or Scottish Byelaws.
Read more...

UKCA Certified

UKCA or the UK Conformity Assessed marking is a mandatory UK product marking for products sold across Great Britain, equivalent to the CE Marking in Europe. UKCA will be used to replace the CE Marking. CE marking will no longer be valid in England, Scotland and Wales except in Northern Ireland from the 1st of January 2021, and the CE mark will stay valid until the 1st of January 2023. A product with UKCA marking shows that the product complies with the UKCA Marking requirements.

Medium Water Pressure

Water systems operating at a pressure between 0.5 and 0.9 bar are considered medium pressure. Products usually come labelled if they are suitable for use in medium pressure.

High Water Pressure

Water systems operating at 1.0 bar or higher pressure are considered high-pressure systems. Products usually come labelled if they are suitable to use under such pressure.

1-Outlet

One outlet in a shower system means that hot and cold water flows from a single opening.

Thermostatic Control

Thermostatic shower control works behind the scenes to achieve or maintain water temperature output from a showerhead. With the built-in safety feature, the shower provides a consistent water temperature.
Read more...

Crosswater MPRO Concealed 1-Outlet Thermostatic Valve and Slide Rail Kit with 3-Function Handset
