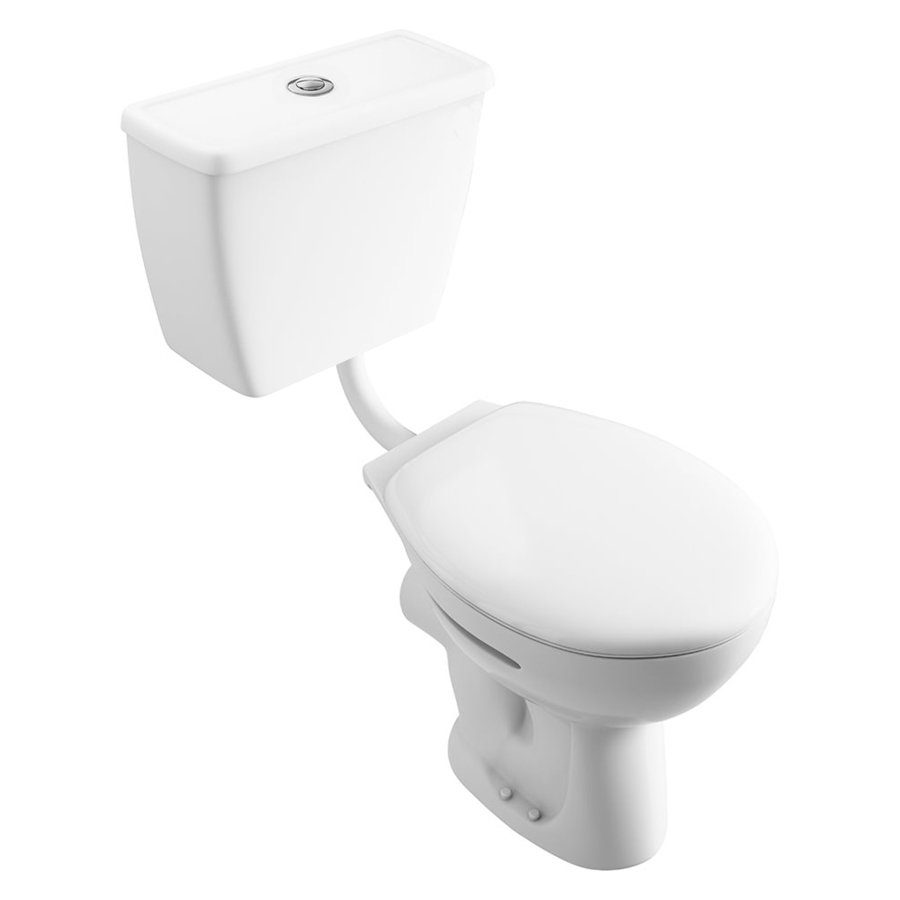

Lecico Atlas Traditional Low Level WC Pan with Cistern

Lecico Atlas Details

MFC: ASWHLLPA2|ASWHLLPBCI

Lecico Atlas Traditional Low Level WC Pan with Cistern - 460 x 476mm

Specification of WC Pan
Manufacturing Code: ASWHLLPA2
Size: 371 x 476 x 404mm [Width x Projection x Height]
Size: 37.1 x 47.6 x 40.4cm [Width x Projection x Height]
Traditional Design
Horizontal Outlet
Specification of WC Pan
Manufacturing Code: ASWHLLPBCI
Size: 460 x 201 x 361mm [Width x Projection x Height]
Size: 46 x 20.1 x 36.1cm [Width x Projection x Height]
Supplied with Fixings
Dual Flush Push Button
Flushing Volume: 6/4 Litre
LH or RH Bottom Inlet
Internal Overflow
Refer Technical Drawing fro Complete Size Details

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Range
: Atlas
⤷ Colour
: White
⤷ Warranty/Guarantee
: Lifetime
⤷ Material
: Vitreous China
⤷ Theme
: Traditional
⤷ Installation Type
: Floor Standing
⤷ Pan Width
: 371
⤷ Pan Height
: 404
⤷ Projection (Depth)
: 476
⤷ Cistern Included
: Yes
⤷ Cistern Width
: 460

⤷ Cistern Height
: 361
⤷ Flush Type
: Dual
⤷ Full Flush Volume in litres
: 6
⤷ Half Flush Volume in litres
: 4
⤷ Cistern Lever Or Button Placement
: Top
⤷ Outlet
: Horizontal
⤷ Cistern Depth (projection)
: 201
⤷ Front Of Bowl To Centre Of Seat Holes
: 429
⤷ Outlet Diameter
: 102
⤷ Base to centre of outlet
: 186

Additional Info & Downloads

This item can also be found in:

Traditional WC

Lecico Atlas Traditional Low Level WC Pan with Cistern - 460 x 476mm

£256.90

RRP: ~~£321.12~~

Stock Availablity: 5-7 Working Days Approx

QS Supplies

2 Features Included In This Product Explained

UKCA Certified

UKCA or the UK Conformity Assessed marking is a mandatory UK product marking for products sold across Great Britain, equivalent to the CE Marking in Europe. UKCA will be used to replace the CE Marking. CE marking will no longer be valid in England, Scotland and Wales except in Northern Ireland from the 1st of January 2021, and the CE mark will stay valid until the 1st of January 2023. A product with UKCA marking shows that the product complies with the UKCA Marking requirements.

Vitreous-China Material

Vitreous china is an innovative glass-based enamel coating applied to porcelain. This glazed coating makes the base material durable, denser, and very glossy. When ceramics are coated with vitreous enamel, the resulting product is called vitreous china. This enamel is created by applying heat to powdered glass.
