Lecico Atlas Economy Comfort Height Low Level WC Pan with Cistern and Seat

Lecico Atlas Details

MFC: COMFLLWC

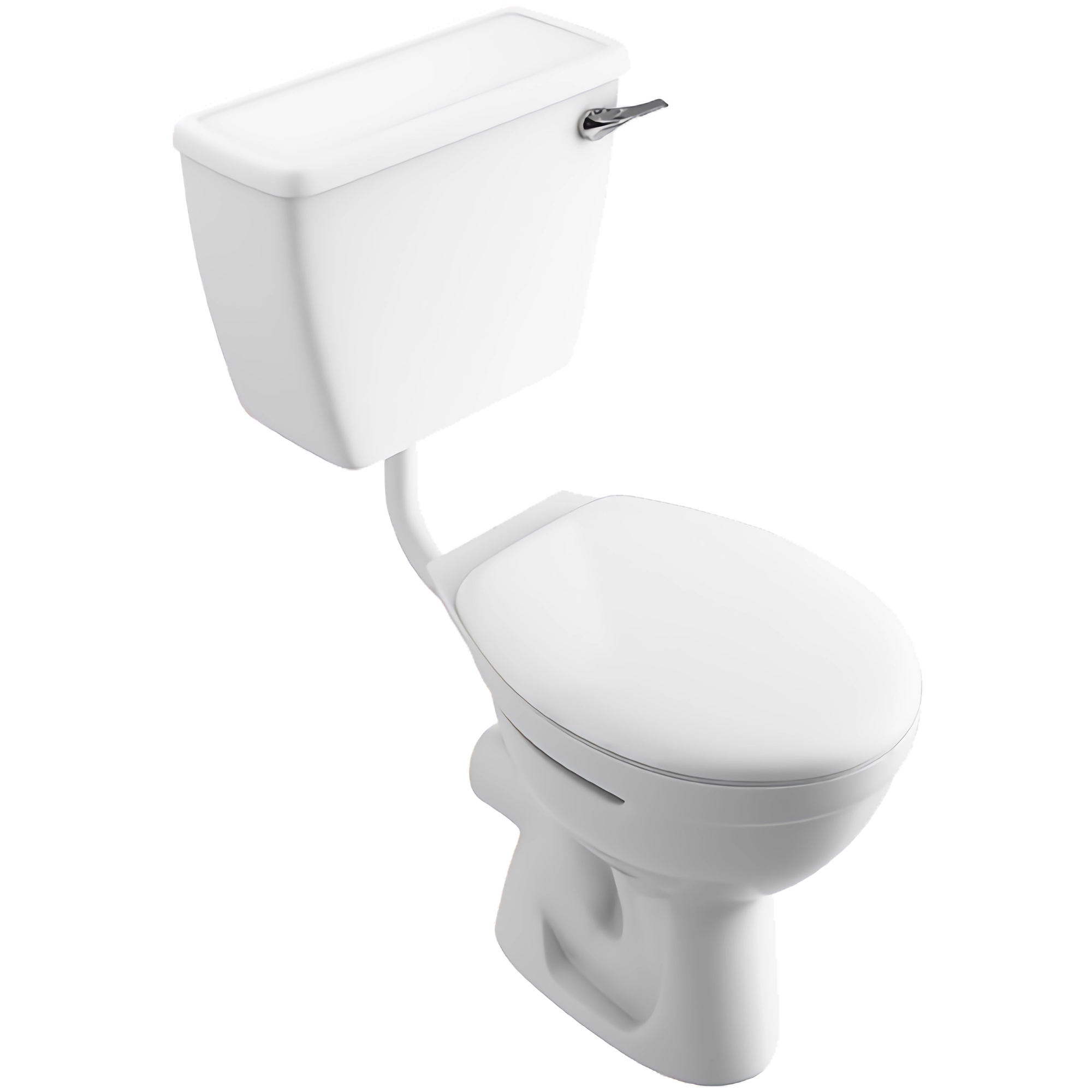

Lecico Atlas Economy Comfort Height Low Level WC Pan with Cistern and Seat.

Includes: WC Pan, Cistern and Standard Seat
Comes in a White Finish
Weight: 34.4kg
For Complete Size Details, Please Refer to the Technical Drawing
Size of Pan [mm]: 360 x 458mm [Width x Height]
Size of Pan [cm]: 36 x 45.8cm [Width x Height]
Projection: 790mm - [79cm]
Overall Height: 1033mm - [103.3cm]
Size of Cistern [mm]: 460 x 201 x 361mm [Width x Depth x Height]
Size of Cistern cm]: 46 x 20.1 x 36.1cm [Width x Depth x Height]
Features: Dual Flush Lever Mechanism
Inlet: Right-Hand Bottom Inlet
Flush Volume: 6/4ltr
This Comfort Height WC is Designed to be Fully Compliant with DocM
Its Raised Height Makes Transferring to and from a Wheelchair Easier
It is Coupled with a Classic Style Low-Level Cistern, Perfect for Commercial Installations

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Range
: Atlas Economy
⤷ Toilet Design
: Open Back
⤷ Colour
: White
⤷ Weight in kg
: 34.4
⤷ Warranty/Guarantee
: Lifetime
⤷ Material
: Vitreous China
⤷ Theme
: Modern
⤷ Installation Type
: Floor Standing
⤷ Pan Height
: 458
⤷ Toilet Overall Height
: 1033
⤷ Projection (Depth)
: 790
⤷ Cistern Included
: Yes
⤷ Cistern Width
: 460
⤷ Cistern Height
: 361
⤷ Flush Type
: Dual
⤷ Full Flush Volume in litres
: 6

⤷ Flush Mechanism
: Lever Operated
⤷ Cistern Lever Or Button Placement
: Right
⤷ Outlet
: Horizontal
⤷ Comfort Height
: Yes
⤷ Configuration
: WC Pan, Cistern and Seat
⤷ Seat Included
: Yes
⤷ Seat Type
: Standard
⤷ Seat Finish
: White
⤷ Compliance/Approvals/Standard
: UKCA
⤷ Barcode
: 5057199982735
⤷ Bowl Shape
: Oval
⤷ Product Type
: Low Level WC Pan
⤷ Cistern Depth (projection)
: 201
⤷ Front Of Bowl To Centre Of Seat Holes
: 420
⤷ Outlet Diameter
: 100
⤷ Base to centre of outlet
: 192

Lecico Atlas Economy Comfort Height Low Level WC Pan with Cistern and Seat

£210.63

RRP: ~~£500.69~~

Stock Availablity: 5 Working Days Approx

QS Supplies

5 Features Included In This Product Explained

Comfort Height

These toilets are usually a little higher than regular toilets. They measure from 17 to 19 inches off the ground.

Vitreous-China Material

Vitreous china is an innovative glass-based enamel coating applied to porcelain. This glazed coating makes the base material durable, denser, and very glossy. When ceramics are coated with vitreous enamel, the resulting product is called vitreous china. This enamel is created by applying heat to powdered glass.

UKCA Certified

UKCA or the UK Conformity Assessed marking is a mandatory UK product marking for products sold across Great Britain, equivalent to the CE Marking in Europe. UKCA will be used to replace the CE Marking. CE marking will no longer be valid in England, Scotland and Wales except in Northern Ireland from the 1st of January 2021, and the CE mark will stay valid until the 1st of January 2023. A product with UKCA marking shows that the product complies with the UKCA Marking requirements.

Horizontal Outlet

When the pan has piping at the back, inside the wall, it is called a horizontal outlet toilet or pan. As the cisterns are concealed or placed against the wall, most plumbing is hidden out of sight.

Dual-Flush

A toilet with a flushing mechanism with two different buttons for flushing solid and liquid waste, thereby saving water.
