Burlington Guild 3 Hole Traditional Basin Mixer Tap, Crosshead Handles, GU135DNC

Burlington Guild Details

MFC: GU135DNC

Burlington Guild 3 Hole Traditional Basin Mixer Tap - Crosshead Handles - Deck Mounted

Key Features

✔Made from Brass
✔Quarter Turn Operation
✔Ceramic Disc Cartridge
✔A Gentle Knurling Effect at Various Points
✔15-Year Guarantee from the Manufacturer

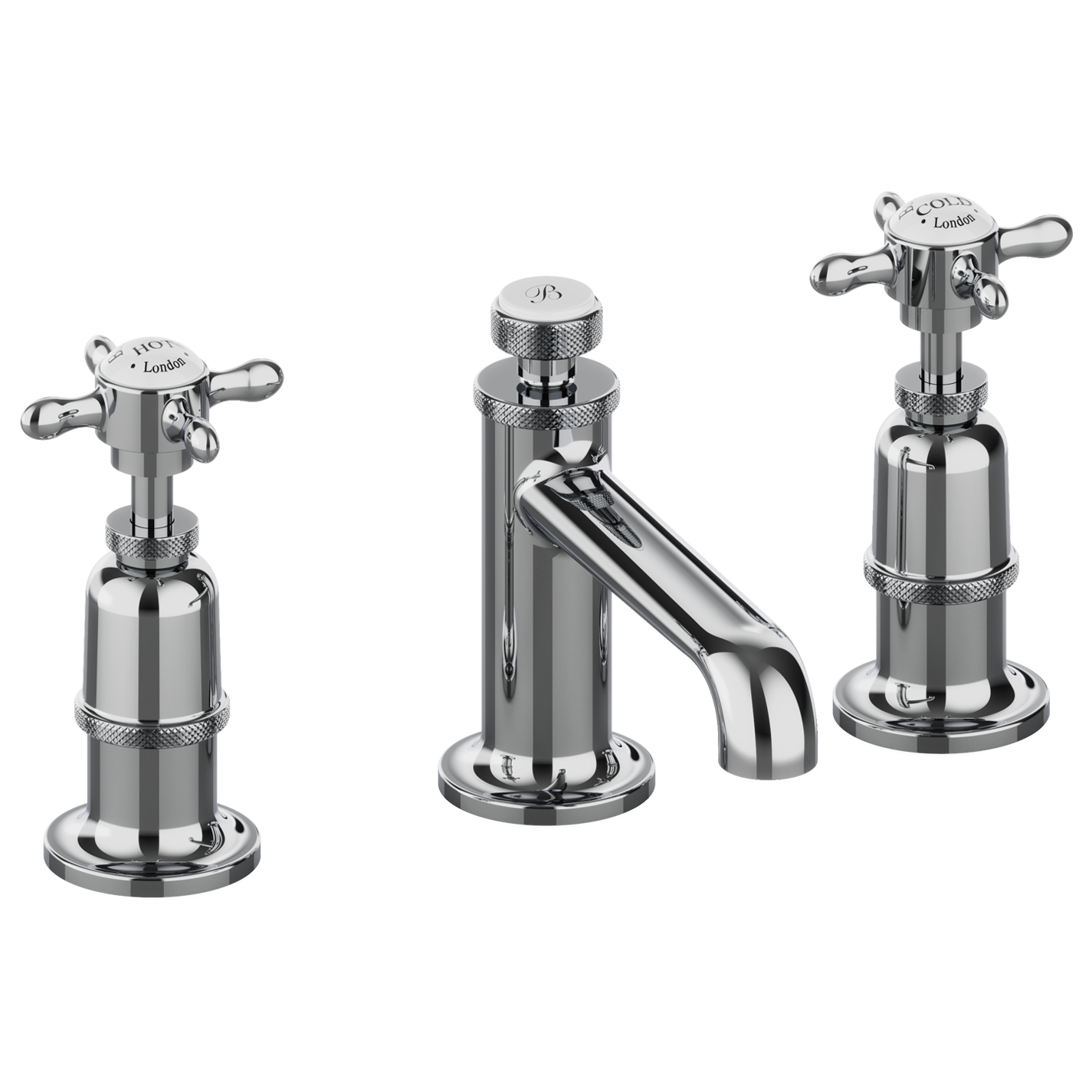

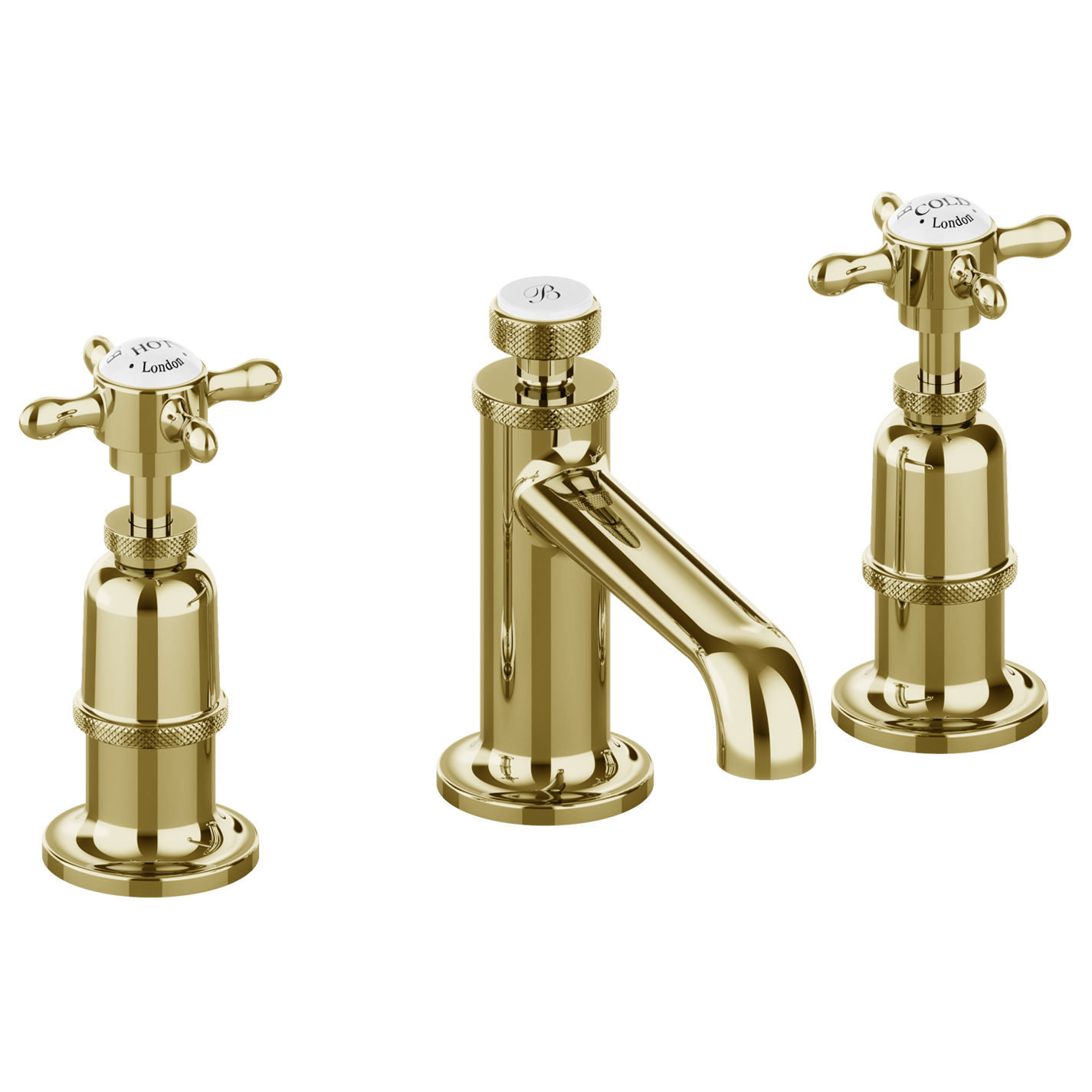

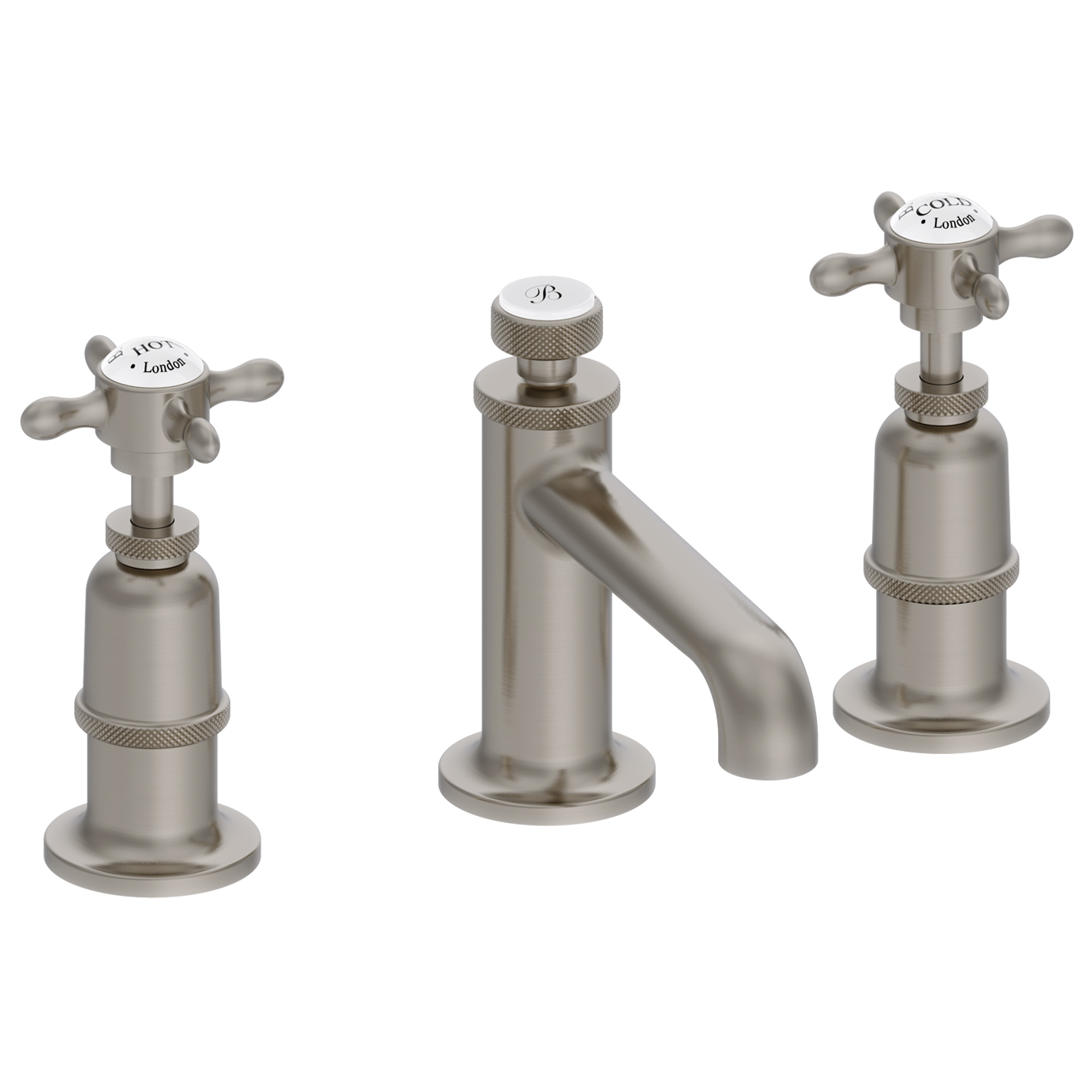

Choice of Finishes: Chrome, Gold, Brushed Nickel
Features a Minimalist Traditional Crosshead Design
Deck Mounted Installation
Overall Size [mm]: 163.2 x 128.1mm [Depth x Height]
Overall Size [cm]: 16.32 x 12.81cm [Depth x Height]
Base to Spout: 51.8mm (5.18cm)
Inlet Connections Thread: G 1/2"
Weight: 2.29 Kg
Suitable for Low Water Pressure System
Min Water Pressure Required for Smooth Working is 0.2 Bar and Max of 5.0 Bar
Flow Rate (l/min): 0.2 Bar: 8.5, 0.5 Bar: 13.5, 1 Bar: 19.2, 2 Bar: 26.52, 3 Bar: 31.65, 4 Bar:: 38.22, 5 Bar: 42.72
Aerator, Flow Straightener Included
Inlet Connections Thread: M10 x 1
Standards: EN200,EN817
Refer Technical Diagram for Complete Size Details
Download Installation Instruction PDF File from the Additional Info Section

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Water Activation
: By Rotating
⤷ Range
: Guild
⤷ Tap Body Shape
: Round
⤷ Handle Position
: Top
⤷ Colour
: Chrome
⤷ Warranty/Guarantee
: 15 Years
⤷ Material
: Brass
⤷ Theme
: Traditional
⤷ Installation Type
: Deck Mounted

⤷ No. of Holes Required
: 3
⤷ Valve/Cartridge Type
: Ceramic
⤷ Base To Spout
: 51.8
⤷ Spout Reach
: 120.2
⤷ Overall Height
: 128.1
⤷ Minimum Operating Pressure (Bar)
: 0.2
⤷ Handle Style
: Crosshead
⤷ Barcode
: 5056553429237

Additional Info & Downloads

Download the Installation Instruction Pdf File

This item can also be found in:

Burlington Guild 3 Hole Traditional Basin Mixer Tap - Crosshead Handles - Deck Mounted

£319.20

RRP: ~~£399.00~~

STOCK AVAILABLITY: 5-7 Working Days Approx

QS Supplies

3 Features Included In This Product Explained

Ceramic Disc Cartridge

It has two ceramic discs, one fixed in place and the other moveable with the tap or valve handle. It is the most common technology used in modern tapware as it offers unmatched advantages such as no leaks and drips and saves on water and money.
Read more...

Quarter Turn

Operating these taps is almost effortless; it can be turned on and off by rotating the lever at 90 degrees. These taps have such low friction that they are perfect for people with arthritis, weak grip, the elderly and the young.

Low Water Pressure

Water systems operating at a pressure between 0.1 and 0.4 bar are considered low pressure. Products usually come labelled if they are suitable to use under such pressure.
Read more...
