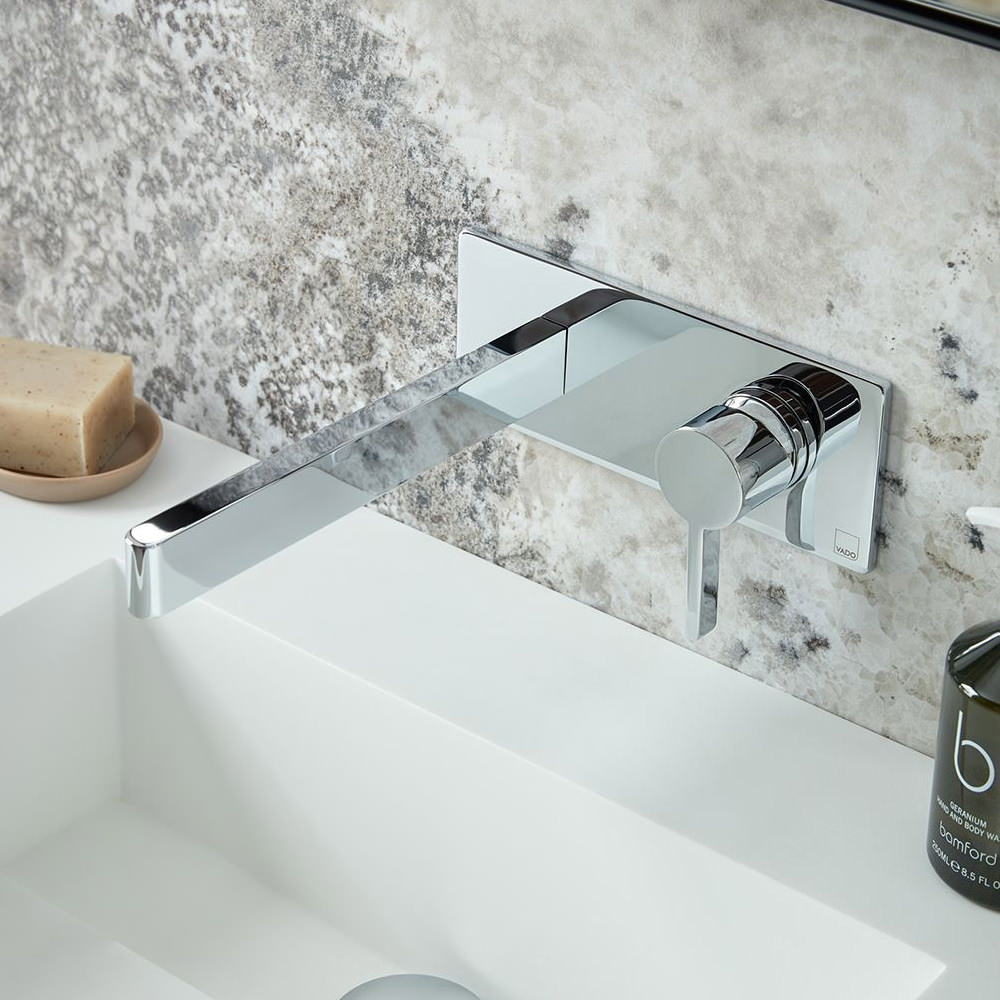

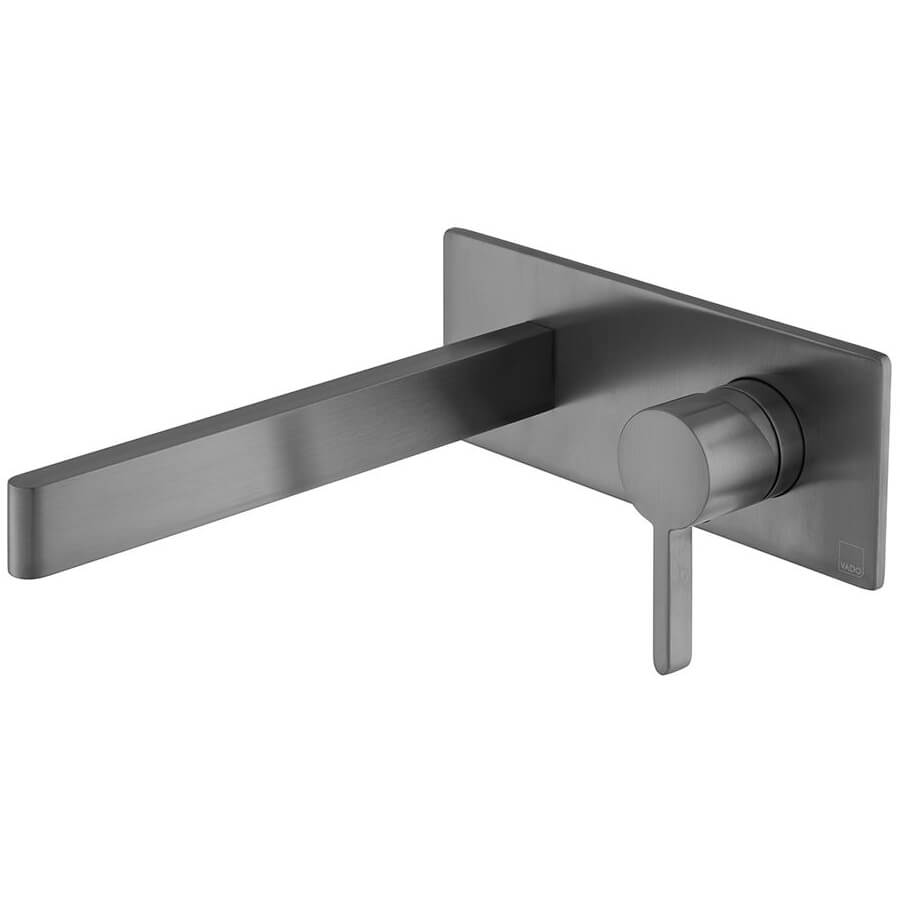

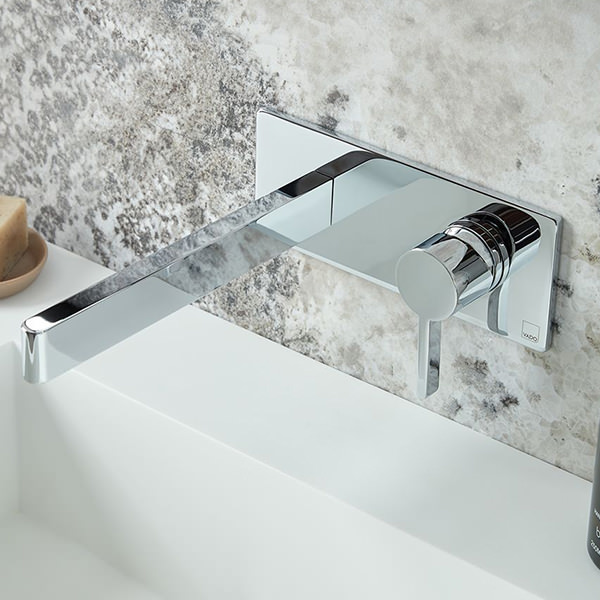

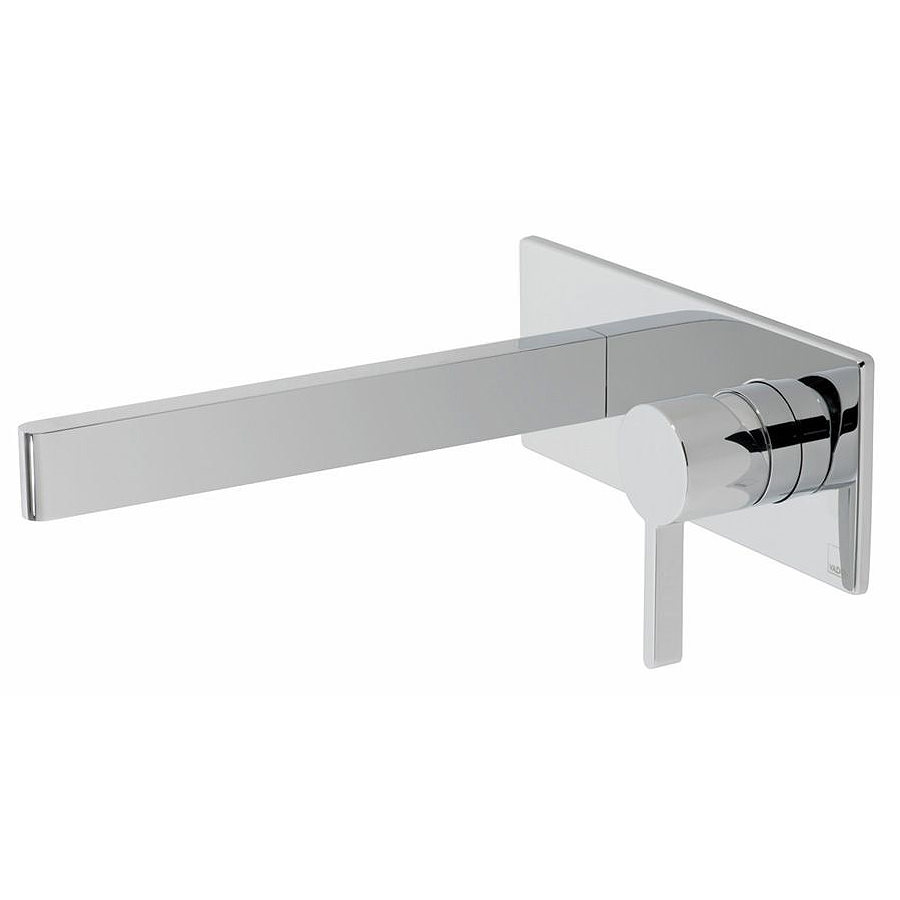

Vado Individual Edit Wall Mounted 2 Hole Basin Mixer Tap

Vado Individual Edit IND-EDI109S/A-BRG Details

Vado Individual Edit Wall Mounted 2 Hole Basin Mixer Tap.

Manufactured using high-quality materials.
Wall-mounted installation.
Backplate width: 200mm (20cm).
Installation tolerances: Min-max wall mount 53-73mm (5.3-7.3cm).
Inlet centres: 100mm (10cm).
Includes ceramic cartridge (CAR-K35B).
Connections/Fittings: 2 x 1/2-Inch inlets.

Suitable for high-pressure water system.
Requires a minimum of 1.0 bar and a maximum of 5.0 bar water pressure for smooth working.
Plumbing System Suitability: Pumped System, Combination Boiler, Pressurised System.
Refer to the technical drawing for additional dimensional details.
For flow rates, please refer to the additional images in the product.
Download the Installation Instructions PDF file from the Additional Info section.

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Water Activation
: By Lifting/Tilting
⤷ Range
: Edit
⤷ Handle Position
: Right
⤷ Colour
: Brushed Gold
⤷ Warranty/Guarantee
: 15 Years
⤷ Theme
: Modern
⤷ Installation Type
: Wall Mounted
⤷ No. of Holes Required
: 2
⤷ Spout type
: Fixed
⤷ Valve Included
: Yes
⤷ Valve/Cartridge Type
: Ceramic Cartridge

⤷ Inlet Centres
: 100
⤷ Width
: 200
⤷ Min-Max Wall Mount
: 53-73
⤷ Inlet Connections
: 1/2-Inch
⤷ Minimum Operating Pressure (Bar)
: 1.0
⤷ Handle Style
: Stick Handle
⤷ WRAS Approved
: Yes
⤷ Flow Regulator Included
: Yes
⤷ Barcode
: 5052120213445
⤷ Product Type
: Basin Mixer Tap

Additional Info & Downloads

Download the Installation Instruction Pdf File

Total: £446.26 5-7 Working Days Approx QS Supplies

5 Features Included In This Product Explained

High Water Pressure

Water systems operating at 1.0 bar or higher pressure are considered high-pressure systems. Products usually come labelled if they are suitable to use under such pressure.

Single Lever Taps

These taps are designed with a single lever or handle to control the water's temperature and flow. Extremely easy to operate, these also allow you to preset the water temperature by leaving it in the position with your preferred water temperature. Besides, it is simple to control the flow of water; the higher you lift the lever or move it to the end, the stronger the water flow.

WRAS Approved Product

WRAS Approval means that the particular water fitting or product complies with or meets the requirements specified by the Water Supply (Water Fittings) Regulations or Scottish Byelaws. Such compliance is based on certain tests that prove that the product or fitting does not cause waste, misuse, contamination or undue consumption of the public water supply system in the UK.
Read more...

Ceramic Disc Cartridge

It has two ceramic discs, one fixed in place and the other moveable with the tap or valve handle. It is the most common technology used in modern tapware as it offers unmatched advantages such as no leaks and drips and saves on water and money.
Read more...

Flow Regulator

As the name suggests, a flow regulator is a simple device designed to regulate water flow to a predetermined level. The job of a flow regulator is to stop water wastage. For instance, if the regular flow rate through a tap is 20 litres per minute, a flow regulator can reduce the flow rate between 6 to 12 litres per minute to complete the desired chore without feeling low pressure.
