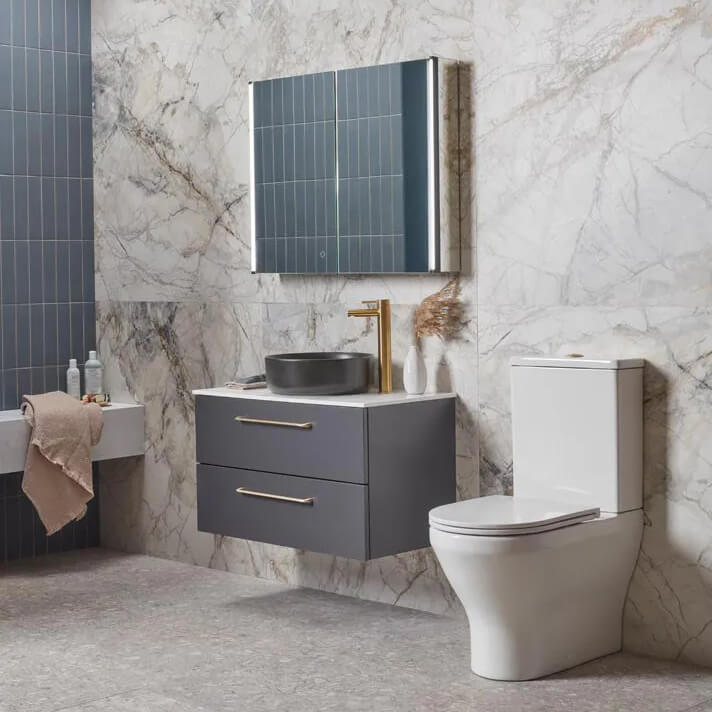

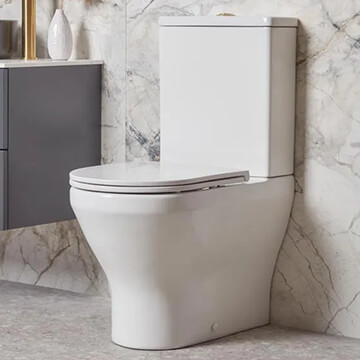

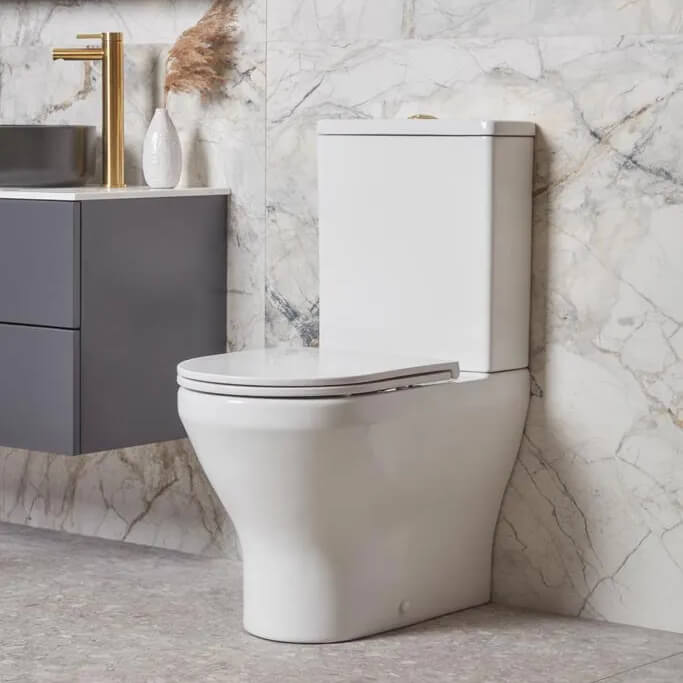

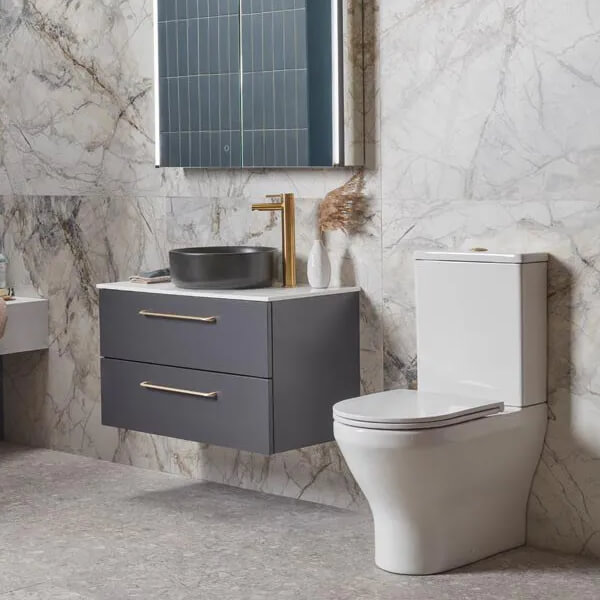

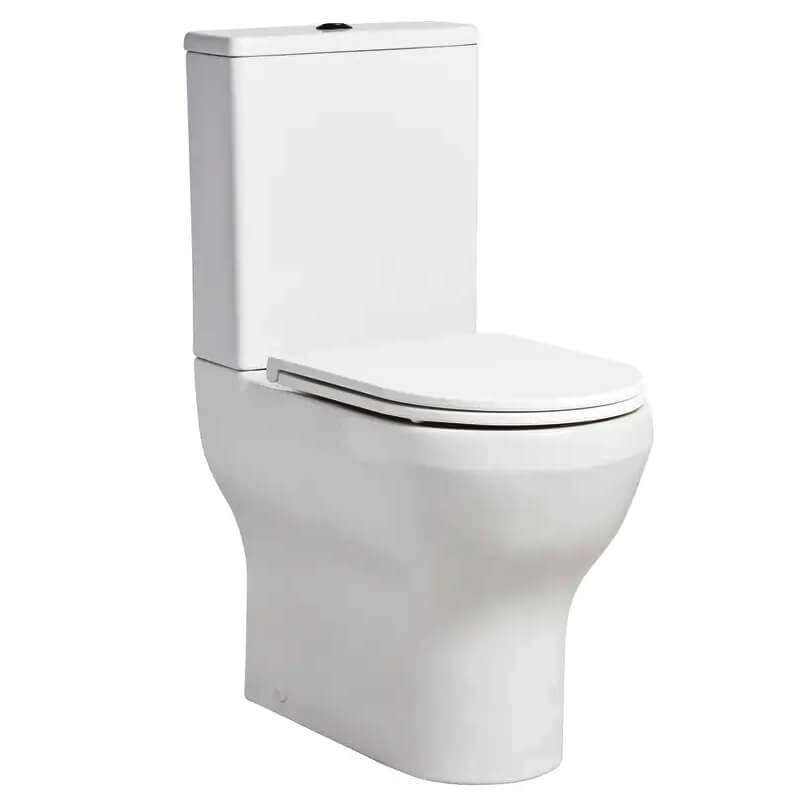

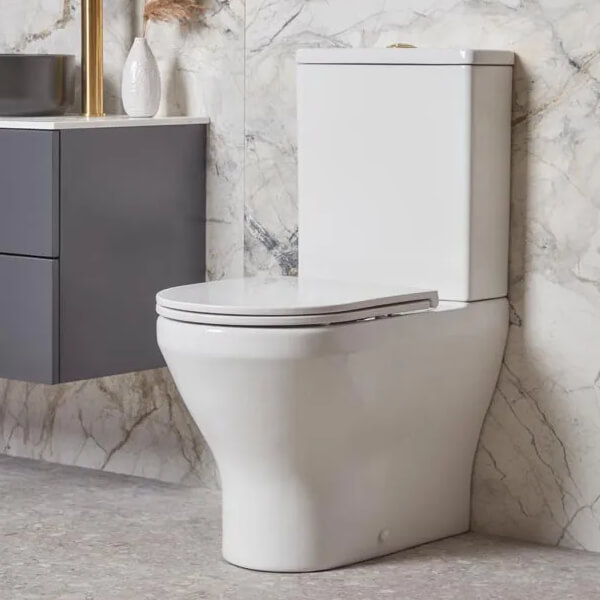

Tavistock Micra Evo Fully Enclosed Close Coupled WC Pan with Seat & Cistern

Tavistock Micra Evo Details

MFC: PCF950S|C950S|DC14037-SF

Tavistock Micra Evo Fully Enclosed Close Coupled WC Pan with Seat and Cistern

Manufacturing Code of this Product: PCF950S|C950S|DC14037-SF
Supplied with Fixings
Comfort Height Toilet
Hygienic and Easy to Clean
Overall Height: 905mm [90.5cm]
Download the Technical Data Sheet PDF File from the Additional Info Section
Refer to the Technical Drawing for More Technical Details
Details of WC Pan:
Outlet: Horizontal
Size [mm]: 360 x 460mm [Width x Height]
Size [cm]: 36 x 46cm [Width x Height]
Projection [Depth]: 620mm [62cm]
Weight: 32kg
20 Years of Guarantee from the Manufacturer Against any Manufacturing Defect
Details of Cistern:
Flush Volume: 6/4L
Air Gap Technology
Size [mm]: 380 x 140 x 430mm [Width x Depth x Height]
Size [cm]: 38 x 14 x 43cm [Width x Depth x Height]
Weight: 14kg
Ideal for Compact Spaces
Chrome Flush Button Supplied with the Cistern
135mm Spigot to Wall with Micro Evo Close Coupled Cistern
5 Years of Guarantee from the Manufacturer Against any Manufacturing Defect
Details of Seat:
Slim Sandwich Seat
Seat Shape: D Shaped
Size [mm]: 363 x 421mm [Width x Depth]
Size [cm]: 36.3 x 42.1cm [Width x Depth]
Weight: 2.4kg
Supplied with Chrome Hinges
Comes with Fixings Included
Maximum Test Load of the Seat: 150kg
Quick-Release Toilet Seat for Easy Removal and Cleaning
Features Soft-Close WC Seat for Quiet and Controlled Closure
5 Years of Guarantee from the Manufacturer Against any Manufacturing Defect

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Toilet Design
: Back To Wall
⤷ Range
: Micra Evo
⤷ Colour
: Alpine White
⤷ Weight in kg
: 48
⤷ Warranty/Guarantee
: 20 Years[WC], 5 Years[Cistern] & [Seat]
⤷ Material
: Vitreous China, Ceramic
⤷ Theme
: Modern
⤷ Installation Type
: Floor Standing
⤷ Pan Width
: 360
⤷ Pan Height
: 460
⤷ Toilet Overall Height
: 905
⤷ Projection (Depth)
: 620
⤷ Cistern Included
: Yes
⤷ Cistern Width
: 380
⤷ Cistern Height
: 430
⤷ Flush Type
: Dual Flush
⤷ Full Flush Volume in litres
: 6
⤷ Half Flush Volume in litres
: 4

⤷ Flush Mechanism
: Push Button
⤷ Cistern Lever Or Button Placement
: Top
⤷ Outlet
: Horizontal
⤷ Comfort Height
: Yes
⤷ Seat Included
: Yes
⤷ Seat Type
: Soft Close
⤷ Seat Finish
: White
⤷ Fixings included
: Yes
⤷ Barcode
: 5016519598568
⤷ Bowl Shape
: D-Shape
⤷ Product Type
: Close Couple Toilet
⤷ Cistern Depth (projection)
: 140
⤷ Seat Post Hole Centers
: 155
⤷ Front Of Bowl To Centre Of Seat Holes
: 435
⤷ Base width
: 220
⤷ Outlet Diameter
: 102
⤷ Base to centre of outlet
: 180

Additional Info & Downloads

Download the Product Data Sheet Of WC Pan & Cistern Pdf File Download the Product Data Sheet Of Seat Pdf File

This item can also be found in:

Technical Images

WC Pan & Cistern

Seat

£446.40

RRP: ~~£558.00~~

Stock Availablity: 5-7 Working Days Approx

QS Supplies

8 Features Included In This Product Explained

Comfort Height

These toilets are usually a little higher than regular toilets. They measure from 17 to 19 inches off the ground.

Dual-Flush

A toilet with a flushing mechanism with two different buttons for flushing solid and liquid waste, thereby saving water.

Soft-Close Seat

Soft-closing seats are a new alternative to classic seats. Their modern design hinges allow them to close slowly and gently.

Horizontal Outlet

When the pan has piping at the back, inside the wall, it is called a horizontal outlet toilet or pan. As the cisterns are concealed or placed against the wall, most plumbing is hidden out of sight.

Sanitary Ceramic

Sanitary ceramic material is a type of ceramic used in the manufacture of sanitary ware or bathroom ware. It is mainly composed of ceramic, and is waterproof and durable. Its surface is hard, smooth and non-porous, making it hygienic and easy to clean.

Vitreous-China Material

Vitreous china is an innovative glass-based enamel coating applied to porcelain. This glazed coating makes the base material durable, denser, and very glossy. When ceramics are coated with vitreous enamel, the resulting product is called vitreous china. This enamel is created by applying heat to powdered glass.

Rimless

A rimless toilet does not have a brim at its edge, from which the water usually flows when you flush. Instead of flowing from the top, such toilets shoot water towards their edge and around it, allowing no missing spots with filth remaining after a flush. These toilets also remove any spaces for germs to hide and breed, providing a hygienic alternative for your bathroom.

Quick Release Toilet Seat

The hinge on a regular toilet seat makes it challenging to clean in some areas. As a result, some areas build up with hairs, grime, and dirt over time. Fortunately, the invention of a quick-release toilet seat means you can keep your entire toilet clean. The hinge mechanism of these toilets allows you to remove the seat entirely, making it easier to wash the areas it covers on the toilet itself.
