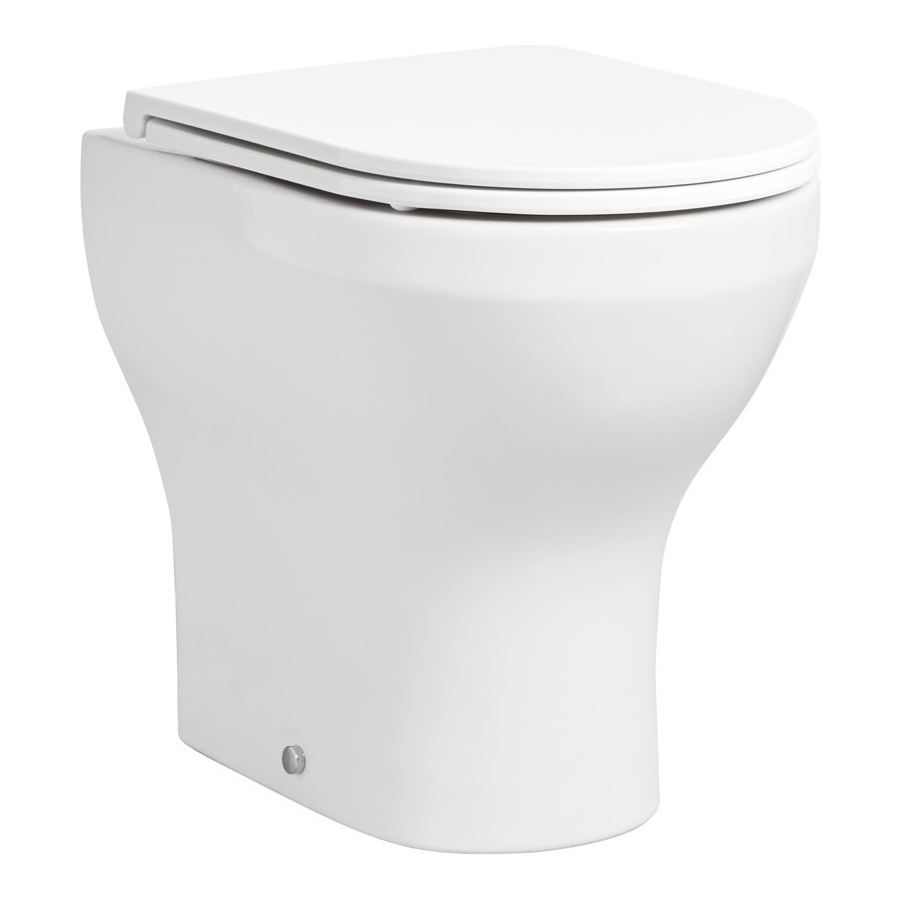

Tavistock Micra Evo Comfort Height Back To Wall Rimless WC Pan & Seat, 360 x 490mm

Tavistock Micra Evo Details

MFC: BTWC950S|TS950S-SF

Tavistock Micra Evo Comfort Height Back To Wall Rimless WC Pan with Soft Close Seat - 360 x 490mm

Key Features

✔Made from Ceramic Material
✔Rimless Bowl
✔Seat with Quick-Release Hinges
✔Guarantee: WC Pan - 20-Year, and Toilet Seat - 5-Year

Includes: WC Pan and Soft-Close Seat
It comes in a Alpine White Finish
Choice of Toilet Seats: Wrap Over / Slim Sandwich Seat
Installation Type: Floor-Mounted
Refer to the Technical Diagram for More Technical Details
Download Technical Data Sheet PDF File From the Additional Info Section
Specification of WC Pan:
Size [mm]: 360 x 490 x 460mm [Width x Projection x Height]
Size [cm]: 36 x 49 x 46cm [Width x Projection x Height]
Front to Back Footprint: 360mm
Left to Right Footprint: 220mm
Bowl Front to Back: 335mm
Bowl Left to Right: 285mm
Centre Waste Outlet to Floor: 180 + 15mm/- 10mm
Width of Void: 180mm
Distance from Spigot to Back of Pan: 15mm
Specification of Slim Sandwich Seat:
Size [mm]: 363 x 421mm [Width x Projection]
Size [cm]: 36.3 x 42.1cm [Width x Projection]
Maximum Test Load: 150kg
Chrome Hinges Cover Included
Ring Hole Front to Back: 264mm
Ring Hole Left to Right: 212mm
Seat Overall Thickness: 39mm
Specification of Wrap Over Seat:
Size [mm]: 363 x 425mm [Width x Projection]
Size [cm]: 36.3 x 42.5cm [Width x Projection]
Maximum Test Load: 150kg
Chrome Hinges Cover Included
Ring Hole Front to Back: 285mm
Ring Hole Left to Right: 213mm
Seat Overall Thickness: 49mm

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Range
: Micra Evo
⤷ Colour
: Alpine White
⤷ Warranty/Guarantee
: 20-Year for WC, 5-Year for Seat
⤷ Material
: Ceramic
⤷ Theme
: Modern
⤷ Installation Type
: Floorstanding
⤷ Pan Width
: 360
⤷ Pan Height
: 460
⤷ Projection (Depth)
: 490
⤷ Comfort Height
: Yes

⤷ Seat Included
: Yes
⤷ Seat Type
: Soft Close
⤷ Seat Finish
: White
⤷ Barcode
: 5016519547306
⤷ Seat Post Hole Centers
: 155
⤷ Front Of Bowl To Centre Of Seat Holes
: 436
⤷ Base width
: 220
⤷ Outlet Diameter
: 102
⤷ Base to centre of outlet
: 180

Additional Info & Downloads

Download the Technical Data Sheet Of WC Pan Pdf File Download the Technical Data Sheet Of Wrap Over Seat Pdf File Download the Technical Data Sheet Of Slim Sandwich Seat Pdf File

This item can also be found in:

Technical Images

WC Pan

Wrap Over Seat

Slim Sandwich Seat

Tavistock Micra Evo Comfort Height Back To Wall Rimless WC Pan with Soft Close Seat - 360 x 490mm

£315.20

RRP: ~~£394.00~~

STOCK AVAILABLITY: 5-7 Working Days Approx

QS Supplies

3 Features Included In This Product Explained

Soft-Close Seat

Soft-closing seats are a new alternative to classic seats. Their modern design hinges allow them to close slowly and gently.

Rimless

A rimless toilet does not have a brim at its edge, from which the water usually flows when you flush. Instead of flowing from the top, such toilets shoot water towards its edge and around it, allowing no missing spots with filth remaining after a flush. These toilets also remove any spaces for germs to hide and breed, providing a hygienic alternative for your bathroom.

Quick Release Toilet Seat

The hinge on a regular toilet seat makes it challenging to clean in some areas. As a result, some areas build up with hairs, grime, and dirt over time. Fortunately, the invention of a quick-release toilet seat means you can keep your entire toilet clean. The hinge mechanism of these toilets allows you to remove the seat entirely, making it easier to wash the areas it covers on the toilet itself.
