Joseph Miles Wilson Traditional Comfort Height Close Coupled WC Pan, Cistern & Seat

Joseph Miles Wilson Details

MFC: JMQS117084

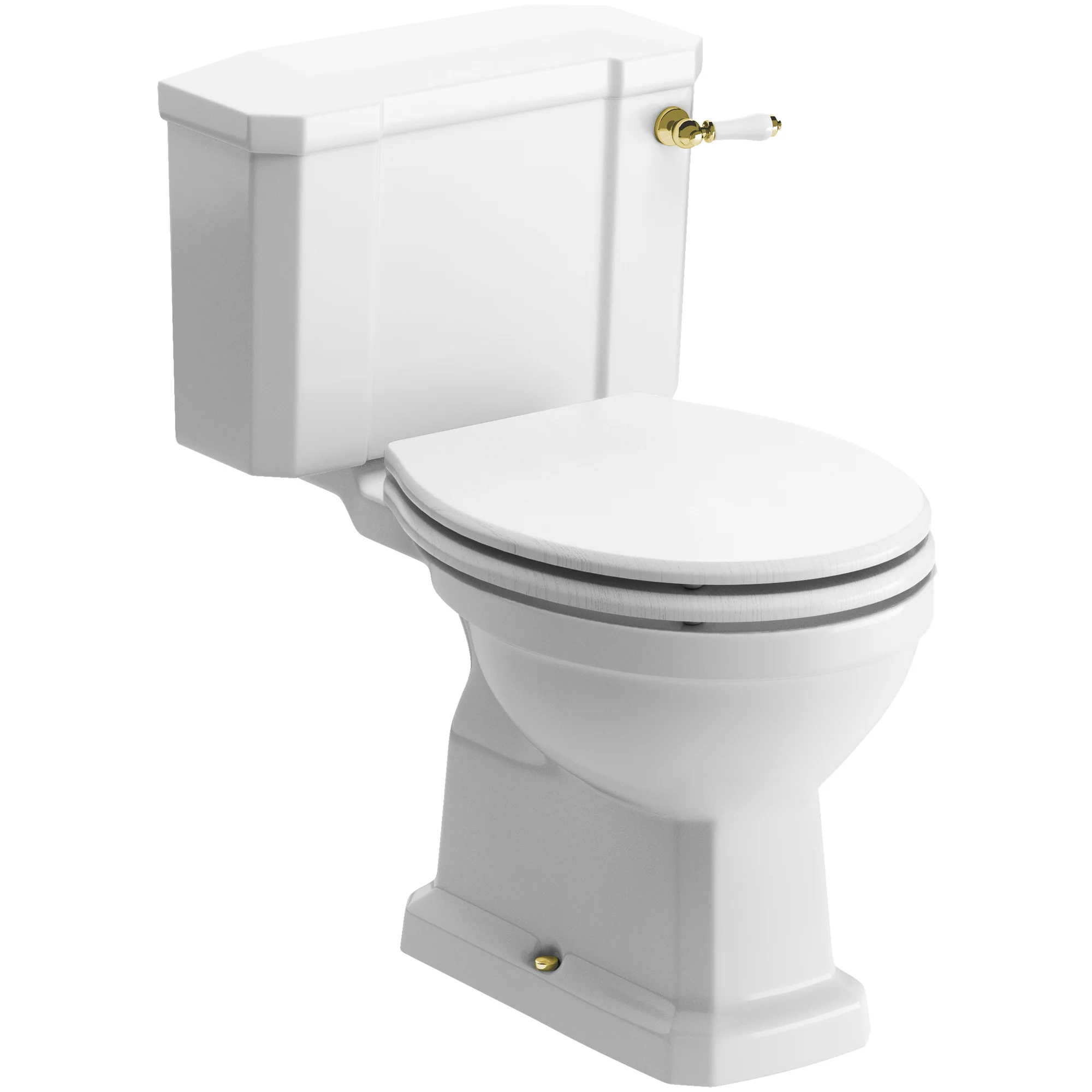

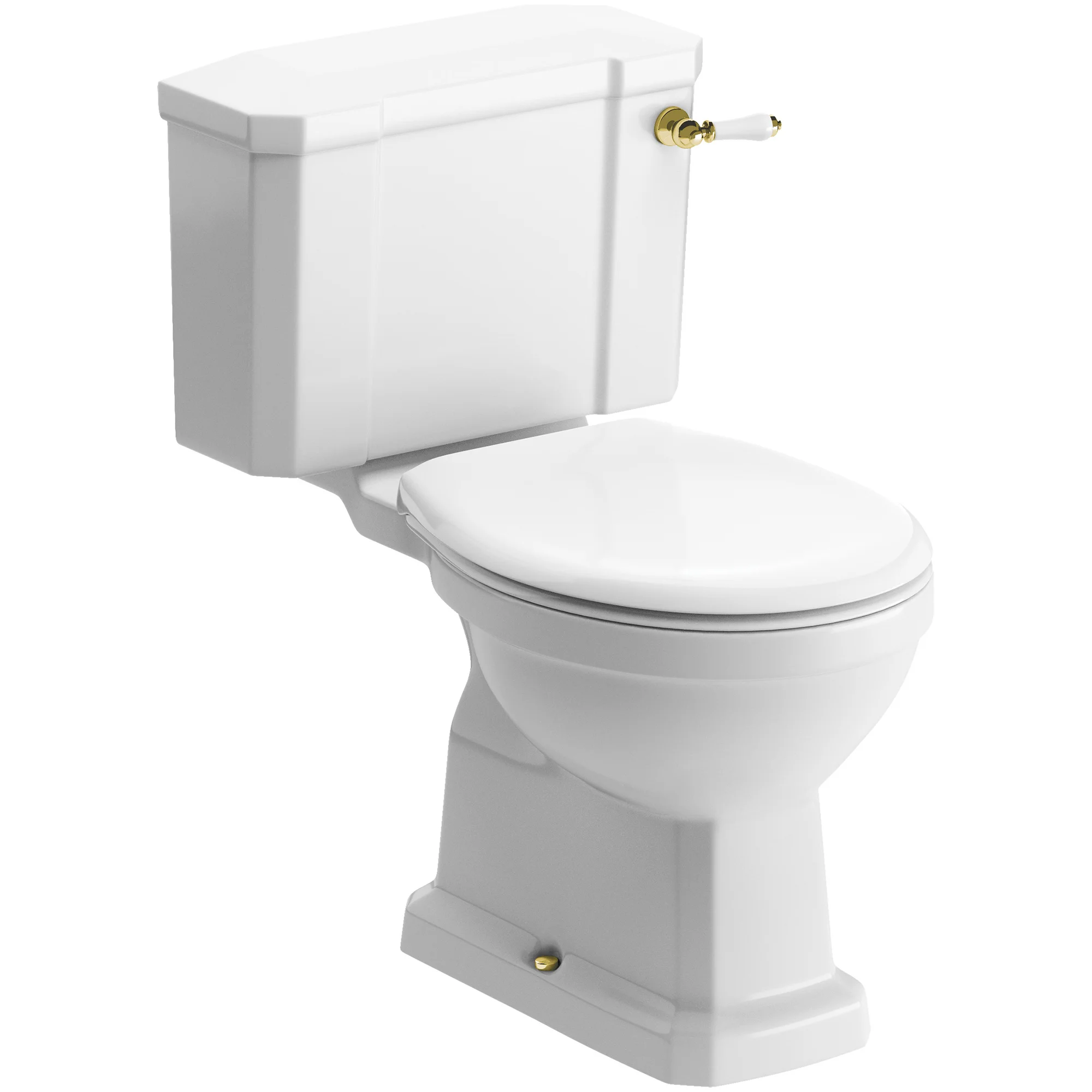

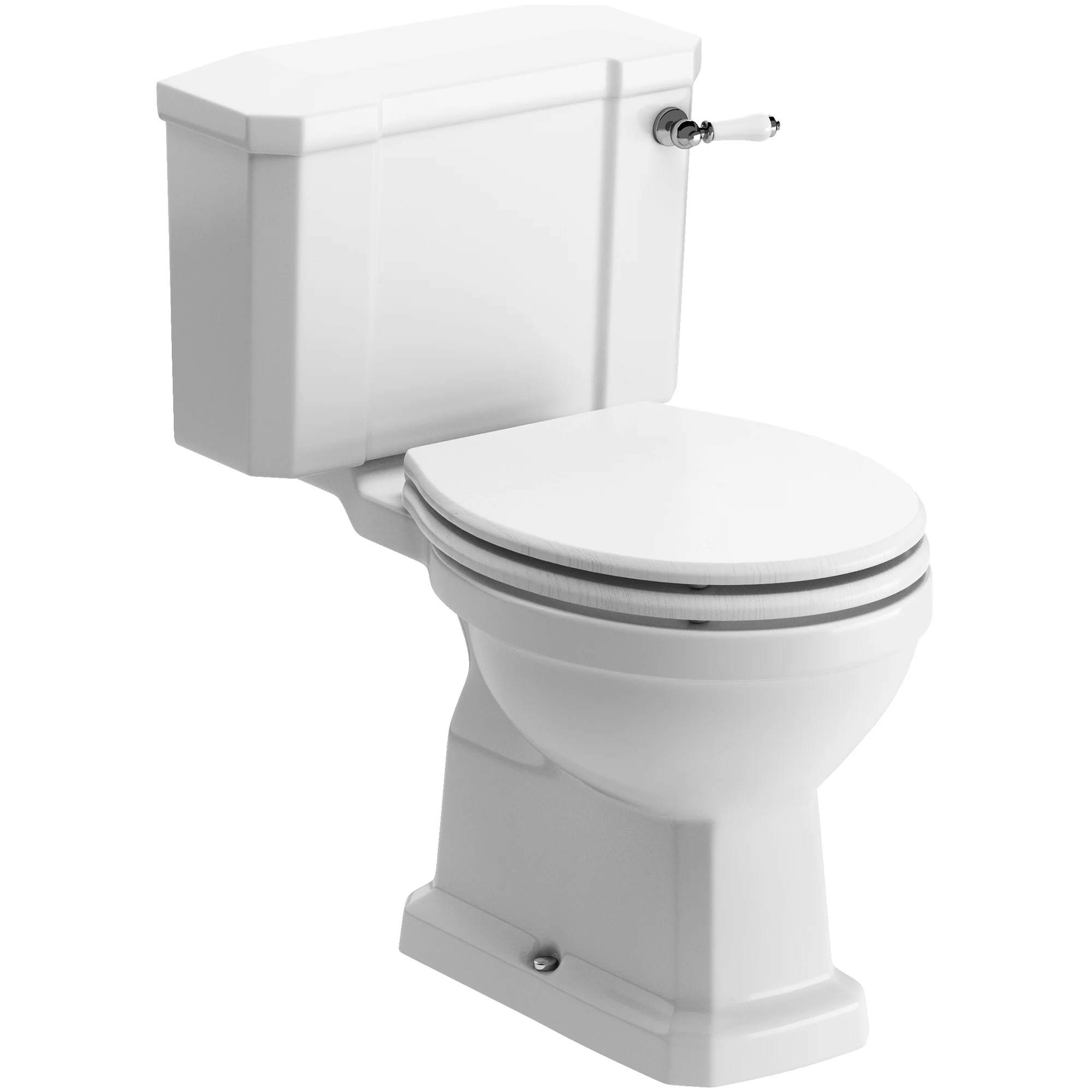

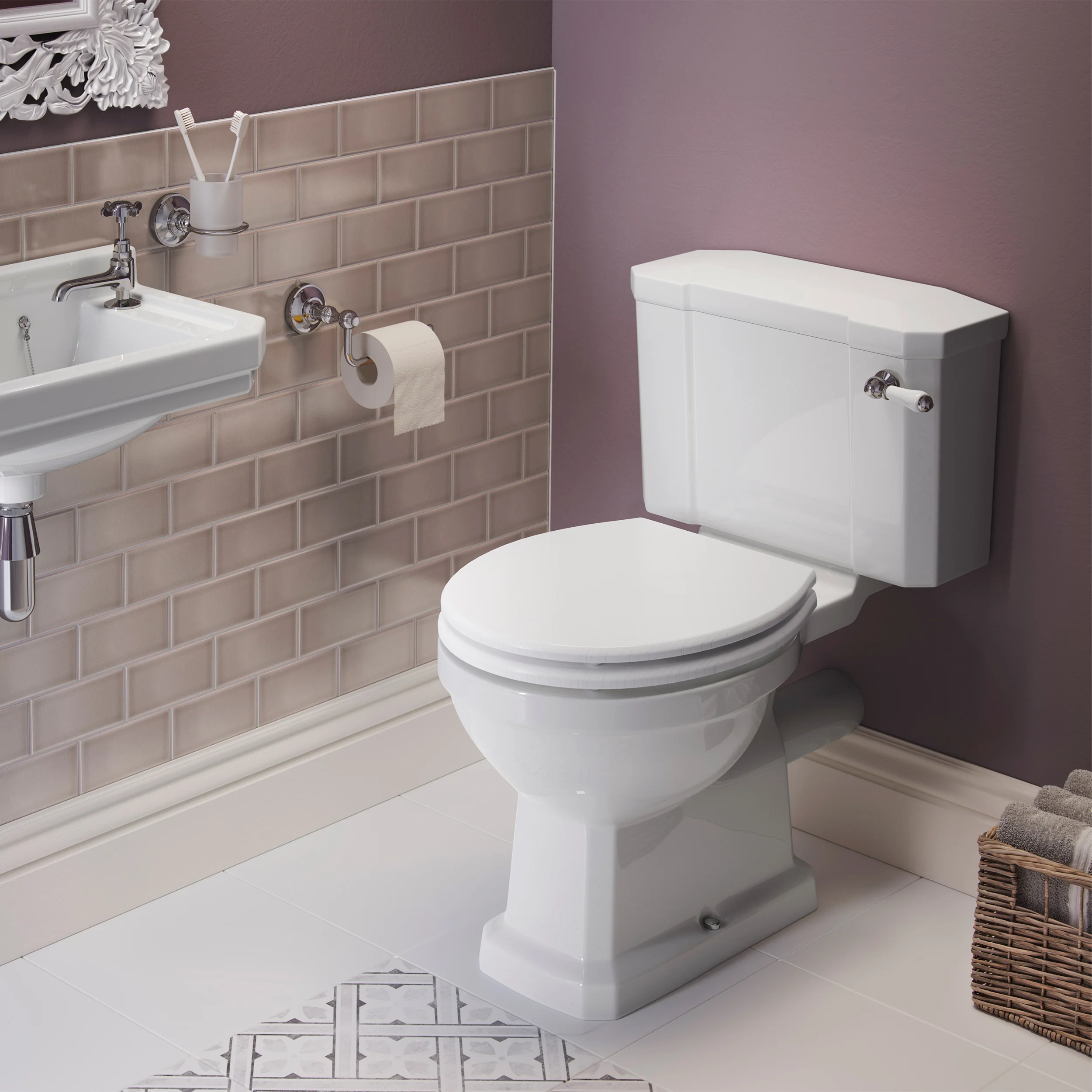

Joseph Miles Wilson Traditional Comfort Height Close Coupled WC Pan with Cistern and Seat - Open Back.

Key Features

✔Manufactured Using Vitreous China Material
✔WC Pan and Cistern Come in a White Finish
✔Includes WC Pan, Cistern, and Soft Close Seat
✔Guarantee: Lifetime for Pan and Cistern and a 2-Year for Seat and Hinges from the Manufacturer

Choice of Seats: White and Satin White Wood Effect
Choice of Hinges Finishes: Chrome and Brushed Brass
Choice of Cistern Lever: Chrome and Brushed Brass
Choice of Flush Pipe: Chrome and Brushed Brass
Size of Pan [mm]: 380 x 460mm [Width x Height]
Size of Pan [cm]: 38 x 46cm [Width x Height]
Projection of Pan: 710mm [71cm]
Overall Height with Cistern: 835mm [83.5cm]
Distance from Soil Pipe Spigot to the Wall: 130mm [13cm]
Coupling to Soil Stack: Straight Out, Straight Down, Left or Right
Cistern Inlet Position: Left
Traditional Style
Features Lever Flush
N/B, Please Allow a Tolerance of +/-2% On Dimensions Over 75mm and a Tolerance of +/-4% On Dimensions Under 75mm

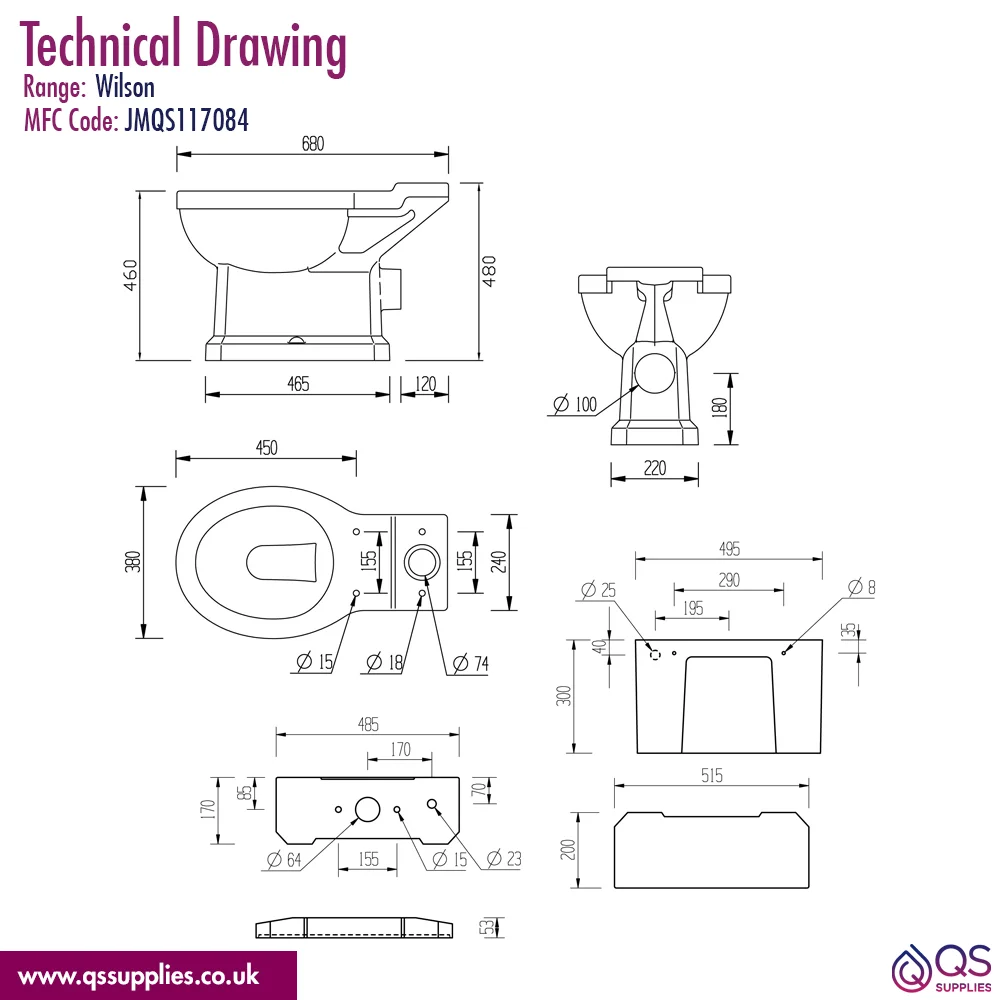

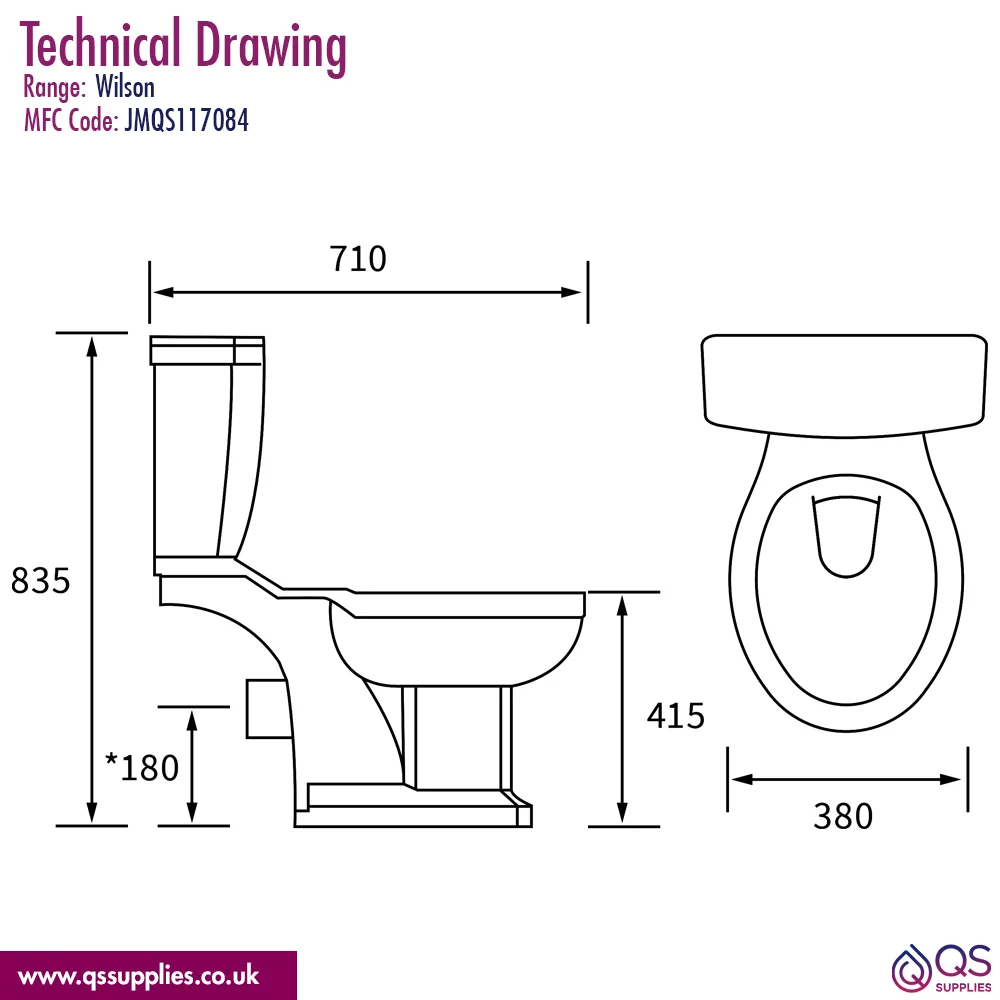

Refer to the Technical Drawing for Size Details
Download the Installation Instructions PDF File from the Additional Info Section

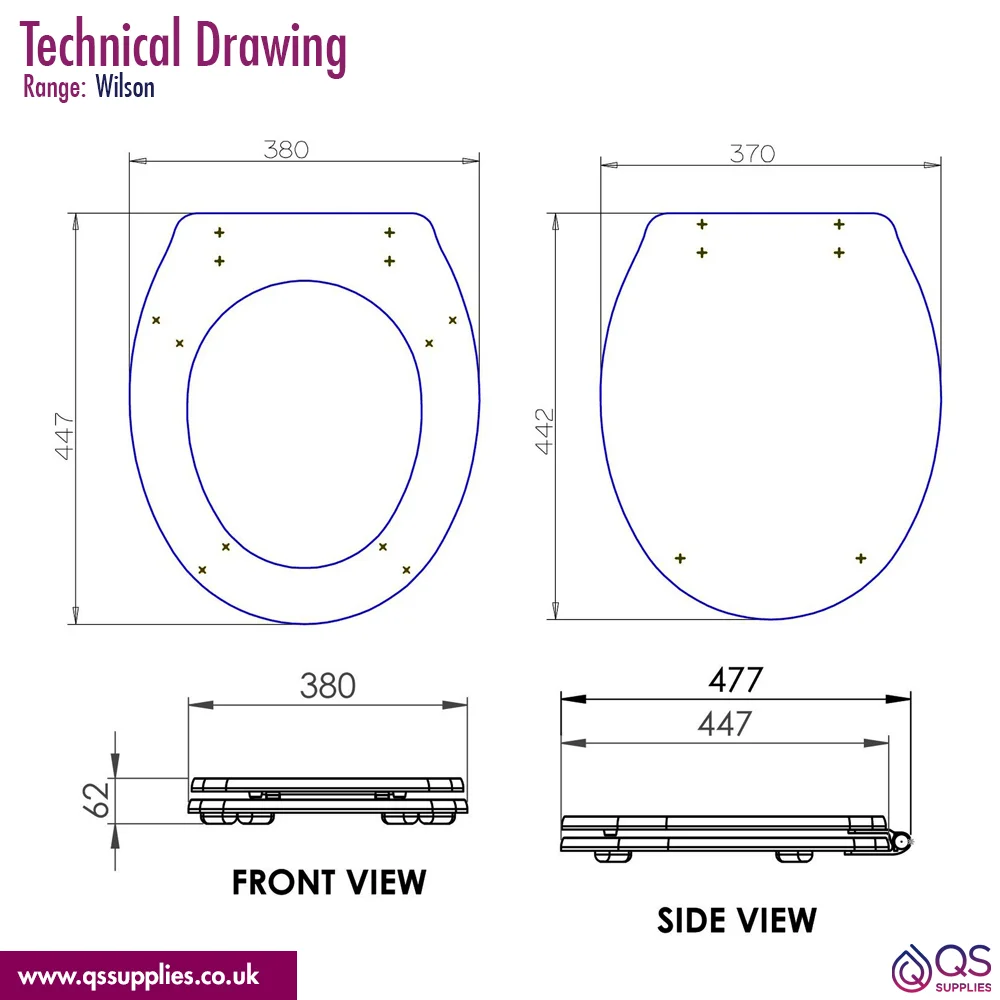

Specification Soft Close Seat with Satin White Wood Effect:
Material: Wooden
Lift Off the Seat for Easy Cleaning with Top-Fix Hinges
Size [mm]: 380 x 447 x 18mm [Width x Depth x Height]
Size [cm]: 38 x 44.7 x 1.8cm [Width x Depth x Height]
Weight: 0.5kg

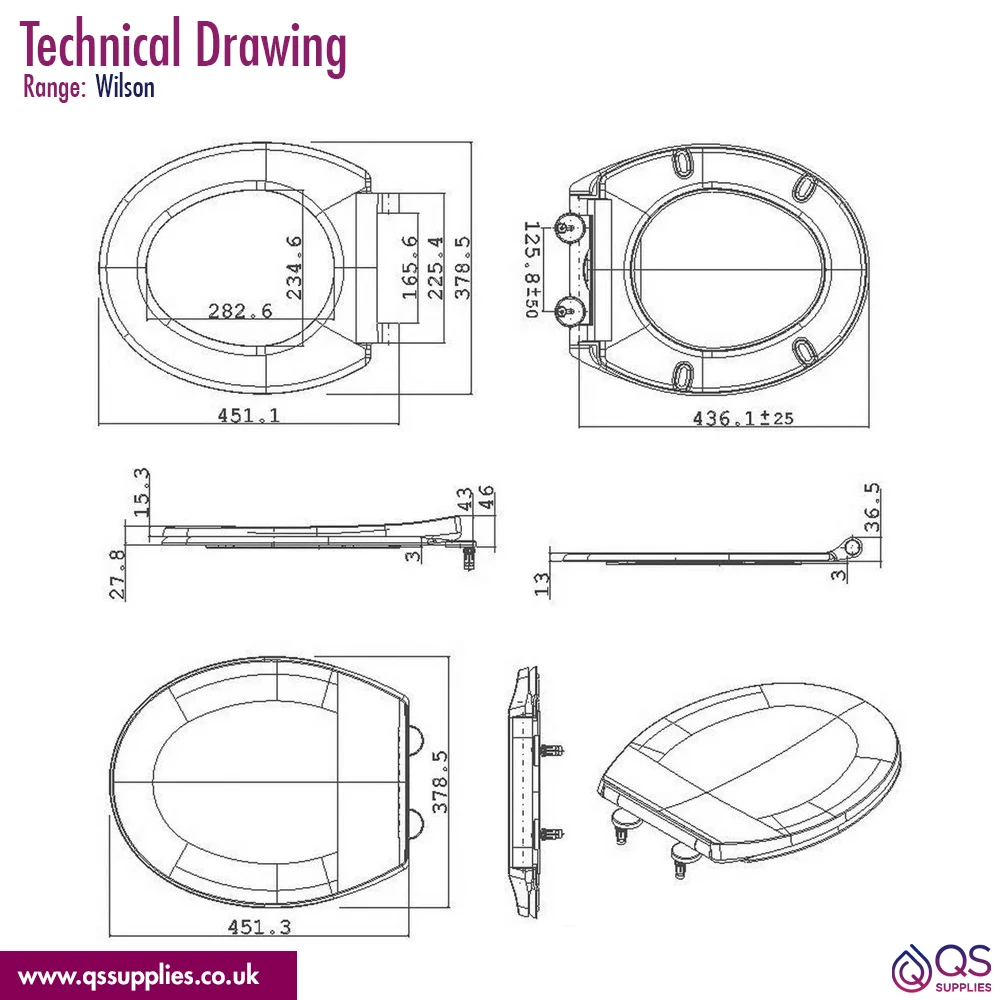

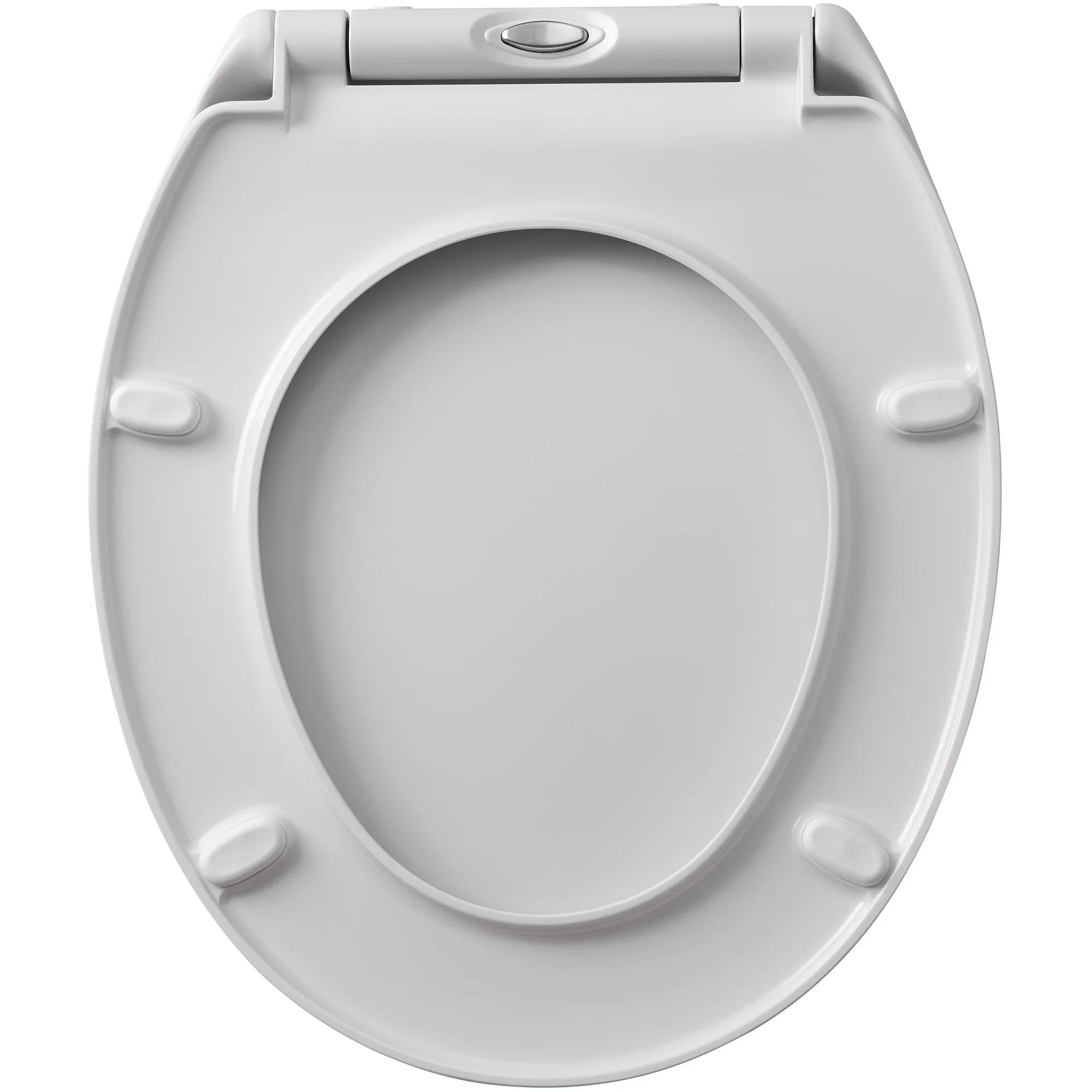

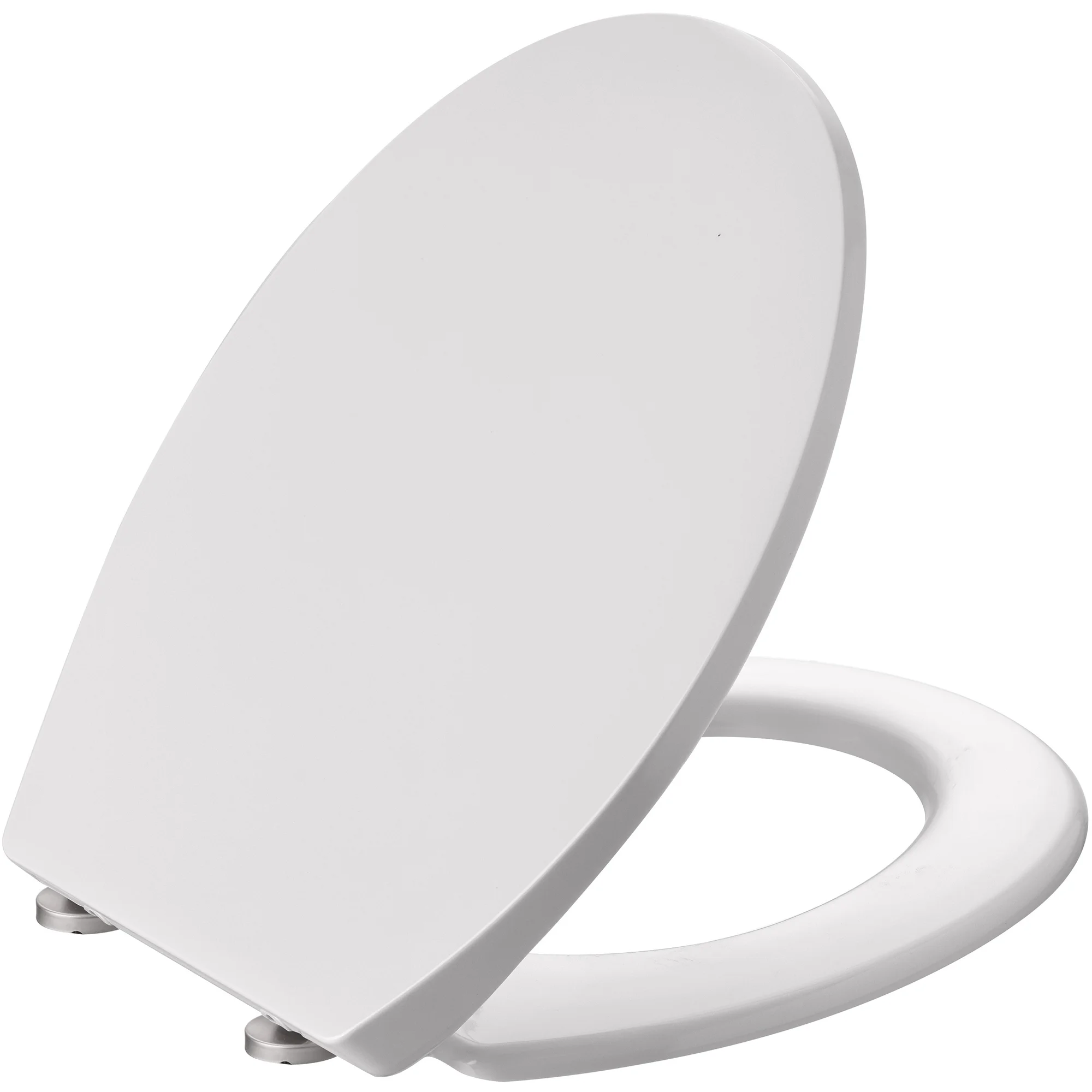

Specification Soft Close Seat with Chrome Hinges:
Material: Plastic
Lift Off the Seat for Easy Cleaning with Top-Fix Hinges
Size [mm]: 378 x 460 x 46mm [Width x Depth x Height]
Size [cm]: 37.8 x 46 x 4.6cm [Width x Depth x Height]
Weight: 2.3kg

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Toilet Design
: Open Back
⤷ Range
: Wilson
⤷ Colour
: White
⤷ Weight in kg
: 30
⤷ Warranty/Guarantee
: Pan & Cistern: Lifetime, Seat & Hinges: 2 Years
⤷ Material
: Vitreous China
⤷ Theme
: Traditional
⤷ Installation Type
: Floor Standing
⤷ Pan Width
: 380
⤷ Pan Height
: 460
⤷ Toilet Overall Height
: 835
⤷ Projection (Depth)
: 710
⤷ Cistern Included
: Yes
⤷ Flush Mechanism
: Lever Flush

⤷ Cistern Lever Or Button Placement
: Front
⤷ Comfort Height
: Yes
⤷ Configuration
: Pan | Cistern | Seat
⤷ Seat Included
: Yes
⤷ Seat Type
: Soft Close
⤷ Seat Finish
: White
⤷ Barcode
: 5054913564284
⤷ Bowl Shape
: Elongated
⤷ Product Type
: Close Coupled WC
⤷ Seat Post Hole Centers
: 155
⤷ Front Of Bowl To Centre Of Seat Holes
: 450
⤷ Base width
: 465
⤷ Base Depth (projection)
: 220
⤷ Base to centre of outlet
: 180

Additional Info & Downloads

Download the Installation Instruction Pdf File

This item can also be found in:

Technical Images

WC Pack

Pan & Cistern

Satin White Wood Effect Seat

Seat with Chrome Hinges

Joseph Miles Wilson Traditional Comfort Height Close Coupled WC Pan with Cistern and Seat - Open Back

£396.00

RRP: ~~£495.00~~

STOCK AVAILABLITY: 5 Working Days Approx

QS Supplies

4 Features Included In This Product Explained

Vitreous-China Material

Vitreous china is an innovative glass-based enamel coating applied to porcelain. This glazed coating makes the base material durable, denser, and very glossy. When ceramics are coated with vitreous enamel, the resulting product is called vitreous china. This enamel is created by applying heat to powdered glass.

Open-Back Toilet

Open-back toilets are a type of close-coupled toilet with a cistern attached to the back of the toilet, creating one single unit. In the open-back model, there is a space at the back between the toilet bowl and the wall to access pipework at the back, while the closed back does not have a gap.

Comfort Height

These toilets are usually a little higher than regular toilets. They measure from 17 to 19 inches off the ground.

Soft-Close Seat

Soft-closing seats are a new alternative to classic seats. Their modern design hinges allow them to close slowly and gently.
