Jaguar Opal Prime Thermostatic Shower Set

Jaguar Opal Prime Details

MFC: OPP-CHR-15681PMSKM

Jaguar Opal Prime Thermostatic Shower Set.

Key Features

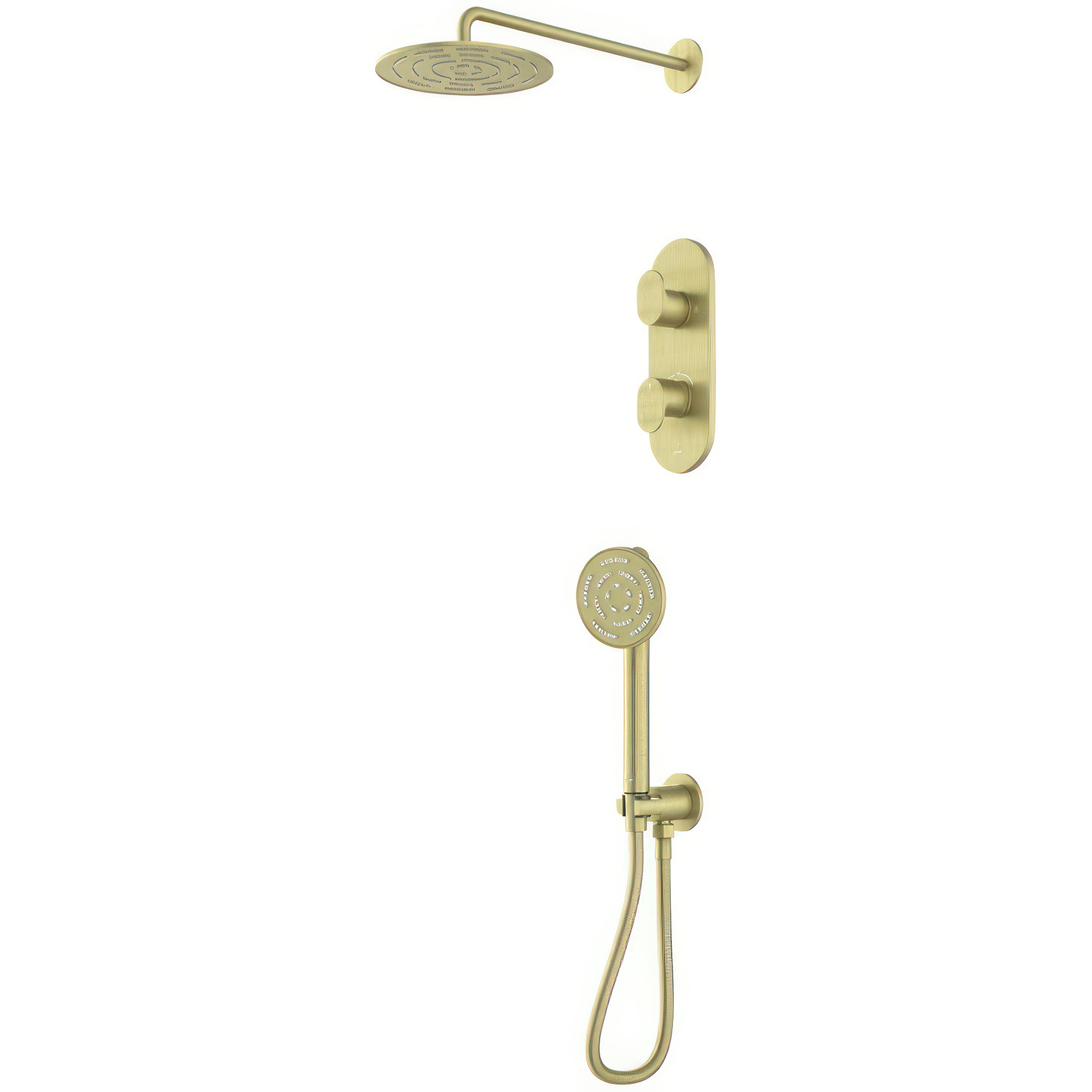

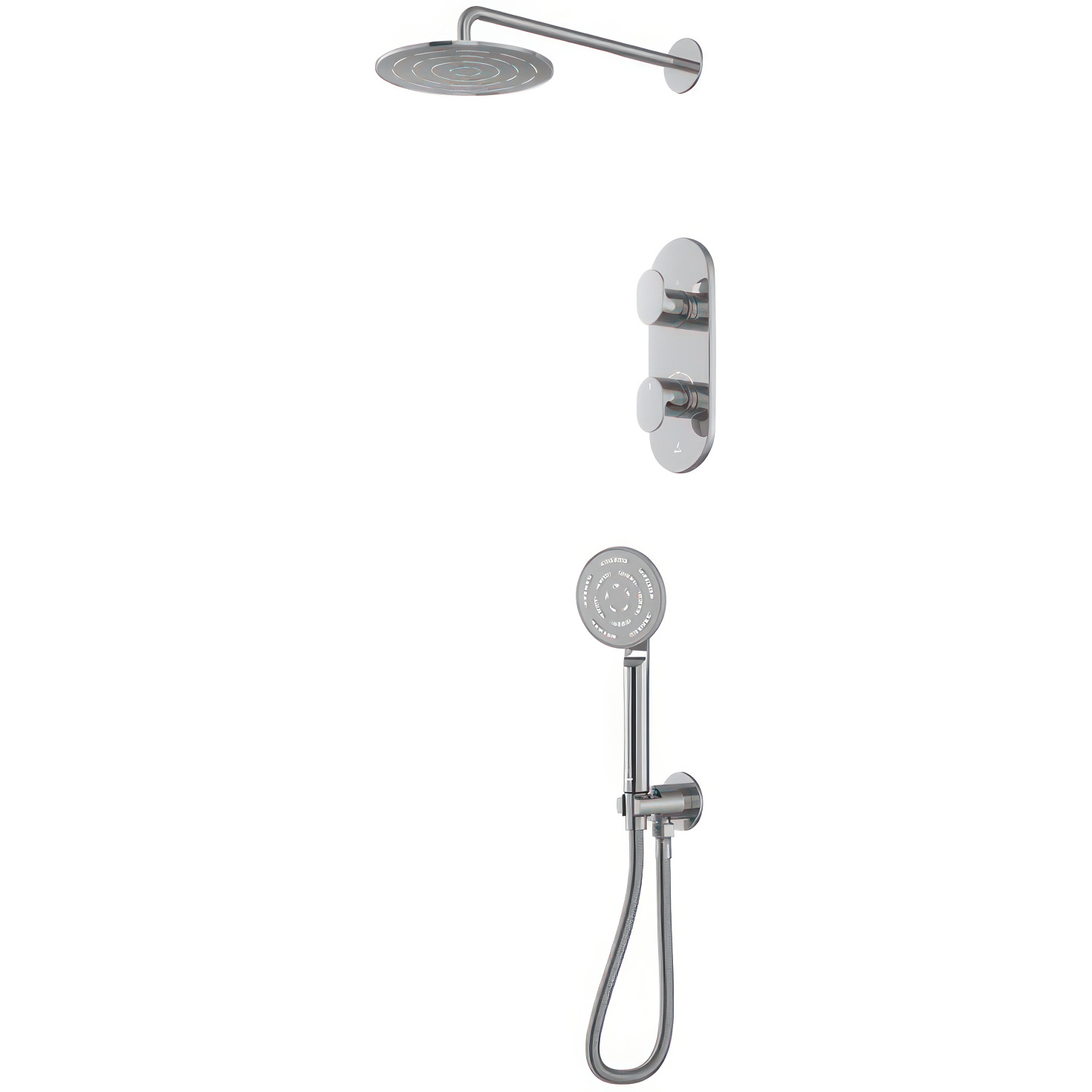

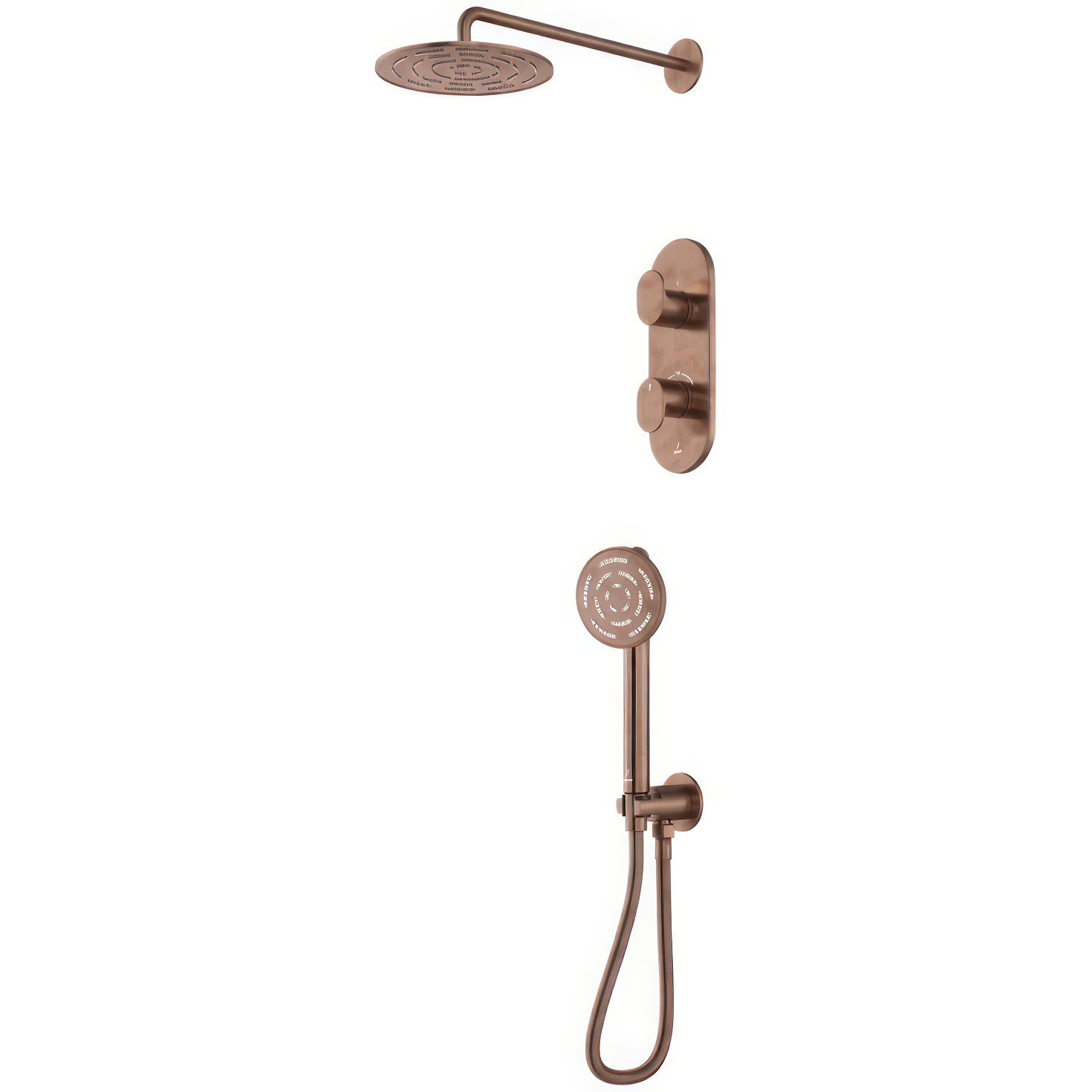

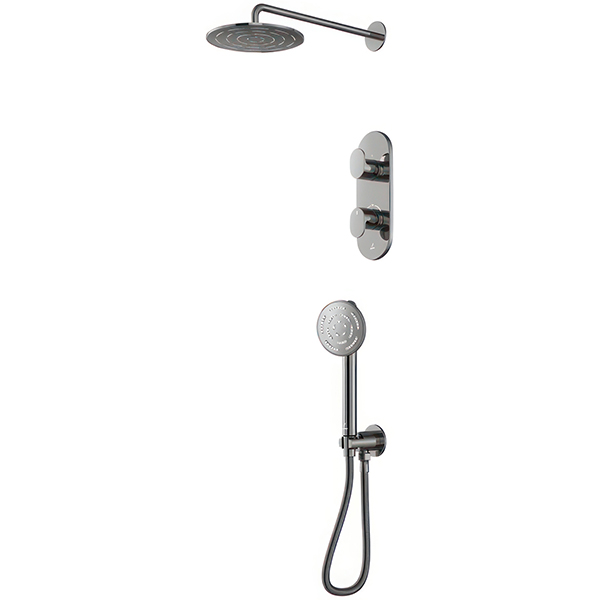

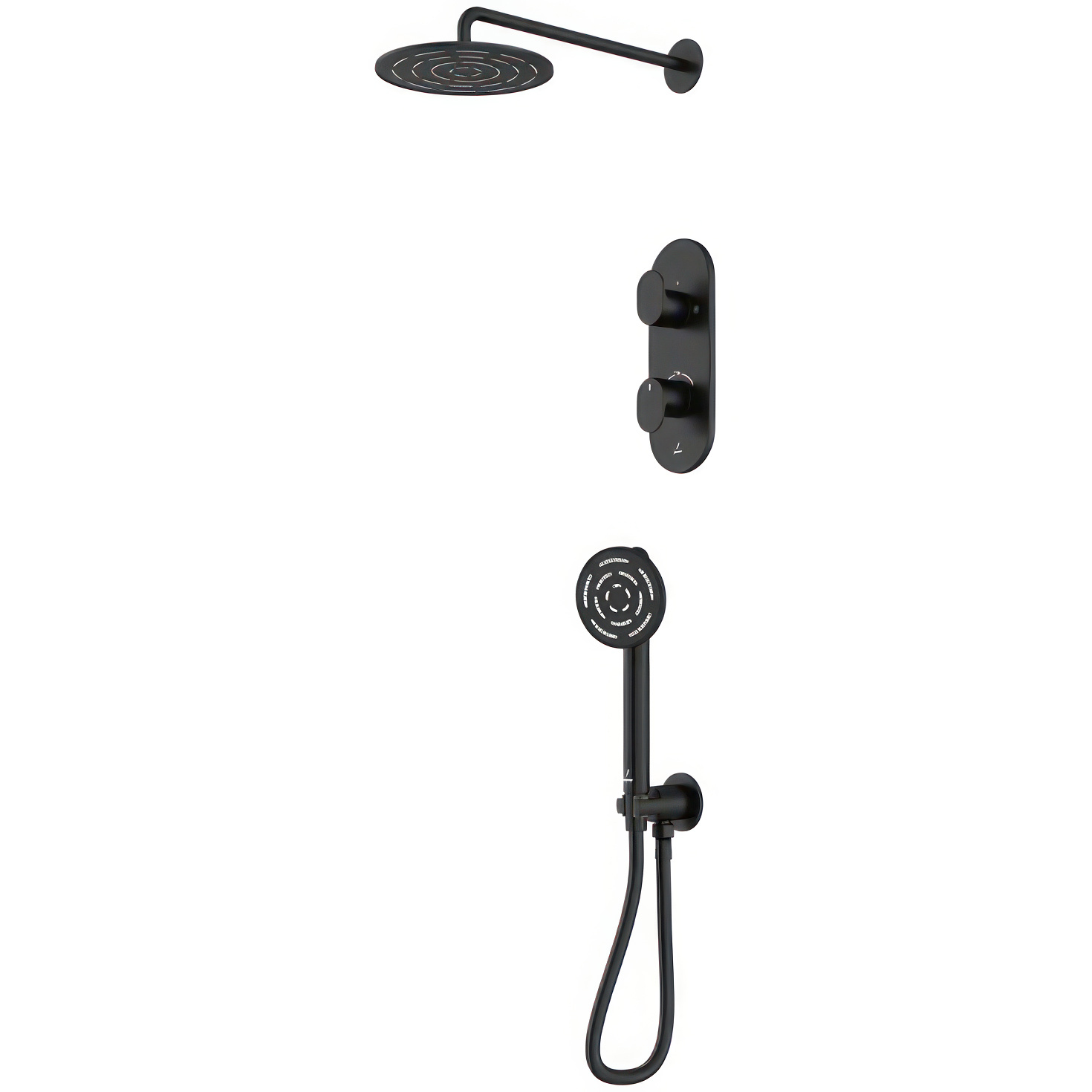

✔Choice of Finishes: Chrome, Black Matt, Black Chrome, Matt Black, Matt Brass, Blush Gold, Antique Copper, Antique Bronze, Matt Gold
✔Installation Type: Wall Mounted
✔Shape: Round
✔10-Year Warranty from the Manufacturer

Combo of Aquamax Pack Includes: Thermostatic Shower Valve with 2 Way Diverter, Shower Head, Arm, Wall Outlet, Handset and Hose
Inlet Connection: 1/2 Inch BSP
Suitable for High Water Pressure System
Refer to the Technical Drawing for More Size Details
Details of Valve
Thermostatic Shower Valve with 2 Way Diverter
Manufactured using Brass Material
Outlet: 2
Orientation Type: Portrait
Size [mm]: 105 x 290mm [Width x Height]
Size [cm]: 10.5 x 29cm [Width x Height]
Supplied with the In-Wall Part
Requires a Minimum of 0.2 Bar to a Maximum of 5.0 Bar Operating Water Pressure
Flow Rate: 42 Litres Per Minute at 3 Bar Pressure
Detail of Hand Shower
Spray Modes: Single Function
Material: Face Plate Stainless Steel & ABS Body
Diameter: 95mm [9.5cm]
Requires a Minimum of 1.0 Bar to a Maximum of 3.0 Bar Operating Water Pressure
Flow Rate: 22.75 Litres Per Minute at 3 Bar Pressure
Advanced Rubit Technology - Lime Scale Deposits that Stick to the Shower Face can be Easily Rubbed Off by Hand or Flannel
Detail of Overhead Shower
Constructed Using Stainless Steel and ABS Material
Spray Mode: Rainfall
Diameter: 240mm [24cm]
Height: 45mm [4.5cm]
Suitable for Low and High Water Pressure System
Requires a Minimum of 0.5 Bar to a Maximum of 3.0 Bar Operating Water Pressure
Flow Rate: 37.91 Litres Per Minute at 3 Bar Pressure
Advanced Rubit Technology - Lime Scale Deposits that Stick to the Shower Face can be Easily Rubbed Off by Hand or Flannel
Details of Shower Arm
Manufactured Using Stainless Steel Material
Diameter: 20mm [2cm]
Length: 450mm [45cm]
90˚ Bend with Flange
Details of Wall Outlet with Shower Hook
Size of Backplate: 55mm [5.5cm]
Depth: 65mm [6.5cm]
Detail of Shower Hose
Manufactured using Metal material
Diameter: 8mm [0.8cm]
Length: 1500mm [150cm]

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Colour
: Chrome
⤷ Warranty/Guarantee
: 10 Years
⤷ Material
: Brass, Stainless Steel, ABS, Metal
⤷ Theme
: Modern
⤷ Valve Included
: Yes
⤷ Valve/Cartridge Type
: Thermostatic
⤷ Inlet Connections
: G 1/2"
⤷ Minimum Operating Pressure (Bar)
: 0.2
⤷ Hose Included
: Yes
⤷ Hose Length
: 1500
⤷ Flow Rates (l/min)
: 3.0 Bar - 22.75, 3.0 Bar - 37.91 , 3.0 Bar - 42

⤷ Backplate Width
: 105
⤷ Backplate Height
: 290
⤷ Diverter Included
: Yes
⤷ Product Type
: Shower Set
⤷ Showerhead Finish
: Chrome
⤷ Handset Included
: Yes
⤷ Spray Patterns (Shower Head)
: Rainfall
⤷ Shower Head Included
: Yes
⤷ Shower Head Size
: 240
⤷ Outlet Elbow Included
: Yes

Additional Info & Downloads

This item can also be found in:

Thermostatic Mixer Showers

Jaguar Opal Prime Thermostatic Shower Set

£569.60

RRP: ~~£712.00~~

STOCK AVAILABLITY: 5 Working Days Approx

QS Supplies

8 Features Included In This Product Explained

2-Outlet

The dual outlet Valve comes with a connection for two outlets, so you can use two different fixtures one at a time, such as using the showerhead and shower handset. These Dual outlet shower valves come in various styles and can be used with varying shower fittings. Some come with diverters for switching between the two outlets.

Diverter

A diverter, specifically in bath-shower combos, redirects the water flow from the bathtub spout to the showerhead. You can activate it using the nozzle in the bath shower mixer tap.
Read more...

Portrait

Portrait orientation is the one in which the longer sides of the mirror are vertical. It looks like the orientation in a portrait, or a photograph of a person and hence the name. Typically this kind of mirror is taller than it is wide, just like real life pictures of people.

ABS Material

ABS (Acrylonitrile Butadiene Styrene) is a laminate popularly used in woodworking and furniture manufacturing. It is a thermoplastic polymer used to finish and seal the edges of plywood, chipboard, MDF, HDF, and other boards.

Stainless Steel Material

Stainless Steel is an iron alloy with anti-rust and anti-corrosive properties, unlike iron. Along with other metal alloys, it contains a minimum of 10.5% of chromium and less than 1.2% of carbon. This robust, hygienic, hard-wearing base material is popular in the construction of bathroom products.

Low Water Pressure

Water systems operating at a pressure between 0.1 and 0.4 bar are considered low pressure. Products usually come labelled if they are suitable to use under such pressure.
Read more...

High Water Pressure

Water systems operating at 1.0 bar or higher pressure are considered high-pressure systems. Products usually come labelled if they are suitable to use under such pressure.

Waterfall Effect

Water flowing out from the open spout creates a water-fall-like flow, delivering a cascading effect that replicates the relaxed feeling of a spa.
