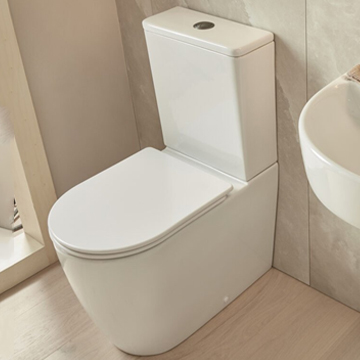

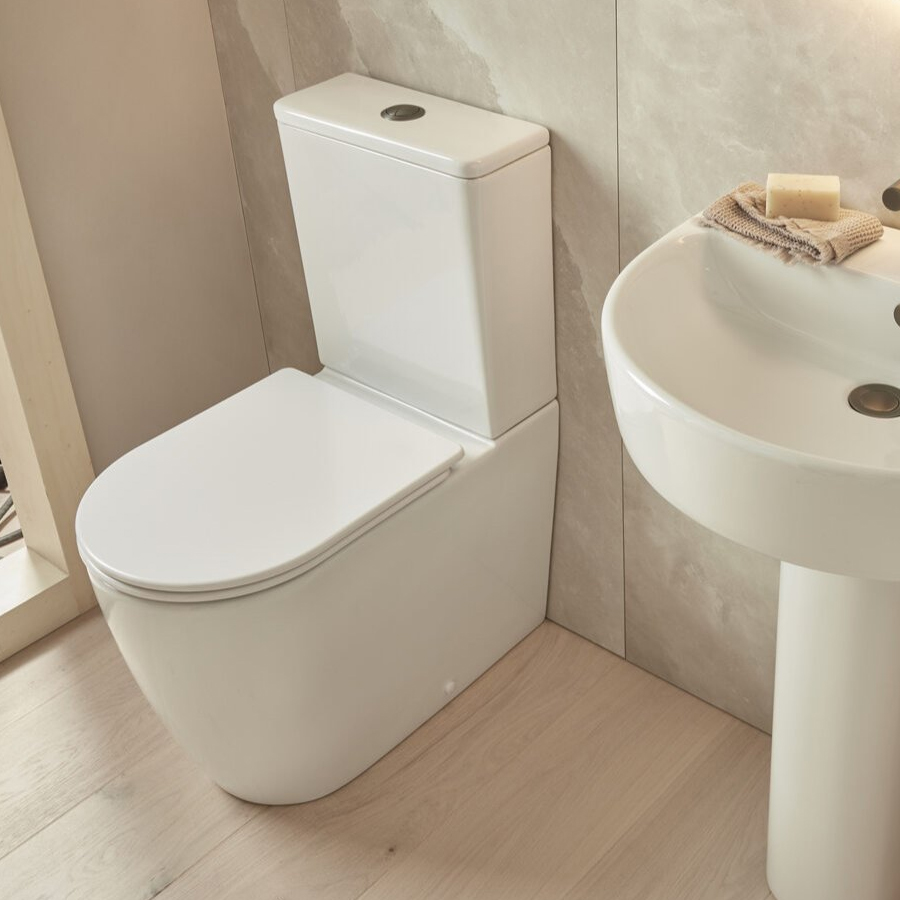

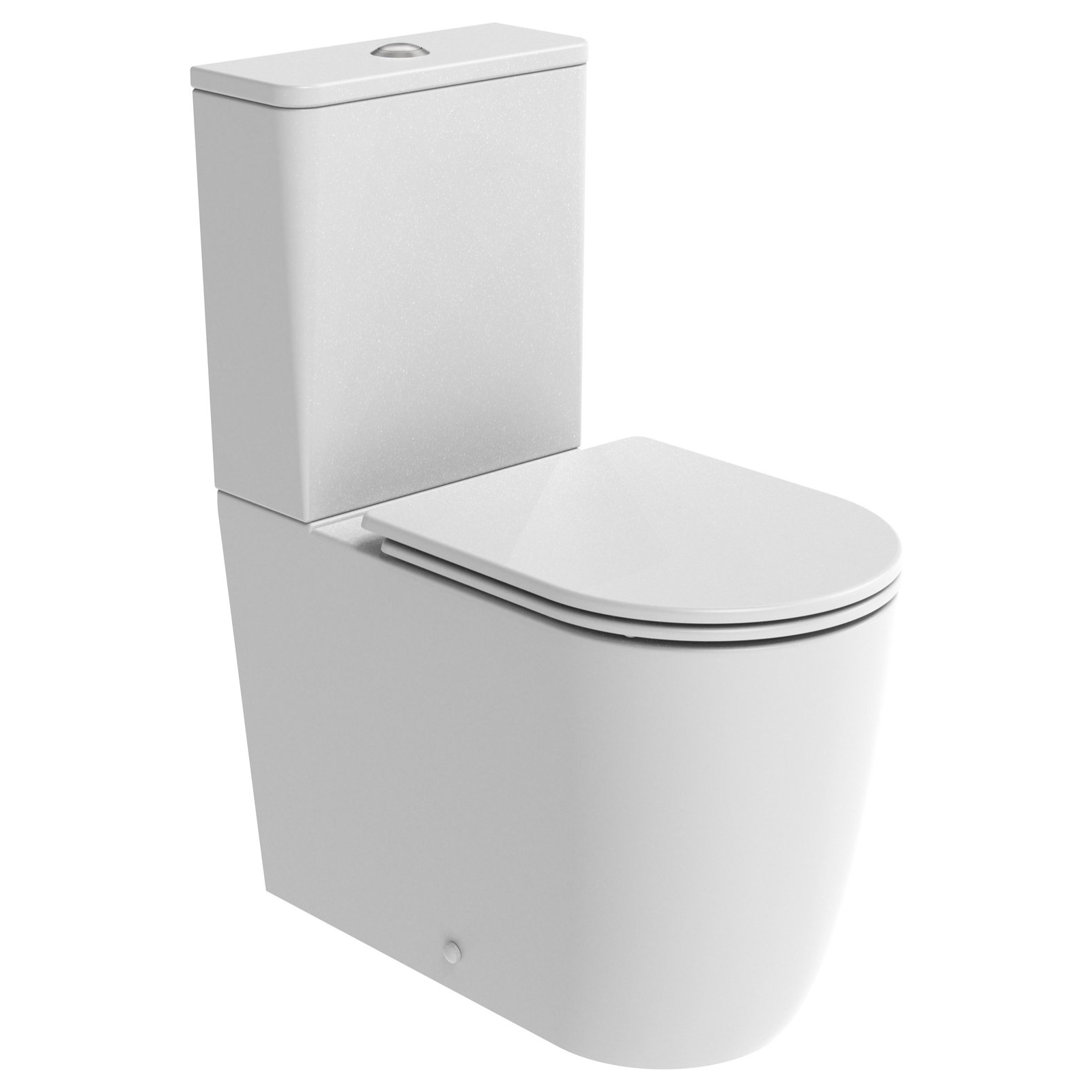

Tavistock Compass Round 610mm Fully Enclosed Rimless Closed Coupled WC Pan

Tavistock Compass Details

MFC: PF1150S|C1050S|TS1155S-SF

Tavistock Compass Round 610mm Fully Enclosed Rimless Closed Coupled WC Pan with Cistern and Seat

Product Consists of WC Pan, Cistern and Seat
Fully Enclosed Close-Coupled WC - PF1150S
Comes in Keramik White Finish
Simple and Sleek Design Close-Coupled Toilet
Chrome Finish Flush Button Supplied with Cistern
Size of WC Pan: 340 x 430 x 610mm [Width x Height x Projection]
Size of Cistern: 368 x 400 x 152mm [Width x Height x Depth]
Overall Size: 368 x 830 x 610mm [Width x Height x Depth]
Bottom Inlet, Back Right of the Pan
Can be Used with a Side Connection Outlet Pipe
Front-Back Footprint: 520mm from Wall
Left to Right Footprint: 250mm
Bowl Front to Back: 320mm
Bowl Left to Right: 260mm
Centre Waste Outlet to Floor: 180mm
Width of Void: 180mm
Distance from Spigot to Back of Pan: 220mm
Refer to the Technical Drawing for Complete Size Details
The Toilet Seat and Cover Shown in the Image are Not Included

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Toilet Design
: Fully Enclosed
⤷ Range
: Compass
⤷ Colour
: Keramik White
⤷ Warranty/Guarantee
: 20-Years
⤷ Material
: Ceramic
⤷ Theme
: Modern
⤷ Installation Type
: Floor Standing
⤷ Pan Width
: 340
⤷ Pan Height
: 430
⤷ Toilet Overall Height
: 830
⤷ Projection (Depth)
: 610
⤷ Rimless Bowl
: Yes
⤷ Cistern Included
: Yes
⤷ Cistern Width
: 368
⤷ Cistern Height
: 400

⤷ Flush Type
: Dual
⤷ Full Flush Volume in litres
: 6
⤷ Half Flush Volume in litres
: 4
⤷ Seat Included
: Yes
⤷ Seat Type
: Soft Close
⤷ Seat Finish
: White
⤷ Barcode
: 5016519598179
⤷ Bowl Shape
: Round
⤷ Cistern Depth (projection)
: 152
⤷ Seat Post Hole Centers
: 150
⤷ Front Of Bowl To Centre Of Seat Holes
: 430
⤷ Base width
: 250
⤷ Base Depth (projection)
: 520
⤷ Outlet Diameter
: 102
⤷ Base to centre of outlet
: 180

Additional Info & Downloads

This item can also be found in:

Tavistock Compass Round 610mm Fully Enclosed Rimless Closed Coupled WC Pan with Cistern and Seat

£482.38

RRP: ~~£603.00~~

Stock Availablity: 5-7 Working Days Approx

QS Supplies

3 Features Included In This Product Explained

Rimless

A rimless toilet does not have a brim at its edge, from which the water usually flows when you flush. Instead of flowing from the top, such toilets shoot water towards its edge and around it, allowing no missing spots with filth remaining after a flush. These toilets also remove any spaces for germs to hide and breed, providing a hygienic alternative for your bathroom.

Soft-Close Seat

Soft-closing seats are a new alternative to classic seats. Their modern design hinges allow them to close slowly and gently.

Dual-Flush

A toilet with a flushing mechanism with two different buttons for flushing solid and liquid waste, thereby saving water.
