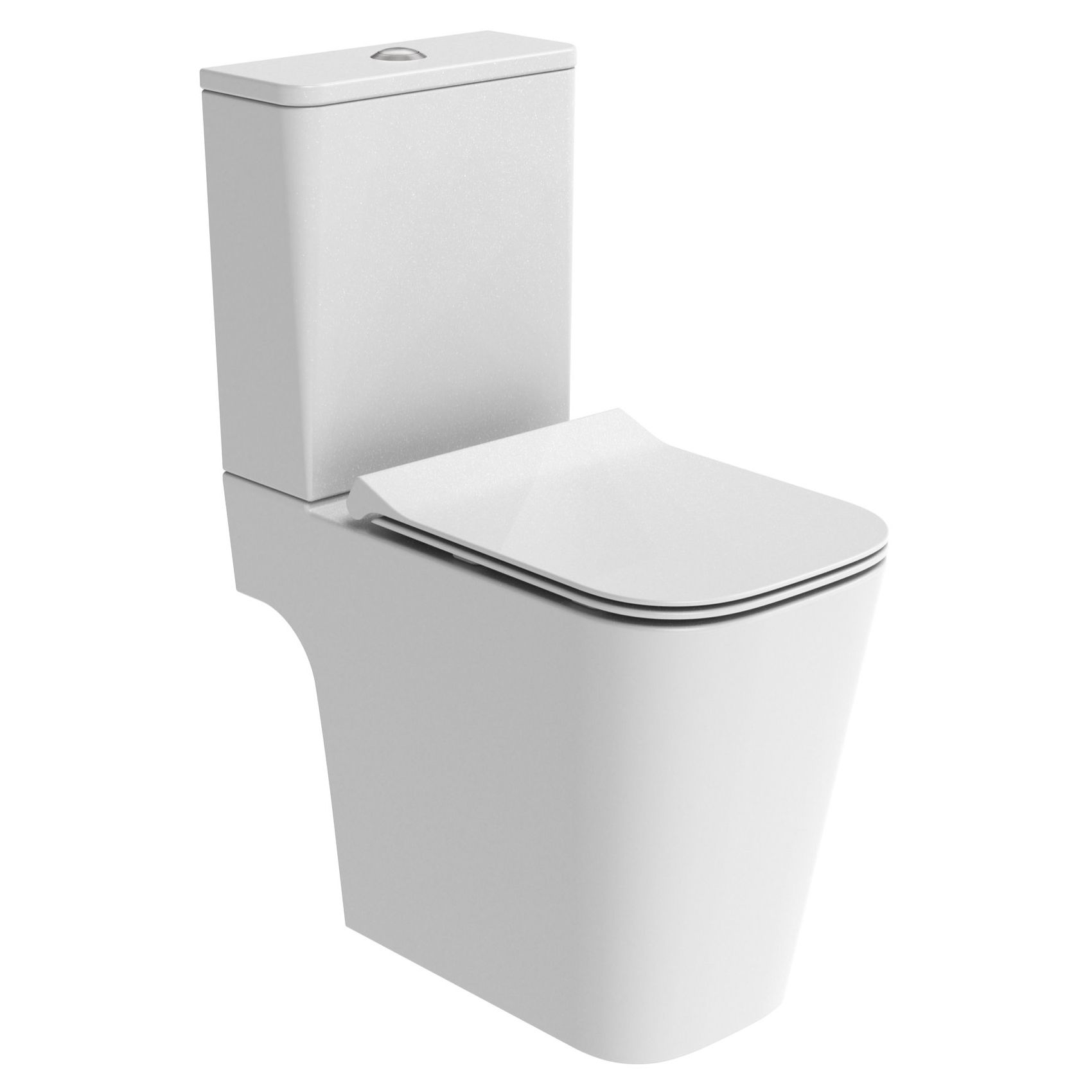

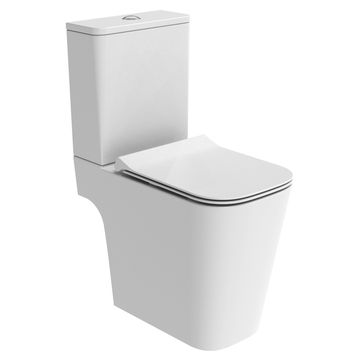

Tavistock Compass Square 620mm Open Back Closed Coupled WC Pan

Tavistock Compass Details

MFC: PC1050S|C1050S

Tavistock Compass Square 620mm Comfort Height Open Back Closed Coupled Rimless WC Pan with Cistern

Key Features

✔Designed with Easi-clean technology
✔Secure Fix: Adjustable hinge technology that keeps the seat firmly in place
✔Rimless Design Makes it Exceptionally Hygienic and Easy to Clean
✔Supplied with Dual Flush 6/4L Cistern - C1050S
✔20-Year Guarantee Against any Manufacturing Defects

Product Consists of WC Pan and Cistern
Open Back Close-Coupled WC - PC1050S
Comes in Keramik White Finish
Simple and Sleek Design Close-Coupled Toilet
Chrome Finish Flush Button Supplied with Cistern
Size of WC Pan: 340 x 470 x 620mm [Width x Height x Projection]
Size of Cistern: 368 x 400 x 152mm [Width x Height x Depth]
Overall Size: 368 x 870 x 620mm [Width x Height x Depth]
Bottom Inlet, Back Right of the Pan
Front-Back Footprint: 430mm
Left to Right Footprint: 250mm
Bowl Front to Back: 320mm
Bowl Left to Right: 250mm
Centre Waste Outlet to Floor: 180mm
Width of Void: 220mm
Distance from Spigot to Back of Pan: 200mm
Compatible Soft-Close Seat Available as an Option
Refer to the Technical Drawing for Complete Size Details
The Toilet Seat and Cover Shown in the Image are Not Included

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Range
: Compass
⤷ Toilet Design
: Open Back
⤷ Colour
: Keramik White
⤷ Colour
: White
⤷ Warranty/Guarantee
: 20 Years
⤷ Warranty/Guarantee
: 20-Years
⤷ Material
: Ceramic
⤷ Theme
: Modern
⤷ Installation Type
: Floor Standing
⤷ Pan Width
: 340
⤷ Pan Height
: 470
⤷ Toilet Overall Height
: 870
⤷ Projection (Depth)
: 620
⤷ Rimless Bowl
: Yes
⤷ Cistern Included
: Yes
⤷ Cistern Width
: 368

⤷ Cistern Height
: 400
⤷ Flush Type
: Dual
⤷ Full Flush Volume in litres
: 6
⤷ Half Flush Volume in litres
: 4
⤷ Cistern Lever Or Button Placement
: Top
⤷ Comfort Height
: Yes
⤷ Seat Included
: Sold Separately
⤷ Barcode
: 5016519598131
⤷ Bowl Shape
: Square
⤷ Cistern Depth (projection)
: 152
⤷ Seat Post Hole Centers
: 150
⤷ Front Of Bowl To Centre Of Seat Holes
: 425
⤷ Base width
: 250
⤷ Base Depth (projection)
: 430
⤷ Outlet Diameter
: 102
⤷ Base to centre of outlet
: 180

Additional Info & Downloads

This item can also be found in:

Tavistock Compass Square 620mm Comfort Height Open Back Closed Coupled Rimless WC Pan with Cistern

£432.79

RRP: ~~£541.00~~

Stock Availablity: 5-7 Working Days Approx

QS Supplies

5 Features Included In This Product Explained

Comfort Height

These toilets are usually a little higher than regular toilets. They measure from 17 to 19 inches off the ground.

Open-Back Toilet

Open-back toilets are a type of close-coupled toilet with a cistern attached to the back of the toilet, creating one single unit. In the open-back model, there is a space at the back between the toilet bowl and the wall to access pipework at the back, while the closed back does not have a gap.

Rimless

A rimless toilet does not have a brim at its edge, from which the water usually flows when you flush. Instead of flowing from the top, such toilets shoot water towards its edge and around it, allowing no missing spots with filth remaining after a flush. These toilets also remove any spaces for germs to hide and breed, providing a hygienic alternative for your bathroom.

Dual-Flush

A toilet with a flushing mechanism with two different buttons for flushing solid and liquid waste, thereby saving water.

Optional: Soft-Close Seat

Soft-closing seats are a new alternative to classic toilet seats. Their modern design allows them to close slowly, while their controlled manner of closing does not require you to assist them. It also shuts automatically, allowing it to come down at a pace that does not make much noise.
