Nuie Doc M Packs 380 x 630mm Close Coupled Comfort Height Pan And Cistern Set

Nuie Doc M Packs Details

MFC: NCS500

Nuie Doc M Packs Comfort Height Close Coupled WC has been designed with a precise height to provide optimum comfort for taller persons and mobility problems. It comes to you complete with cistern and standard-close seat. Its dual flush system meets the need of the hour of saving water. Its Vitreous China construction gives it strength and resistance to wear and tear. Just right for modern bathrooms and convenient to install a 5-year guarantee backs it.

The Manufacturing Code of This Product is NCS500
Includes Comfort Height WC Pan, Dual Flush and Standard Seat
Overall Size [mm]: 380 x 650 x 860mm [Width x Projection x Height]
Overall Size [cm]: 38 x 65 x 86cm [Width x Projection x Height]
Comfort Height Pans are a Practical Option for the Taller Person or Those who have Mobility Concerns
Weight: 37.16 Kg
Download the Customer Data Sheet PDF File from the Additional Info Section

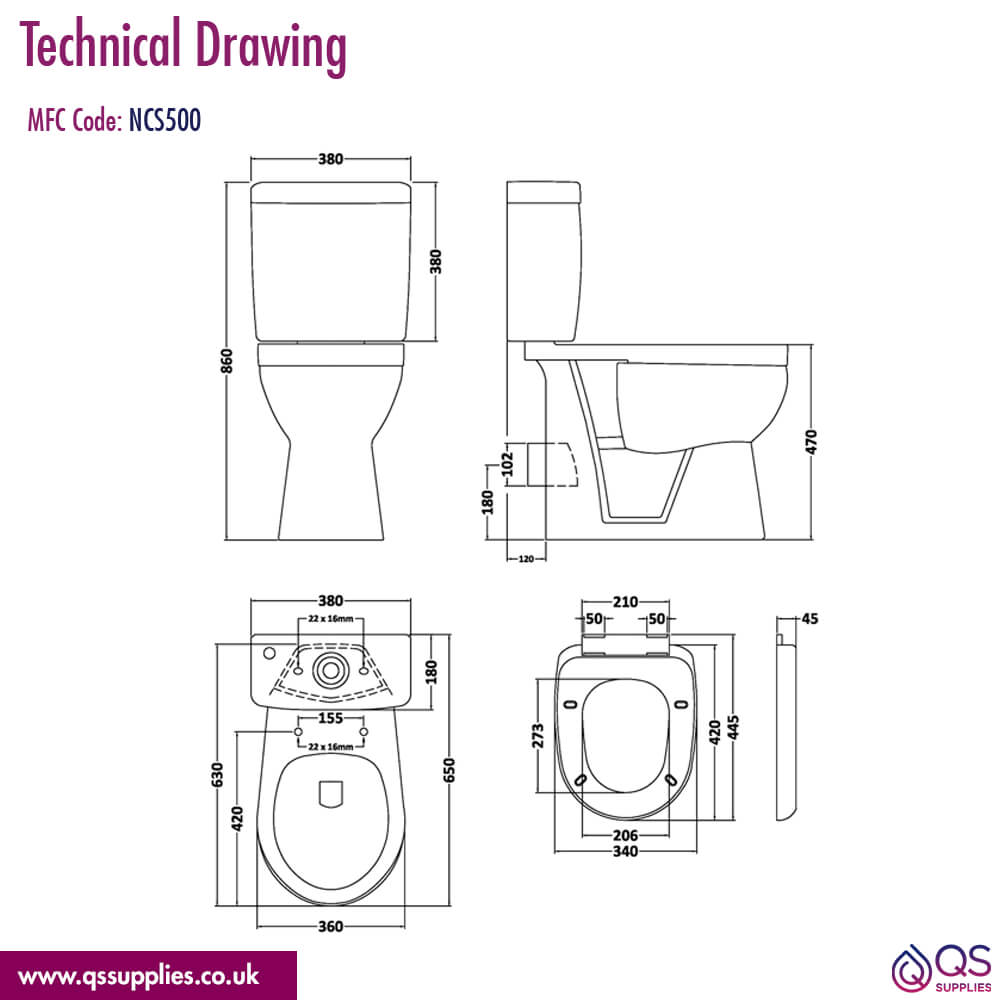

Refer to the Technical Drawing for More Technical Details
Detail for Comfort Height Pan:
Manufactured using Vitreous China Material
Size [mm]: 630 x 625 x 470mm [Width x Projection x Height]
Size [cm]: 63 x 62.5 x 47cm [Width x Projection x Height]
Trap Style: P trap
Detail for Cistern:
Manufactured using Vitreous China Material
Size [mm]: 380 x 180 x 380mm [Width x Depth x Height]
Size [cm]: 38 x 18 x 38cm [Width x Depth x Height]
Operating Type: Push-Button
Fittings: Loose 6/3L
Plastic Chrome Plated Lever
Detail for Seat:
Shape: D-Shape
Manufactured using Polypropylene Material
Hinge Type: Top Fix
Hinge Material: Plastic

Info / Size (mm)

Toilet
Width: 380 mm
Projection: 650 mm
Height: 860 mm

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Range
: Doc M Packs
⤷ Toilet Design
: Open Back
⤷ Coating
: Without Coating
⤷ Colour
: White
⤷ Weight in kg
: 37.16
⤷ Warranty/Guarantee
: 5 Years
⤷ Material
: Vitreous China
⤷ Theme
: Contemporary
⤷ Installation Type
: Floor Mounted
⤷ Water Saving
: Yes
⤷ Pan Width
: 360
⤷ Pan Height
: 470
⤷ Toilet Overall Height
: 860
⤷ Projection (Depth)
: 650
⤷ Cistern Included
: Yes
⤷ Cistern Width
: 380
⤷ Cistern Height
: 380
⤷ Flush Type
: Dual
⤷ Full Flush Volume in litres
: 6

⤷ Half Flush Volume in litres
: 3
⤷ Flush Mechanism
: Push Button
⤷ Cistern Lever Or Button Placement
: Top
⤷ Outlet
: Horizontal
⤷ Comfort Height
: Yes
⤷ Configuration
: Two Piece
⤷ Configuration
: Pan | Cistern
⤷ Seat Included
: Yes
⤷ Seat Type
: Standard
⤷ Seat Finish
: White
⤷ Barcode
: 5055275811399
⤷ Bowl Shape
: Elongated
⤷ Product Type
: Closed Coupled
⤷ Cistern Depth (projection)
: 180
⤷ Seat Post Hole Centers
: 155
⤷ Front Of Bowl To Centre Of Seat Holes
: 420
⤷ Outlet Diameter
: 102
⤷ Base to centre of outlet
: 180

Additional Info & Downloads

Download the Customer Data Sheet Pdf File

Nuie Doc M Packs 380 x 630mm Close Coupled Comfort Height Pan And Cistern Set

£150.59

RRP: ~~£469.00~~

IN-STOCK

Delivery in 4 Working Days Approx.

QS Supplies

4 Features Included In This Product Explained

Comfort Height

These toilets are usually a little higher than regular toilets. They measure from 17 to 19 inches off the ground.

Dual-Flush

A toilet with a flushing mechanism with two different buttons for flushing solid and liquid waste, thereby saving water.

Horizontal Outlet

When the pan has piping at the back, inside the wall, it is called a horizontal outlet toilet or pan. As the cisterns are concealed or placed against the wall, most plumbing is hidden out of sight.

Open-Back Toilet

Open-back toilets are a type of close-coupled toilet with a cistern attached to the back of the toilet, creating one single unit. In the open-back model, there is a space at the back between the toilet bowl and the wall to access pipework at the back, while the closed back does not have a gap.

Reviews & Ratings

By: Dawn From : BOURNEMOUTH Overall Rating: Date: March 15, 2019 Pennies well spent!

So easy to order. Speedy delivery of quality item. Could have done with better fitting instructions. Very pleased with new toilet. Thoroughly recommend qssupplies and will check site again if we need other supplies.

Helpful?

1 of 1 People have found this Review useful

Quality:

Style

Value for Money

By: Jeffrey From : Dereham Overall Rating: Date: July 22, 2024 Good value

Item was available immediately and dispatched promptly. Easy to install. Does the job.

Images Uploaded by the users:

Helpful?

Quality:

Style

Value for Money

By: Graham From : WELLING Overall Rating: Date: December 2, 2021 New toilet

Great item, Good service will use again.

Helpful?

Quality:

Style

Value for Money

Questions & Answers

Submit Your Questions 3 Questions Answered

Have a question about this item? Ask our technical team. We aim to reply within 72 hours.

Peter Asked :
What space do you get behind the pan when the cistern is fixed to the wall?

Answered By QS Team

There is a space of 50mm behind the pan.

Was this answer helpful?

Jerome Asked :
The description says 480mm extended height of the pan. Does this mean the toilet seat adds additional height, or is the ceramic pan height already 480mm? Is it possible to change the toilet seat to add an extra height on top of 480mm?

Answered By QS Team

The height of the pan without the seat is 470mm, per the line drawing. It will be 480mm with the seat. We do not do alternative seats that will increase the height.

Was this answer helpful?

John Asked :
Can you fit a 90° bend to the back of the toilet and wall?

Answered By QS Team

From our calculations, we would say there is enough room.

Was this answer helpful?
