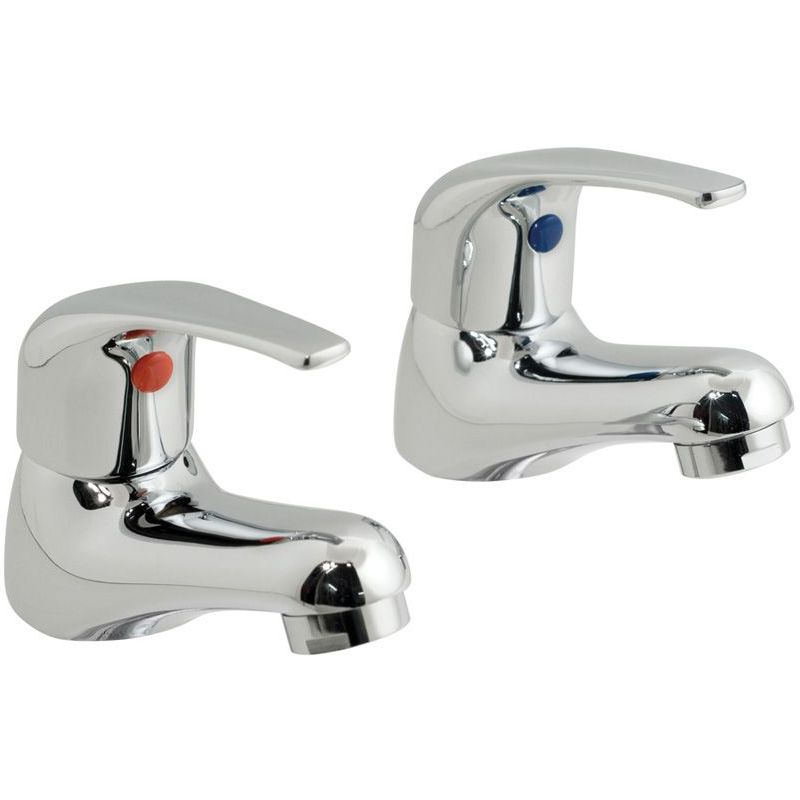

Vado Axces Matrix Contemporary Pair of Chrome Basin Taps, Curved Handle

Details

MFC: AX-MAT-106-CP

Vado Axces Matrix Contemporary Pair of Chrome Basin Taps - Curved Handle.

The Manufacturing Code of the Product is AX-MAT-106-CP
Crafted using Premium Quality Material
Deck-Mounted Installation
Height: 96mm (9.6cm)
Base to Spout: 30mm (3cm)
Centre of the Inlet to the Centre of the Outlet: 90mm (9cm)
Deck Hole Drill Diameter: 22mm (2.2cm)
4 Litre/Min Flow Regulator Available as an Option
Requires a Minimum of 0.2 Bar and a Maximum of 5.0 Bar Water Pressure
Plumbing System Suitability: Gravity System, Pumped System, Combination Boiler, Pressurised System

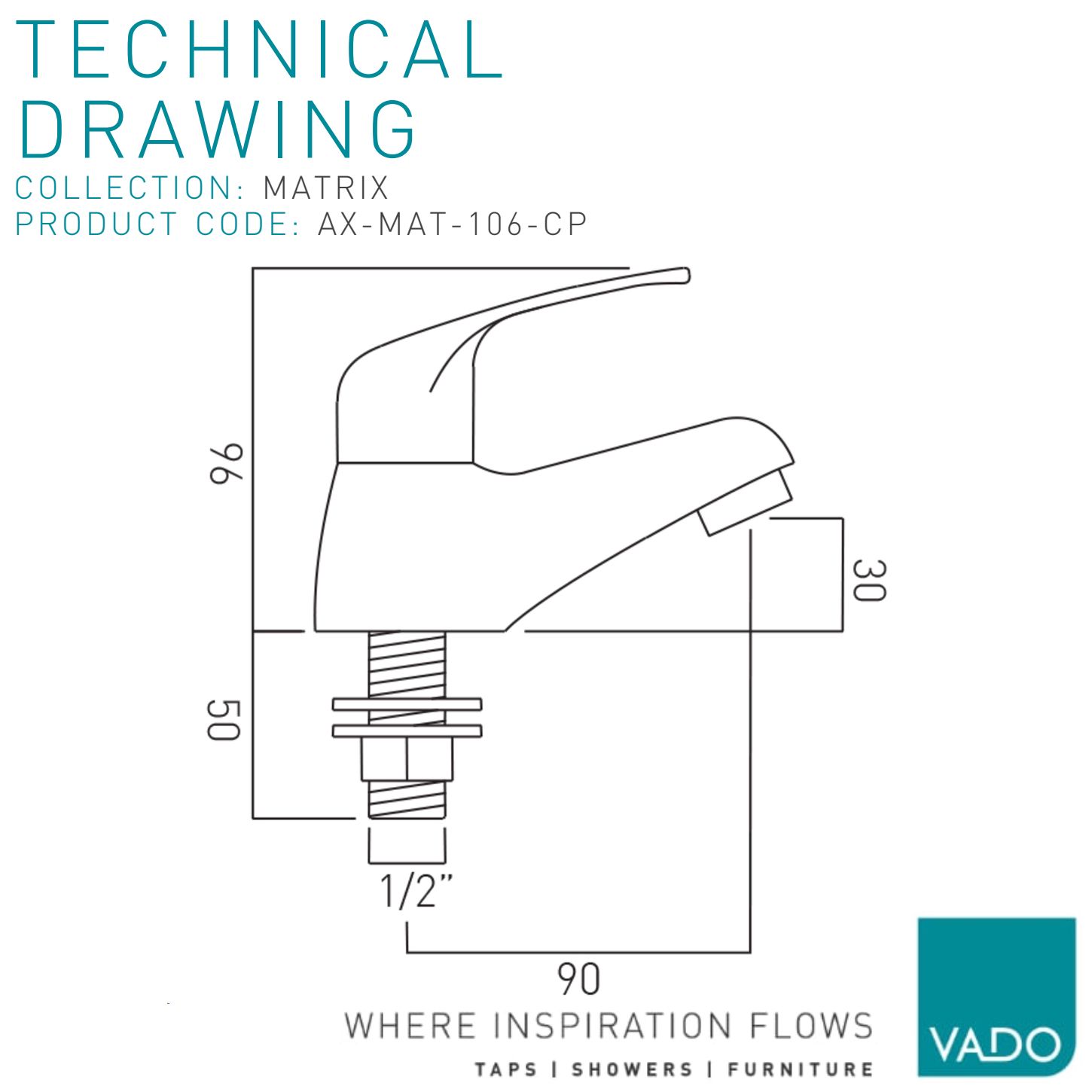

Refer to the Technical Drawing for Size Details
Download the Installation Instruction PDF File from the Additional Info Section

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Water Activation
: By Lifting/Tilting
⤷ Range
: Matrix
⤷ Tap Body Shape
: Round
⤷ Handle Position
: Upwards
⤷ Colour
: Chrome
⤷ Warranty/Guarantee
: 10 Years
⤷ Theme
: Modern
⤷ Installation Type
: Deck Mounted
⤷ No. of Holes Required
: 2
⤷ Base To Spout
: 30

⤷ Spout Reach
: 90
⤷ Overall Height
: 96
⤷ Max. Deck Thickness
: 50
⤷ Inlet Connections
: 1/2-Inch
⤷ Minimum Operating Pressure (Bar)
: 0.2
⤷ Handle Style
: Lever Handle
⤷ Deck Mount Drill Hole Diameter
: 22
⤷ Barcode
: 5052120242605
⤷ Product Type
: Basin Pillar Taps

Additional Info & Downloads

Download the Installation Instruction Pdf File

Add-Ons

Flow Regulator

Save water by installing this flow regulator. Please note: The image is for illustration purpose only.

No Option Selected
OP-30288 - 2x H2 Eco Flow Regulator Pair + £14.03

Vado Axces Matrix Contemporary Pair of Chrome Basin Taps - Curved Handle

£51.00

RRP: ~~£85.00~~

Stock Availablity: 5-7 Working Days Approx

QS Supplies

3 Features Included In This Product Explained

High Water Pressure

Water systems operating at 1.0 bar or higher pressure are considered high-pressure systems. Products usually come labelled if they are suitable to use under such pressure.

Low Water Pressure

Water systems operating at a pressure between 0.1 and 0.4 bar are considered low pressure. Products usually come labelled if they are suitable to use under such pressure.
Read more...

Flow Regulator

As the name suggests, a flow regulator is a simple device designed to regulate water flow to a predetermined level. The job of a flow regulator is to stop water wastage. For instance, if the regular flow rate through a tap is 20 litres per minute, a flow regulator can reduce the flow rate between 6 to 12 litres per minute to complete the desired chore without feeling low pressure.
