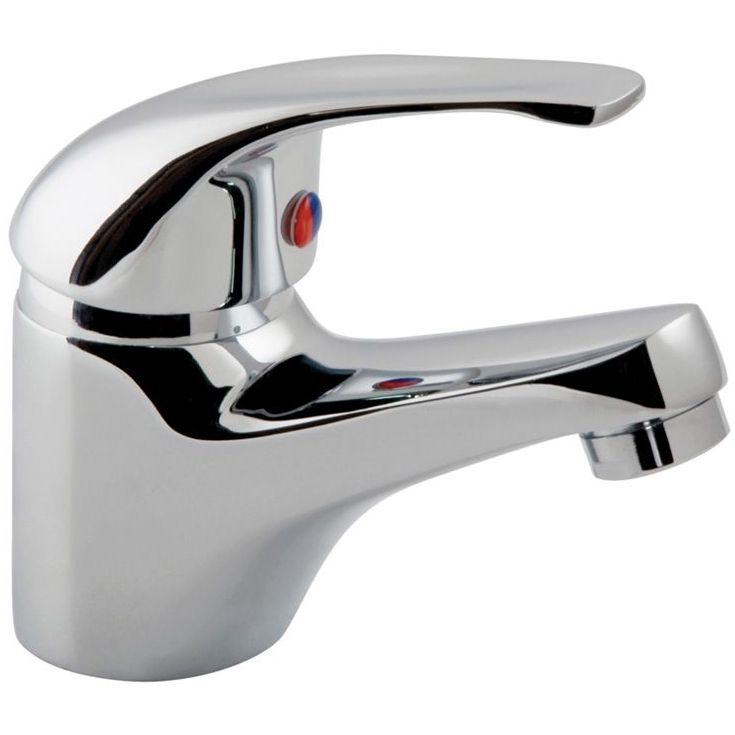

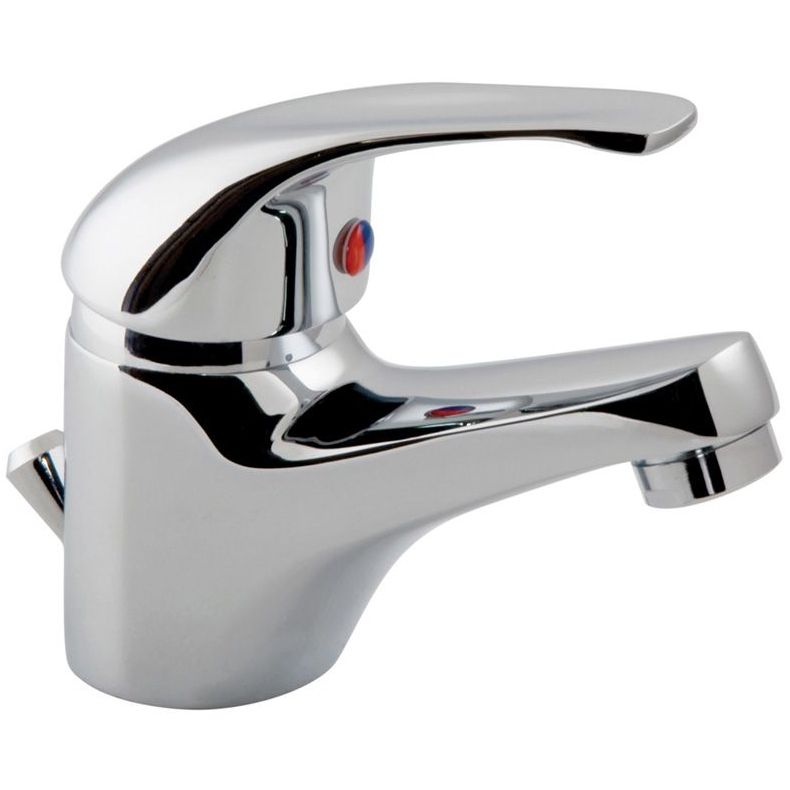

Vado Axces Matrix Monobloc Chrome Basin Mixer Tap, Curved Handle

Vado Axces Matrix Details

MFC: AX-MAT-100/SB-CP

Vado Axces Matrix Monobloc Chrome Basin Mixer Tap - Curved Handle.

Key Features

✔Single Lever Operation
✔It comes in a Chrome Finish
✔Ceramic Cartridge: CAR-K40A/MAT
✔10-Year Guarantee from the Manufacturer

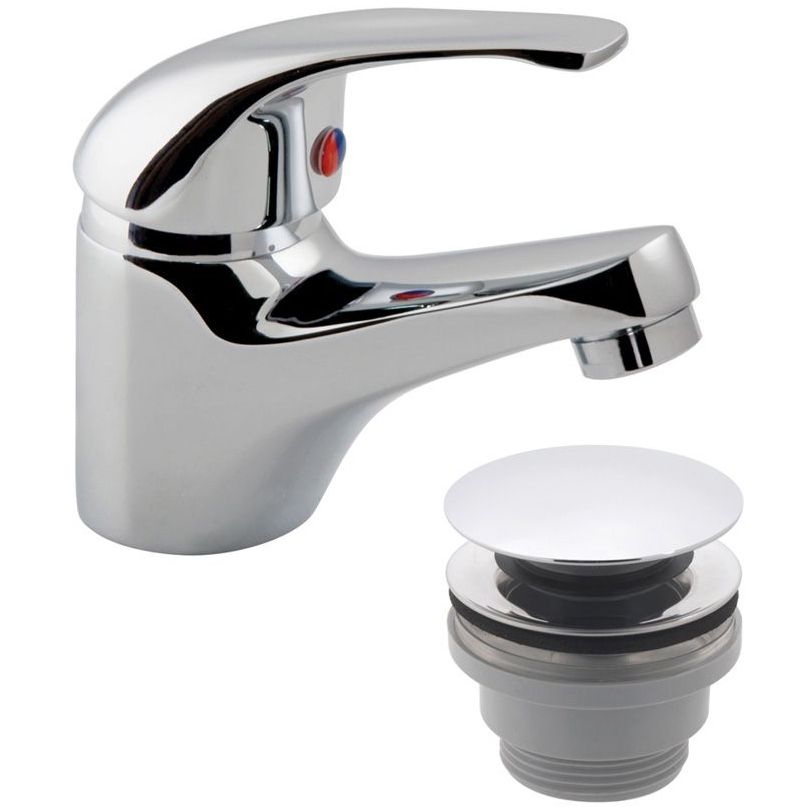

Choice of Variants: Tap Only, Tap With Universal Clicker Waste and Tap With Pop-Up Waste
Crafted using Premium Quality Material
Deck-Mounted Installation
Height: 124mm (12.4cm)
Base to Spout: 45mm (4.5cm)
Centre of the Inlet to the Centre of the Outlet: 110mm (11cm)
Deck Hole Drill Diameter: 35mm (3.5cm)
Includes Water Flow Aerator
Connections/Fittings: 2 x 1/2-Inch Nut x 400mm Flexipipe Connections
Requires a Minimum of 0.2 Bar and a Maximum of 5.0 Bar Water Pressure
Plumbing System Suitability: Gravity System, Pumped System, Combination Boiler, Pressurised System

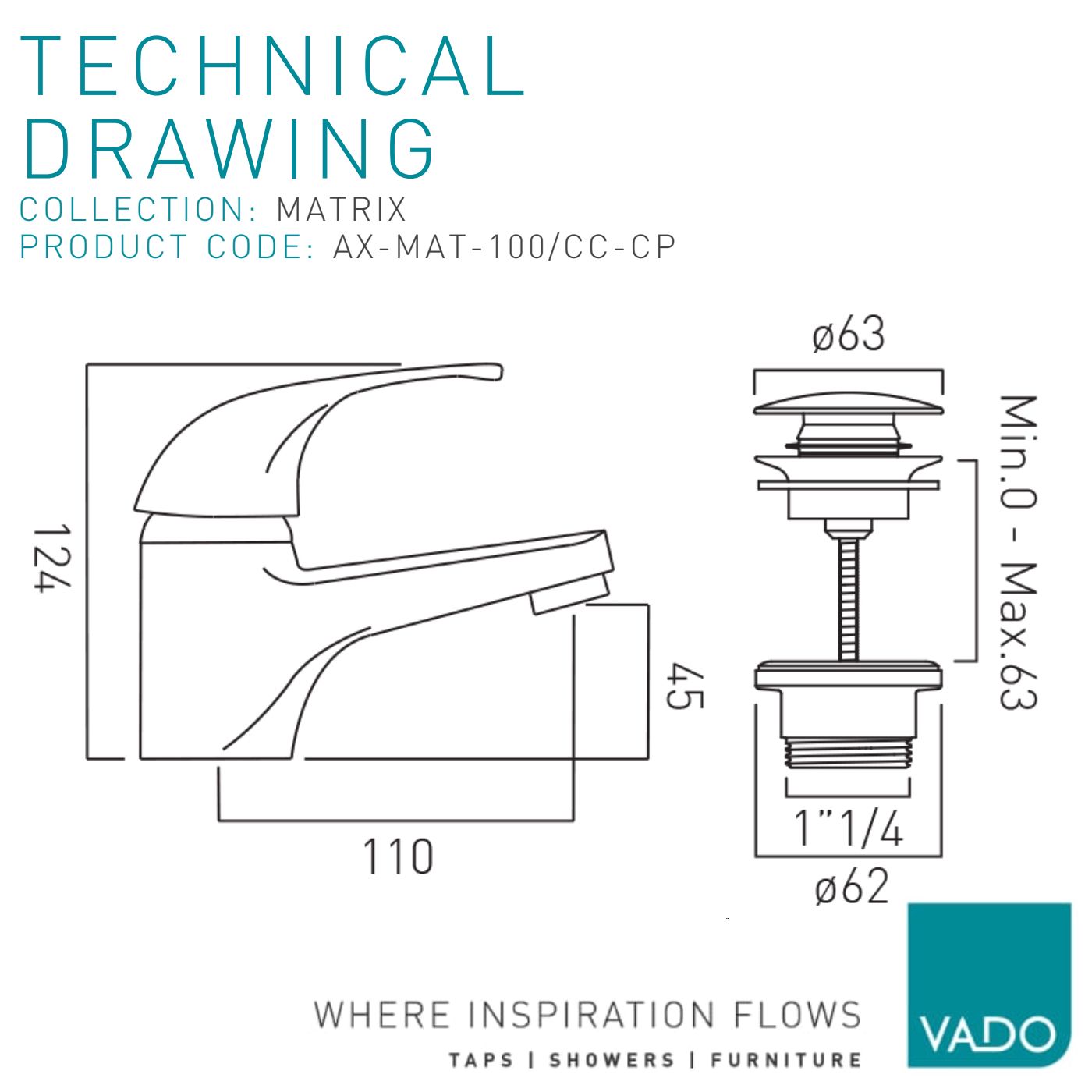

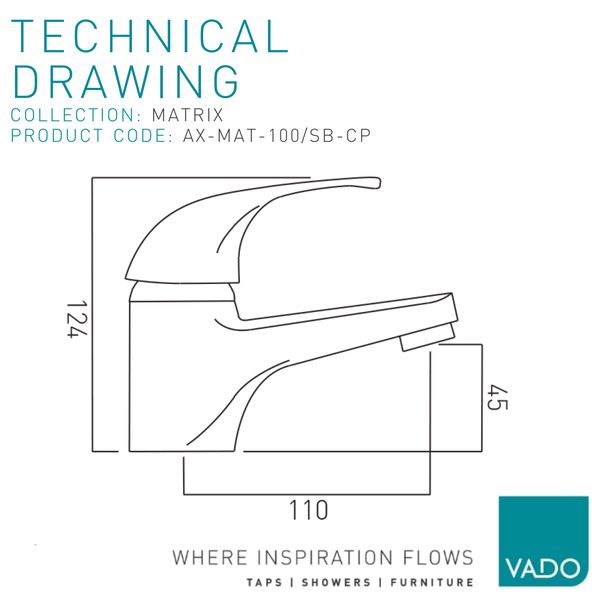

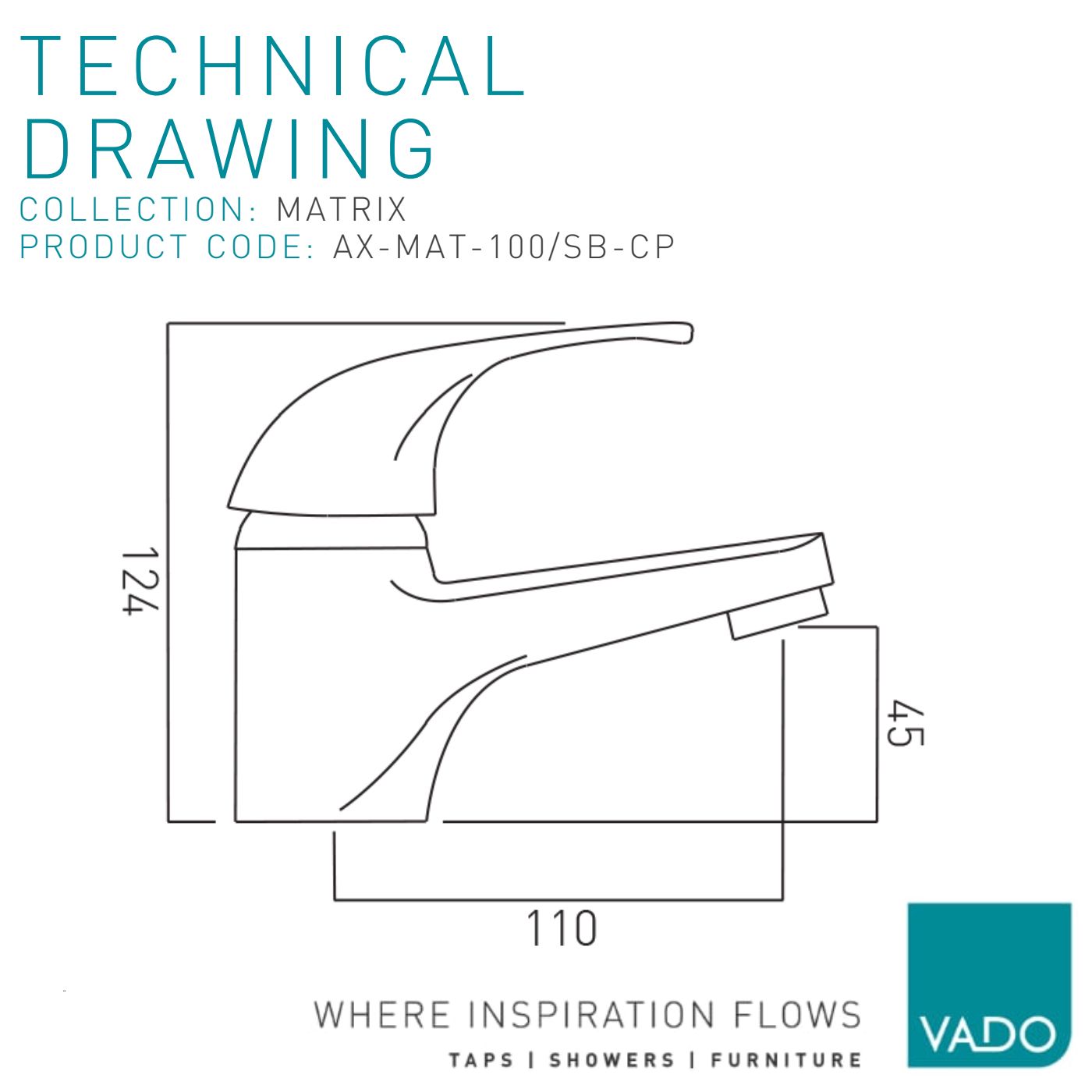

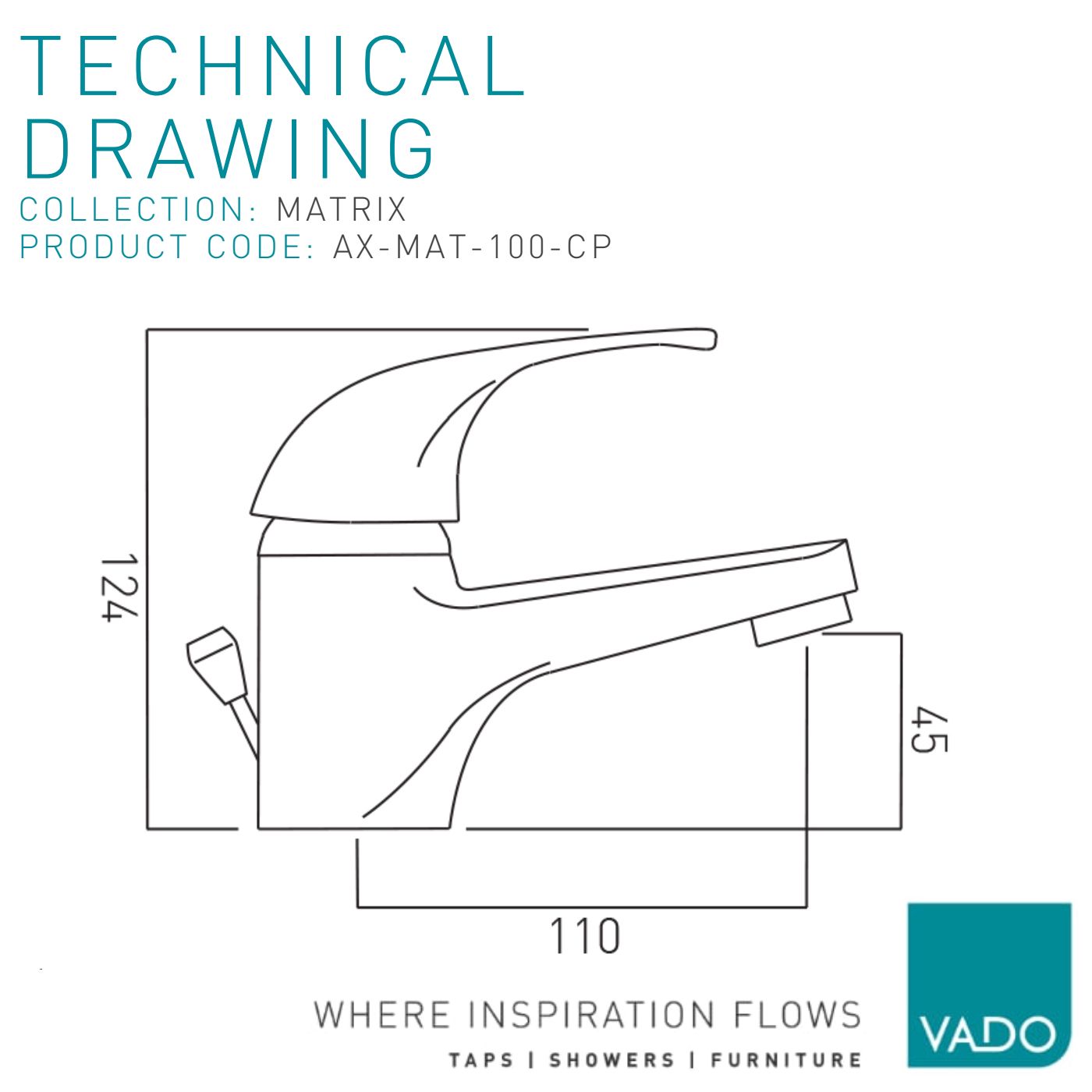

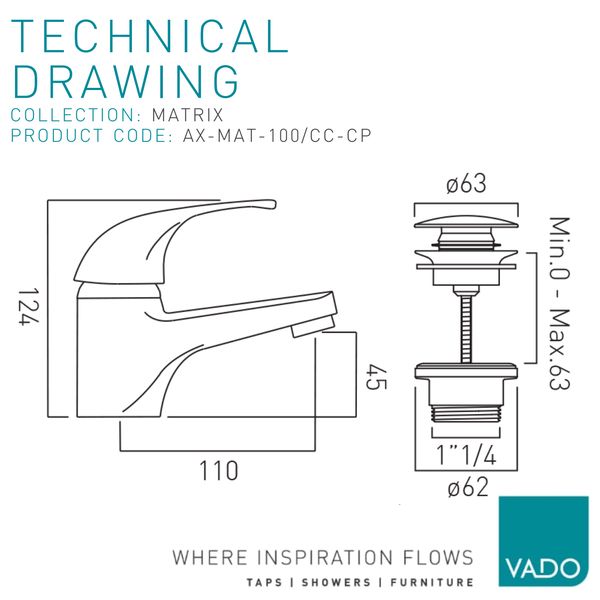

Refer to the Technical Drawing for Size Details
Download the Installation Instruction PDF File from the Additional Info Section

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Water Activation
: By Lifting/Tilting
⤷ Range
: Matrix
⤷ Tap Body Shape
: Round
⤷ Handle Position
: Upwards
⤷ Colour
: Chrome
⤷ Warranty/Guarantee
: 10 Years
⤷ Theme
: Modern
⤷ Installation Type
: Deck Mounted
⤷ No. of Holes Required
: 1
⤷ Spout type
: Fixed

⤷ Valve Included
: Yes
⤷ Valve/Cartridge Type
: Ceramic Cartridge
⤷ Base To Spout
: 45
⤷ Spout Reach
: 110
⤷ Overall Height
: 124
⤷ Minimum Operating Pressure (Bar)
: 0.2
⤷ Handle Style
: Lever Handle
⤷ Deck Mount Drill Hole Diameter
: 35
⤷ Barcode
: 5052120242582
⤷ Product Type
: Basin Mixer Tap

Additional Info & Downloads

Download the Installation Instruction For Tap Only and Tap With Universal Waste Pdf File Download the Installation Instruction for Tap with Pop-Up Waste Pdf File

This item can also be found in:

Vado Axces Matrix Monobloc Chrome Basin Mixer Tap - Curved Handle

£48.00

RRP: ~~£80.00~~

STOCK AVAILABLITY: 5-7 Working Days Approx

QS Supplies

5 Features Included In This Product Explained

High Water Pressure

Water systems operating at 1.0 bar or higher pressure are considered high-pressure systems. Products usually come labelled if they are suitable to use under such pressure.

Low Water Pressure

Water systems operating at a pressure between 0.1 and 0.4 bar are considered low pressure. Products usually come labelled if they are suitable to use under such pressure.
Read more...

Single Lever Taps

These taps are designed with a single lever or handle to control the water's temperature and flow. Extremely easy to operate, these also allow you to preset the water temperature by leaving it in the position with your preferred water temperature. Besides, it is simple to control the flow of water; the higher you lift the lever or move it to the end, the stronger the water flow.

Ceramic Disc Cartridge

It has two ceramic discs, one fixed in place and the other moveable with the tap or valve handle. It is the most common technology used in modern tapware as it offers unmatched advantages such as no leaks and drips and saves on water and money.
Read more...

Monobloc Tap

A Monobloc/Mono tap has a single control lever that adjusts the mix of hot and cold water supplies and the flow rate. A mixer tap has two separate controls for hot and cold water. Both work equally well, and your choice will come down to aesthetics and how many tap holes your sink has. Monobloc taps are a neater solution and more modern in appearance.
