Vado Astra Contemporary Chrome Finish Bath Mixer Tap

Vado Astra Details

MFC: AX-AST-137/CD-CP

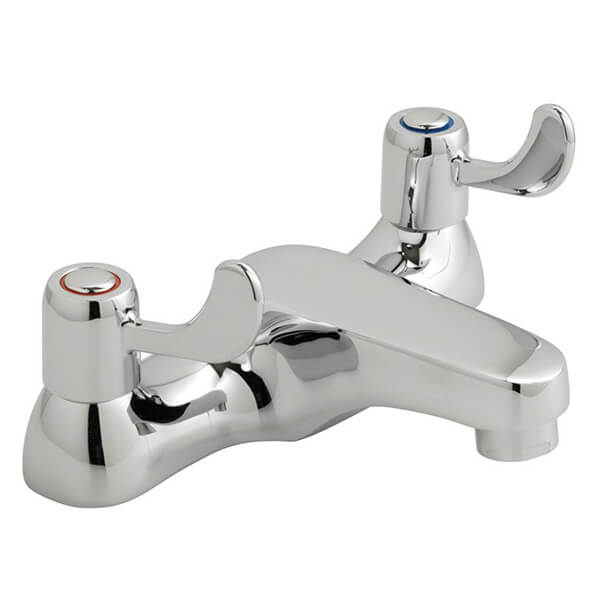

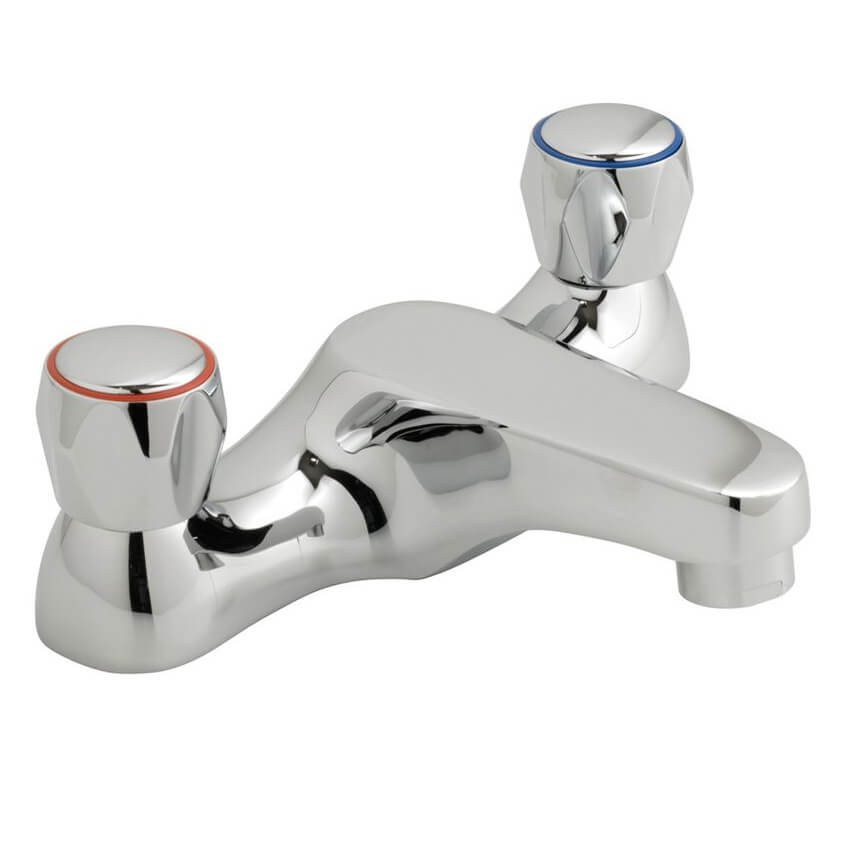

Vado Astra Contemporary Chrome Finish Bath Mixer Tap - Deck Mounted

Key Features

✔Comes with a Ceramic Disc Valve
✔Supplied with Water Flow Straightener
✔ 10-Year Guarantee from the Manufacturer Against any Manufacturing Defect

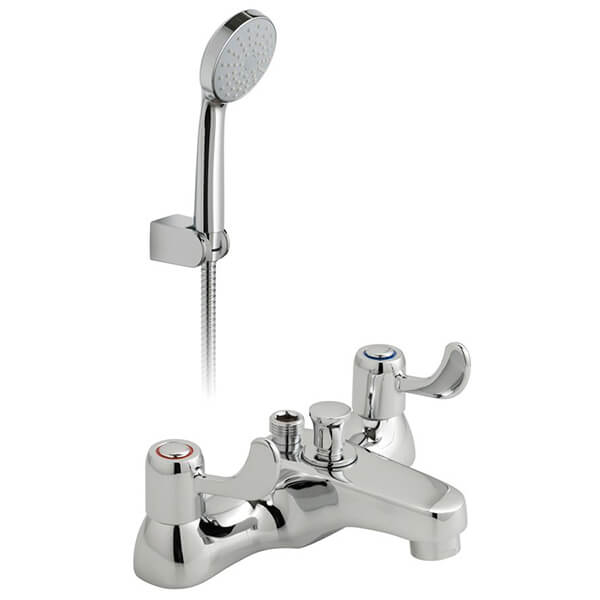

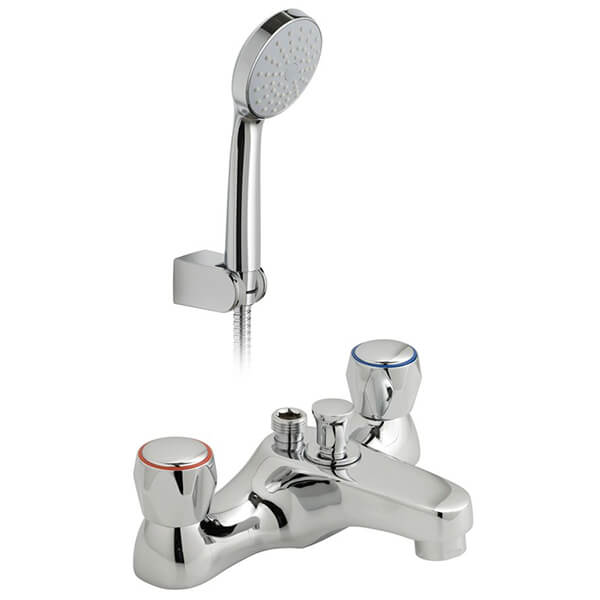

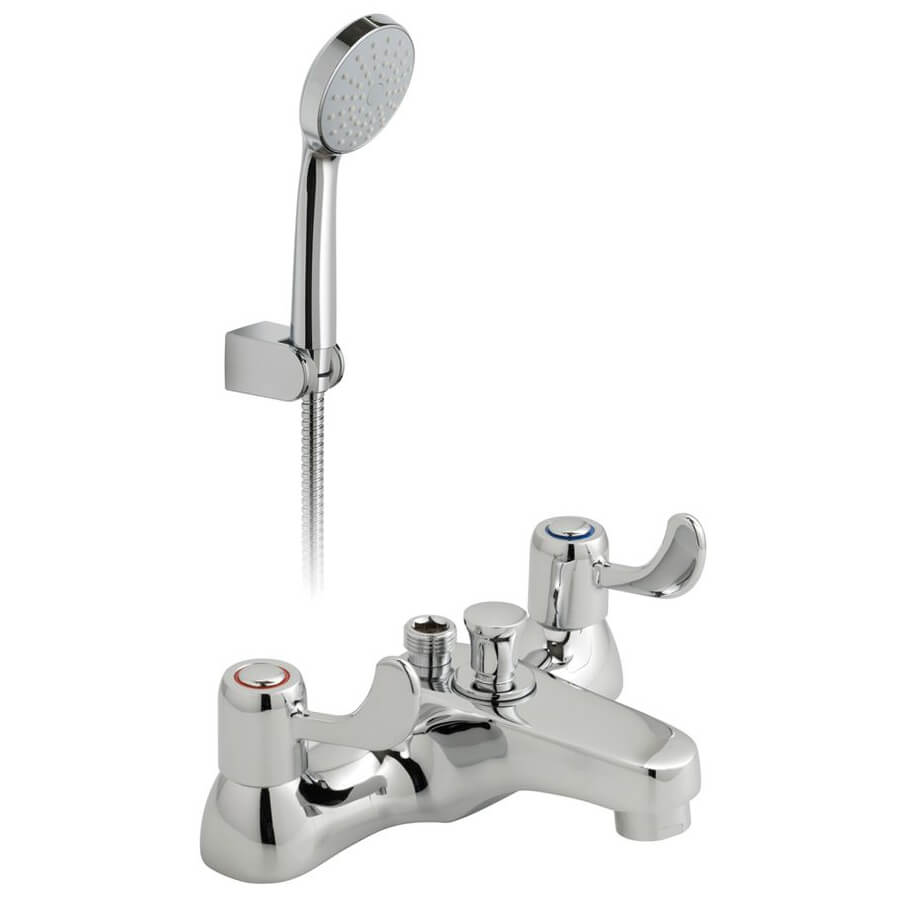

Choice of Variants: Without Shower Kit, With Shower Kit
Choice of Handle Option: Knob and Lever Handle
It Comes in a Chrome Finish
Handles: 2 Handle
Holes: 2 Hole
Size [mm]: 225 x 147 x 75mm [Width x Depth x Height]
Size [cm]: 22.5 x 14.7 x 7.5cm [Width x Depth x Height]
Mounting: Deck Mounted
Size of Bracket [mm]: 225 x 147 [Width x Depth]
Size of Bracket [cm]: 22.5 x 14.7 [Width x Depth]
Deck Hole Drill Diameter: 27mm
Size of Handset [mm]: Ø80 x 212mm [Diameter x Height]
Size of Handset [cm]: Ø8 x 21.2cm [Diameter x Height]
Connections / Fittings: 2 x 3/4 Inch Male Threaded Connections
Suitable for Low and High Water Pressure Systems
Works On a Minimum 0.2 Bar to 5.0 Bar Water Pressure System
Plumbing System Suitability: Gravity System, Pumped System, Combination Boiler, Pressurised System

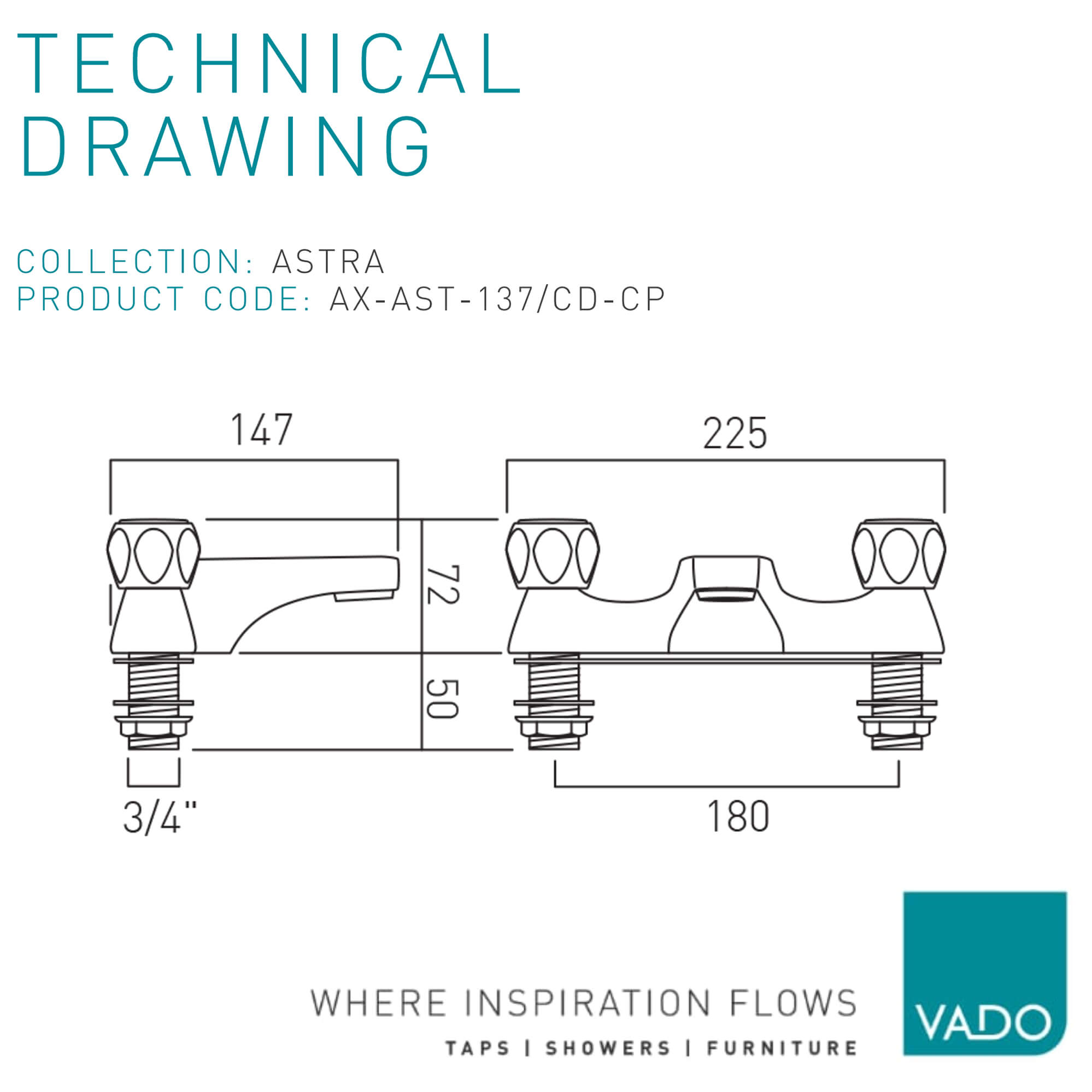

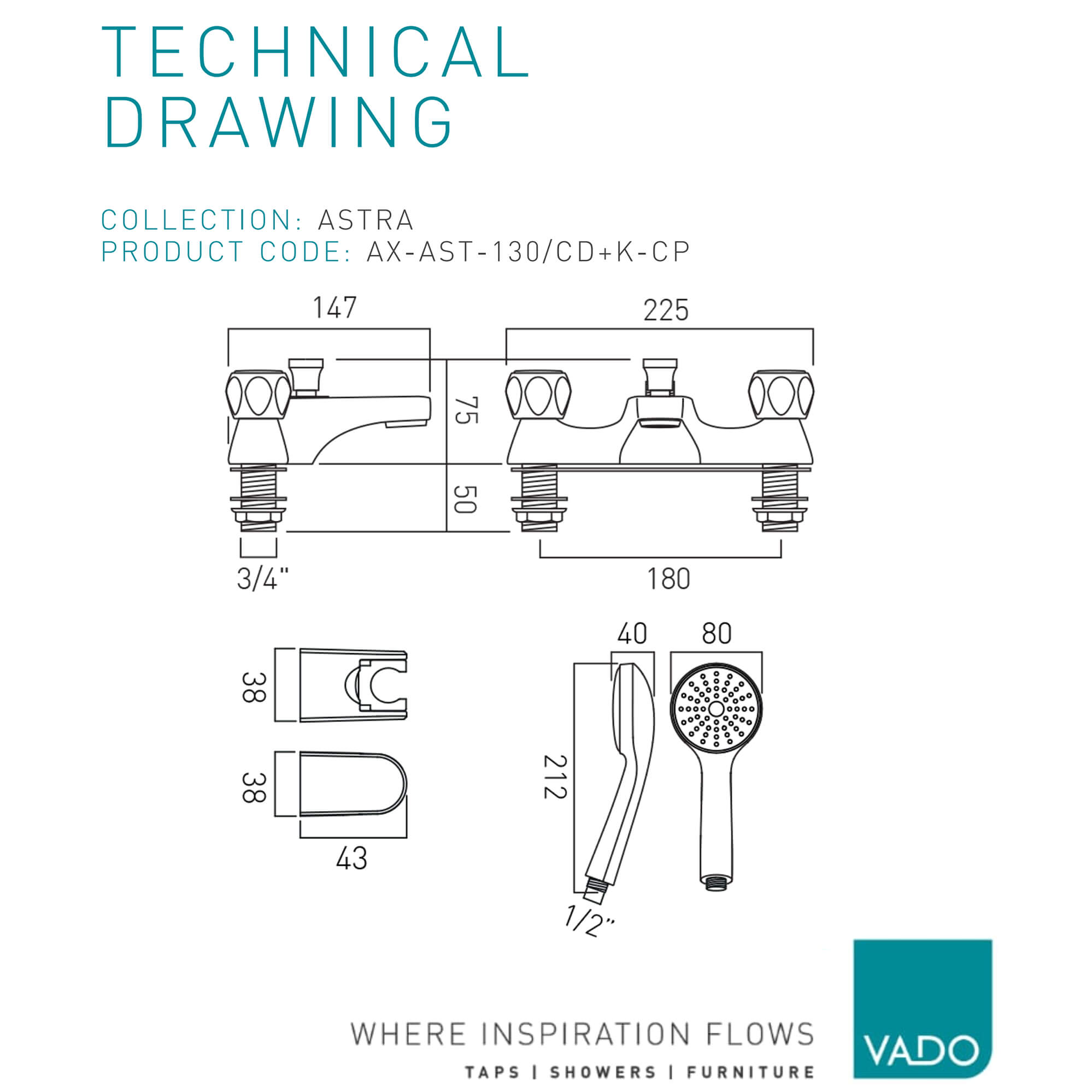

Refer to the Technical Drawing for Size Details

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Range
: Astra
⤷ Water Activation
: By Rotating
⤷ Handle Position
: Upwards
⤷ Colour
: Chrome
⤷ Warranty/Guarantee
: 10 Years
⤷ Theme
: Modern
⤷ Installation Type
: Deck Mounted
⤷ No. of Holes Required
: 2
⤷ Valve Included
: Yes
⤷ Valve/Cartridge Type
: Ceramic Disc

⤷ Inlet Centres
: 180
⤷ Overall Height
: 72
⤷ Width
: 225
⤷ Inlet Connections
: 3/4
⤷ Minimum Operating Pressure (Bar)
: 0.2
⤷ Hand-Shower Included
: With Kit Option
⤷ Handle Style
: Knob or Lever
⤷ Barcode
: 5052120242391
⤷ Product Type
: Bath Mixer Tap

Vado Astra Contemporary Chrome Finish Bath Mixer Tap - Deck Mounted

£85.25

RRP: ~~£155.00~~

STOCK AVAILABLITY: 3-4 Working Days Approx

QS Supplies

4 Features Included In This Product Explained

Low Water Pressure

Water systems operating at a pressure between 0.1 and 0.4 bar are considered low pressure. Products usually come labelled if they are suitable to use under such pressure.
Read more...

High Water Pressure

Water systems operating at 1.0 bar or higher pressure are considered high-pressure systems. Products usually come labelled if they are suitable to use under such pressure.

Ceramic Disc Cartridge

It has two ceramic discs, one fixed in place and the other moveable with the tap or valve handle. It is the most common technology used in modern tapware as it offers unmatched advantages such as no leaks and drips and saves on water and money.
Read more...

Flow Straightener

A flow straightener, also called Honeycomb, is a fitting which directs the flow of water from the outlet in a way as to straighten the stream. They are generally not flow-regulated and differ in design from the pressure-compensating aerator.
