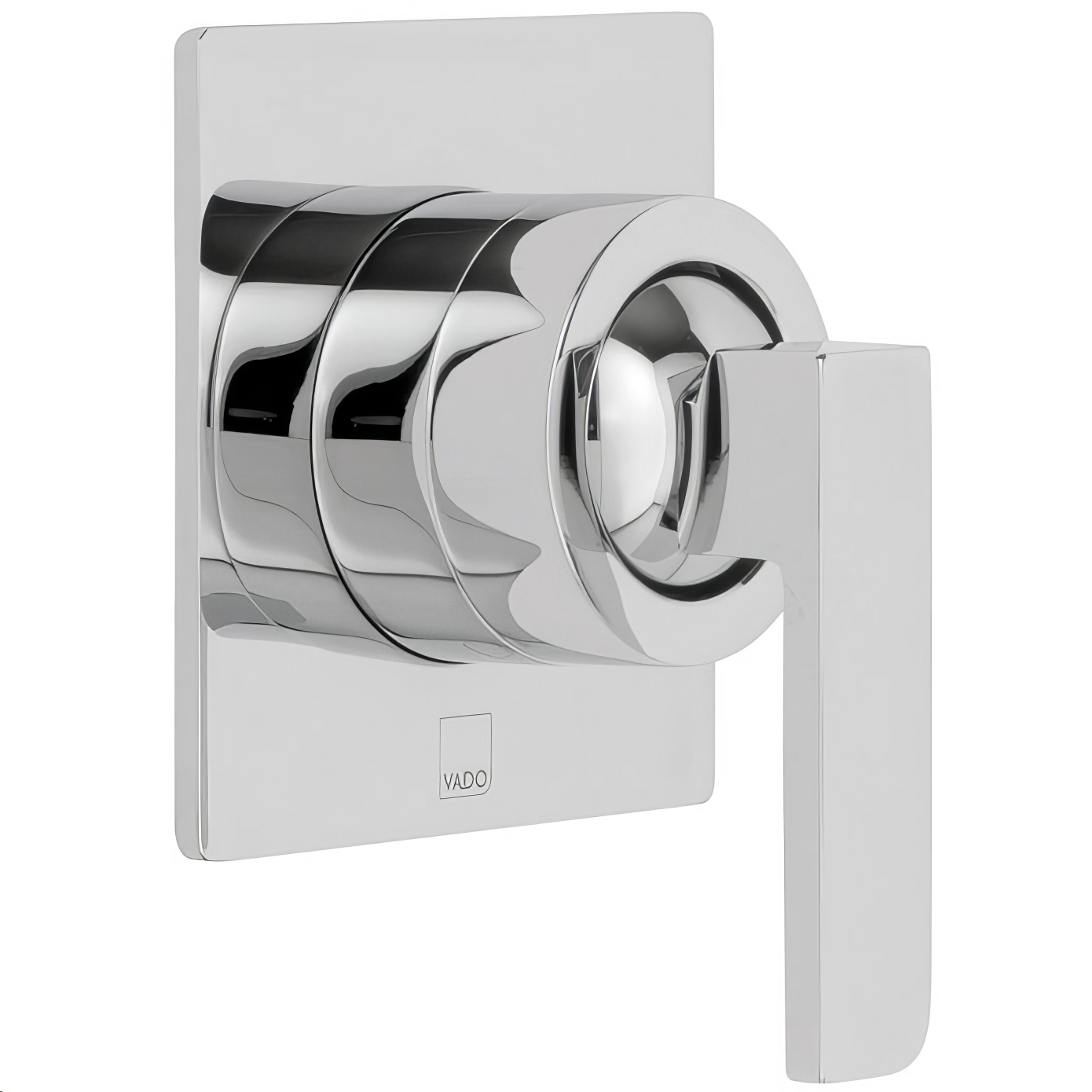

Vado Notion Concealed Manual Polished Chrome Shower Valve, 1 Control

Vado Notion Details

MFC: OMI-145A-C/P

Vado Notion Concealed Contemporary Manual Polished Chrome Shower Valve - 1 Control.

Key Features

✔15-Year Guarantee from the Manufacturer
✔It comes Finished in a High-Shine Polished Chrome
✔Manufactued using Premium-Quality Brass Material

Choice of Variants: Without Diverter and With Diverter
Wall-Mounted Concealed Installation
Plumbing System Suitability: Gravity System, Pumped System, Combination Boiler, Pressurised System
Ceramic Cartridge: CAR-K35A
Download the Installation Instructions PDF File from the Additional Info Section

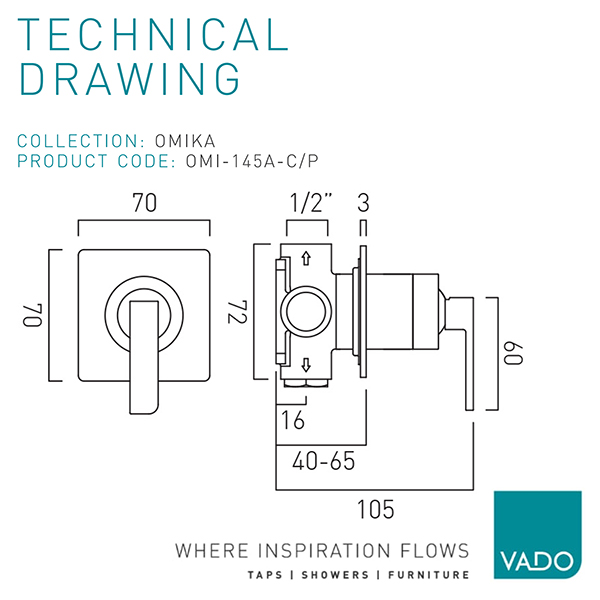

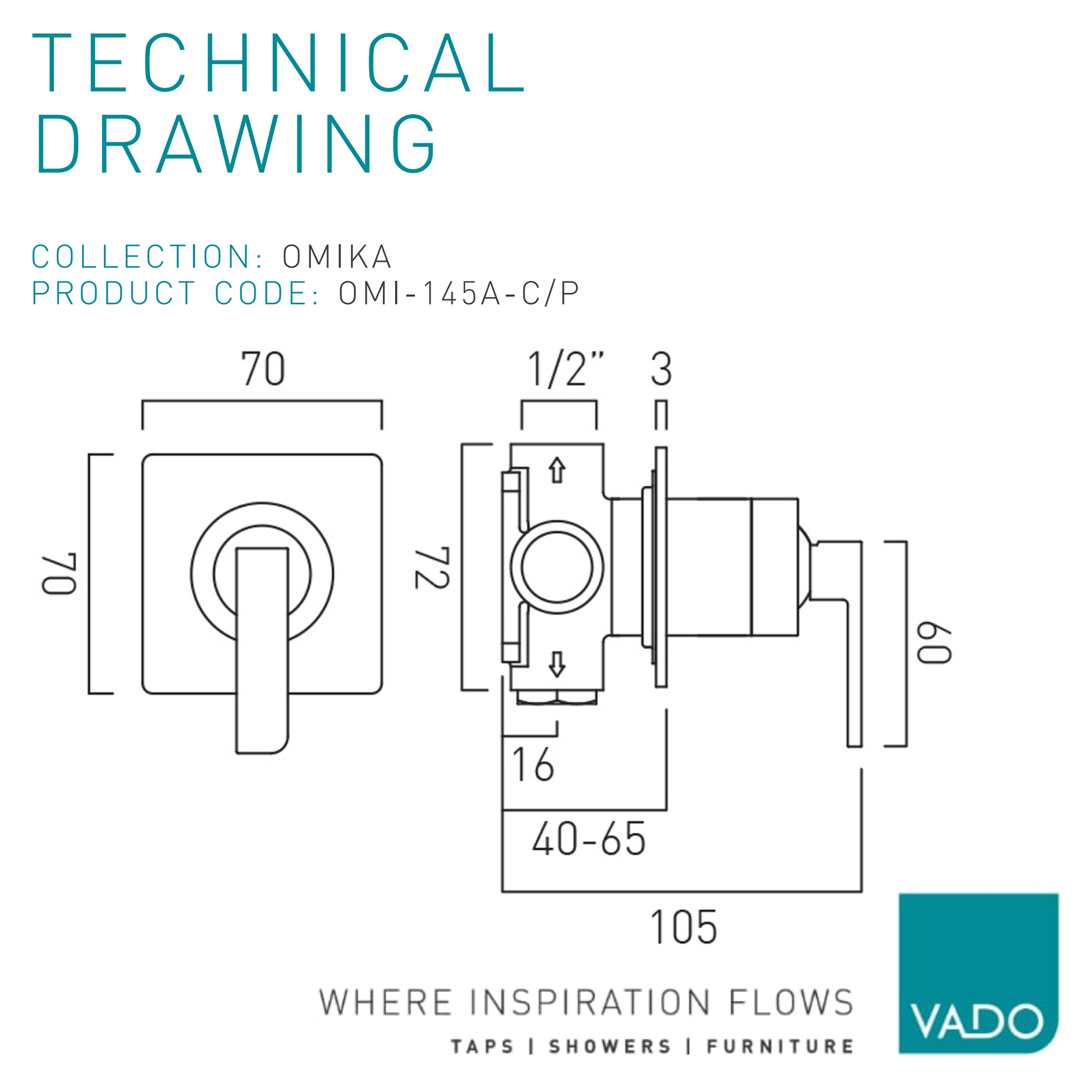

Details of Without Diverter Shower Valve:
Size of Backplate: 70 x 70mm [Width x Height]
No. of Outlet: 1
2 x 1/2-Inch Female Inlets
2 x 1/2-Inch Female Outlets (One is Blanked Off)
Min-Max Wall Mount: 40-65mm
Suitable for Low Water Pressure System 0.2 Bar (Shower)
Suitable for High Water Pressure System 1.5 Bar (Bath)

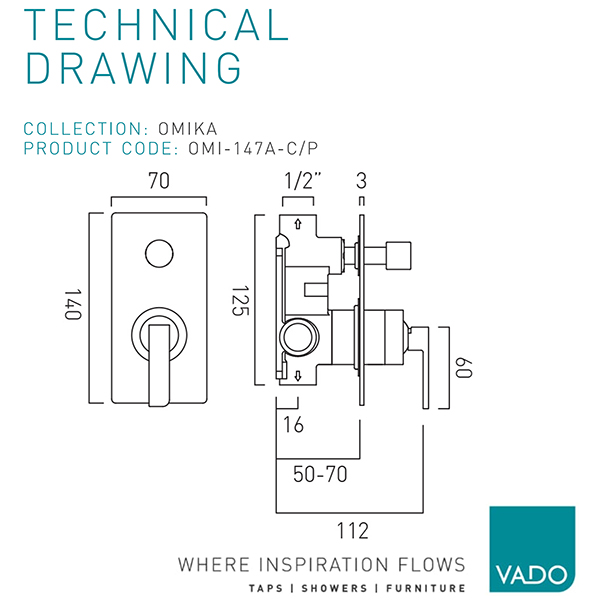

Details of With Diverter Shower Valve:
Size of Backplate: 70 x 140mm [Width x Height]
No. of Outlets: 2
2 x 1/2-Inch Female Inlets
2 x 1/2-Inch Female Outlets
Min-Max Wall Mount: 50-70mm
Suitable for Low Water Pressure System 0.2 Bar (Shower)
Suitable for High Water Pressure System 1.5 Bar (Bath)

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Colour
: Polished Chrome
⤷ Warranty/Guarantee
: 15 Years
⤷ Material
: Brass
⤷ Theme
: Modern
⤷ Installation Type
: Wall Mounted
⤷ Minimum Operating Pressure (Bar)
: 0.2
⤷ Handle Style
: Lever Handle
⤷ Backplate Width
: 70

⤷ Backplate Height
: 70
⤷ Control Type
: Manual
⤷ Number of Handles
: 1
⤷ Number of Outlet
: 1
⤷ Orientation
: Portrait
⤷ Plumbing System Compatibility
: Gravity, Pumped, Combination Boiler, Pressurised
⤷ Plumbing Option
: Concealed
⤷ Maximum Operating Pressure (Bar)
: 0.5

Vado Notion Concealed Contemporary Manual Polished Chrome Shower Valve - 1 Control

£132.00

RRP: ~~£240.00~~

STOCK AVAILABLITY: 5-7 Working Days Approx

QS Supplies

5 Features Included In This Product Explained

1-Outlet

One outlet in a shower system means that hot and cold water flows from a single opening.

Optional - Dual Outlet Valve - 2-Outlet

The dual outlet Valve comes with a connection for two outlets, so you can use two different fixtures one at a time, such as using the showerhead and shower handset. These Dual outlet shower valves come in various styles and can be used with varying shower fittings. Some come with diverters for switching between the two outlets.

Diverter

A diverter, specifically in bath-shower combos, redirects the water flow from the bathtub spout to the showerhead. You can activate it using the nozzle in the bath shower mixer tap.
Read more...

Low Water Pressure

Water systems operating at a pressure between 0.1 and 0.4 bar are considered low pressure. Products usually come labelled if they are suitable to use under such pressure.
Read more...

High Water Pressure

Water systems operating at 1.0 bar or higher pressure are considered high-pressure systems. Products usually come labelled if they are suitable to use under such pressure.
