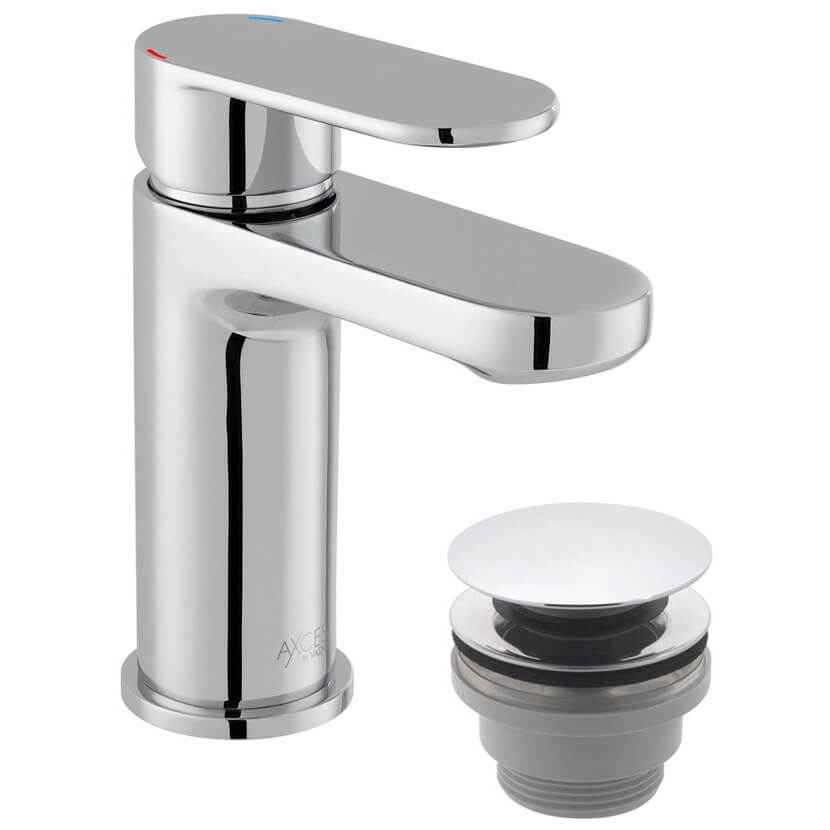

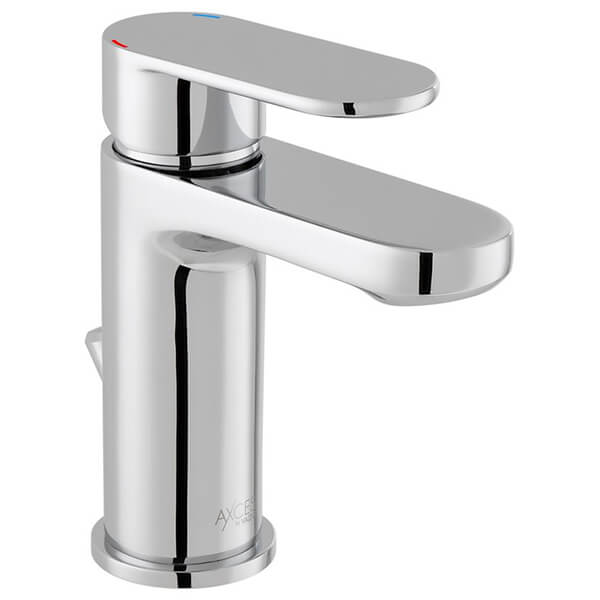

Vado Metiz Contemporary Chrome Basin Mixer Tap with Waste, Flat Handle

Metiz Details

MFC: AX-MET-100/CC-CP

Vado Metiz Contemporary Chrome Basin Mixer Tap with Waste - Flat Handle.

Key Features

✔It Comes in a Chrome Finish
✔Features WRAS Approved
✔10 Years of Guarantee Against any Manufacturing Defects
✔Available in 2 Variations: With Push Waste and With Pop-Up Waste

2 x 1/2 inch Nut x 400mm Flexipipe Connections
Ceramic Disc Cartridge W-003-N35
Centre of Inlet to Centre of Outlet: 90mm [9cm]
Size in [mm]: 42 x 130 x 145mm [Width x Depth x Height]
Size in [cm]: 4.2 x 13 x 14.5cm [Width x Depth x Height]
Suitable for Low and High Water pressure systems
Works On a Minimum of 0.2 Bar to a Maximum of 5.0 Bar Water Pressure
Plumbing System Suitability: Gravity System, Pumped System, Combination Boiler, Pressurised System
Download the Installation Instruction PDF from Additional Info Section

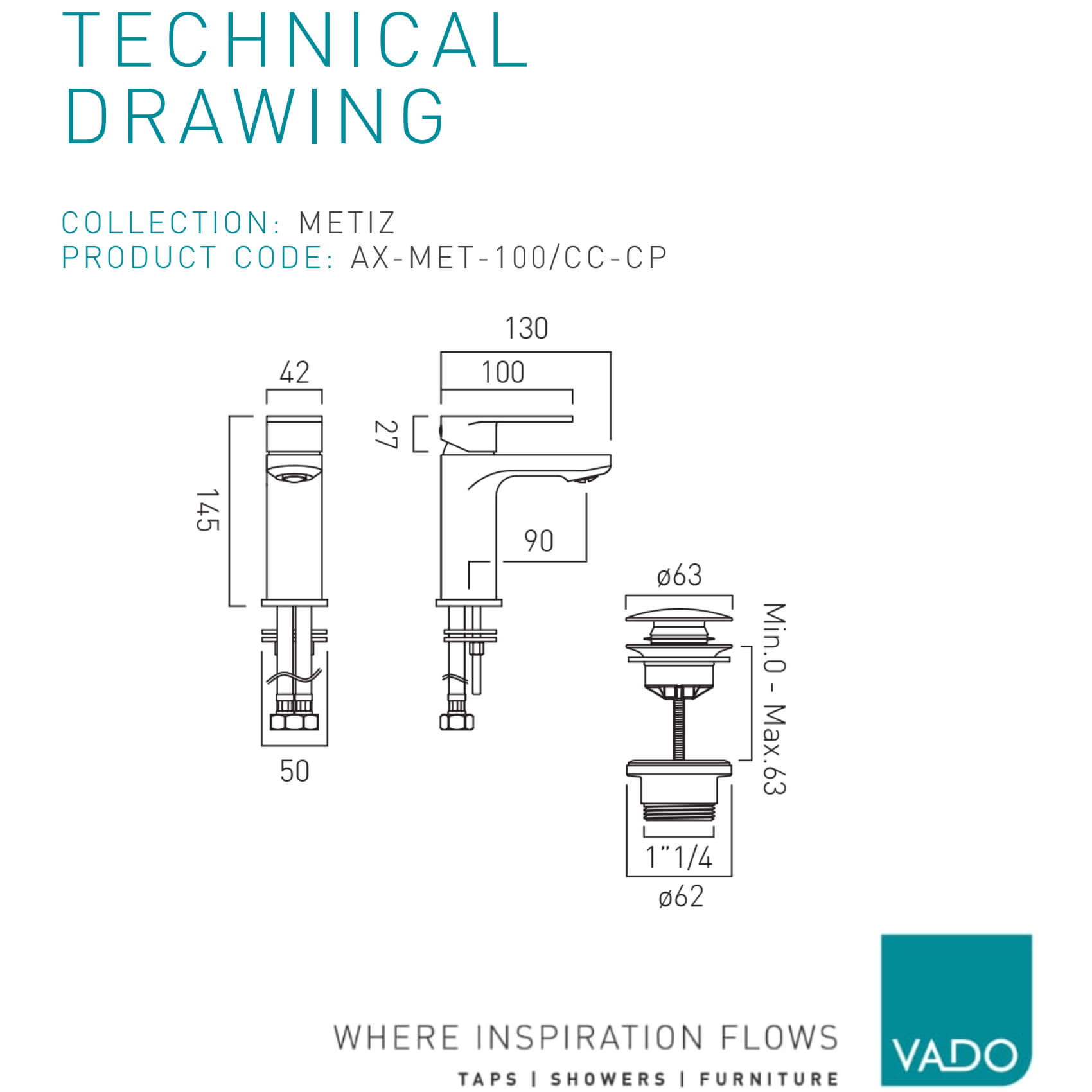

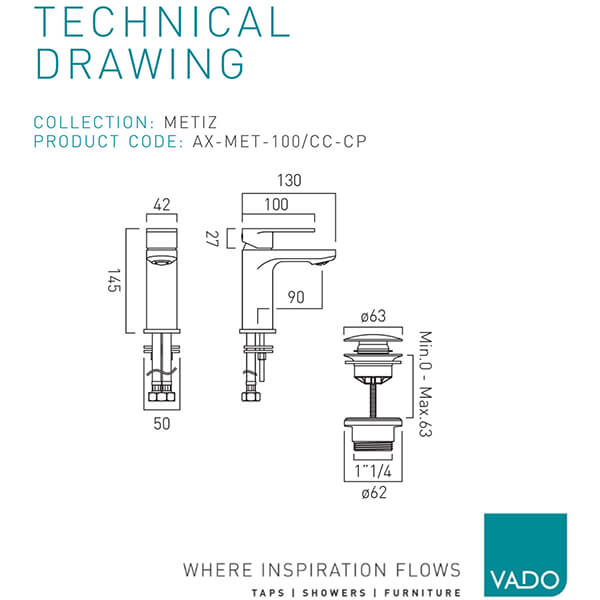

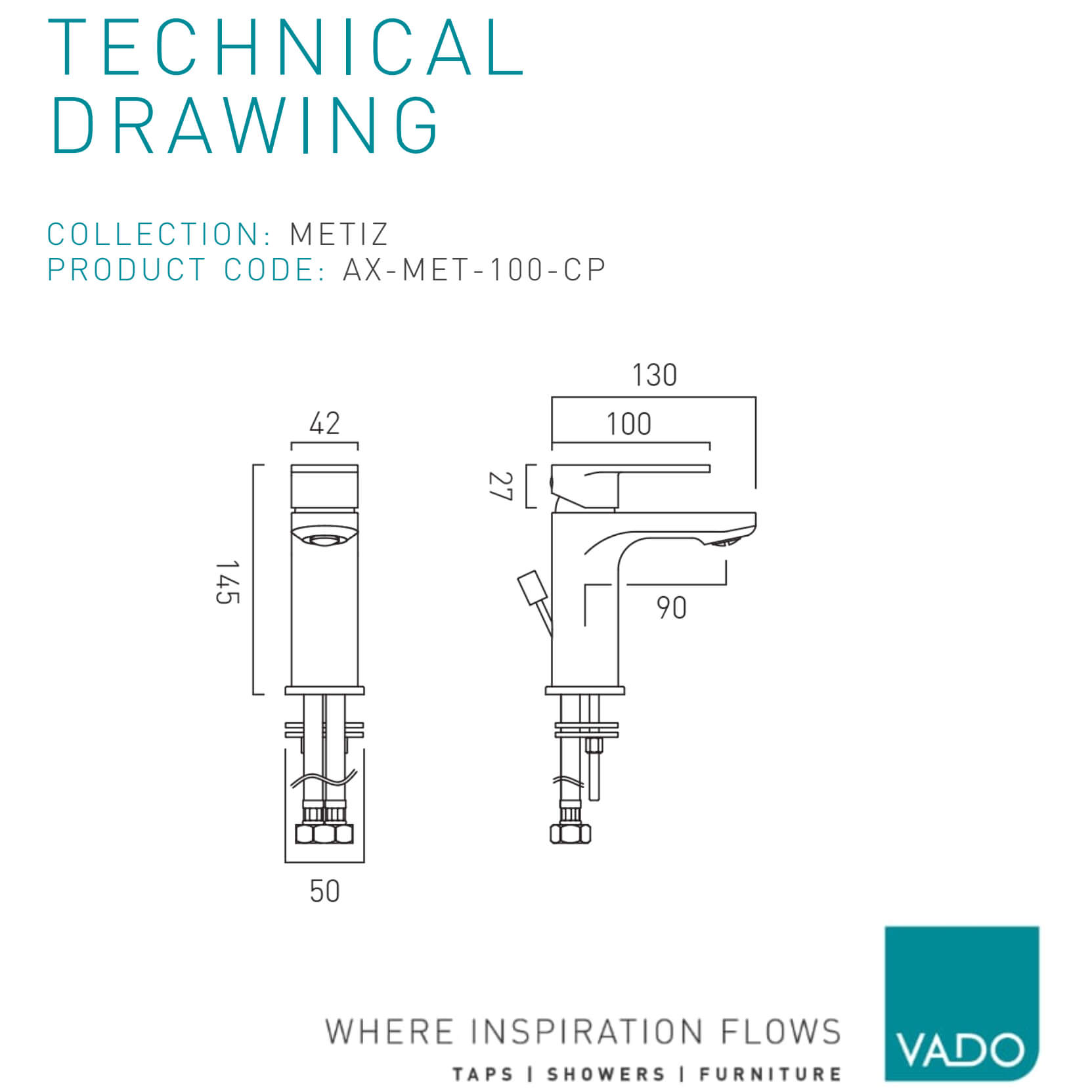

Refer to the Technical Diagram for Complete Technical Dimensions

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Water Activation
: By Lifting & Tilting
⤷ Range
: Metiz
⤷ Tap Body Shape
: Round
⤷ Handle Position
: Upward
⤷ Colour
: Chrome
⤷ Warranty/Guarantee
: 10 Years
⤷ Theme
: Modern
⤷ Installation Type
: Deck Mounted
⤷ No. of Holes Required
: 1
⤷ Spout type
: Fixed

⤷ Valve/Cartridge Type
: Ceramic Disc Cartridge
⤷ Spout Reach
: 90
⤷ Overall Height
: 145
⤷ Width
: 42
⤷ Inlet Connections
: G1/2 Inch
⤷ Minimum Operating Pressure (Bar)
: 0.2
⤷ Handle Style
: Lever
⤷ Waste Included
: Yes
⤷ Barcode
: 5052120235621
⤷ Product Type
: Basin Mixer Tap

Additional Info & Downloads

Download the Installation Instructions Pdf File

Vado Metiz Contemporary Chrome Basin Mixer Tap with Waste - Flat Handle

£120.00

RRP: ~~£150.00~~

STOCK AVAILABLITY: 5-7 Working Days Approx

QS Supplies

6 Features Included In This Product Explained

Low Water Pressure

Water systems operating at a pressure between 0.1 and 0.4 bar are considered low pressure. Products usually come labelled if they are suitable to use under such pressure.
Read more...

High Water Pressure

Water systems operating at 1.0 bar or higher pressure are considered high-pressure systems. Products usually come labelled if they are suitable to use under such pressure.

WRAS Approved Product

WRAS Approval means that the particular water fitting or product complies with or meets the requirements specified by the Water Supply (Water Fittings) Regulations or Scottish Byelaws.
Read more...

Ceramic Disc Cartridge

It has two ceramic discs, one fixed in place and the other moveable with the tap or valve handle. It is the most common technology used in modern tapware as it offers unmatched advantages such as no leaks and drips and saves on water and money.
Read more...

Push Button Basin Waste

It is the perfect choice for many sink designs because of its ease of use and efficiency. The sink drain gets blocked by simply pushing the central button, allowing the water to fill in the sink. Once you are done, the water can be drained by releasing the same.

Optional: Pop-Up Waste

The Pop-Up waste or pop-up assembly refers to the type of pipe fitting for a sink, basin or bidet connected to a waste pipe at the plughole. It comes with a lever or knob-controlled plug or stopper and operates using a lever that can be lowered or lifted to close and open the plug.
Read more...
