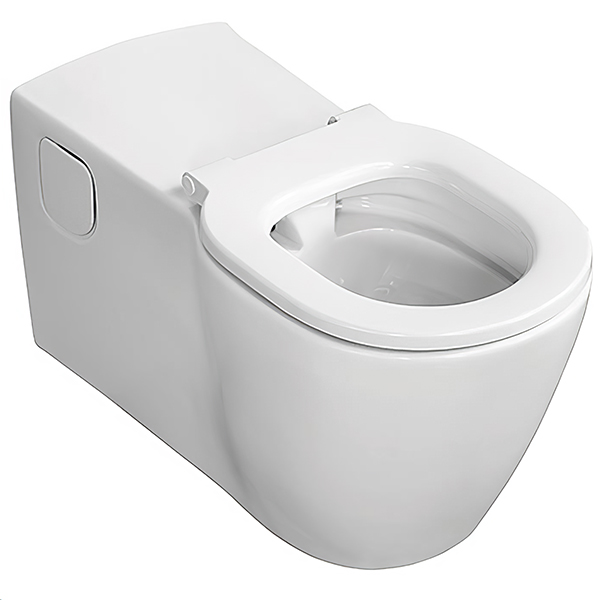

Armitage Shanks Edit Assist Wall Mounted Elongated Rimless WC Pan

Armitage Shanks Edit Assist Details

MFC: S082401

Armitage Shanks Edit Assist Wall Mounted Elongated Rimless WC Pan.

The Manufacturing Code of the Product is S082401
Manufactured using High-Quality Vitreous China Material
Wall-Mounted Installation
Size [mm]: 360 x 750 x 350mm [Width x Projection x Height]
Size [cm]: 36 x 75 x 35cm [Width x Projection x Height]
Weight: 31.70Kg
Combines Functionality with Design
Flush Type: Washdown
Horizontal Outlet
Standards: Vitreous China to BS3402. WC Pan to BS EN 997 and BS EN 36
Refer to the Technical Drawing for Size Details

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Range
: Edit Assist
⤷ Colour
: White
⤷ Weight in kg
: 31.70
⤷ Warranty/Guarantee
: Lifetime
⤷ Material
: Vitreous China
⤷ Theme
: Modern
⤷ Installation Type
: Wall Mounted
⤷ Water Saving
: Yes
⤷ Pan Width
: 360
⤷ Pan Height
: 350
⤷ Projection (Depth)
: 750
⤷ Flush Type
: Washdown

⤷ Width
: 360
⤷ Outlet
: Horizontal
⤷ Configuration
: Bowl Only
⤷ Height
: 350
⤷ Compliance/Approvals/Standard
: BS3402, BS EN 997, BS EN 36
⤷ Barcode
: 5017830545774
⤷ Distance from floor to centre of fixing hole
: 380
⤷ Product Type
: Wall Hung WC
⤷ Pan fixing centres
: 180
⤷ Outlet Diameter
: 102
⤷ Base to centre of outlet
: 280

Armitage Shanks Edit Assist Wall Mounted Elongated Rimless WC Pan

£497.74

RRP: ~~£867.62~~

Stock Availablity: 5-7 Working Days Approx

QS Supplies

3 Features Included In This Product Explained

Horizontal Outlet

When the pan has piping at the back, inside the wall, it is called a horizontal outlet toilet or pan. As the cisterns are concealed or placed against the wall, most plumbing is hidden out of sight.

Vitreous-China Material

Vitreous china is an innovative glass-based enamel coating applied to porcelain. This glazed coating makes the base material durable, denser, and very glossy. When ceramics are coated with vitreous enamel, the resulting product is called vitreous china. This enamel is created by applying heat to powdered glass.

Rimless

A rimless toilet does not have a brim at its edge, from which the water usually flows when you flush. Instead of flowing from the top, such toilets shoot water towards its edge and around it, allowing no missing spots with filth remaining after a flush. These toilets also remove any spaces for germs to hide and breed, providing a hygienic alternative for your bathroom.
