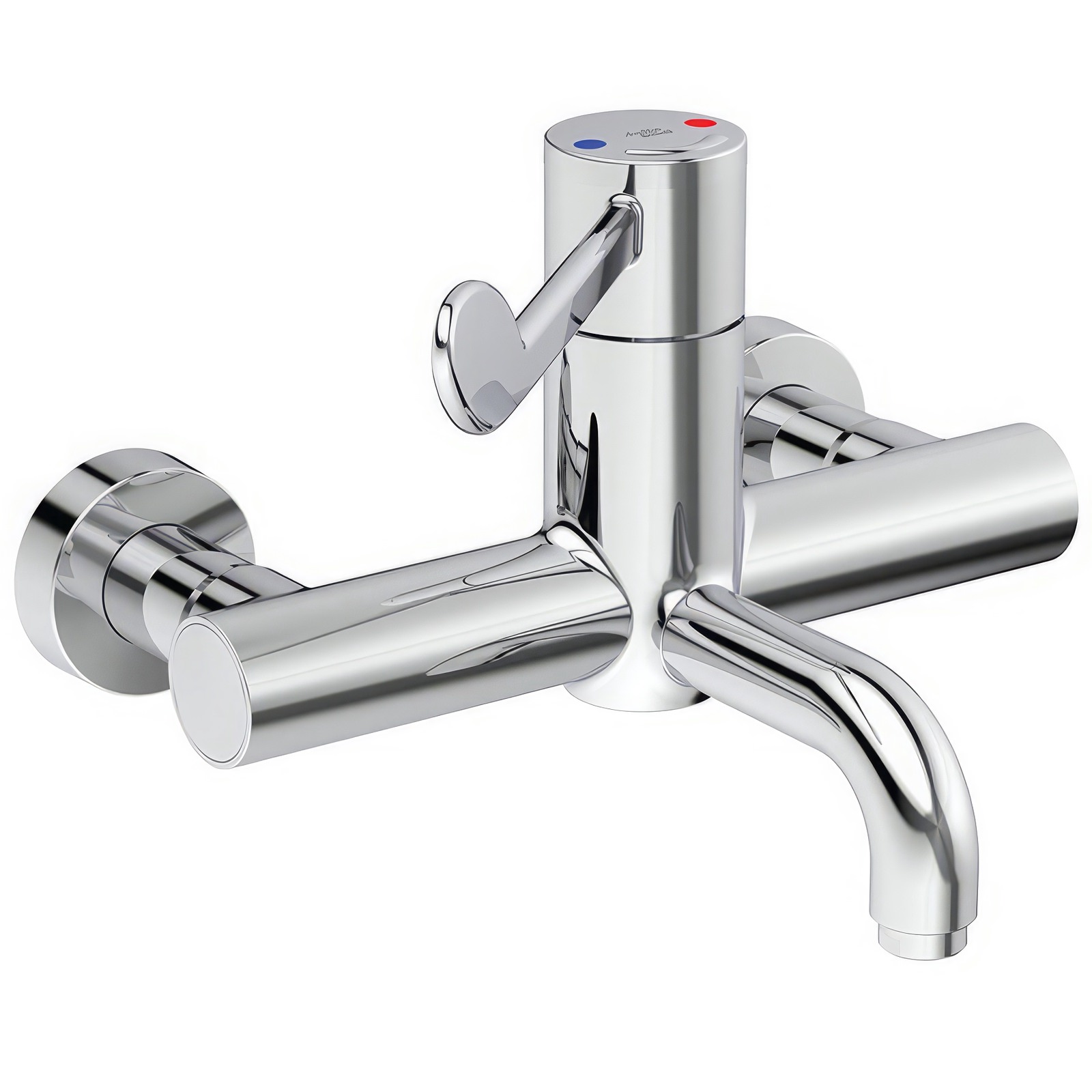

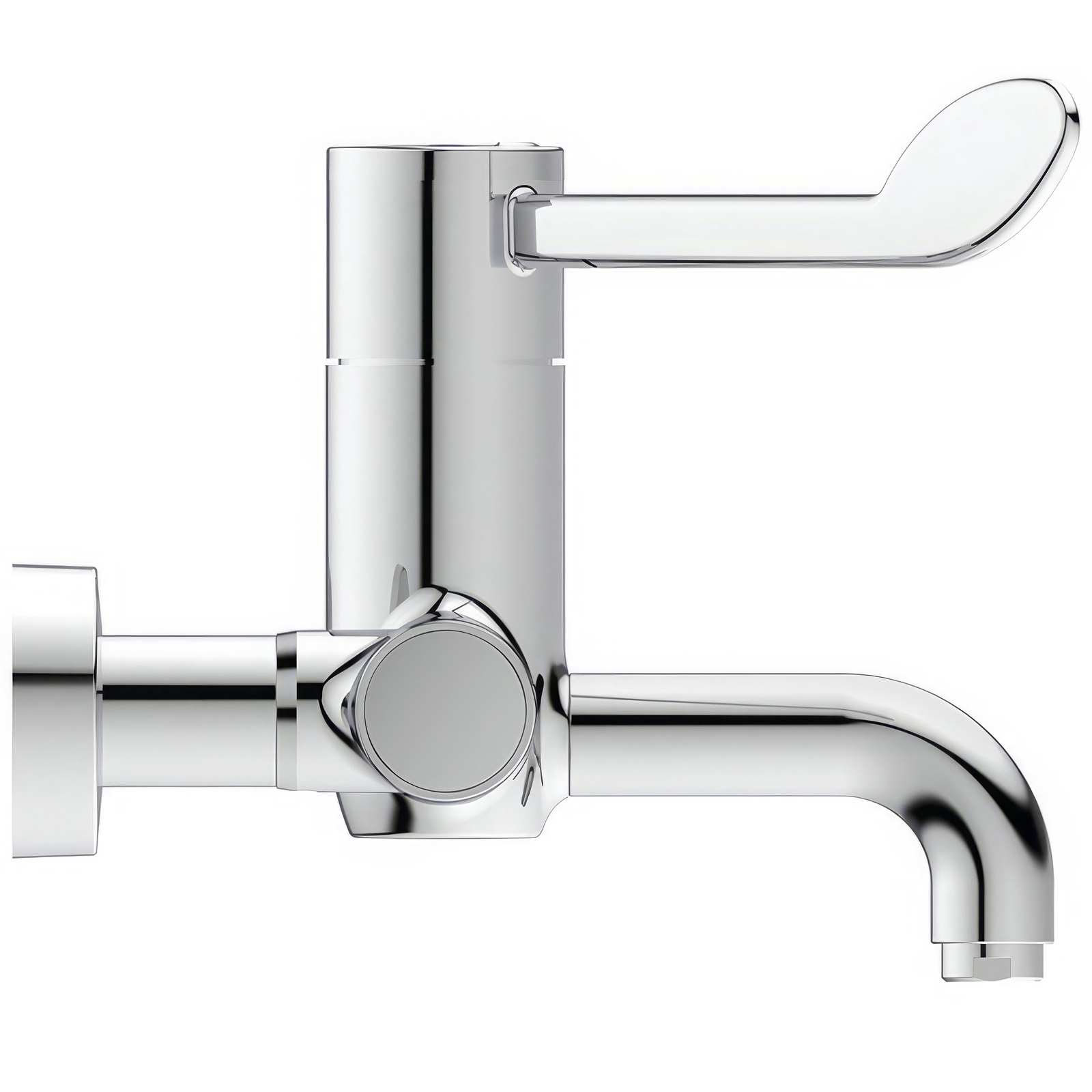

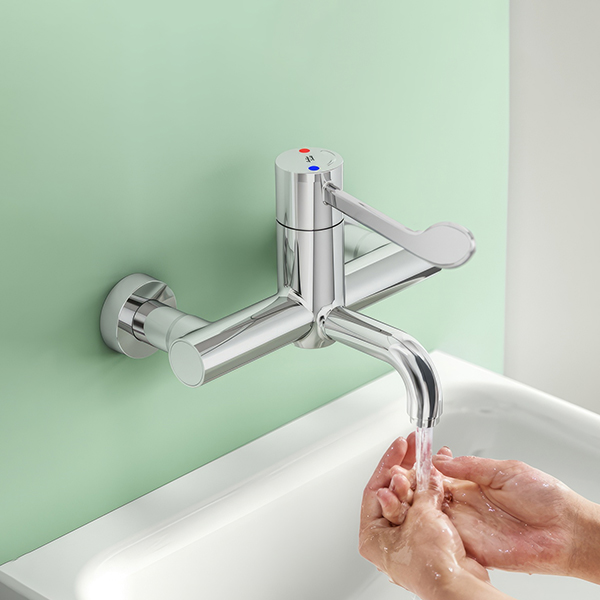

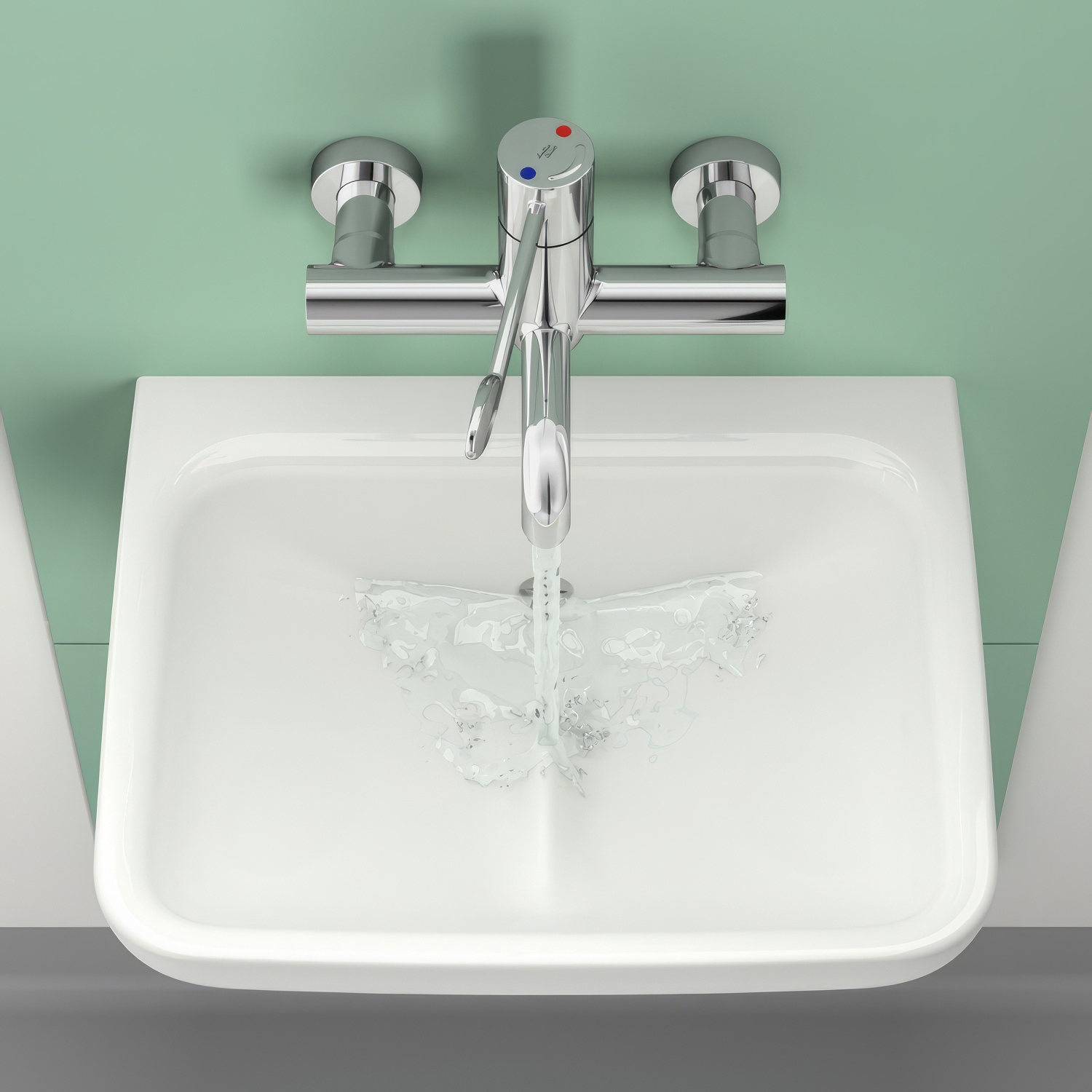

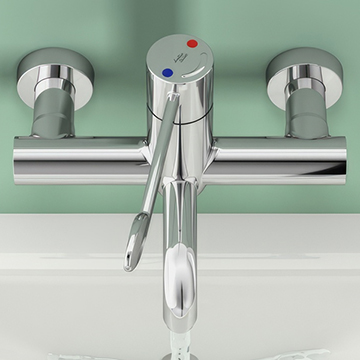

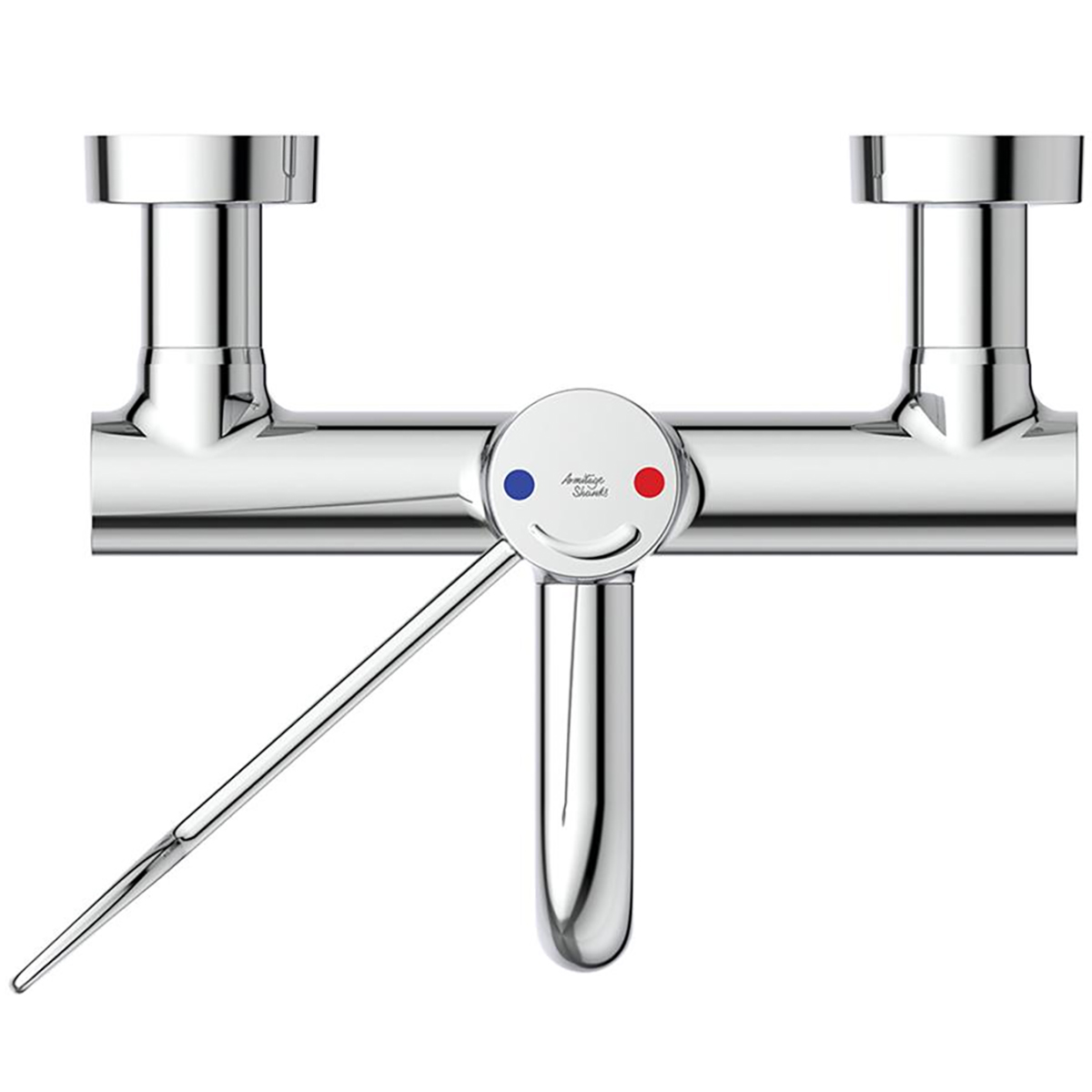

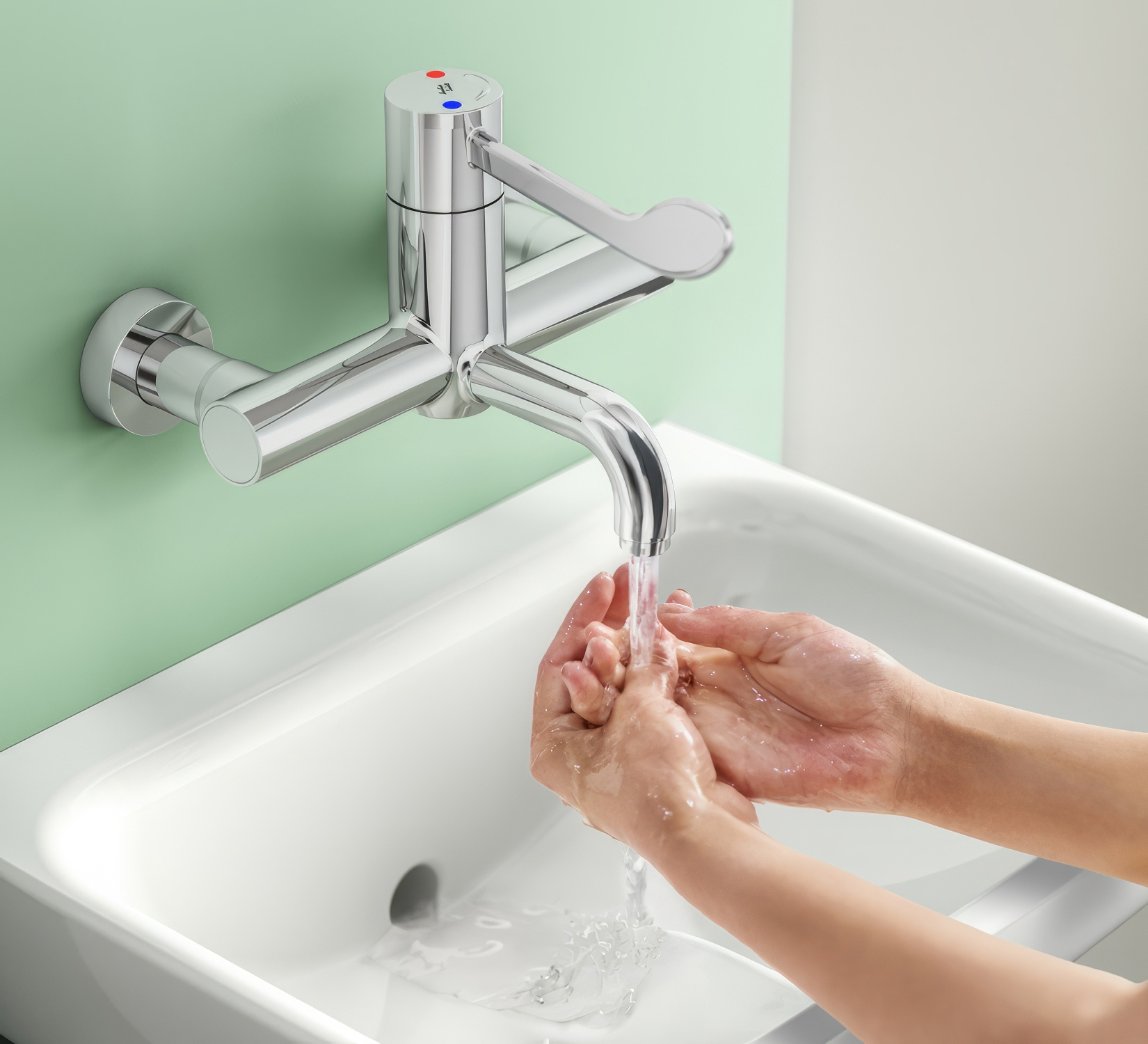

Armitage Shanks Markwik 21+ Sequential Chrome Basin Mixer Tap, Wall Mounted

Armitage Shanks Markwik-21 Plus Details

MFC: A7909AA

Armitage Shanks Markwik-21 Plus Basin Mixer Tap With Bioguard.

The Manufacturing Code of this Product is A7909AA
It Comes in a Chrome Finish

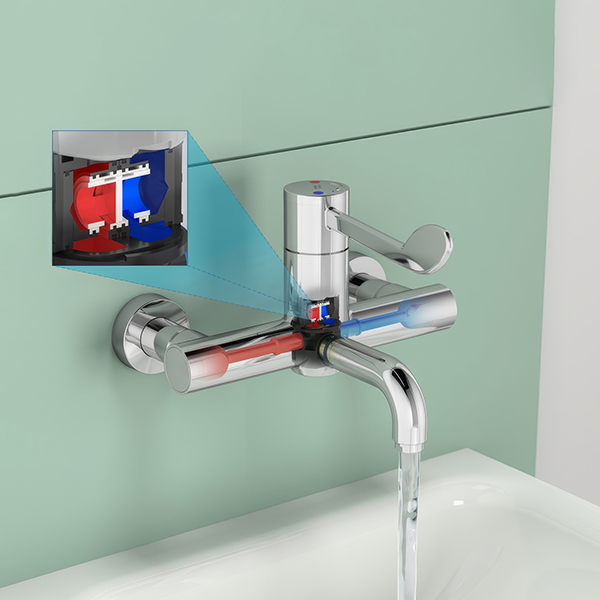

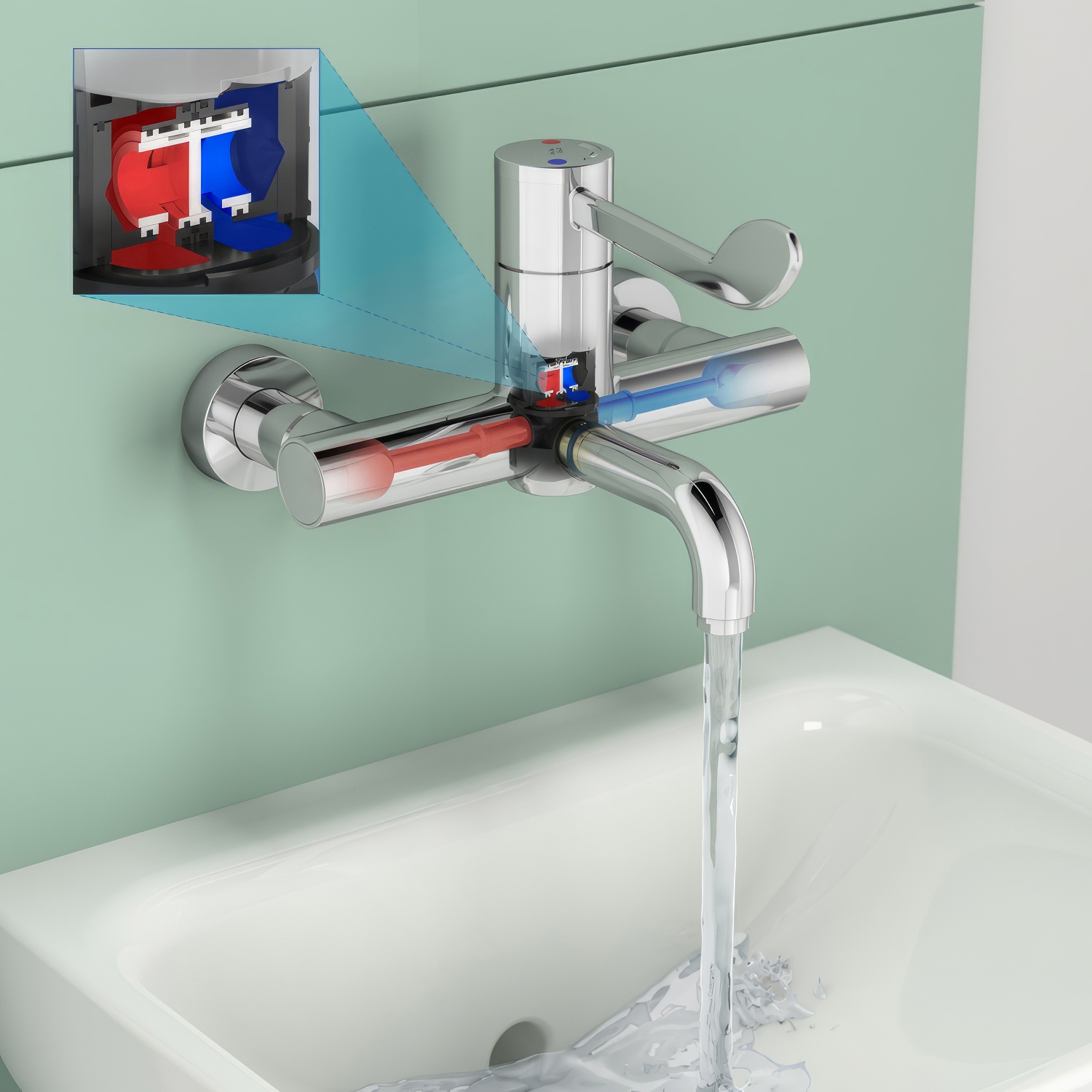

Ceramic Pressure Balance Valve with Smooth Hygienic Surfaces
Brass Port Sleeves
Height: 119mm (11.9cm)
Inlet Centres: 200mm (20cm)
Weight: 3.67 Kg
Temperature Limiting Device
Recommended for General Healthcare Use
Front of Panel Access to Isolation Valves, Filters and Water Sampling Point
Standards: EN 200, HTM 04-01
Suitable for High Water Pressure System
Flow Rate 7 Litres Per Minute at 3 Bar Pressure
Requires a Minimum of 0.2 Bar to a Maximum of 5 Bar Operating Water Pressure
Download the Installation Instruction PDF File from the Additional Info Section
Refer to the Technical Drawing for More Technical Details
Features:
Cool Body Technology Keeps the Surface Cool during Use, Preventing Scalds and Ensuring Safe, Comfortable Handling for Users of all Ages
SmartShine: The Exceptional Quality of the Chrome Finish makes our Taps More Resistant to Scratches and Easier to Clean, Offering you Years of Enjoyment

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Water Activation
: By Rotating
⤷ Range
: Markwik 21
⤷ Tap Body Shape
: Round
⤷ Handle Position
: Upwards
⤷ Colour
: Chrome
⤷ Material
: Chrome Plated Brass
⤷ Theme
: Modern
⤷ Installation Type
: Wall Mounted
⤷ No. of Holes Required
: 2
⤷ Spout type
: Detachable
⤷ Valve Included
: Isolation Valve

⤷ Valve/Cartridge Type
: Ceramic Disc Cartridge
⤷ Inlet Centres
: 200
⤷ Overall Height
: 119
⤷ Min-Max Wall Mount
: 40
⤷ Minimum Operating Pressure (Bar)
: 0.2
⤷ Flow Rates (l/min)
: 7 Litres At 3 Bar
⤷ Handle Style
: Lever
⤷ Compliance/Approvals/Standard
: EN 200 | HTM 04-01
⤷ Barcode
: 4015413356022
⤷ Product Type
: Commercial Basin Tap
⤷ Warranty/Guarantee
: 5 Years

Additional Info & Downloads

Download the Installation Instruction Pdf File

This item can also be found in:

Armitage Shanks Markwik 21+ Sequential Chrome Basin Mixer Tap - Wall Mounted

£496.61

RRP: ~~£865.66~~

Stock Availablity: 5 Working Days Approx

QS Supplies

3 Features Included In This Product Explained

Low Water Pressure

Water systems operating at a pressure between 0.1 and 0.4 bar are considered low pressure. Products usually come labelled if they are suitable to use under such pressure.
Read more...

High Water Pressure

Water systems operating at 1.0 bar or higher pressure are considered high-pressure systems. Products usually come labelled if they are suitable to use under such pressure.

Single Lever Taps

These taps are designed with a single lever or handle to control the water's temperature and flow. Extremely easy to operate, these also allow you to preset the water temperature by leaving it in the position with your preferred water temperature. Besides, it is simple to control the flow of water; the higher you lift the lever or move it to the end, the stronger the water flow.
