Armitage Shanks Markwik-21+ Concealed Thermostatic Sequential Valve, Shower Panel

Armitage Shanks Markwik-21 Plus Details

MFC: A7934AC

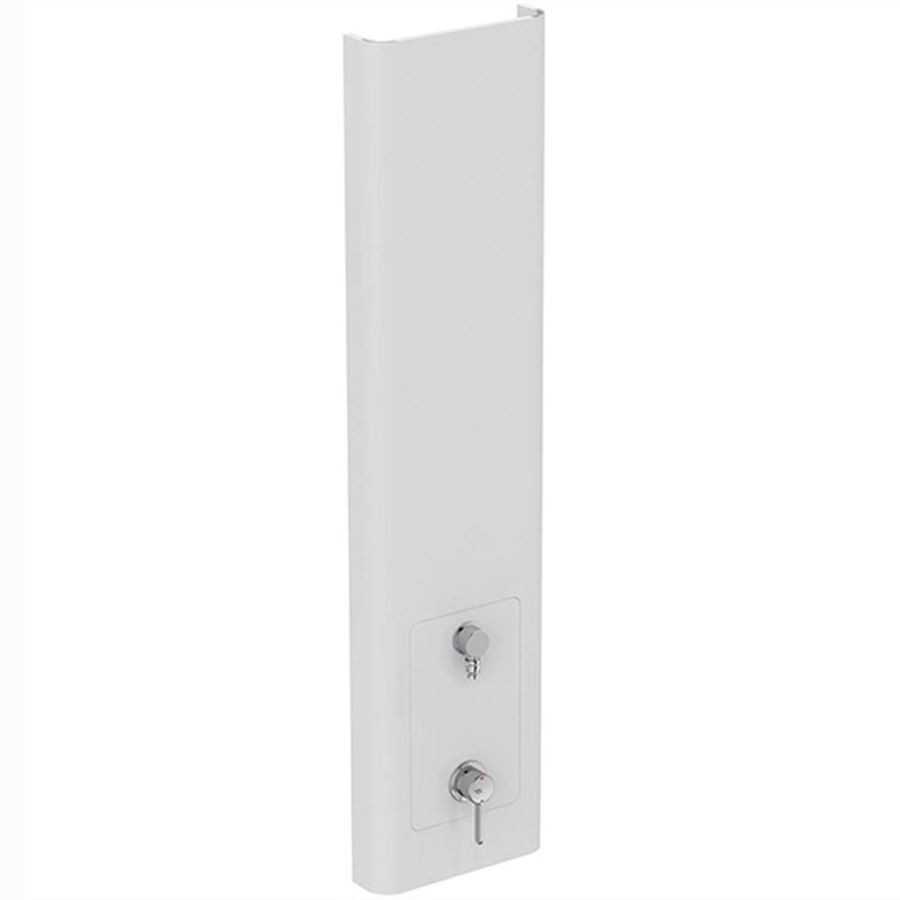

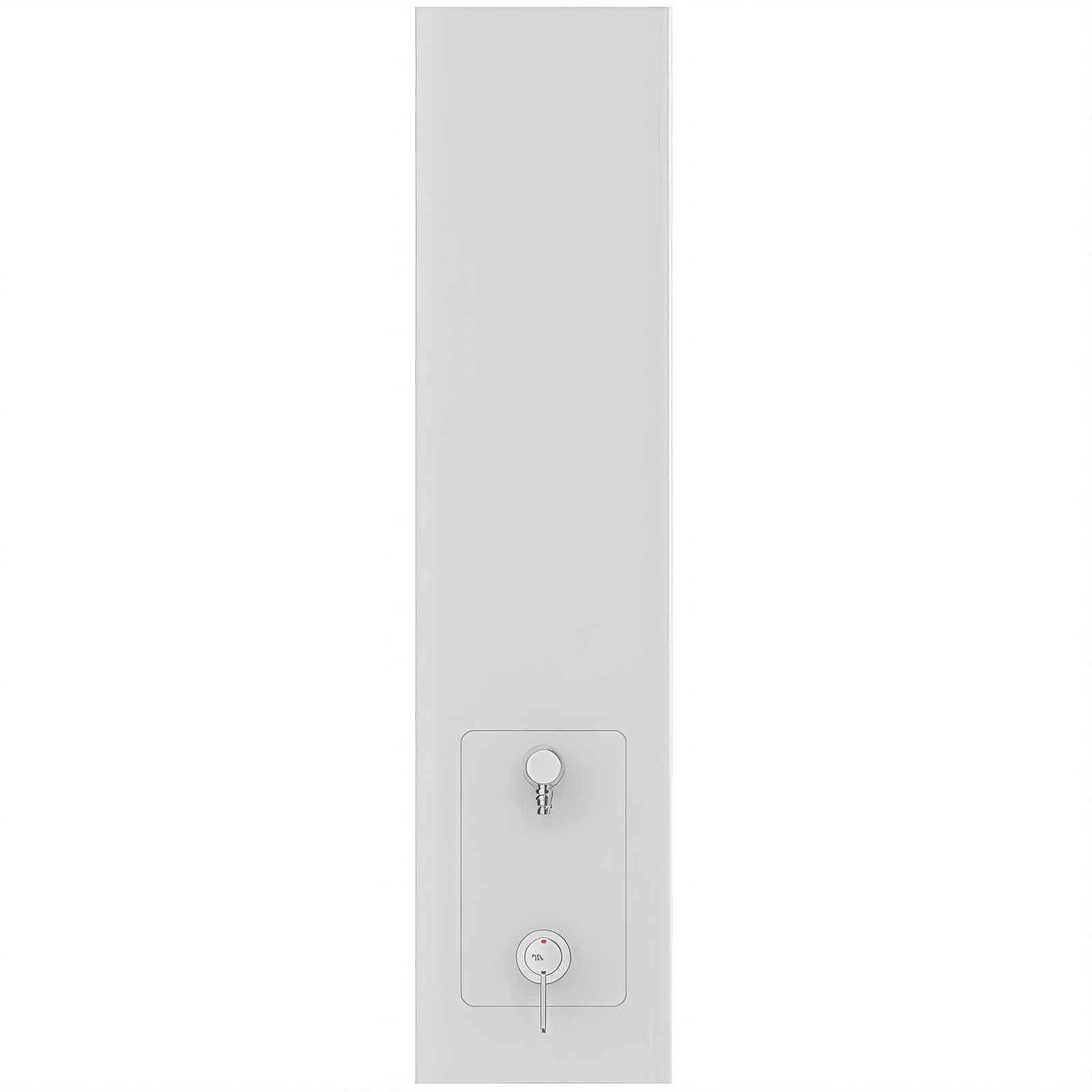

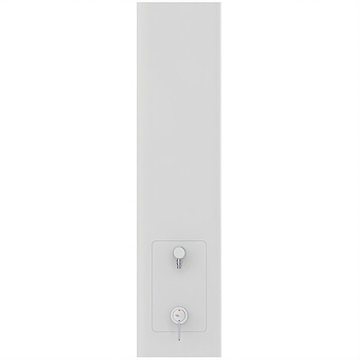

Armitage Shanks Markwik-21 Plus Shower Panel With Built-In Thermostatic Valve.

The Manufacturing Code of this Product is: A7934AC
It Comes in a Chrome Finish
Made Using Mixed Materials
Includes Pre-Fitted Sequential Thermostatic Shower Valve
Easy Maintenance of the Shower Valve and Isolation Valves
Top Inlet Installation
Weight: 23.00Kg
RAL 9003 LRV (Light Reflectance Value) 84.54%
Requires a Minimum of 0.2 Bar to a Maximum of 5 Bar Operating Water Pressure
Five Years of Guarantee from the Manufacturer Against any Manufacturing Defects
Refer to the Technical Drawing for More Technical Details
Detail Of Panel:
Size [mm]: 406 x 100 x 1700mm [Width x Depth x Height]
Size [cm]: 40.6 x 10 x 170cm [Width x Depth x Height]
Detail Of Valve:
Size [mm]: 168 x 62 x 268mm [Width x Depth x Height]
Size [cm]: 16.8 x 6.2 x 26.8cm [Width x Depth x Height]
Features:
Cool Body Technology keeps the Surface Cool during Use, Preventing scalds and Ensuring Safe, Comfortable Handling for users of all ages

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Range
: Markwik-21 Plus
⤷ Colour
: Chrome
⤷ Warranty/Guarantee
: 5 Years
⤷ Theme
: Modern
⤷ Valve Included
: Yes
⤷ Minimum Operating Pressure (Bar)
: 0.2
⤷ Water Saving
: Yes
⤷ Temperature Control
: Thermostatic

⤷ Backplate Width
: 168
⤷ Backplate Height
: 268
⤷ Anti-Scald
: Yes
⤷ TMV3 Approved
: Yes
⤷ Number of Handles
: 1
⤷ Orientation
: Vertical
⤷ Barcode
: 4015413357173
⤷ Maximum Operating Pressure (Bar)
: 5

Armitage Shanks Markwik-21+ Concealed Thermostatic Sequential Chrome Valve with Shower Panel

£1536.33

RRP: ~~£2692.80~~

Stock Availablity: 5 Working Days Approx

QS Supplies

3 Features Included In This Product Explained

Sequential Control In Showers

Sequential Control lets you turn the shower on and off and regulate the temperature by turning the same knob. The built-in integral check valves and strainers make it easy to use. The first movement of the knob turns the shower to the cold position, and any subsequent anti-clockwise movement increases the temperature to a set maximum.

Low Water Pressure

Water systems operating at a pressure between 0.1 and 0.4 bar are considered low pressure. Products usually come labelled if they are suitable to use under such pressure.
Read more...

High Water Pressure

Water systems operating at 1.0 bar or higher pressure are considered high-pressure systems. Products usually come labelled if they are suitable to use under such pressure.
