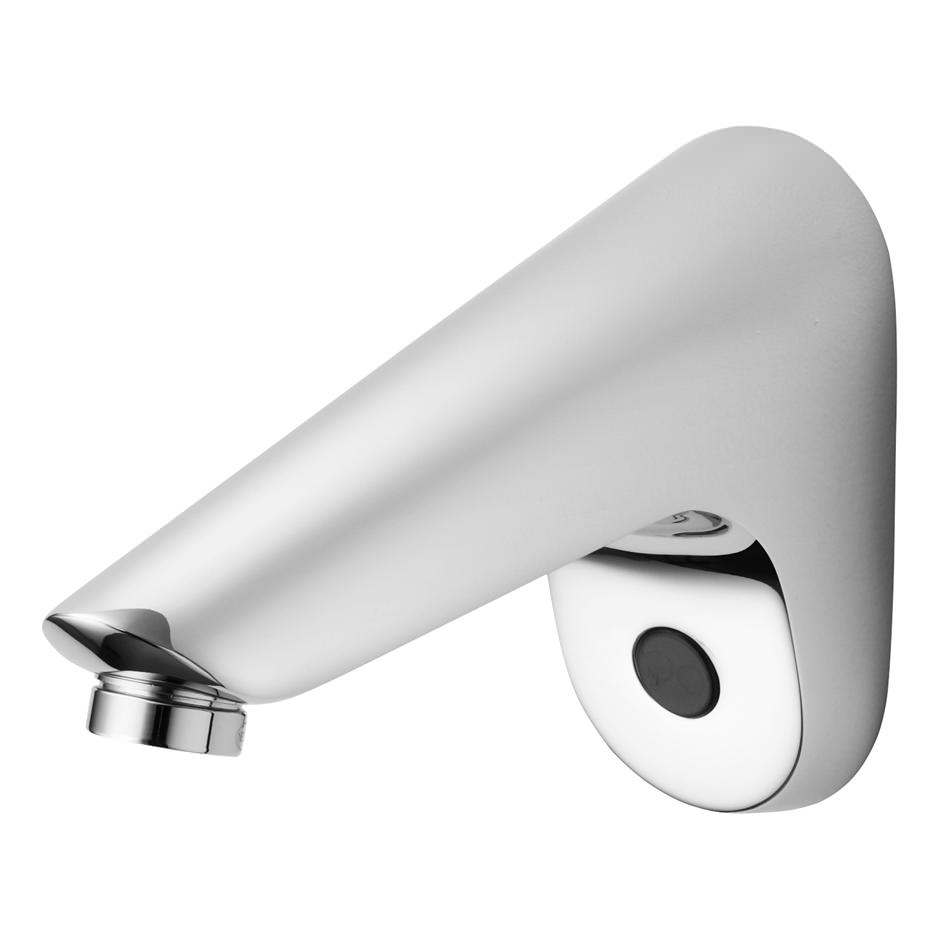

Armitage Shanks Sensorflow-21 Sensor Activated Chrome Basin Spout

Armitage Shanks Sensorflow Details

MFC: A4178AA

Add modernism to your bathroom with Sensorflow Basin Spout by Armitage Shanks. This brassware can be used without even touching it, thus making it a high-standard, hygienic element, ideal for commercial purposes. Its practical design, finished in chrome plating, makes it an awe-inspiring product. Only high-quality material is used to manufacture this spout, which gives it unrivalled durability. Instantly avail of this product by ordering it from QS Supplies.

Mains Operated
Comes in a Chrome Finish
Laminar Flow
Supplied Fitted with a 4.7 Litre Per Minute Laminar Flow Regulator
Panel Mounted 150mm Cast Spout with Integral Sensor
Flexible Inlet Tail
Supplied Complete with Individual Solenoid Valve, Copper Tube Inlet and Combined Servicing Valve and Filter
Height: 113mm
Width: 53mm
Projection: 171mm
Do Not Connect to an Interruptible Power Supply as This can Invoke Unintentional Re-Programming
DDA Compliant
Ideal for Commercial Use
Download the Installation Instruction PDF File From the Additional Info Section

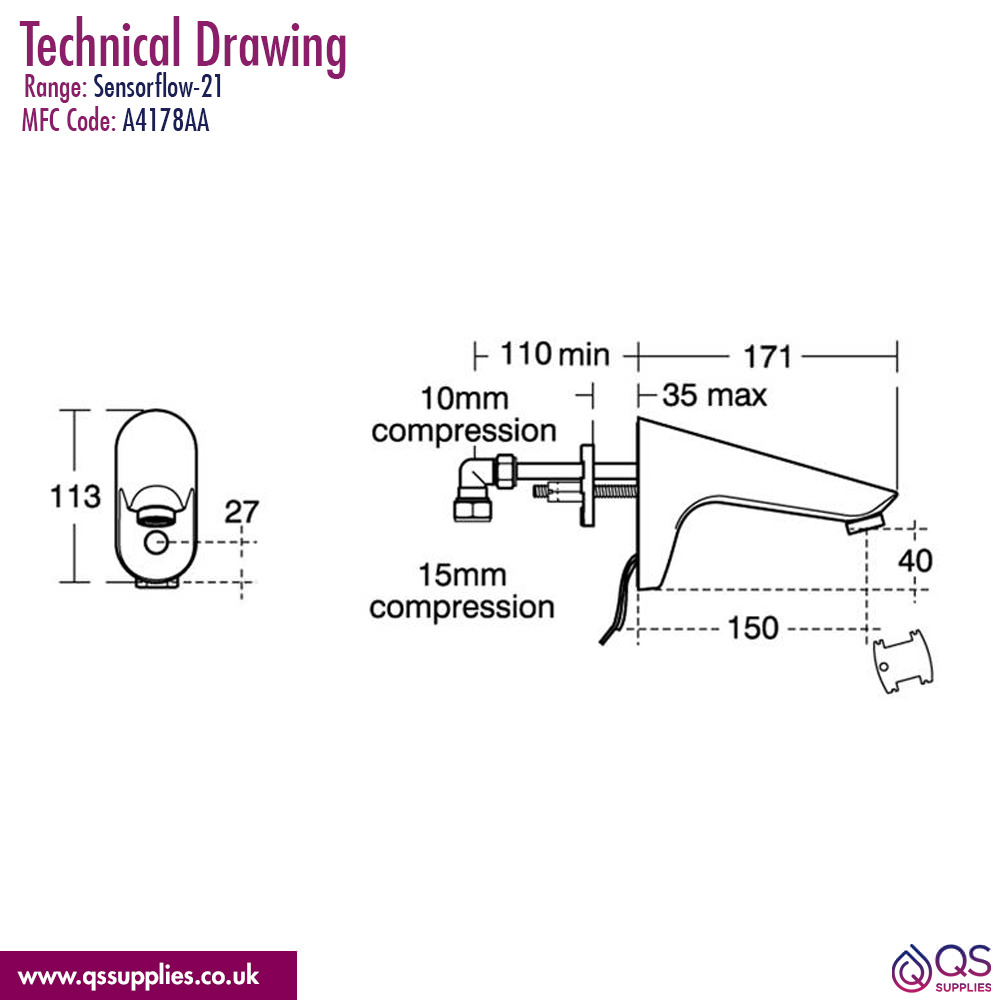

Refer to the Technical Image for Additional Size Details

Special Notes : All spouts supplied complete with individual solenoid valve, copper tube inlet and combined servicing valve and filter. Consideration should be given to safe hot water delivery and the use of an appropriate temperature reduction device, please see A5900AA (for use with 15mm pipework) or A5901AA (for use with 22mm pipework). Spouts with integral sensors detect hands within the sensing range and the solenoid valve is opened. Automatically shuts off if sensor is obstructed for a maximum of 50 seconds. Mains powered transformer with option to use up to 5 link units per main unit or stand alone battery powered units. Regulated flow rate 4.7 litres per minute at 1 bar. Mains powered Sensorflow products must be connected to a continuous permanent power supply of these require 220-240 volts and each 1 having its own fuse spur.

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Range
: Sensorflow-21
⤷ Colour
: Chrome
⤷ Warranty/Guarantee
: 5 Years
⤷ Material
: Brass
⤷ Installation Type
: Wall Mounted

⤷ Flow Rates (l/min)
: 4.7 - 3.0 bar
⤷ Power Source
: Mains Operated
⤷ Compliance/Approvals/Standard
: WRAS
⤷ Barcode
: 4015413305631

Additional Info & Downloads

Download the Installation Instruction Pdf File

Armitage Shanks Sensorflow-21 Sensor Activated Chrome Basin Spout - Mains Powered - Wall Mounted

£622.01

RRP: ~~£956.93~~

Stock Availablity: 6 Working Days Approx

QS Supplies

2 Features Included In This Product Explained

Mains-Operated

Mains-operated devices work on electricity by plugging into electrical wall sockets. These require higher electrical energy and can't be operated using batteries as small batteries can't power the device. Large, non-portable electrical appliances are typically mains operated.

WRAS Approved Product

WRAS Approval means that the particular water fitting or product complies with or meets the requirements specified by the Water Supply (Water Fittings) Regulations or Scottish Byelaws.
