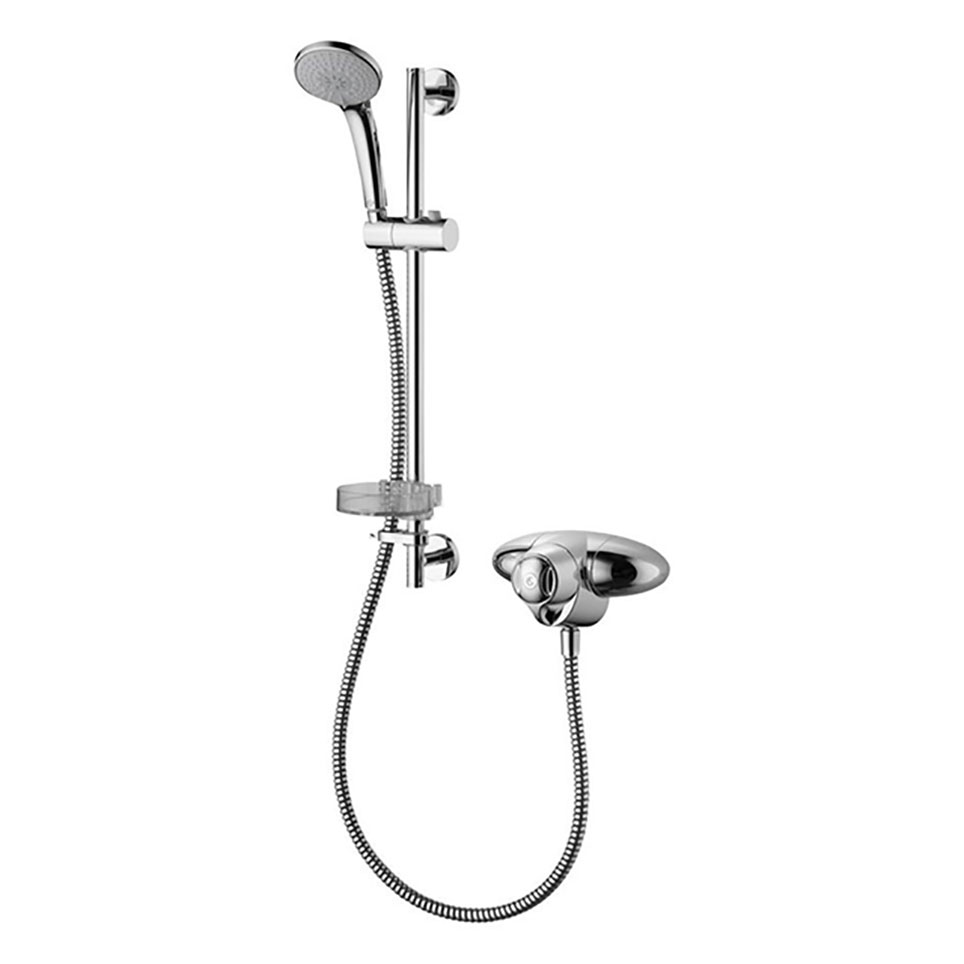

Ideal Standard CTV Exposed Thermostatic Shower Pack With Idealrain Kit

Ideal Standard Trevi Details

MFC: A5783AA

Ideal Standard Trevi CTV Exposed Thermostatic Shower Mixer Pack With Idealrain Kit.

Manufacturing code of this product: A5783AA
Size: Width 220mm x Height -112mm and Projection - 132mm
Pipe centres 147mm to 155mm
600mm slide rail
Temperature limit stop
Wight: 4.15 Kg
Shower hose retainer
Removable Eco flow regulator - 8 Litres/minute (3 bar)
Uses a WRAS and TMV3-approved valve
Material: Brass
Finish: Glossy Chrome
Water Saving product
Features Scald prevention
Resistant to scratches
Suitable for Domestic and commercial use
Constructed using Smartshine Technology
Valve with 1 Lever Handle
Suitable for low-pressure water system
Requires 0.1 bar operating water pressure
Max. flow rate at 3 bar (l): 8
Max. flow rate at 3 bar (l) for all outlets: 8
Max. flow rate at 3 bar (l) for spout: 8
Shape of escutcheon(s): Round
Type of temperature control: Manually operated
Shower hose connection thread: G 1/2
Refer technical drawing for more technical specification
Smartshine - unique temperature control which remains constant even if the water pressure differs

Radiator Calculator

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Colour
: Chrome
⤷ Weight in kg
: 4.15
⤷ Warranty/Guarantee
: 1 Year
⤷ Material
: Brass
⤷ Theme
: Modern
⤷ Valve Included
: Yes
⤷ Inlet Centres
: 147-155
⤷ Inlet Connections
: G 1/2 Male
⤷ Minimum Operating Pressure (Bar)
: 0.1
⤷ Water Saving
: Yes
⤷ Hose Included
: Yes
⤷ Hose Length
: 1350

⤷ Technologies
: SmartShine
⤷ Configuration
: Thermostatic Shower Valve and Shower Kit
⤷ Temperature Control
: Manual
⤷ Anti-Scald
: Yes
⤷ Compliance/Approvals/Standard
: WRAS and TMV3
⤷ Product Type
: Shower Set
⤷ Plumbing System Compatibility
: Rising or Falling Pipework
⤷ Handset Included
: Yes
⤷ Spray Patterns (Shower Handset)
: 3
⤷ Rail Length
: 609
⤷ Outlet Elbow Included
: Yes

Additional Info & Downloads

Download the Customer Datasheet Pdf File

Ideal Standard CTV Exposed Thermostatic Shower Pack With Idealrain Kit

£523.96

Stock Availablity: 5 Working Days Approx

QS Supplies

1 Features Included In This Product Explained

Smartvalve Saves Water

SmartValve is a compact, counter-pressure closing system that fills up fast and works well under any pressure. The system allows water to flow into the cistern only after the flush valve is closed, preventing any water wastage. It is certified to NF standard acoustic class 1 for silent working. This technology is included in all ProSys™ Ideal Standard cisterns.
