Ideal Standard Ceratherm T25 Thermostatic Exposed Bar Shower Valve, 1 Outlet. 2 Controls

Ideal Standard Ceratherm T25 Details

MFC: A7202AA

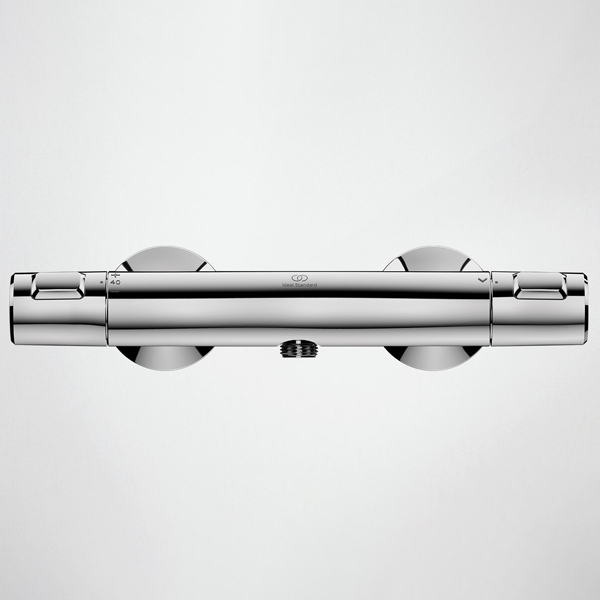

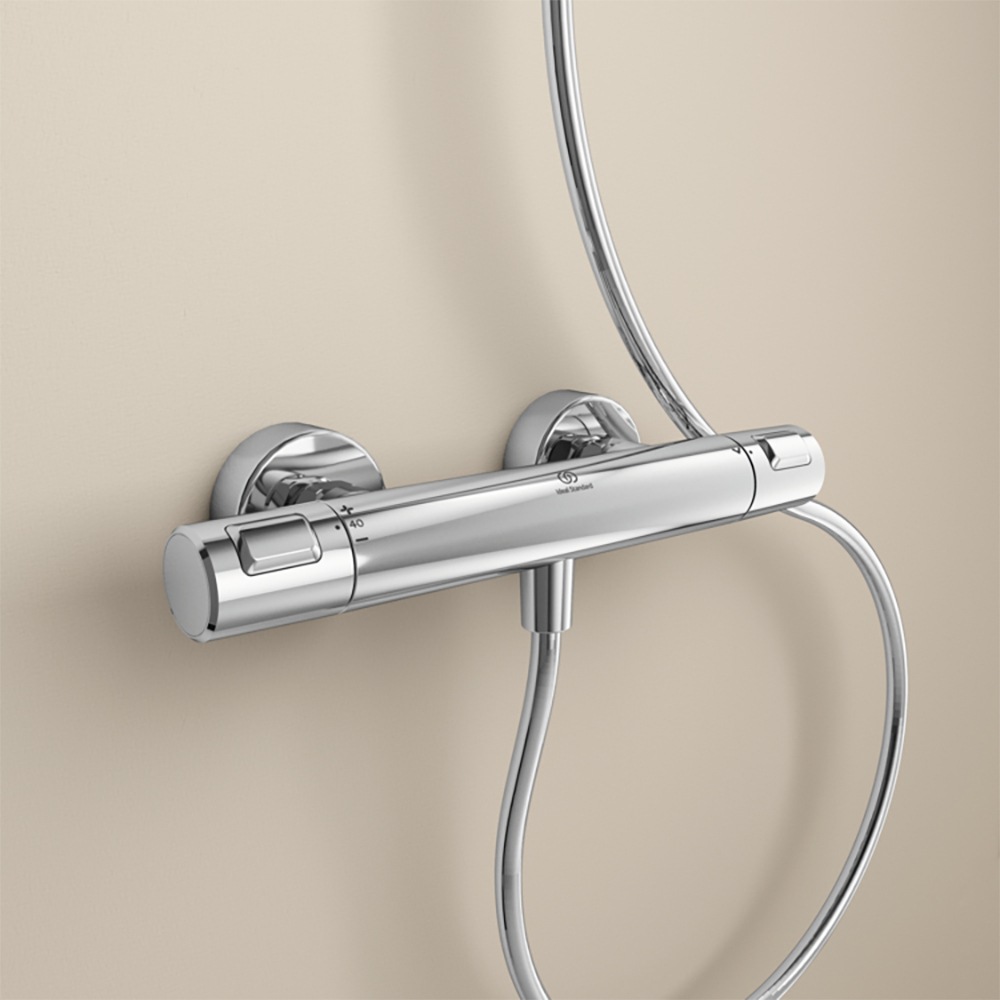

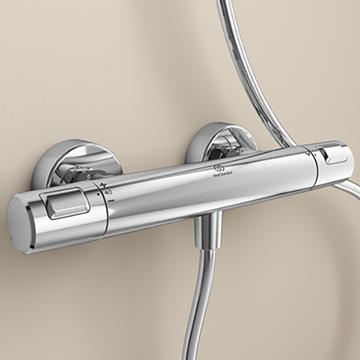

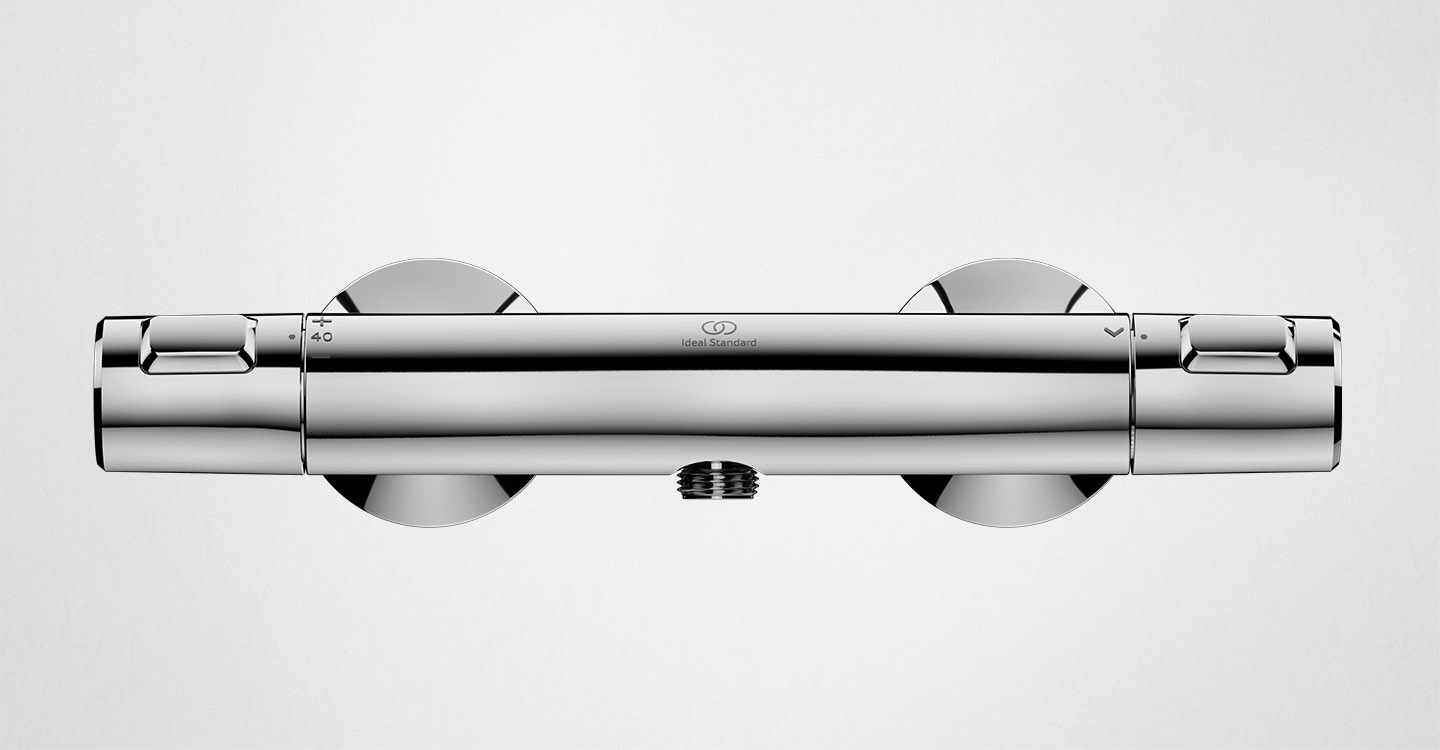

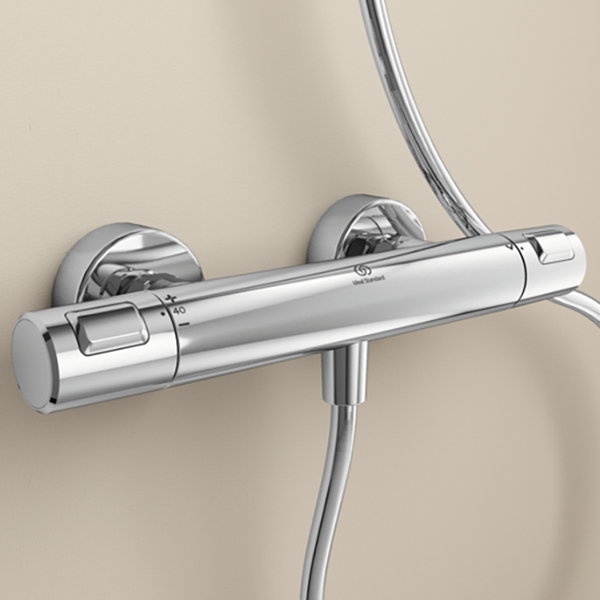

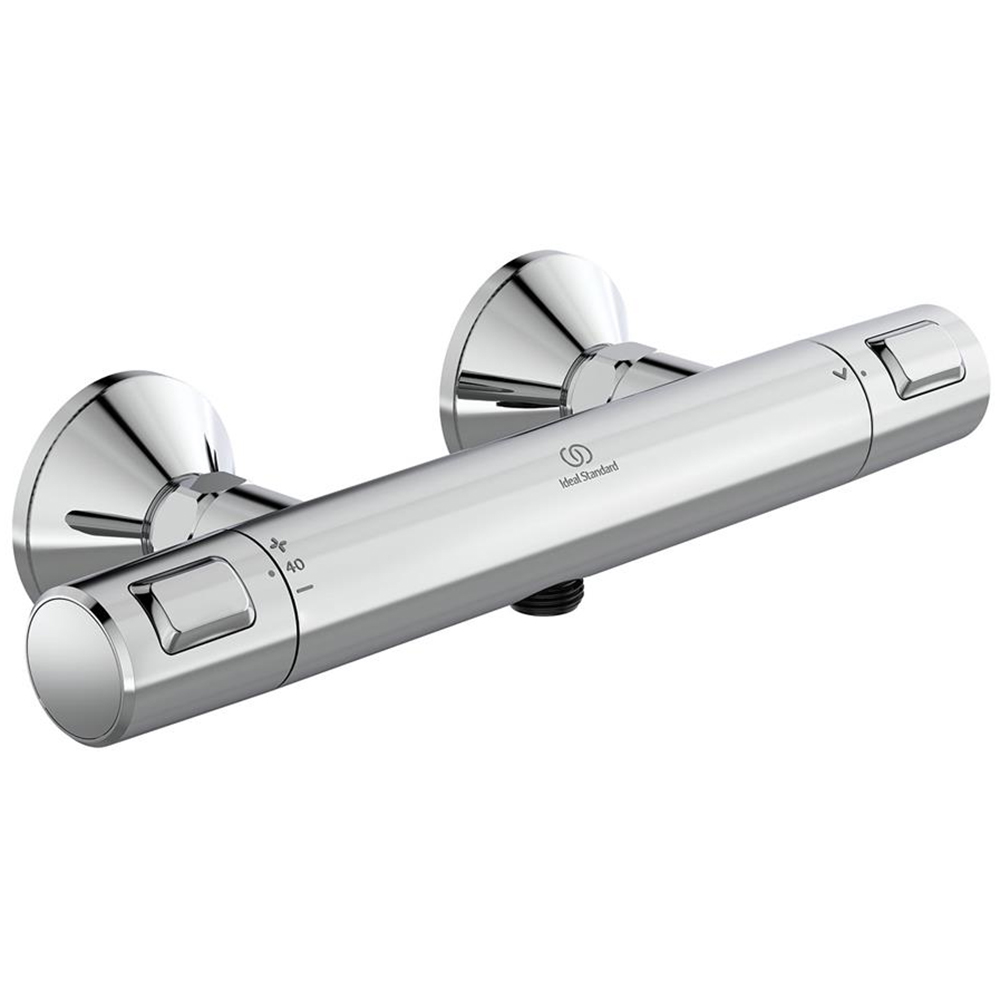

Ideal Standard Ceratherm T25 Thermostatic Exposed Chrome Shower Valve.

The Manufacturing Code of this Product is A7202AA
It Comes in a Chrome Finish
Temperature Safety Button
Water and Energy Saving
Adjustable Maximum Hot Temperature Limit Stop
Wall-Mounted Installation
Size [mm]: 315 x 89mm [Width x Depth]
Size [cm]: 31.5 x 8.9cm [Width x Depth]
Inlet Centre: 150mm (15cm)
SmartShine makes Fittings look Brand new while Seamlessly Blending into the Space
Eco-Setting Reduces Flow by 50% without Performance Loss
The Outlet Water Temperature is Limited to 40°C for user Protection, with a Manual Override
Works on a Minimum of 0.5 Bar to a Maximum of 10 Bar Water Pressure
Flow Rate: 22 Litres Per Minute at 3 Bar Pressure System
Weight: 1.10 Kg
Ideal for Both Home and Hotel Use
Wrap Over Shower Shelf [Optional]
Download the Installation Instruction PDF File from the Additional Info Section
Refer to the Technical Drawing for More Technical Details

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Range
: Ceratherm T25
⤷ Colour
: Chrome
⤷ Shape
: Round
⤷ Warranty/Guarantee
: 5 Years
⤷ Material
: Metal
⤷ Theme
: Modern
⤷ Installation Type
: Wall Mounted
⤷ Valve Included
: Yes
⤷ Valve/Cartridge Type
: Ceramic
⤷ Inlet Centres
: 150
⤷ Width
: 315
⤷ Minimum Operating Pressure (Bar)
: 0.5
⤷ Water Saving
: Yes

⤷ Flow Rates (l/min)
: 3 Bar - 22 Ltr
⤷ Handle Style
: knob
⤷ WRAS Approved
: Yes
⤷ Technologies
: Cool Body
⤷ TMV2 Approved
: Yes
⤷ Number of Handles
: 2
⤷ Number of Outlet
: 1
⤷ Orientation
: Landscape
⤷ Barcode
: 4015413345729
⤷ Product Type
: Shower Valve
⤷ Maximum Operating Pressure (Bar)
: 3
⤷ Cartridge Included
: Yes
⤷ Cartridge Type
: Precitherm

Additional Info & Downloads

Download the Installation Instruction Pdf File

Add-Ons

Ideal Standard Wrap Over Shower Shelf

Simple Wrap-Around Shelf With Temperature Indication For All Ceratherm T Range Shower Mixers, Providing Additional Storage In The Shower. Please Note: The Image Shown Is For Illustration Purpose Only.

No Option Selected
OP-244461 - 209mm Wrap Over Shower Shelf + £32.60

Ideal Standard Ceratherm T25 Thermostatic Exposed Bar Shower Valve - 1 Outlet - 2 Controls

£119.02

RRP: ~~£205.62~~

Stock Availablity: 5 Working Days Approx

QS Supplies

5 Features Included In This Product Explained

Temperature control

The Thermostatic mixers have a temperature control mechanism that keeps the temperature constant at all times.

TMV2 Approved Product

TMV2 is an independent certification for thermostatic mixers, including shower valves, run by BuildCert that ensures national and international standards as specified under (BS EN 1111 and 1287) are met. These standards detail the exacting requirements that a thermostatic valve or product must comply with to guarantee a high thermostatic protection and safety standard. Products meeting this requirement carries the logo and protect against any scalding accidents.

WRAS Approved Product

WRAS Approval means that the particular water fitting or product complies with or meets the requirements specified by the Water Supply (Water Fittings) Regulations or Scottish Byelaws.
Read more...

Medium Water Pressure

Water systems operating at a pressure between 0.5 and 0.9 bar are considered medium pressure. Products usually come labelled if they are suitable for use in medium pressure.

High Water Pressure

Water systems operating at 1.0 bar or higher pressure are considered high-pressure systems. Products usually come labelled if they are suitable to use under such pressure.
