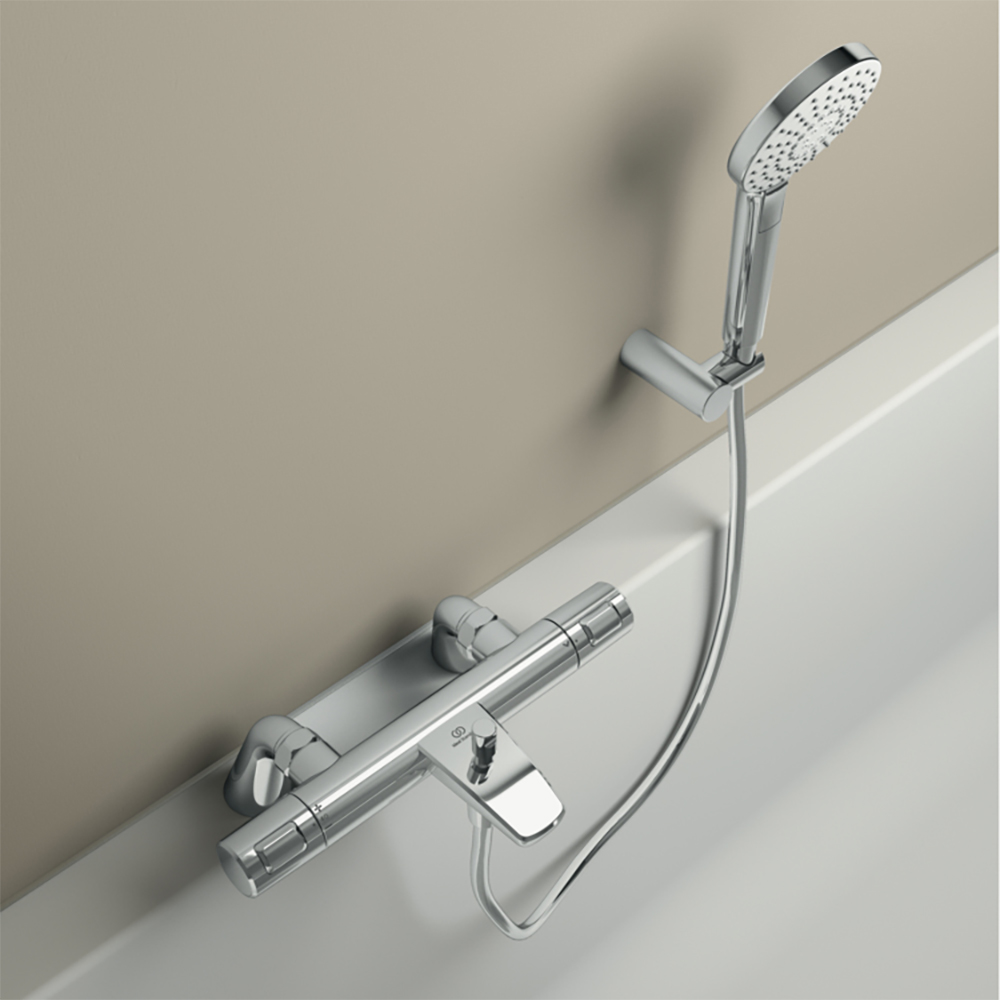

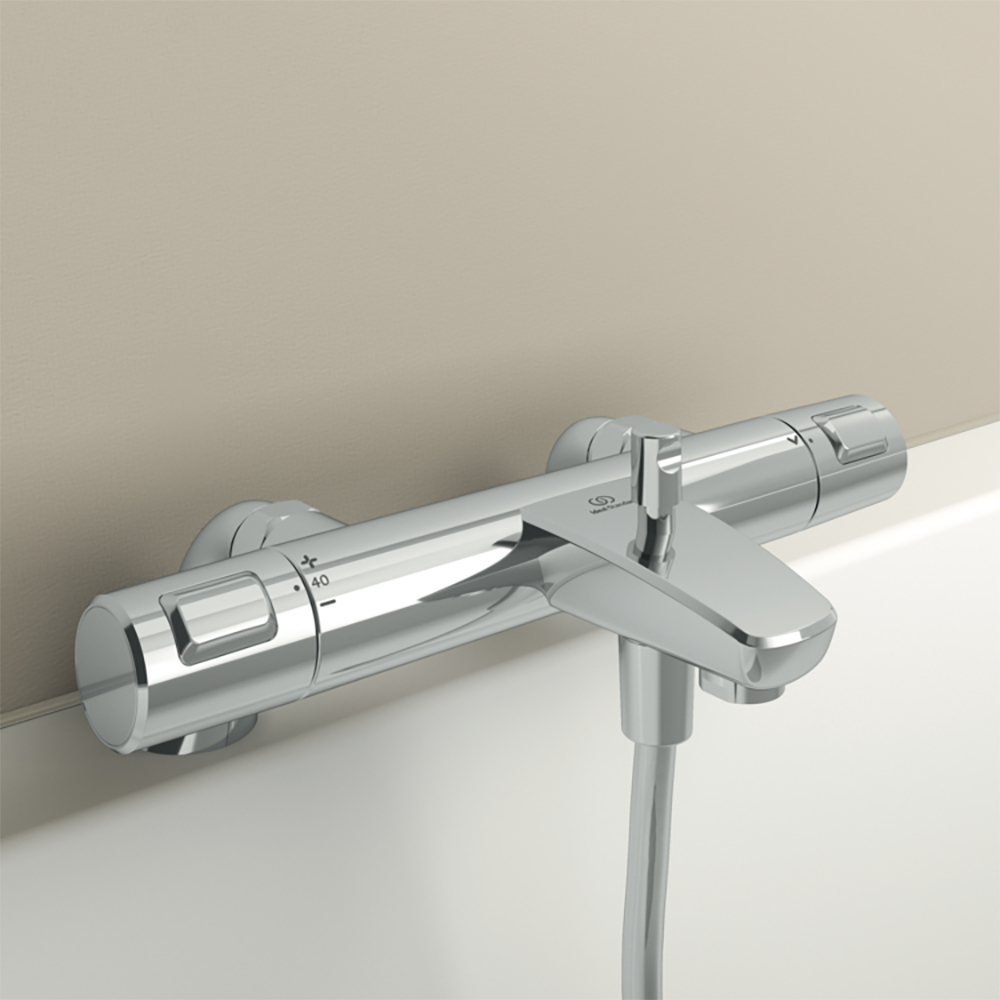

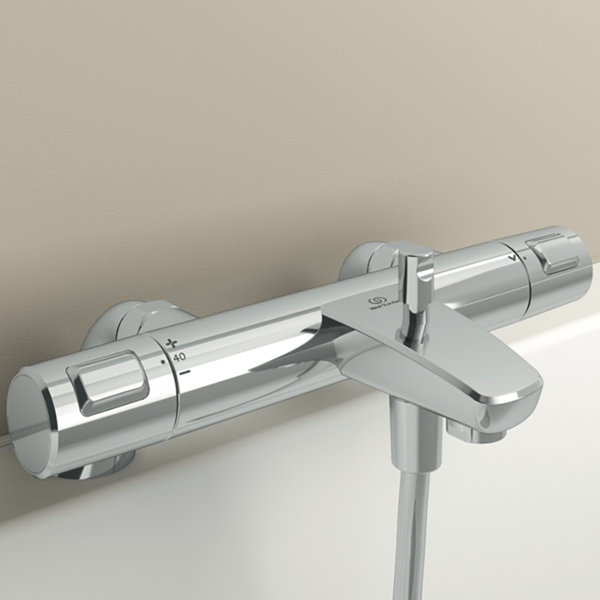

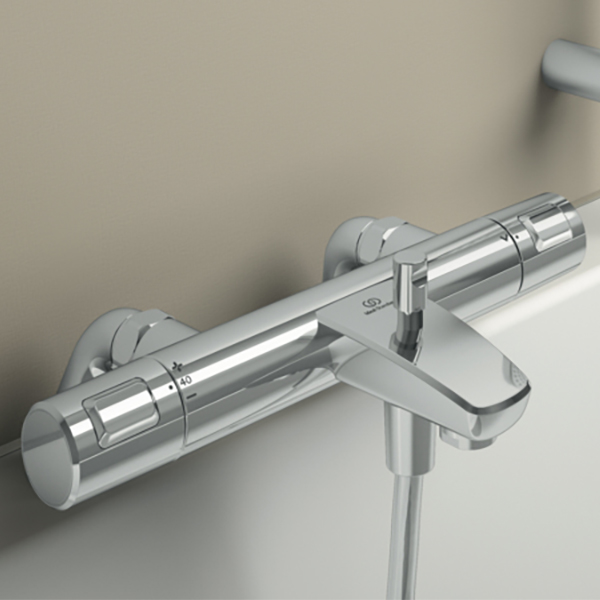

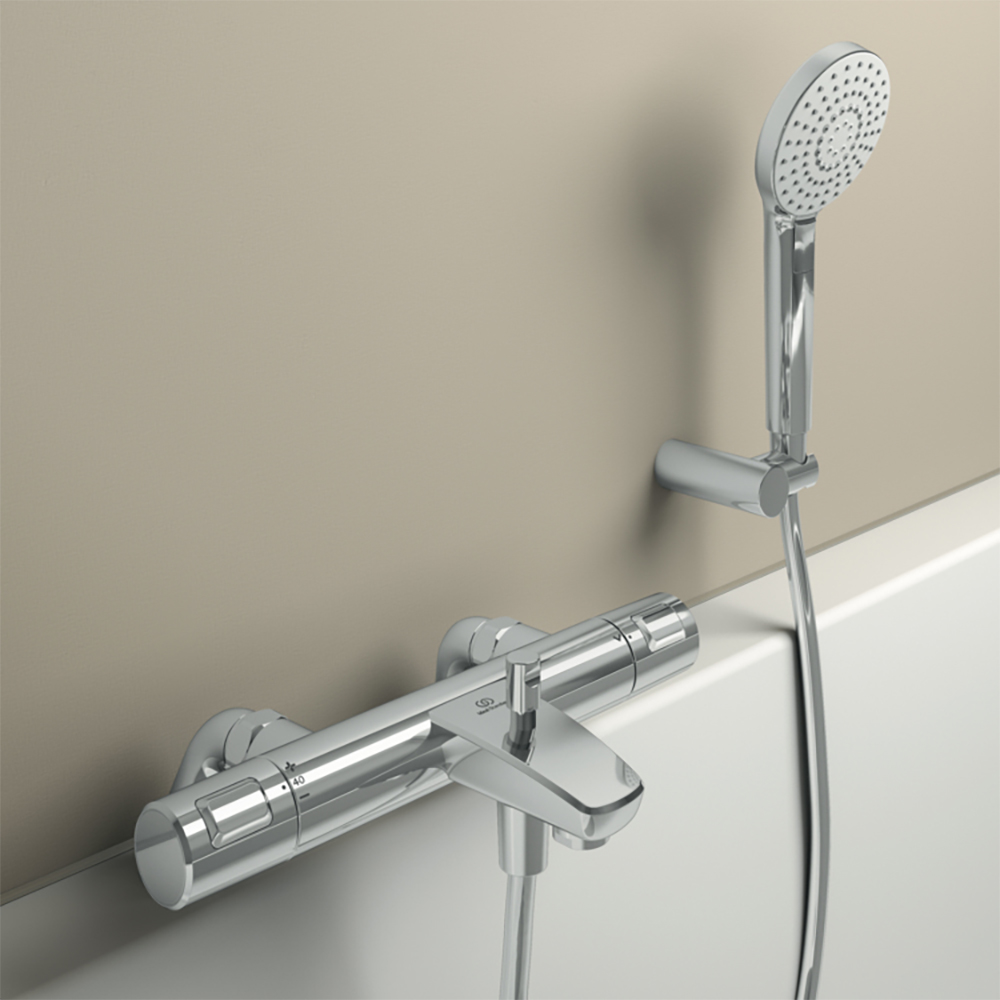

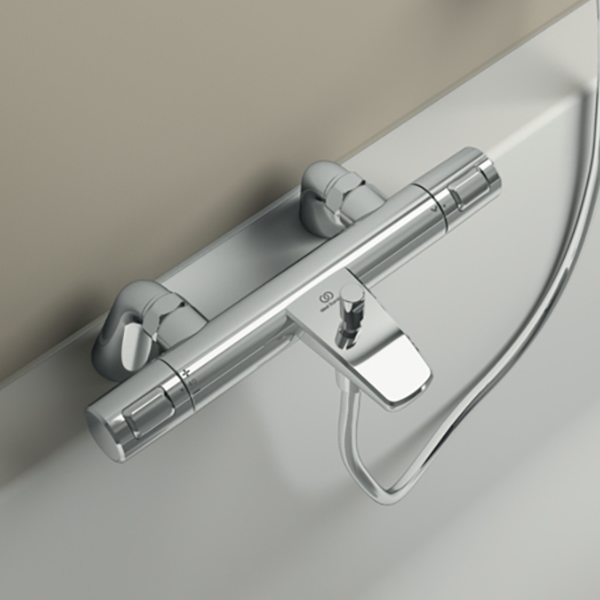

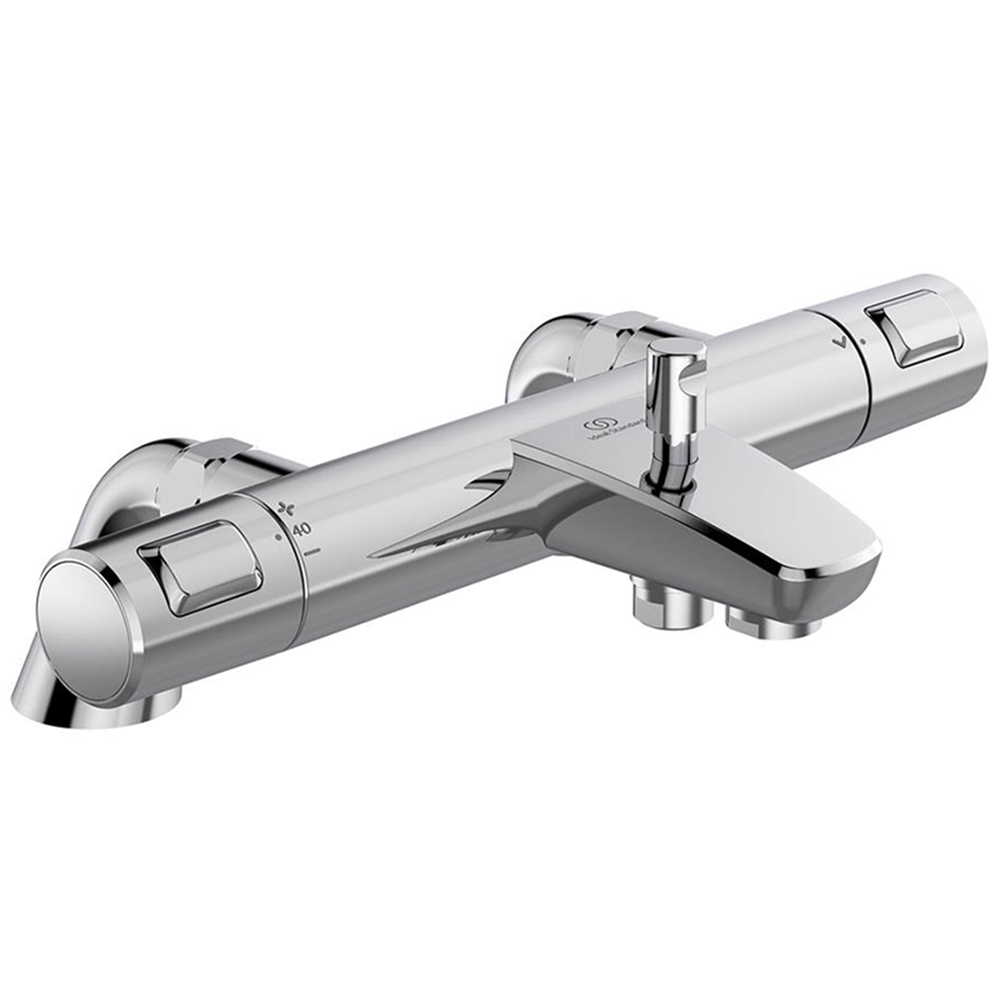

Ideal Standard Ceratherm T25 Thermostatic Chrome Bath Shower Mixer Tap, Knob Handles

Ideal Standard Ceratherm T25 Details

MFC: A7207AA

Ideal Standard Ceratherm T25 Thermostatic Chrome Bath Shower Mixer Tap.

The Manufacturing Code of this Product is A7207AA
Exposed Thermostatic Bath Shower Mixer
It Comes in a Chrome Finish
Deck Mounted Installation
Width: 315mm (31.5cm)
The Centre of the Inlet to the Centre of the Outlet: 150mm (15cm)
Inlet Connection: 3/4 BSP
Temperature Safety Button
Water and Energy Saving
Adjustable Maximum Hot Temperature Limit Stop
Versatile Design with an ergonomic Raised Button for Superior Control
Made Using Limescale-Resistant polymer for Durability and Long-Lasting Performance
Outlet Water Temperature Limited to 40°C for user Protection
Includes a Manual Override Option
Eco-Setting reduces Flow by 50% without Performance loss
SmartShine Makes Fittings Look brand new while seamlessly blending into the Space
Flow Rate: 20 Litres Per Minute at 3 Bar Pressure System
The Recommended Minimum Operating Water Pressure is 0.5 Bar
Unregulated Flow Rate 20 Litres Per Minute at 3 Bar
Weight: 2.87 Kg
Ideal for Both Home and Hotel Use
Download the Installation Instruction PDF File from the Additional Info Section
Refer to the Technical Drawing for More Technical Details

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Material
: Brass
⤷ Spout type
: Fixed
⤷ Spout Reach
: 156
⤷ Max. Deck Thickness
: 33
⤷ Inlet Connections
: G 1/2"

⤷ Minimum Operating Pressure (Bar)
: 0.5
⤷ Water Saving
: Yes
⤷ Flow Rates (l/min)
: 3 Bar - 20 Ltr
⤷ Handle Style
: Knob
⤷ Compliance/Approvals/Standard
: EN1111

Additional Info & Downloads

Download the Installation Instruction Pdf File

Ideal Standard Ceratherm T25 Thermostatic Chrome Bath Shower Mixer Tap - Knob Handles

£210.20

RRP: ~~£350.34~~

Stock Availablity: 5 Working Days Approx

QS Supplies

3 Features Included In This Product Explained

Cool Body Technology

This feature has been made with your safety in mind because the thermostatic surface is always cool and never heats up, keeping it safe to touch.

Temperature control

The Thermostatic mixers have a temperature control mechanism that keeps the temperature constant at all times.

High Water Pressure

Water systems operating at 1.0 bar or higher pressure are considered high-pressure systems. Products usually come labelled if they are suitable to use under such pressure.
