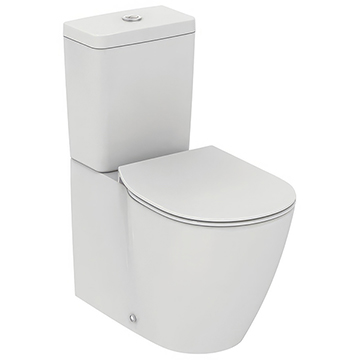

Ideal Standard Concept White Close Coupled Back-To-Wall WC Pan

Ideal Standard Concept Details

MFC: E801101

Ideal Standard Concept White Close Coupled Back-To-Wall WC Pan.

The Manufacturing Code of this Product: E801101
It Comes in a White Finish
Size [mm]: 370 x 400mm [Width x Height]
Size [cm]: 37 x 40cm [Width x Height]
Projection from the Wall: 665mm [66.5cm]
Installation Type: Floor Standing
WC Screwed to the Floor Using Concealed Brackets [Supplied] and Cistern screwed to the Wall
Joint to Wall Sealed with Waterproof Sealant [not Supplied]
Access to the Water Inlet Isolation Valve can be gained through the Side Access Hole
Suitable for Domestic and Commercial Use
Weight: 29.85kg
Dual Flush Cistern [Optional]
Toilet Seat [Optional]
Refer to the Technical Drawing for More Technical Details

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Range
: Concept
⤷ Toilet Design
: Fully Back-To-Wall
⤷ Colour
: White
⤷ Weight in kg
: 29.85
⤷ Country of Origin
: EU
⤷ Warranty/Guarantee
: Lifetime
⤷ Material
: Vitreous China
⤷ Theme
: Modern
⤷ Installation Type
: Floor Standing
⤷ Pan Width
: 370
⤷ Pan Height
: 400
⤷ Toilet Overall Height
: 780
⤷ Projection (Depth)
: 665
⤷ Cistern Included
: Sold Separately
⤷ Cistern Width
: 320
⤷ Flush Type
: Dual Flush
⤷ Full Flush Volume in litres
: 4

⤷ Half Flush Volume in litres
: 2.6
⤷ Flush Mechanism
: Push Button
⤷ Cistern Lever Or Button Placement
: Top
⤷ Outlet
: Horizontal
⤷ Configuration
: Bowl Only
⤷ Seat Included
: Sold Separately
⤷ Seat Finish
: White
⤷ Barcode
: 5017830419686
⤷ Product Type
: Close Coupled
⤷ Cistern Depth (projection)
: 180
⤷ Base width
: 280
⤷ Base Depth (projection)
: 510
⤷ Pan fixing centres
: 155
⤷ Cistern Fixing Centres
: 225
⤷ Floor to centre of cistern fixing hole
: 735
⤷ Base to centre of outlet
: 190

Add-Ons

Close-Coupled-Cistern

Close Coupled Cisterns. . Please note image shown is for illustration purpose only.

No Option Selected
OP-41865 - Concept Arc Dual Flush 4 or 2.6 Litre Flush - E785501 + £168.85
OP-3686 - Concept Arc Dual Flush 6 or 4 Litre Flush - E786001 + £168.85
OP-2668 - Concept Cube BSIO 6 or 4 Litre Dual Flush Push Button - E785901 + £170.87
OP-43067 - Concept Cube BSIO 4 Or 2.6 Litre Dual Flush Push Button - E796901 + £170.87

Concept Toilet Seat

Splendid Toilet Seat for your WC. Please Note Image Is For Illustration Purpose Only.

No Option Selected
OP-3449 - Standard Close With Cover - E791801 + £86.23
OP-3450 - Slow Close With Cover - E791701 + £123.07
OP-60415 - Thin Slow Close Seat And Cover - E772601 + £123.07

Ideal Standard Concept White Close Coupled Back-To-Wall WC Pan

£359.20

RRP: ~~£449.00~~

Stock Availablity: 5 Working Days Approx

QS Supplies

4 Features Included In This Product Explained

Vitreous-China Material

Vitreous china is an innovative glass-based enamel coating applied to porcelain. This glazed coating makes the base material durable, denser, and very glossy. When ceramics are coated with vitreous enamel, the resulting product is called vitreous china. This enamel is created by applying heat to powdered glass.

Horizontal Outlet

When the pan has piping at the back, inside the wall, it is called a horizontal outlet toilet or pan. As the cisterns are concealed or placed against the wall, most plumbing is hidden out of sight.

Optional: Dual-Flush

A toilet with a flushing mechanism with two different buttons for flushing solid and liquid waste, thereby saving water.

Optional: Soft-Close Seat

Soft-closing seats are a new alternative to classic toilet seats. Their modern design allows them to close slowly, while their controlled manner of closing does not require you to assist them. It also shuts automatically, allowing it to come down at a pace that does not make much noise.
