Geberit Duofix Washbasin Steel Frame for Wall Mounted Electronic Tap with Concealed Function Box - 500 x 1300mm

Geberit Duofix Washbasin Steel Frame for Wall Mounted Electronic Tap with Concealed Function Box - 500 x 1300mm.

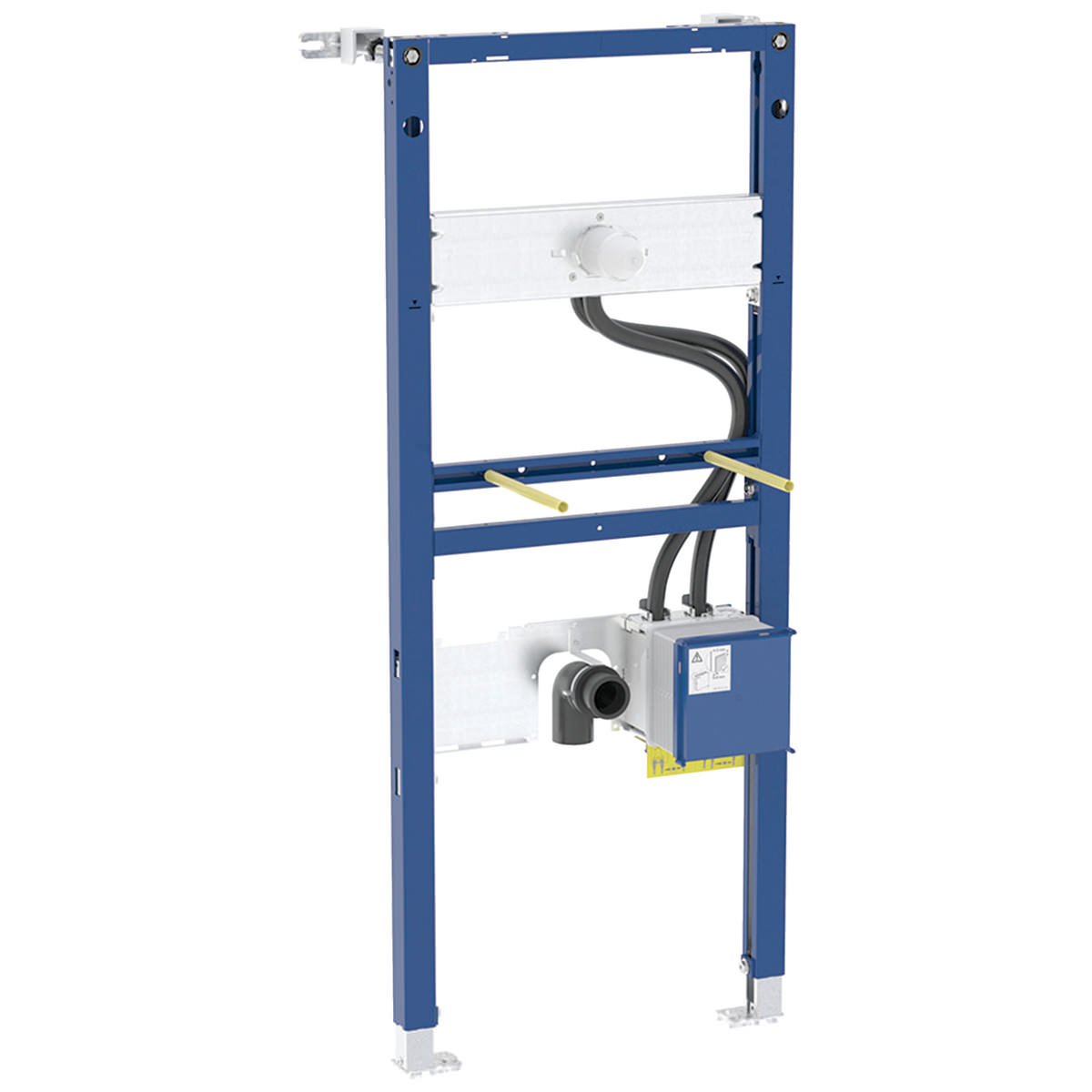

• Choice of Variant: with Concealed Function Box Only or with Concealed Function Box and Trap
• Comes in a Blue Finish
• Size [mm]: 500mm (50cm) x 1300mm (130cm) [Width x Height]
• Suitable for Geberit Duofix System Walls, Metal, Wood Frame Walls and Floor Constructions 0-25cm
• Can be Installed in Part or Room-Height Prewalls and Installed in Room-Height partition Walls
• Compatible with Piave and Brenta Wall-Mounted Basin Taps with Concealed Function Box
• Statically Self-Supporting Frame Protected Against Corrosion with Powder Coating
• Completes with Pull-Out Plate for Lateral Fastening Above the Element on Metal or Wood Profiles or on Geberit Duofix System Studs
• Alternative Fastening Point for Wall Anchors
• Rotating Foot Plates, Suitable for Installation in U Profiles UW 50 and UW 75
• Foot Plates that can be Mounted in Geberit Duofix System Rail without Tools and Additional Components
• Fastening Distance for Washbasin 5-38cm
• Threaded Rods Adjustable in Depth with 18 or 28cm Fastening Distance
• Tap Crossbar Height-Adjustable
• Pre-Mounted Fastening for Wall-Mounted Tap
• Water Supply Connection Compatible with MasterFix and MeplaFix
• Fastening for Connection Bend, Height-Adjustable and Sound-Absorbing
• Concealed Housing for Geberit Wall-Mounted Basin Tap, for Concealed Function Box, Pre-Mounted
• Pre-Mounted Connection Pipes Between Concealed Housing and Fastening for Wall-Mounted Tap
• Terminal for Electrical Connection in Concealed Housing
• Refer to the Technical Drawing for More Detail
• 10-Year Guarantee from Gerberit Against Manufacturing Defect

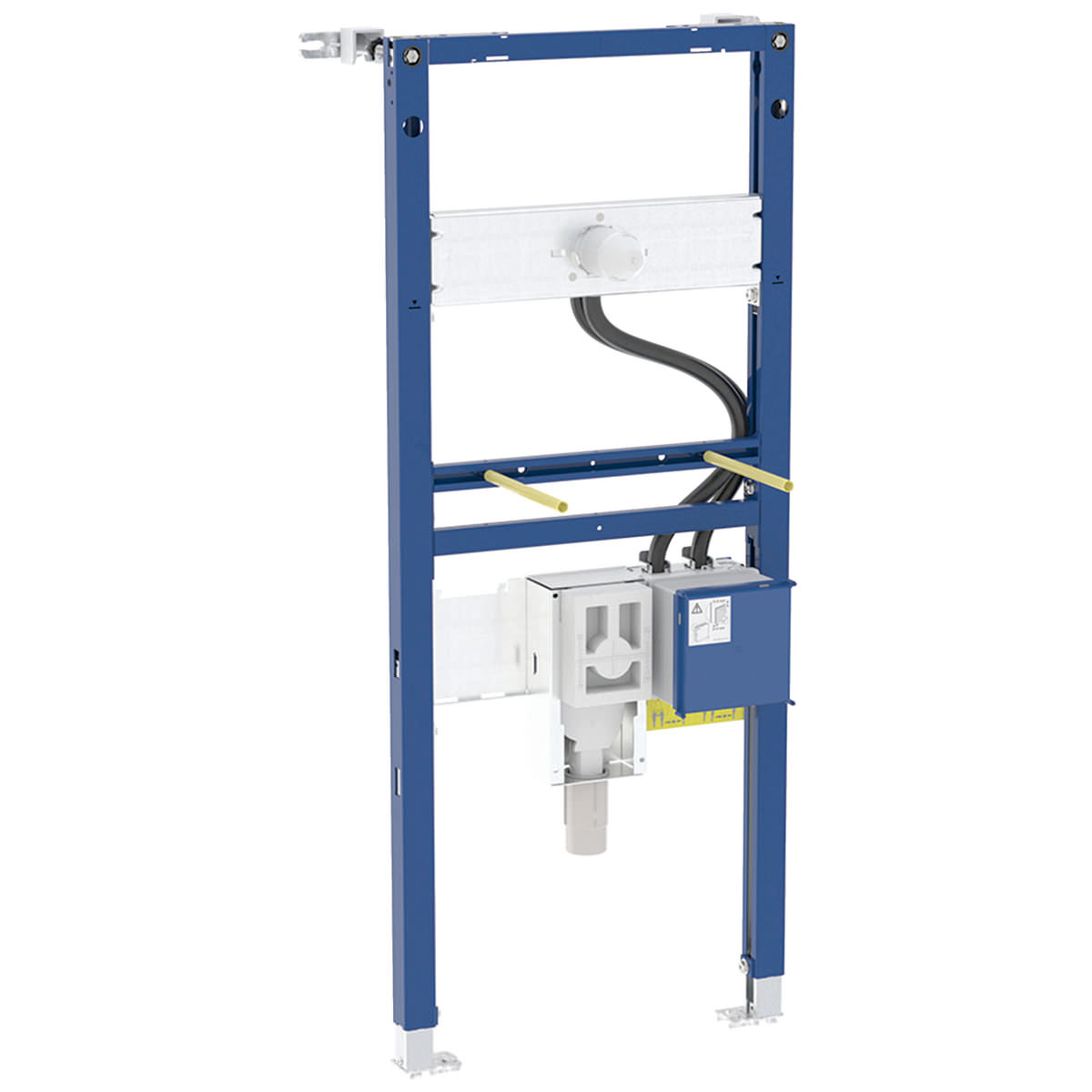

• Additional Specification Of Concealed Function Box and Trap:
• Suitable for Less-Abled Installation
• Concealed Trap with Optimum Flow Guidance and High Self-Cleaning Effect
• Concealed Trap can be Height-Adjusted ± 3cm during the final Installation
• Comes with a Straight Connector Made of PP Ø 50mm
• Protection Box - Included
• Scope Of Delivery:
• 2x Wall Anchors
• Protection Box with Cover, for Concealed Housing
• Protection Box for Fastening of Wall-Mounted Tap
• Fastening Material
