Nuie Exposed Traditional Thermostatic Shower Mixer Valve with Riser Kit & Diverter

Nuie Details

MFC: SBT124TW1

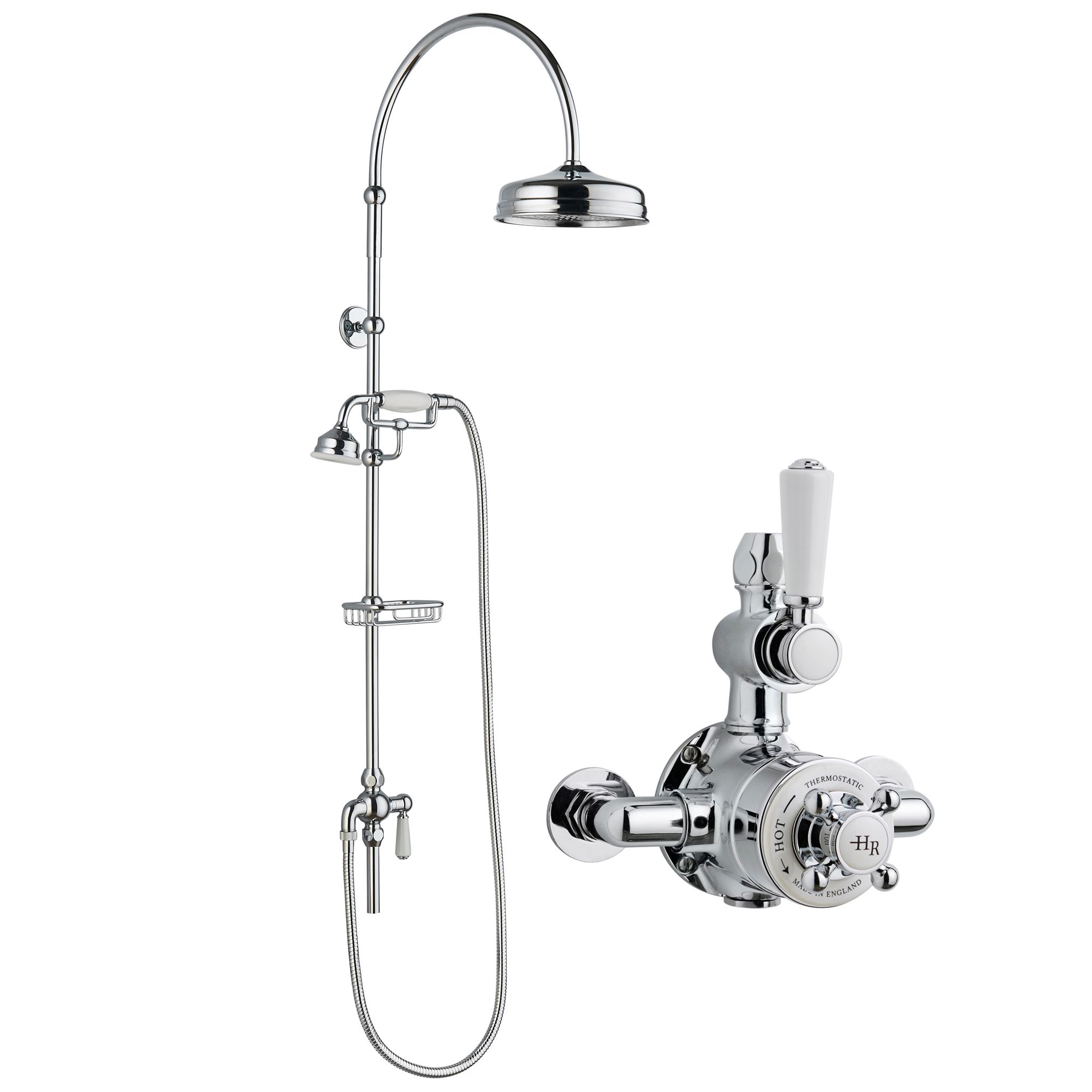

Nuie Exposed Traditional Thermostatic Shower Mixer Valve with Rigid Riser Kit and Diverter

Pack Includes: Thermostatic Shower Valve, Rigid Riser Kit with Shower Head
Download the Customer Data Sheet PDF Files from the Additional Info Section
Refer to the Technical Drawing for Size Details
Specification of Thermostatic Shower Valve
Quarter Turn
Ceramic Disc Cartridge
Full Thermal Protection to Prevent Scalding in the Event of Hot or Cold Water Shut-Off
The Unique Cartridge is Highly Resistant to Calcium Buildup - Even in Hard Water Areas
Size [mm]: 195 x 136x 206mm [Width x Depth x Height]
Size [cm]: 19.5 x 13.6 x 20.6cm [Width x Depth x Height]
Pipe Centres: 150mm (15cm)
No. of Outlets: 1
Exposed Wall-Mounted Installation
Accurate Flow Control and Excellent Flow Rates - Even at Low-Pressure
Thermostatic Control to +/- 1 Degree - Even if the Water Pressure Fluctuates
In the Event of Hot or Cold Water Failure, the Valve Will Shut Down as Per the Relevant Standard
Our Valves are Suitable for Use with All Systems: Gravity-Fed Pumped, Unvented High Pressure or Fully Modulated Combi-Boilers
The Cartridge is Fully Reversible, Meaning if Hot and Cold Supplies are the Wrong Way Round, it doesn't Need Re-Plumbing
Remove the Cartridge, Turn 180° and Replace
Suitable for Low-Pressure Water System
Requires a Minimum of 0.1 Bar or Above Water Pressure to Operate Smoothly
Specification of Rigid Riser Kit
Round Fixed Shower Head, Handset, and Hose Included
Supplied with a Diverter
Suitable for Wall-Mounted Installation
Size [mm]: 200 x 470 x 1460mm [Width x Depth x Height]
Size [cm]: 20 x 47 x 146cm [Width x Depth x Height]
The Minimum Water Pressure Recommended for Smooth Working is 0.5 Bar [MP-Medium Pressure]

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Colour
: Chrome
⤷ Warranty/Guarantee
: 5 Years
⤷ Material
: Brass
⤷ Theme
: Traditional
⤷ Valve Included
: Yes
⤷ Valve/Cartridge Type
: Ceramic Disc
⤷ Minimum Operating Pressure (Bar)
: 0.5
⤷ Hose Included
: Yes
⤷ Hose Length
: 1500
⤷ Height
: 1460

⤷ Temperature Control
: Thermostatic
⤷ Anti-Scald
: Yes
⤷ Diverter Included
: Yes
⤷ Soap Dish Included
: Yes
⤷ Showerhead Type
: Fixed
⤷ Showerhead Finish
: Chrome
⤷ Handset Included
: Yes
⤷ Shower Head Included
: Yes
⤷ Shower Head Size
: 200

Additional Info & Downloads

Download the Technical Data Sheet Pdf File

This item can also be found in:

Shower Sets

Nuie Exposed Traditional Thermostatic Shower Mixer Valve with Rigid Riser Kit and Diverter

£1007.20

RRP: ~~£1259.00~~

Stock Availablity: 5-7 Working Days Approx

QS Supplies

5 Features Included In This Product Explained

Quarter Turn

Operating these taps is almost effortless; it can be turned on and off by rotating the lever at 90 degrees. These taps have such low friction that they are perfect for people with arthritis, weak grip, the elderly and the young.

Ceramic Disc Cartridge

It has two ceramic discs, one fixed in place and the other moveable with the tap or valve handle. It is the most common technology used in modern tapware as it offers unmatched advantages such as no leaks and drips and saves on water and money.
Read more...

Low Water Pressure

Water systems operating at a pressure between 0.1 and 0.4 bar are considered low pressure. Products usually come labelled if they are suitable to use under such pressure.
Read more...

Diverter

A diverter, specifically in bath-shower combos, redirects the water flow from the bathtub spout to the showerhead. You can activate it using the nozzle in the bath shower mixer tap.
Read more...

Medium Water Pressure

Water systems operating at a pressure between 0.5 and 0.9 bar are considered medium pressure. Products usually come labelled if they are suitable for use in medium pressure.
