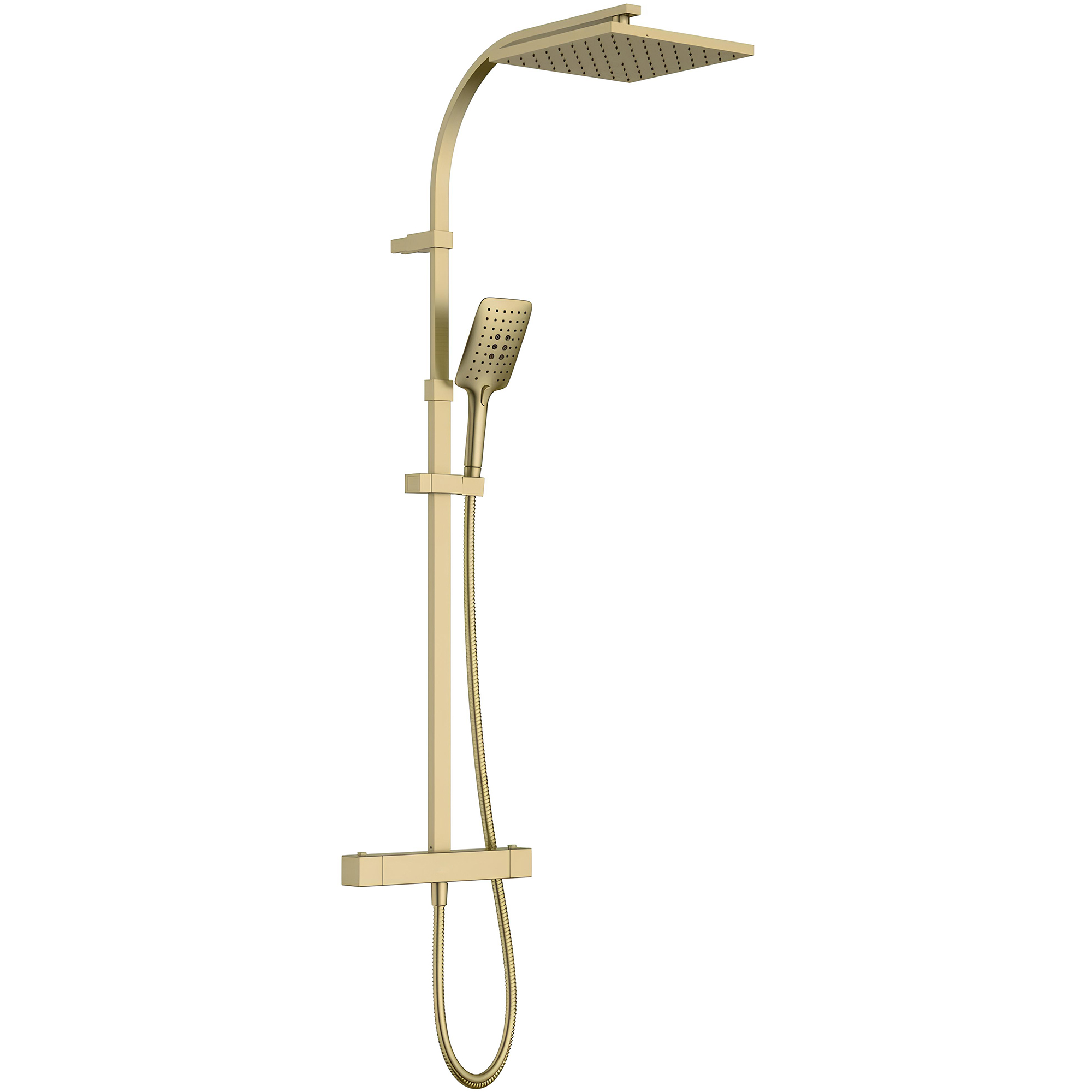

Bristan Quadrato Safe Touch Thermostatic Rigid Riser Bar Shower Kit

Quadrato Details

MFC: QD SHXDIVCTFF C

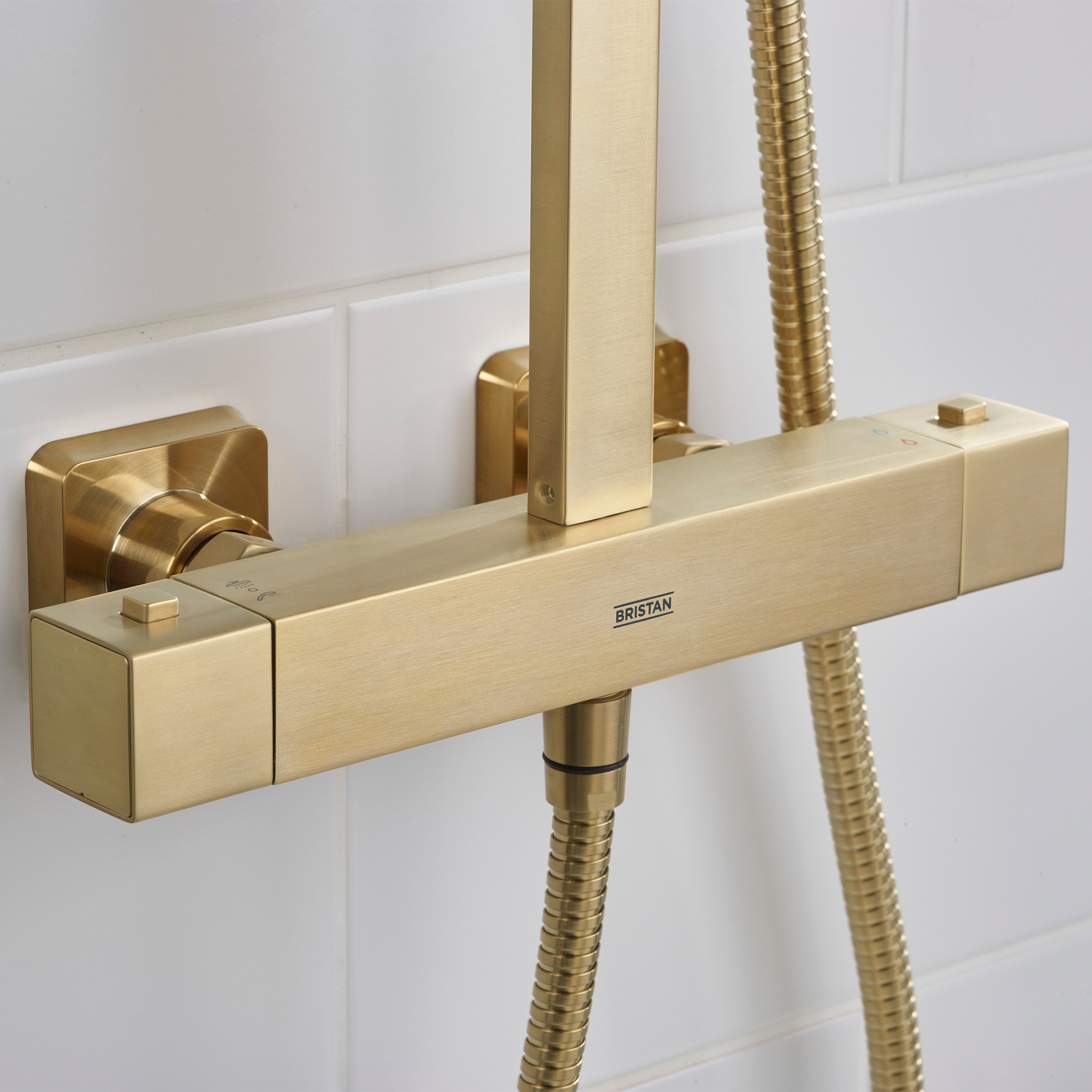

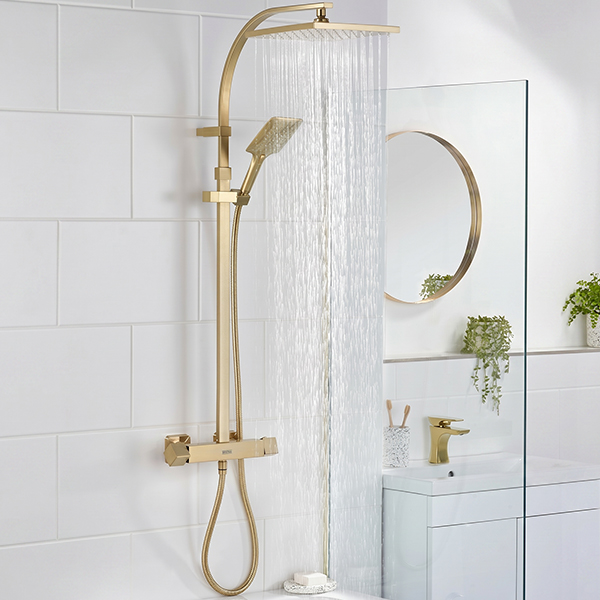

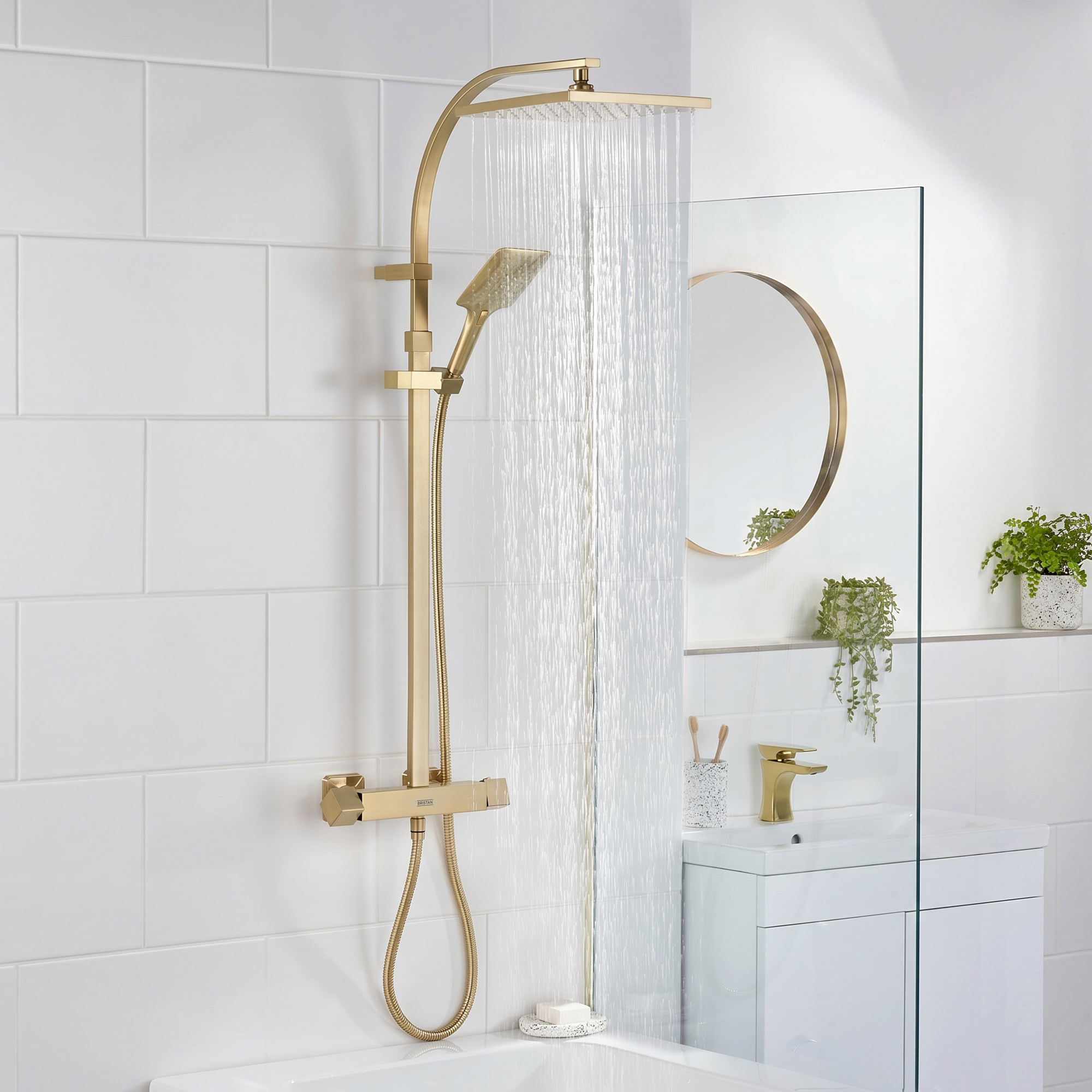

Transform your shower with just a simple installation of the Bristan Quadrato Safe Touch Thermostatic Rigid Riser Bar Shower Kit. The minimalistic shower kit comes with a riser that connects to the handset holder and thermostatic valve. The valve allows you to more easily change and maintain the temperature of the water. The handset is multi-functional while the riser is telescopic. The anti-limescale drench head is optimised for your enjoyment and works in a high water pressure system at only 1 bar water pressure. It carries a lifetime guarantee from the manufacturer.

Key Features

✔Manufactured Using Brass, Stainless Steel and ABS Material
✔Cartridge Type: Thermostatic Cartridge

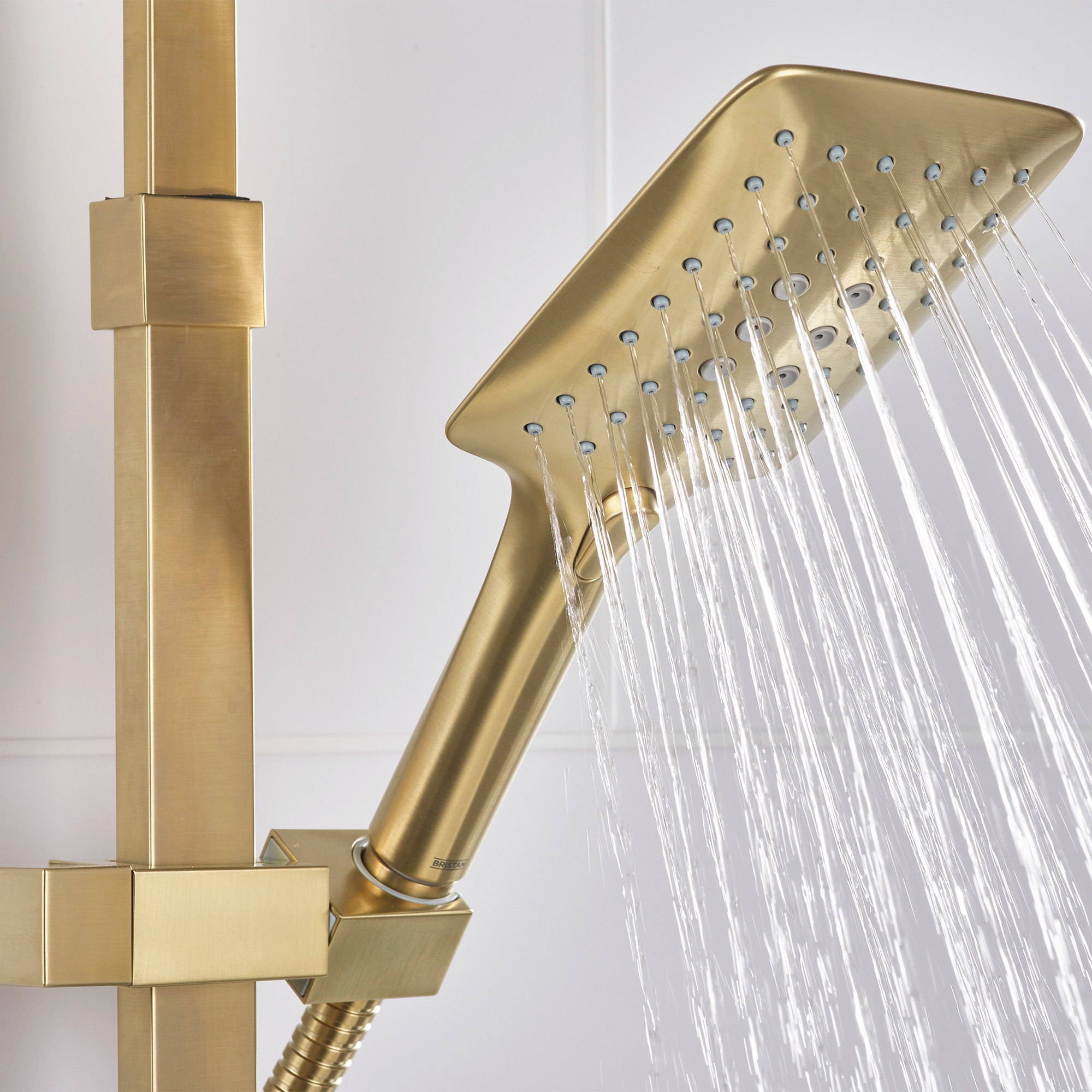

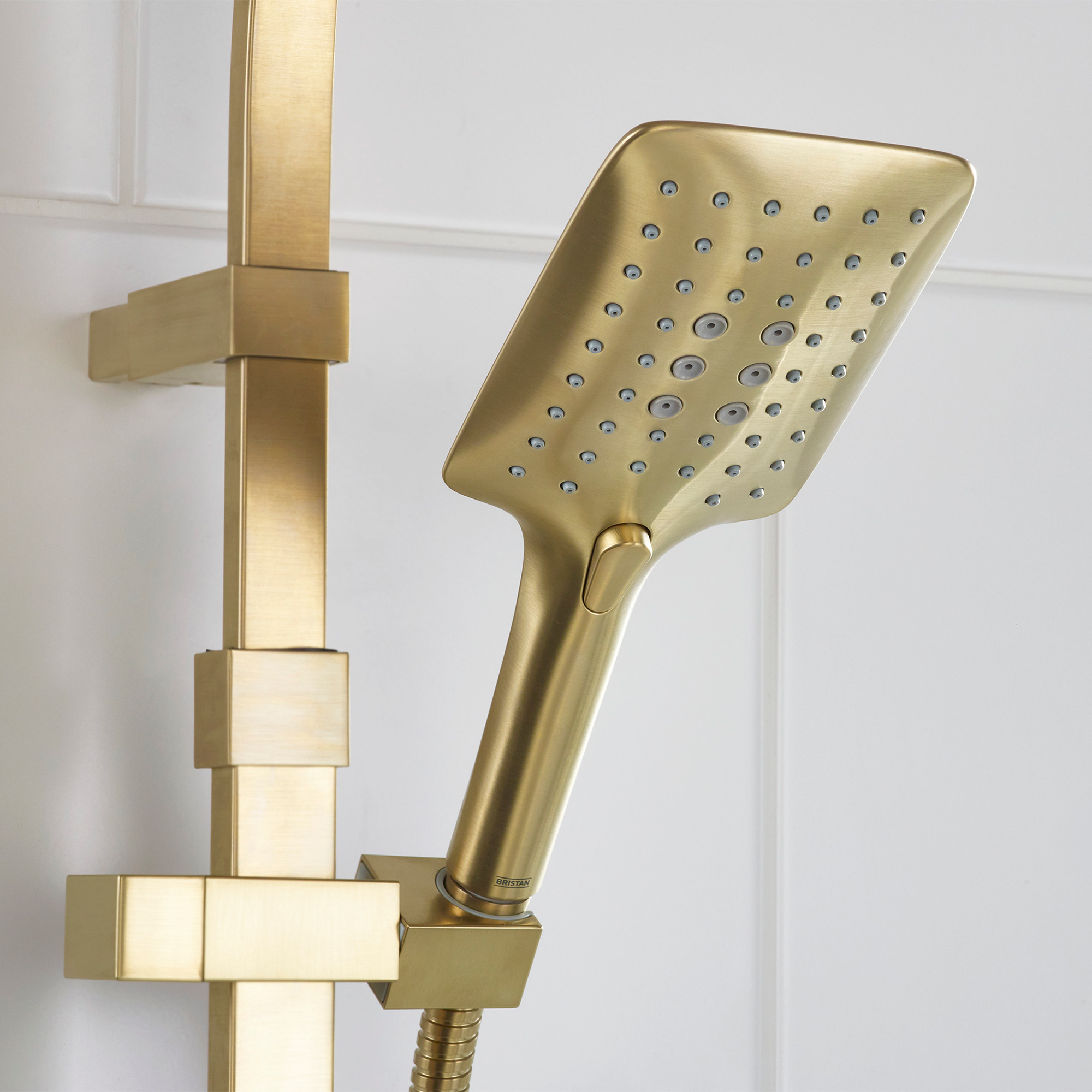

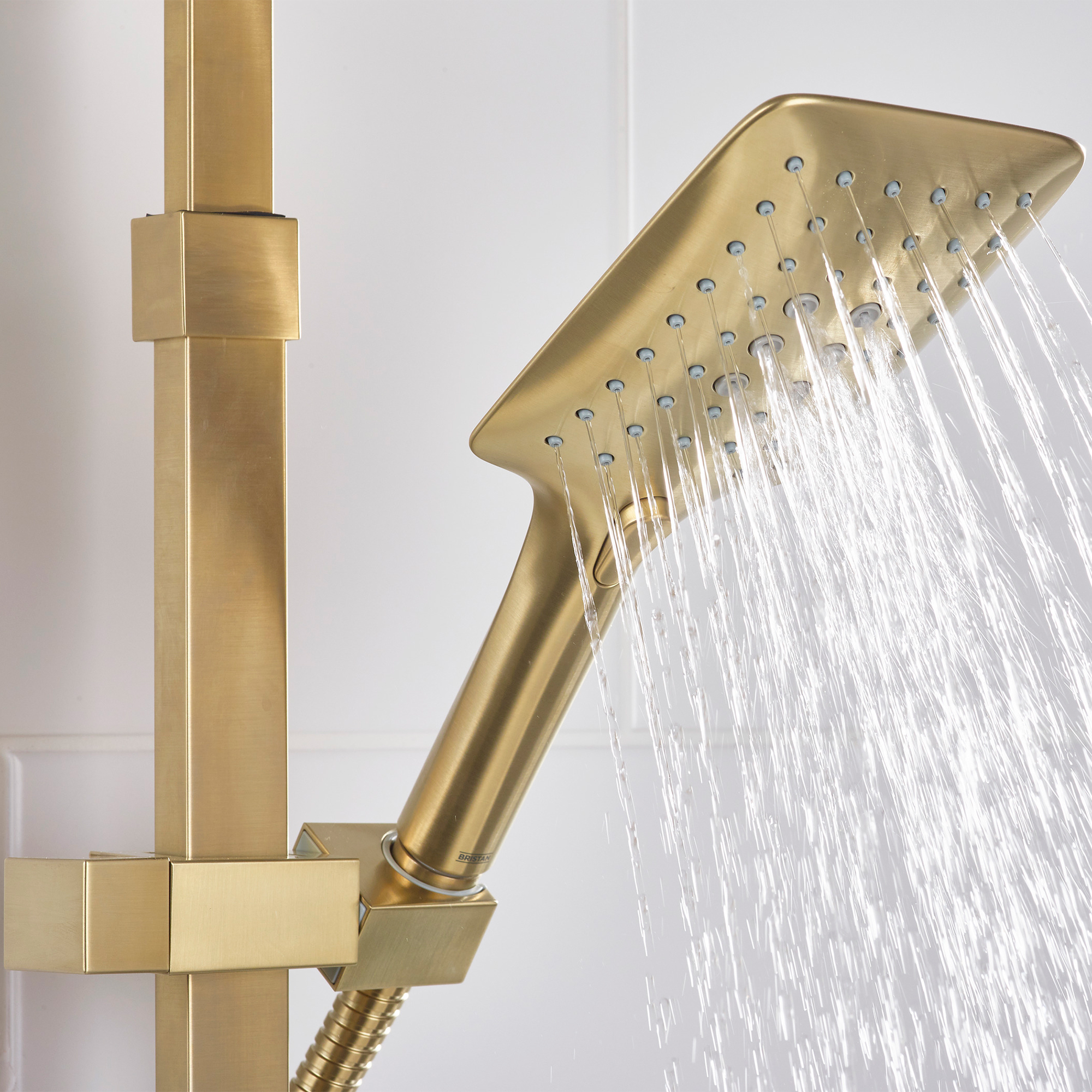

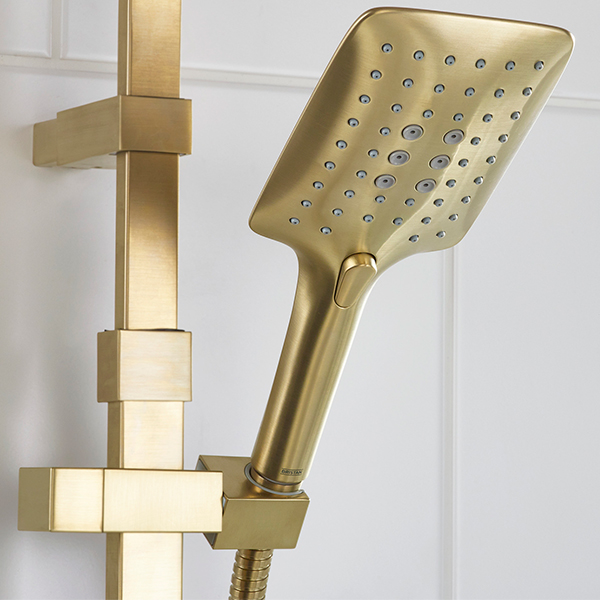

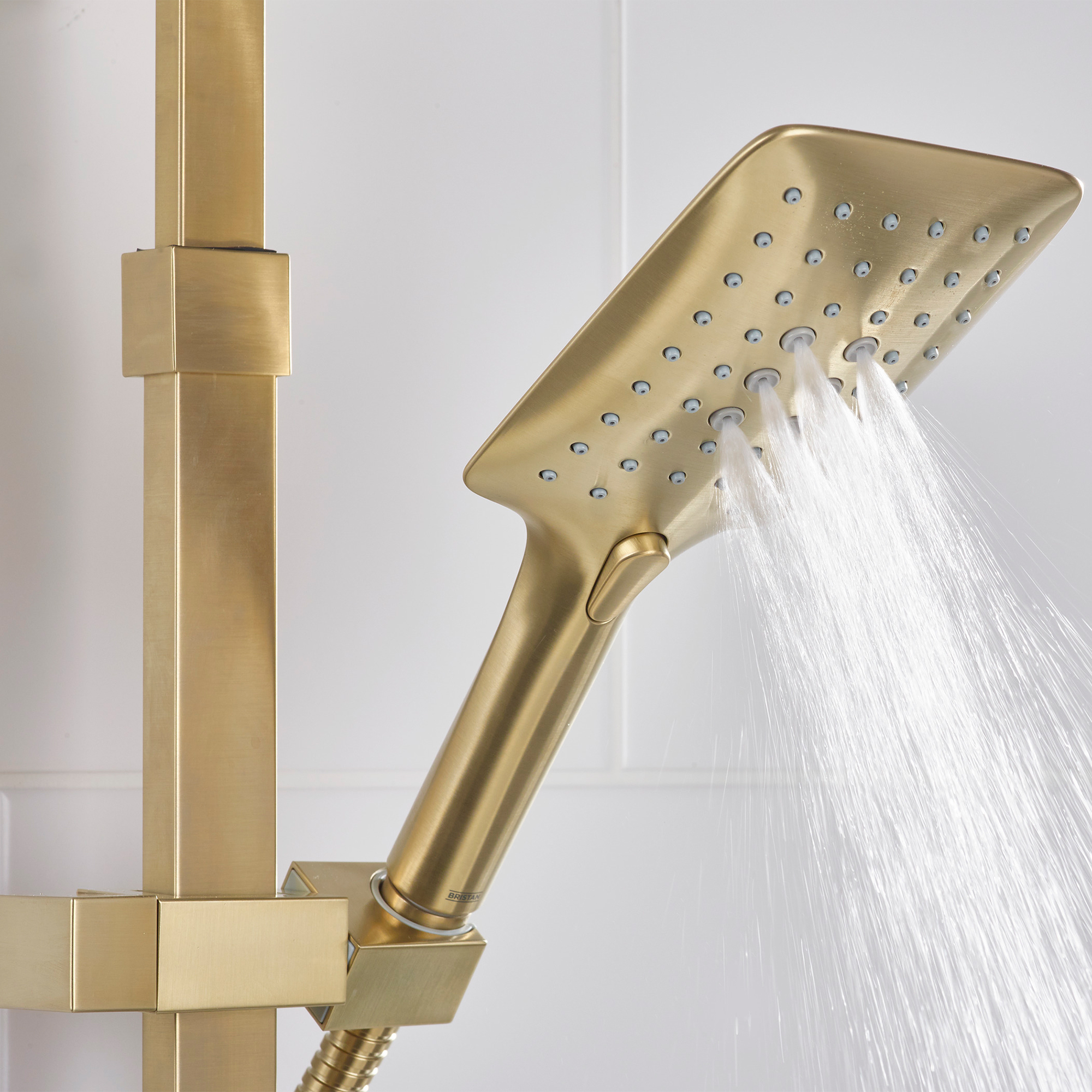

✔Fixed Head and Multi-Function Handset
✔Telescopic Riser with Fixed Head and Handset
✔Lifetime Guarantee from the Manufacturer Against any Manufacturing Defects

Choice of Finishes: Chrome, Brushed Brass
Pack Includes Bar Shower Valve, Hose, Telescopic Rigid Riser Rail, Rub-Clean Anti-Limescale Drench Head and Multi-Function Handset

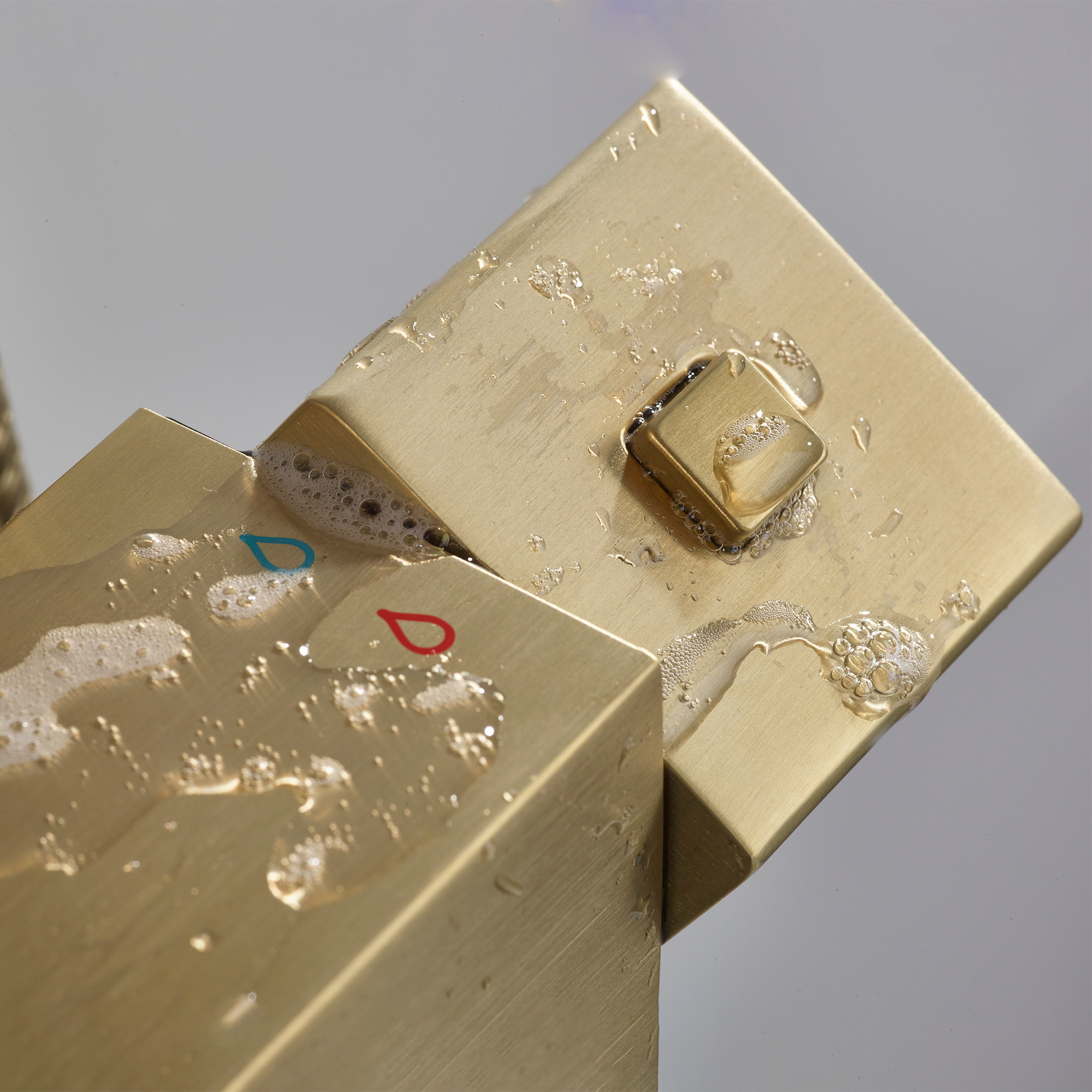

Safe Touch Technology Prevents Scalding, While Separate Flow and Temperature Controls Deliver Your Ideal Shower Every Time

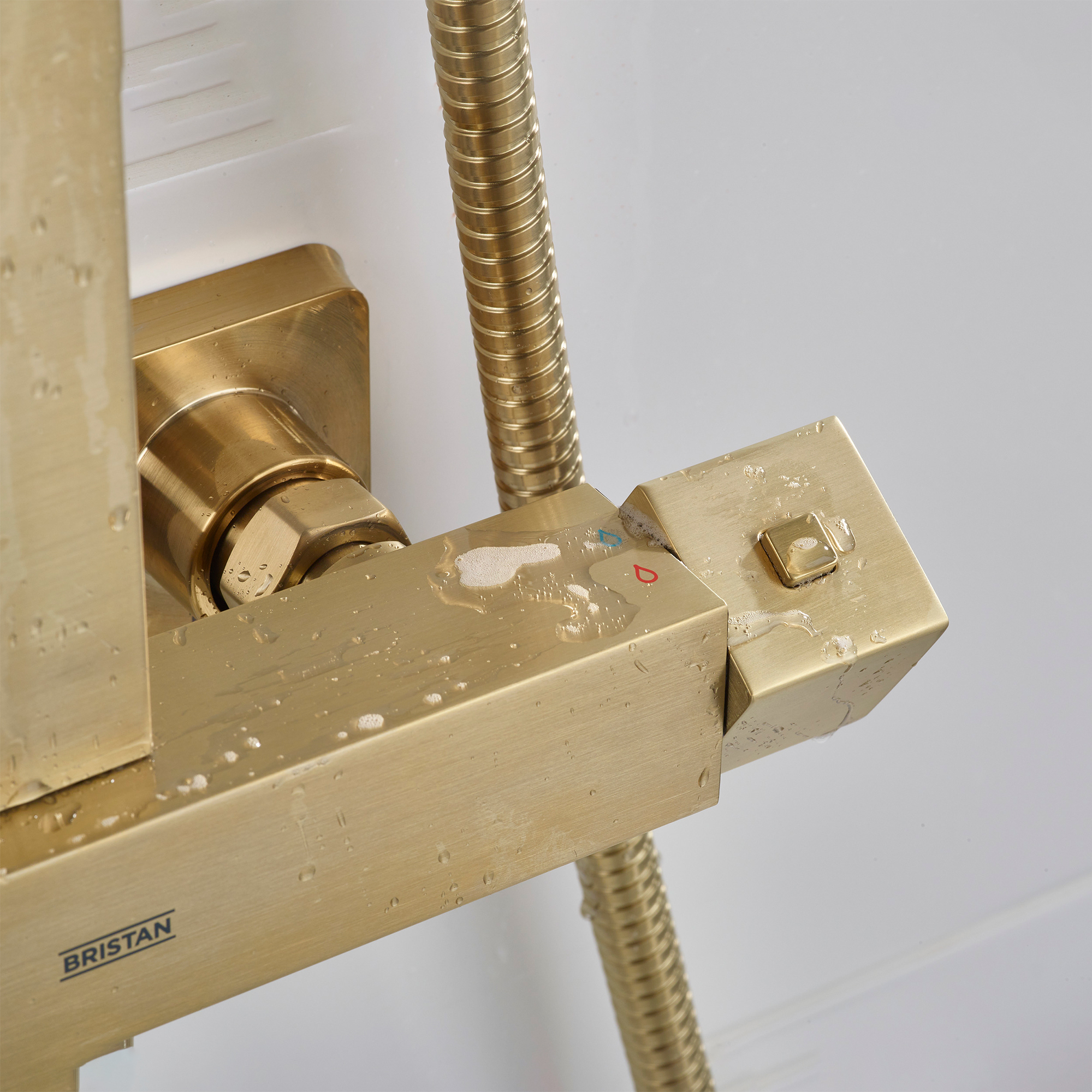

Enjoy Peace of Mind with a 38°C Safety Stop, Including Override When Required
Shower safely with Automatic Shut-off Protection if the Hot or Cold Water Supply Fails
Supplied with an Easyfit Wall-Mount Fixing Kit, Including Isolation for First Fix, and Designed for Easy Bar Maintenance and Replacement
Size of Riser Rail [mm]: 610 x 930-1200mm [Depth x Height]
Size of Riser Rail [cm]: 61 x 93-120cm [Depth x Height]

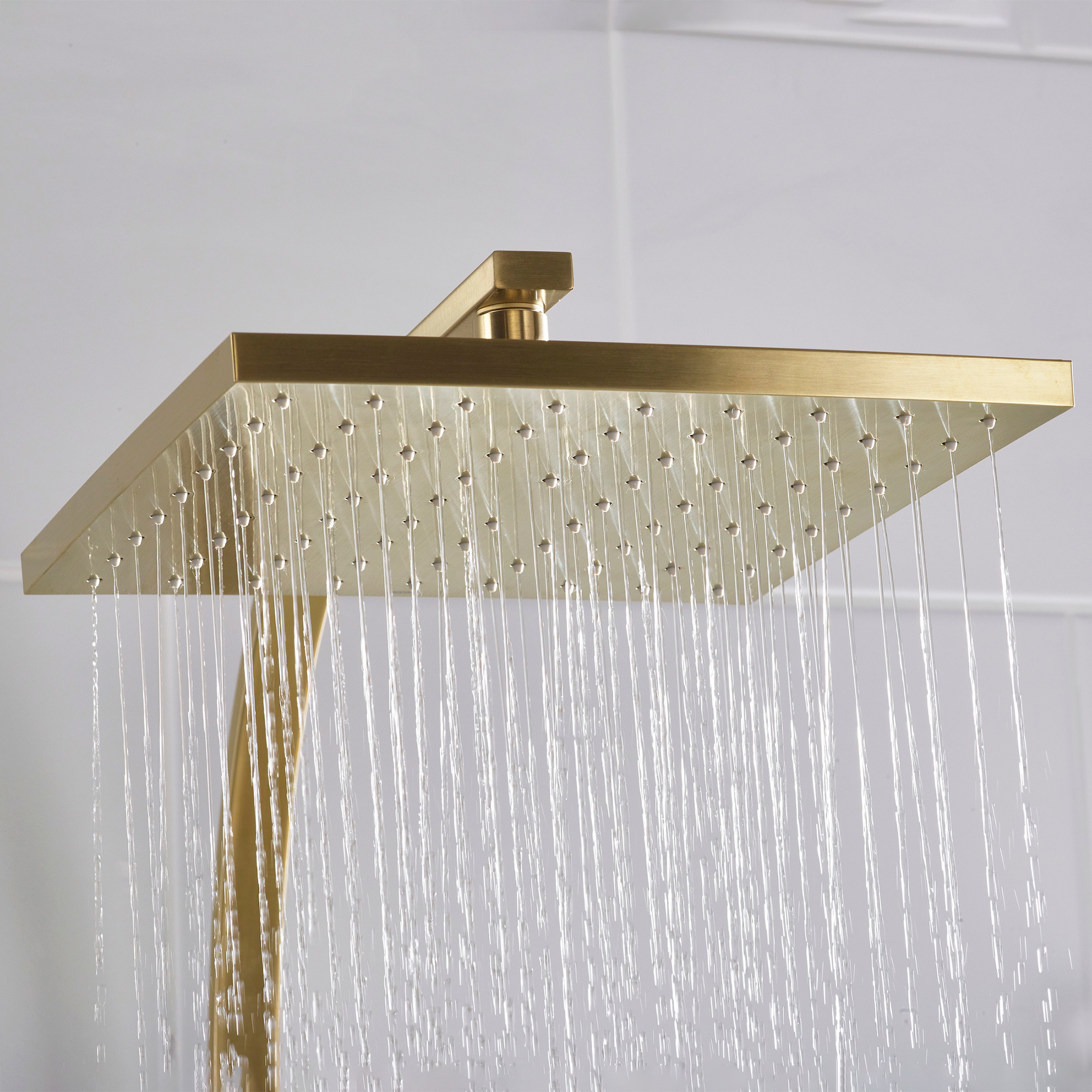

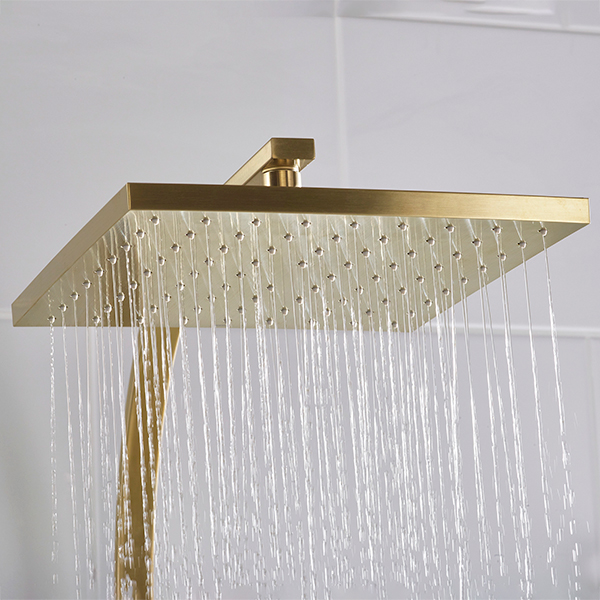

Diameter of Head: Ø250mm [25cm]
Width of Valve: 310mm [31cm]
Inlet Centre of Valve: 150mm [15cm]
Size of Handset [mm]: 100 x 250mm [Width x Height]
Size of Handset [cm]: 10 x 25cm [Width x Height]
Connection Inlet: 15mm Compression
Connection Outlet: G 1/2 Inch
Plumbing System Suitability: Suitable for High-Pressure Plumbing Systems
Requires a Minimum of 1.0 Bar to a Maximum of 5.0 Bar of Water Pressure
Maximum Static Pressure: 10 Bar
Maximum Hot Water Supply Temperature: 60°C

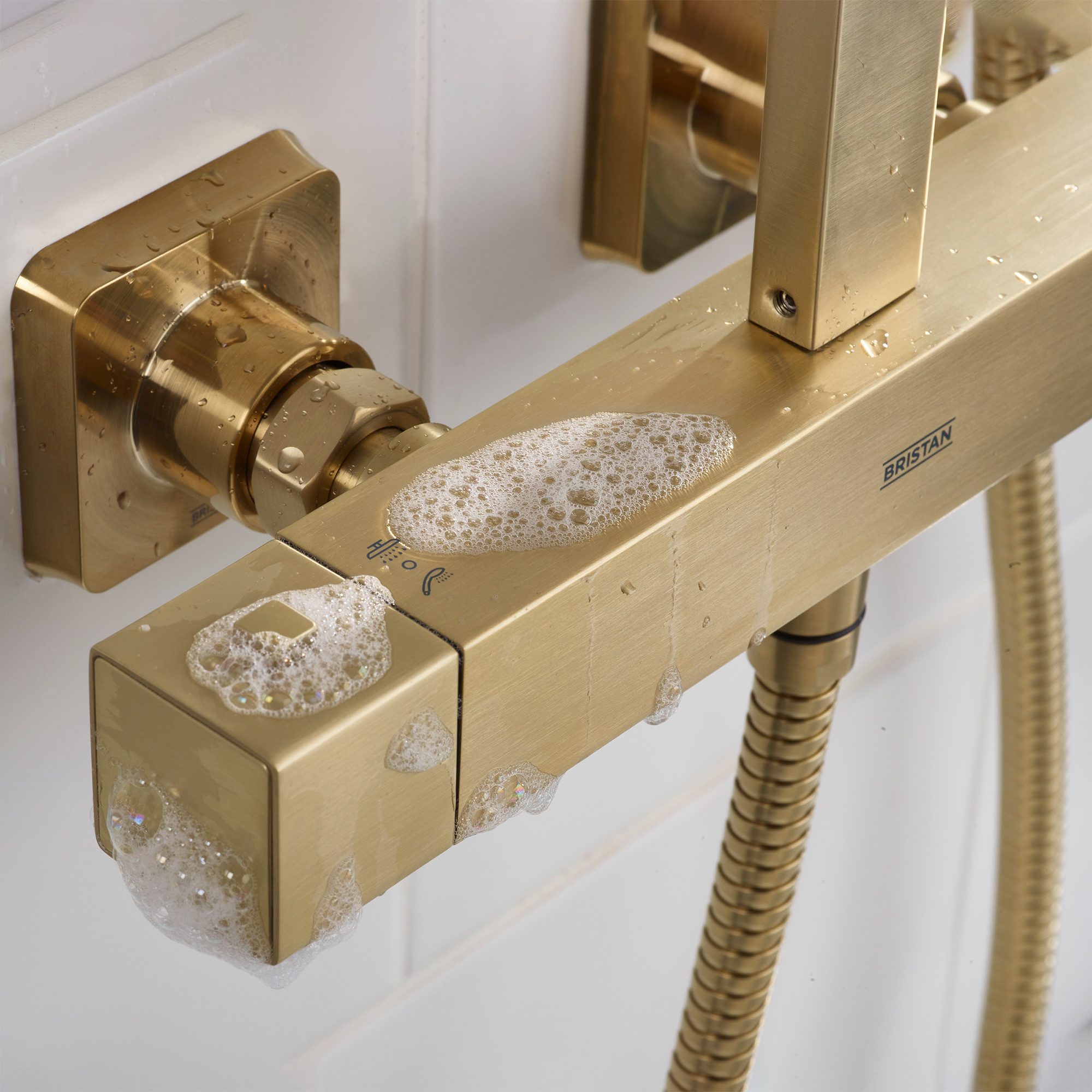

Stay Protected with Safe Touch Technology That Keeps the Valve Cool to the Touch
Keep Your Shower Performing Like New with Rub-Clean Nozzles That Wipe Clean Easily
Switch Effortlessly Between Handset and Drench Head with the Integrated Diverter
Easily Adjust the Height with a Telescopic Riser That Fits Your Space, Ideal for Wet Rooms, Walk-In Showers, or Over-Bath Installations
Refer to the Technical Drawing for Size Details
Download the Installation Instruction PDF File From The Additional Info Section

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Colour
: Chrome
⤷ Warranty/Guarantee
: Lifetime
⤷ Material
: Brass, Stainless Steel, ABS
⤷ Theme
: Modern
⤷ Valve Included
: Yes
⤷ Valve/Cartridge Type
: Thermostatic Cartridge
⤷ Inlet Centres
: 150
⤷ Minimum Operating Pressure (Bar)
: 1
⤷ Hose Included
: Yes
⤷ Temperature Control
: Thermostatic
⤷ Anti-Scald
: Yes
⤷ Diverter Included
: Yes
⤷ Product Type
: Shower Set

⤷ Plumbing System Compatibility
: Yes
⤷ Showerhead Type
: Fixed
⤷ Showerhead Finish
: Chrome
⤷ Riser Rail & Kit Finish
: Chrome
⤷ Adjustable maximum temperature stop
: 38°C
⤷ Auto shutdown if hot or cold supplies fail
: Yes
⤷ Handset Included
: Yes
⤷ Spray Patterns (Shower Handset)
: Multi Function
⤷ Valve Size
: 310
⤷ Shower Head Included
: Yes
⤷ Shower Head Size
: 250
⤷ Rail Length
: 930-1200
⤷ Adjustable Height
: 750-890

Additional Info & Downloads

Download the Installation Instruction Pdf File

This item can also be found in:

Thermostatic Mixer Showers

Bristan Quadrato Safe Touch Thermostatic Rigid Riser Bar Shower Kit

£356.00

IN-STOCK

Delivery in 3 Working Days Approx.

QS Supplies

11 Features Included In This Product Explained

Family Safe

This feature corresponds with the Thermostatic mechanism and automatic safety stops, preventing running water from getting either too hot or too cold.

Safe Touch

The unit's exterior stays cool to the touch, even when hot water runs through the unit, keeping scalding accidents down to zero.

Rub Clean

Any limescale deposits can simply be wiped clean with a clean cloth - no need to scrub or use harsh cleaners.

Drenching

Drenching in Bristan showers means these showers soak you thoroughly, giving you the most indulgent showering experience.

Easy Fit Installation

The product is designed for fast and easy installation.

2-Outlet

The dual outlet Valve comes with a connection for two outlets, so you can use two different fixtures one at a time, such as using the showerhead and shower handset. These Dual outlet shower valves come in various styles and can be used with varying shower fittings. Some come with diverters for switching between the two outlets.

Thermostatic Control

Thermostatic shower control works behind the scenes to achieve or maintain water temperature output from a showerhead. With the built-in safety feature, the shower provides a consistent water temperature.
Read more...

Anti-Limescale

Anti-limescale bathroom accessories are specifically designed to resist or reduce the buildup of limescale, which is a common issue in areas with hard water. These products are designed with special materials or coatings less prone to limescale buildup.

High Water Pressure

Water systems operating at 1.0 bar or higher pressure are considered high-pressure systems. Products usually come labelled if they are suitable to use under such pressure.

ABS Plastic

ABS, or Acrylonitrile butadiene styrene, is a thermoplastic polymer used to manufacture many non-food products. It is inexpensive and can be easily shaped and machined. It also features high strength, stiffness, increased chemical and temperature resistance, electrical insulation and a glossy look.

Stainless Steel Material

Stainless Steel is an iron alloy with anti-rust and anti-corrosive properties, unlike iron. Along with other metal alloys, it contains a minimum of 10.5% of chromium and less than 1.2% of carbon. This robust, hygienic, hard-wearing base material is popular in the construction of bathroom products.
