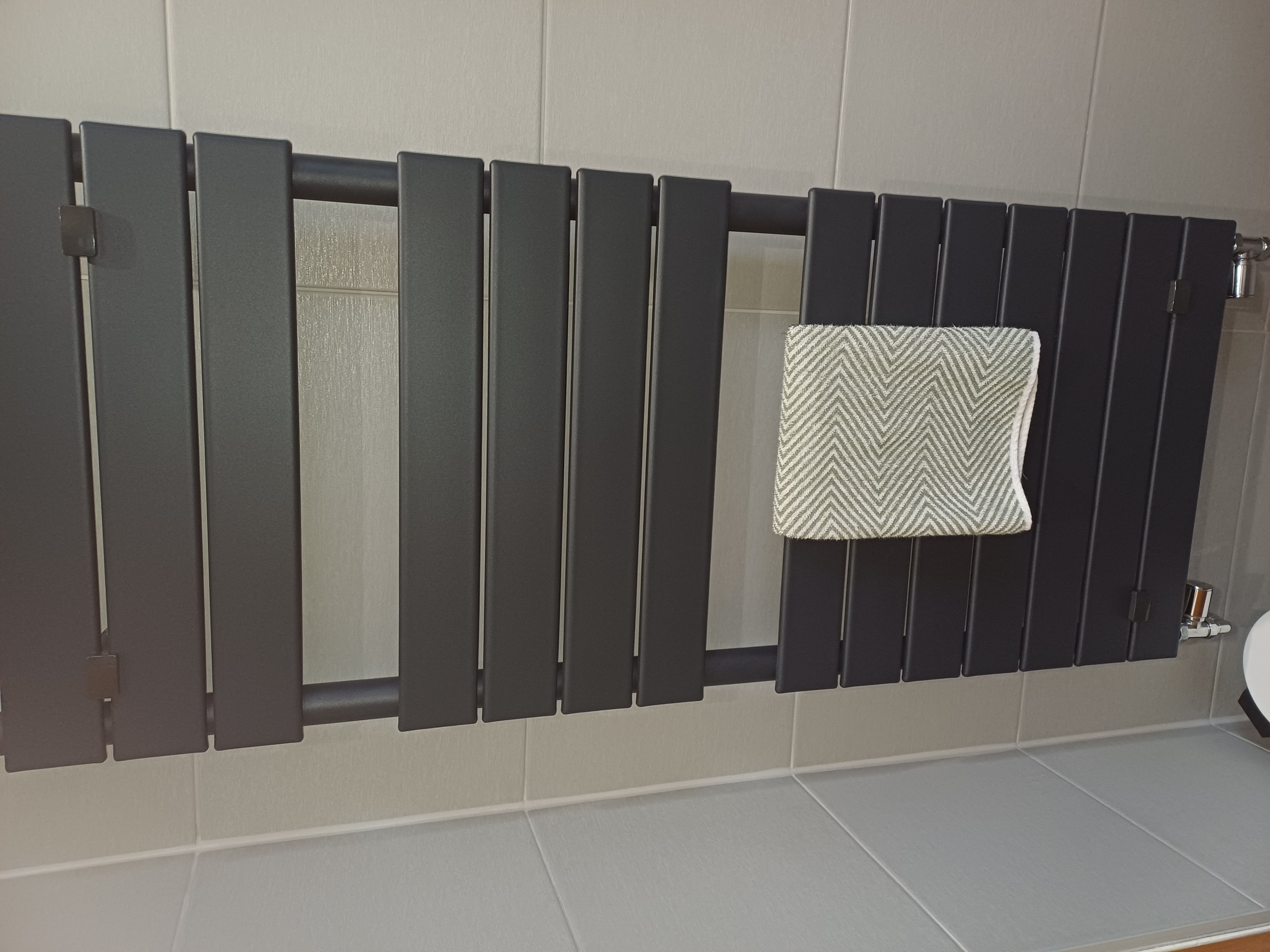

QS Basics Plaza 500 x 1213mm Flat Panel Heated Towel Rail

QS Basics Plaza QSB-2113 Details

Available in Anthracite and Chrome.
Suitable for wall-mounted installation.
Size [mm]: 500mm x 100mm x 1213mm [Width x Depth x Height].
Size [cm]: 50cm x 10cm x 121.3cm [Width x Depth x Height].
Pipe centres: 450mm (45cm).
Number Of Sections/Panels: 14.
Wall to Centre of Tappings: 50mm (5cm).
It comes with a 1/2-inch BSP.
Orientation: Vertical.
Supplied with fixing screws.
It is recommended that the newly installed radiator is refiled with a suitable inhibitor.
Valves and Heating elements are not included.

Refer to the technical image for detailed technical dimensions.
Details For Anthracite Finish:.
RAL NO: 7016.
Heat Output at 30°C: BTU/hr 1079 and Watts 316.
Heat Output at 50°C: BTU/hr 2014 and Watts 590.
Heat Output at 60°C: BTU/hr 2551 and Watts 722.
Projection from the wall: 50mm (5cm).
Details For Chrome Finish:.
Heat Output at 30°C: BTU/hr 642 and Watts 188.
Heat Output at 50°C: BTU/hr 1225 and Watts 359.
Heat Output at 60°C: BTU/hr 1552 and Watts 442.
Projection from the wall: 70mm (7cm).

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Range
: Plaza
⤷ Colour
: Anthracite
⤷ Shape
: Straight
⤷ Warranty/Guarantee
: 5 Years
⤷ Material
: Steel
⤷ Theme
: Modern
⤷ Installation Type
: Wall Mounted
⤷ Projection (Depth)
: 100
⤷ Width
: 500

⤷ Height
: 1213
⤷ Orientation
: Vertical
⤷ BTU Output
: 30°C - 1079 | 50°C - 2014 | 60°C - 2463
⤷ Watts
: 30°C - 316 | 50°C - 590 | 60°C - 722
⤷ Tapping / Pipe Centres
: 450
⤷ Fuel Type
: Central Heating
⤷ Wall to Centre of Inlet
: 50
⤷ Brackets Included
: Yes

Total: £181.62 5-7 Working Days Approx QS Supplies

4 Features Included In This Product Explained

CE Certified Product

CE mark meets the prescribed safety, health and environmental protection requirements and all appropriate EU requirements. This mark is mandatory for products designed, made and sold in the European Economic Area.

UKCA Certified

UKCA or the UK Conformity Assessed marking is a mandatory UK product marking for products sold across Great Britain, equivalent to the CE Marking in Europe. UKCA will be used to replace the CE Marking. CE marking will no longer be valid in England, Scotland and Wales except in Northern Ireland from the 1st of January 2021, and the CE mark will stay valid until the 1st of January 2023. A product with UKCA marking shows that the product complies with the UKCA Marking requirements.

Watts Output

Unit of power to measure electric current.

BTU Output

It is the short form of a British thermal unit (BTU or Btu) and is defined as the amount of heat required to raise the temperature of one pound of water by one degree Fahrenheit. It is a standard unit against which radiator efficiency is measured.
