Villeroy And Boch ViConnect 525mm Blue WC Frame With Cistern



5-7 Working Days Approx

Not Yet Rated No Rating

Shipping: FREE* Check Postcodes

Select Variations
You've Selected: OP-225533 - Height 820mm
Key Features
  • Material: Steel
  • Easy connection to the flush plate via flexible cables with bayonet joint
  • Weight: 10.8kg
  • 2 years of warranty against any manufacturing defects
SKU Code: QS-V106300

MFC Code: 92093000

ViConnect 92093000 Details

A sturdy steel frame, Villeroy And Boch ViConnect Blue WC Frame with Cistern will allow the secure installation of your wall-hung toilet. It can be used with dry-wall constructions, installation on solid brick walls, plasterboard covering, etc. Technical instructions are included with the adjustable frame, so installation is quick and simple.

Its steel construction with a blue finish makes it durable and resistant, and its design provides an easy connection to the flush plate with flexible cables with bayonet joints. Everything is adjustable, so you get the right fit.

  • Manufacturing code: 92093000.
  • It comes in a blue finish.
  • Size: 525 x 155mm [Width x Depth].
  • The adjustment range of feet from the unfinished floor level to the upper edge of the finished floor level: 0-200mm.
  • Depth adjustment front edge of element: 135-205 mm (when actuated from above 155-205 mm).
  • Assembly type: Dry-wall construction.
  • Assembly instructions: for covering with plasterboard, installation on a solid brick wall, in dry-wall constructions etc.
  • Refer to the technical diagram for the complete technical dimensions.
  • Download installation instructions and product data sheet from the additional info section.
  • Pack includes:.
  • WC Frame.
  • Cistern.
  • Installation kit.

Info / Size (mm)

  • WC Frame
  • Width: 525 mm
  • Depth: 155 mm
  • Height: 820 mm

Technical Specifications

Please note all the measurements are in 'mm'
  • ⤷ Colour
  • : Blue
  • ⤷ Weight in kg
  • : 10.8
  • ⤷ Warranty/Guarantee
  • : 2 Years
  • ⤷ Material
  • : Steel
  • ⤷ Cistern Included
  • : Yes
  • ⤷ Width
  • : 525
  • ⤷ Depth
  • : 155
  • ⤷ Height
  • : 820, 985
  • ⤷ Fixings included
  • : Yes

Additional Info & Downloads

Total: £345.65 5-7 Working Days Approx QS Supplies
Add-on Selected: Total Price Now:

Reviews & Ratings

Rate this Item.:

Hide All Reviews

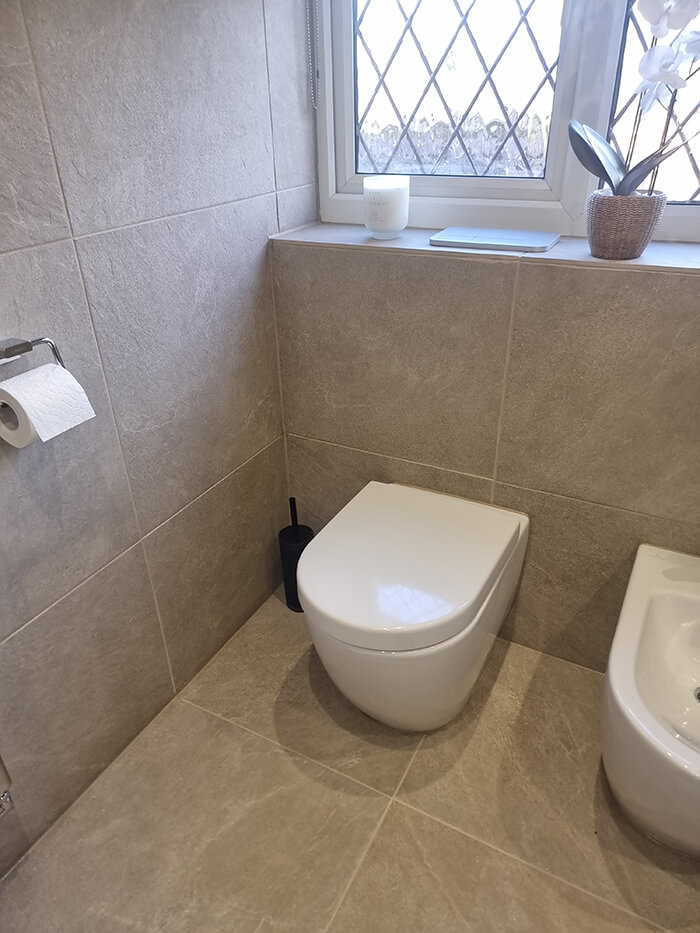

From : Stockport Overall Rating: Date: February 2, 2024 Toilet frame
Nicely made, easy to install. I adapted for use with a floor based toilet (subway 2). It required a minor adjustment but worked well.
