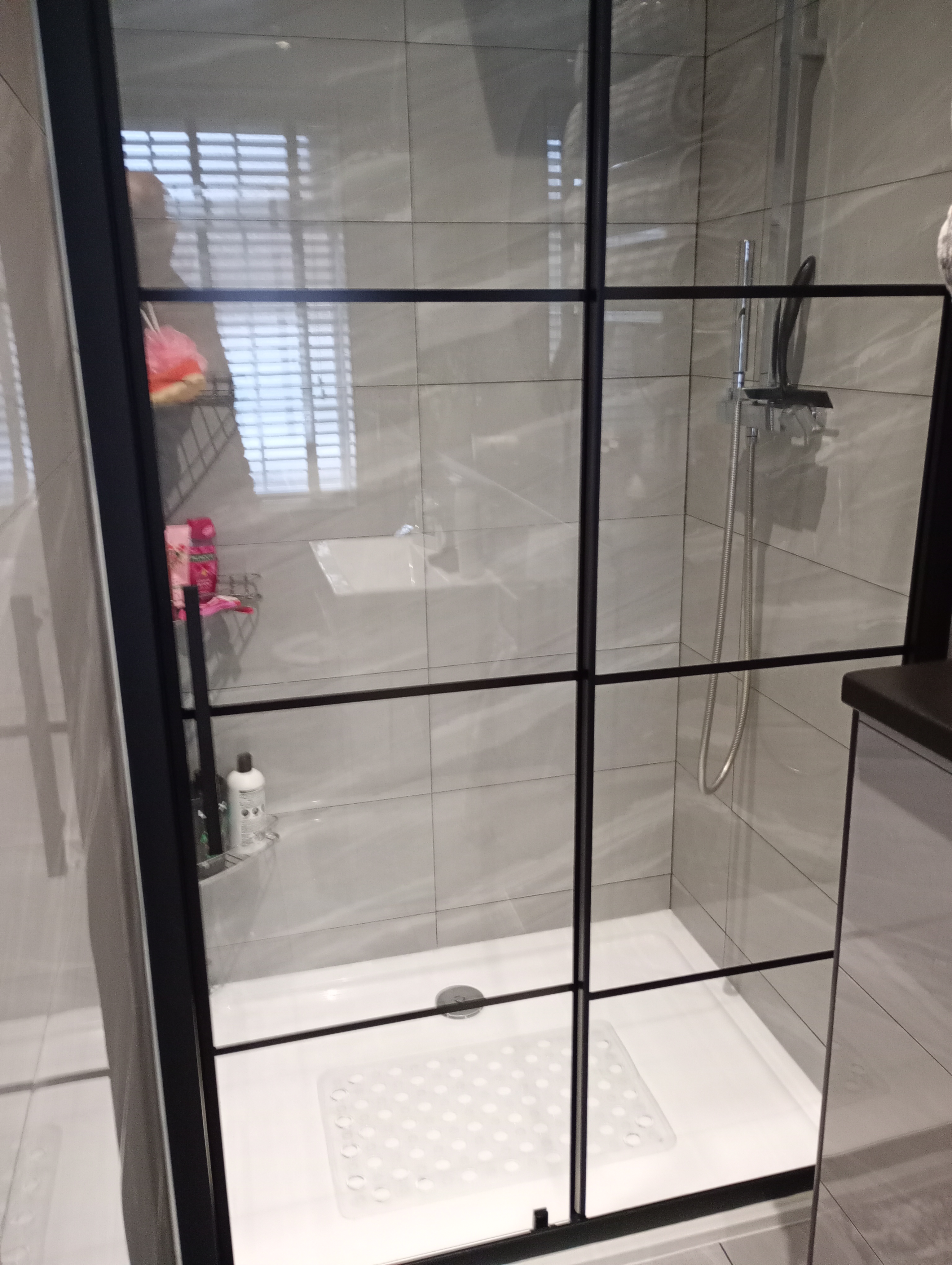

Hudson Reed Apex Matt Black Sliding Shower Door

Technical drawing QS-V107466 / ADSL12-E8

£263.56

STOCK AVAILABILITY

5 Working Days Approx

4.7 out of 5

Based on 3 Ratings.

Shipping: £20.00

QTY

Product Variants

Select Width Step 1

1200mm £263.56
1400mm £275.45

Select Side Panel Step 2

Not Required
800mm
900mm

Select Extension Kit Step 3

Not Required
Profile Extension Kit

SKU Code: QS-V107466

MFC Code: ADSL12-E8

Compatible Tray
+ Review this Product
+ Questions Answered

Hudson Reed Apex ADSL12-E8 Details

Ideal for showers that need a simple entry and exit, the Hudson Reed Apex Matt Black Sliding Shower Door can be purchased in one of 2 sizes 1200mm and 1400mm. It is crafted from durable, toughened safety glass that measures eight millimetres thick and has been given a Shower Shield easy clean coating. This treatment can help prevent limescale or hard water build-up on the glass surface and keep it sparkling clean. The door has a stunning matt black profile made of durable Aluminium and has a reversible design. It is compatible for use with side panels or within a recess and features a T-bar handle.

Key Features

✔Reversible design
✔Profile Material: Aluminium
✔Shower Shield easy clean coating
✔Constructed using 8mm (0.8cm) toughened safety glass
✔Lifetime guarantee from Hudson Reed against manufacturing defects

Available in different sizes: 1200mm and 1400mm - [Optional].
Available in the side panel: 800mm and 900mm - [Optional].
Height: 1950mm (195cm).
Profile Finish: Matt Black.
Suitable for use with side panels or within a recess.
Minimalist T-bar handle.
Handle Style: Square T Shape Handle.
Handle Material: Metal.
Refer to the Compatible Tray available in the product.
Profile Extension Kit - [Optional].
The side Panel, Tray and Extension kit shown in the image are not included - [Sold Separately].
Download the Customer Data Sheet and Installation instruction PDF from the Additional Info Section.

Refer to the technical drawing for more details.
Details For 1200mm Wide:.
Width: 1200mm (120cm).
Entry Width: 480mm (48cm).
Weight: 49kg.
Adjustments: 1140mm-1190mm (114cm-119cm).
Details For 1400mm Wide:.
Width: 1400mm (140cm).
Entry Width: 580mm (58cm).
Weight: 57kg.
Adjustments: 1340mm-1390mm (134cm-139cm).

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Range
: Apex
⤷ Handle Finish
: Black
⤷ Coating
: Without Coating
⤷ Weight in kg
: 49
⤷ Handed Type
: Reversible
⤷ Warranty/Guarantee
: Lifetime
⤷ Installation Type
: Alcove | Corner
⤷ Handle Style
: T-Bar
⤷ Width
: 1200
⤷ Configuration
: Door With Fixed Panel
⤷ Height
: 1950
⤷ Barcode
: 5056462625515

⤷ Door Type
: Sliding
⤷ Frame / Profile Finish
: Matt Black
⤷ Frame Material
: Aluminium
⤷ Glass Type
: Clear
⤷ Glass Thickness
: 8
⤷ Number Of Doors
: 1
⤷ Profile Adjustment
: 1140-1190
⤷ Entry Width
: 480mm
⤷ Closing / Opening Mechanism
: Quick Release Rollers
⤷ Handle Included
: Yes
⤷ Tray Compatible
: Yes
⤷ Door Opening
: Reversible

Additional Info & Downloads

Download the Customer Data Sheet For Sliding Shower Door Pdf File Download the Customer Data Sheet For Side Panel Pdf File Download the Installation Instruction Pdf File

Technical Images

Total: £263.56 5 Working Days Approx QS Supplies

2 Features Included In This Product Explained

Toughened Safety Glass

Toughened glass, tempered or safety glass as it is rightly called, is five times harder than regular glass of the same size and thickness, which makes it so that it won’t break as easily. It also shatters with scattering as it tends to break into tiny, blunt pieces without harming anyone nearby. Known to have greater thermal strength, this durable material with double glazing has almost twice the soundproofing abilities and provides excellent heat insulation.

Reversible Door

A reversible door can be fit to open either to the right or left, depending on the dimensions of your space.

You've Selected which adds to a total of

Reviews & Ratings

Rate this Item.:

Questions & Answers

Submit Your Questions 7 Questions Answered

Have a question about this item? Ask our technical team. We aim to reply within 72 hours.

Helen Asked :
Looking at the extension kit for the Hudson reed shower screen.

Answered By QS Team

The extension kit is available as an optional product. Please refer to OP-219965, which is available in Step 3 of the product.

Was this answer helpful?

Zeina Asked :
Looking to purchase the Apex sliding shower door. In the picture, it shows a right-hand side (right to left to open). Is it possible to switch around when installing? I need a left-handed open (handle on the far left and slide Right to open).

Answered By QS Team

The Hudson Reed Apex Sliding shower door is reversible. You can fit the door on either left or right-hand side.

Was this answer helpful?

Joey Asked :
Does the side panel option also have horizontal black lines across the glass, or is it plain glass with no double central black lines across it like the door has?

Answered By QS Team

We have attached the datasheet of the side panel for all the information you need.

Was this answer helpful?

Sue Asked :
Hi, can you just confirm that the Hudson Reed Apex Sliding shower door can be fitted with an opening on LEFT? It says reversible, but I just wanted to check.

Answered By QS Team

The Hudson Reed Apex Sliding shower door is reversible. You can fit the door on either left or right-hand side.

Was this answer helpful?

steven Asked :
Hi, will I need an extension kit if I buy a 1400mm X 800mm shower tray? And have the door and side panel to suit.

Answered By QS Team

If the opening for the door is less than the door adjustment, then an extension kit is not required. For adjustment of the door, please refer to the technical drawing available in the product.

Was this answer helpful?
