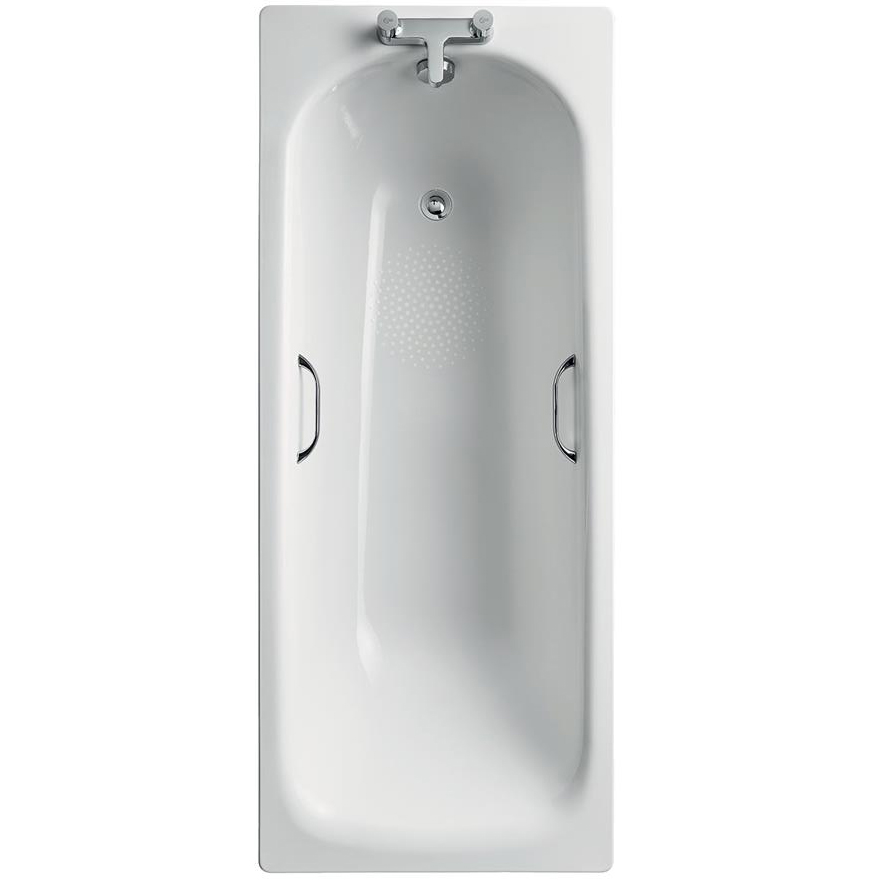

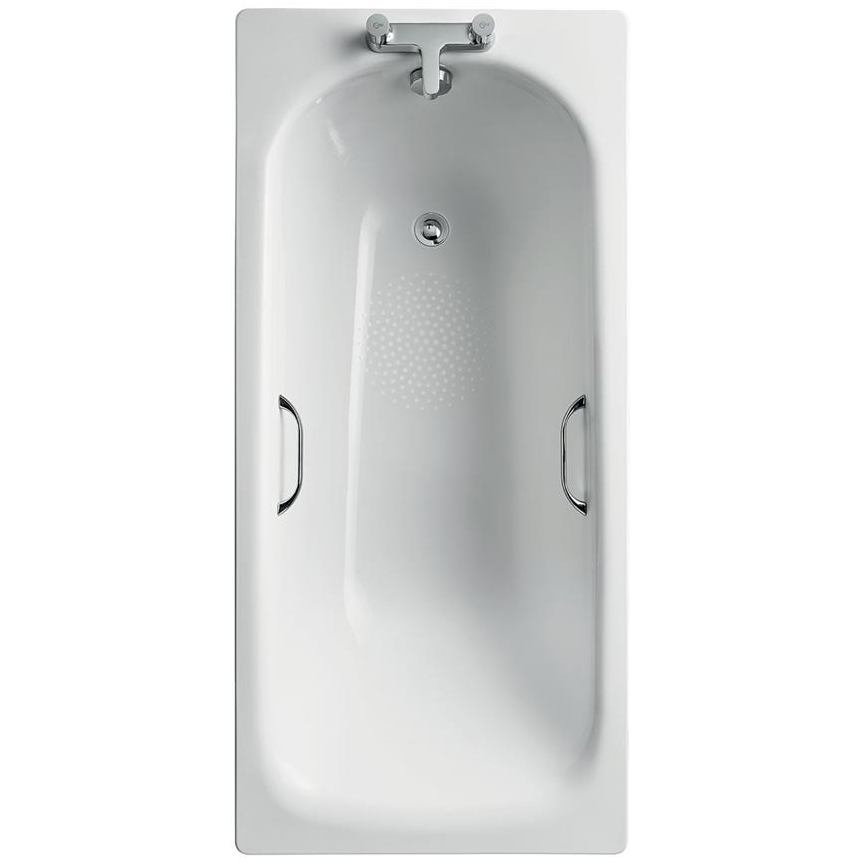

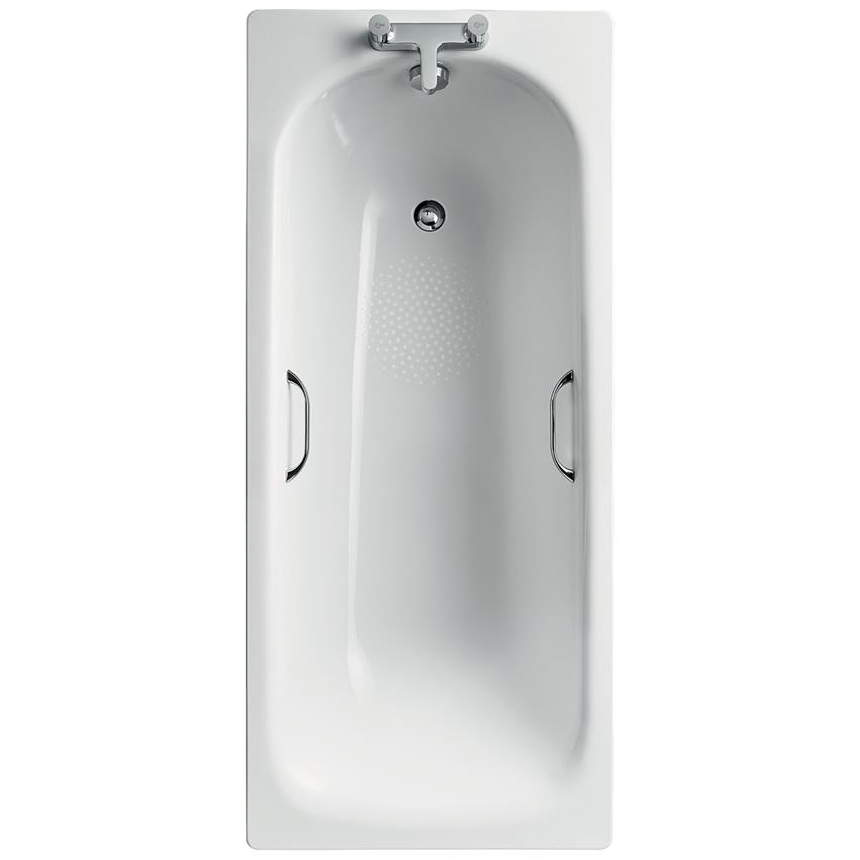

Ideal Standard Simplicity Single Ended 700mm Steel Bath With Hand Grips

Ideal Standard Simplicity E818501 Details

Extreme comfort and adorable aesthetics come handy with the Simplicity Steel Bath, which is proudly introduced by Ideal Standard. This bath is crafted from porcelain enamelled steel that offers great strength and resilience. Supplied with two tap-holes, this sanitary-ware enables easy fitting of your brassware. Chrome-plated handgrips and anti-slip base provide exceptional comfort to the bather. Its white finish enhances its beauty and allure.

Available in 2 sizes - 1500mm, 1700mm [Optional].
It comes in a white finish.
Supplied with two tap hole.
Chrome-plated hand grips.
Suitable for domestic and commercial use.
Size: 700 x 390mm [Width x Height].
Specification For 1500mm Bath:.
Capacity: 139 Litres.
Weight: 24.32 Kg.
Specification For 1700mm Bath:.

Water-Saving.
Capacity: 130 litres.
Weight: 25.51 Kg.
Tap and waste shown in the image are not included - sold separately.
Frequently used in hotels, residential, retail, social housing and student accommodation applications.
For complete size details, please refer to technical drawing.
Optional Product:.
Front And End Panel.
Plastic Corner Edge Strip.
Multi-purpose Outlet And BS Copper Pipe.

Info / Size (mm)

Bath
Length: 1500 mm
Width: 700 mm
Depth: 390 mm

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Position of Drain
: Foot-end
⤷ Interior Shape
: Rectangular
⤷ Range
: Simplicity
⤷ Bath Type
: Single-Ended
⤷ External Length
: 1500, 1700
⤷ External Width
: 700
⤷ Tub Depth
: Internal - 390
⤷ Height Including Feet or Panel
: 510-540
⤷ Front Panel Included
: Sold Separately
⤷ End Panel Included
: Sold Separately
⤷ Colour
: White
⤷ Grips Included
: Yes
⤷ Internal Bottom Width
: 410
⤷ Internal Bottom Width
: 410, 400
⤷ Internal Top Length
: 1330
⤷ Internal Top Length
: 1330, 1530
⤷ Internal Top Width
: 575
⤷ Height of Rim
: 32
⤷ Distance Tub edge to centre of drain hole
: 320
⤷ Distance Tub edge to centre of drain hole
: 320, 310

⤷ Distance Top edge to centre of overflow hole
: 75
⤷ Distance Top edge to centre of overflow hole
: 75, 130
⤷ Diameter of overflow hole
: 52
⤷ Diameter of Drain hole
: 53
⤷ Distance foot end of tub edge to center of foot
: 445
⤷ Distance between the feet
: 555, 740
⤷ Distance tub edge (foot end) to where handle start
: 720, 820
⤷ Distance tub edge (Foot end) to where handle end
: 908, 1008
⤷ Rim Width
: 95
⤷ Weight in kg
: 24.32, 25.51
⤷ Slip Resistant
: Yes
⤷ Shape
: Rectangular
⤷ Capacity in litres
: 139, 130
⤷ Country of Origin
: EU
⤷ Warranty/Guarantee
: 1 Years
⤷ Material
: Steel
⤷ No. of Bathers
: 1
⤷ Waste Included
: Sold Separately
⤷ Tap Holes
: Pre-drilled
⤷ Barcode
: 5.01783E+12

Customise Your Product

Bath Panel

White Finish Bath Panel. Please Note: The image shown is for illustration purposes only.

OP-57525 - Flat Bath End Panel - S091601 + £36.34
OP-57524 - Flat Front Bath Panel - S091501 + £65.64

'P' Trap

1.5-inch plastic P trap with 75mm seal - multi-purposes outlet suitable for plastic and BS copper pipe. Ideal for domestic and hotel use.

None
OP-43041 - 1.5 Inch Plastic P Trap With 75mm Seal - MP Outlet For Plastic And BS Copper Pipe - S897067 + £32.08

Waste

Bath waste comes in chrome finished. The image is for illustration purposes only.

None
OP-43035 - 1.5 Inch Combined Chain Waste And Overflow - S8830AA + £26.12

Total: £358.33 5-7 Working Days Approx QS Supplies

3 Features Included In This Product Explained

Anti-slip Bath

With the finish choice easily available, many people consider safety when looking into an anti-slip bath. The anti-slip surfaces are moulded directly into the bath’s floor, perhaps as a series of raised nubs that give the foot more traction. Manufacturers also apply chemical coatings that make the surface less slippery and provide high-quality baths minus the fear of slipping. These baths are easy to clean without compromising the anti-slip/non-slip properties.

With / Without Overflow

An overflow is a small hole or opening at the upper part of a sink, basin, bidet or tub that drains away water upon reaching its level so that no water is spilt. When a basin or bath does not come with this design feature, it is called “without overflow” and will need a compatible drain.

Optional: Front Panel

A front bath panel is a decorative accessory that is used to cover the front-facing side of a bathtub for a neat and polished look. It also conceals plumbing and framework and comes in different sizes, textures and materials.
